Honeywell 51309586-175 Rev D C300 Processor PWA 51305969 Rev A

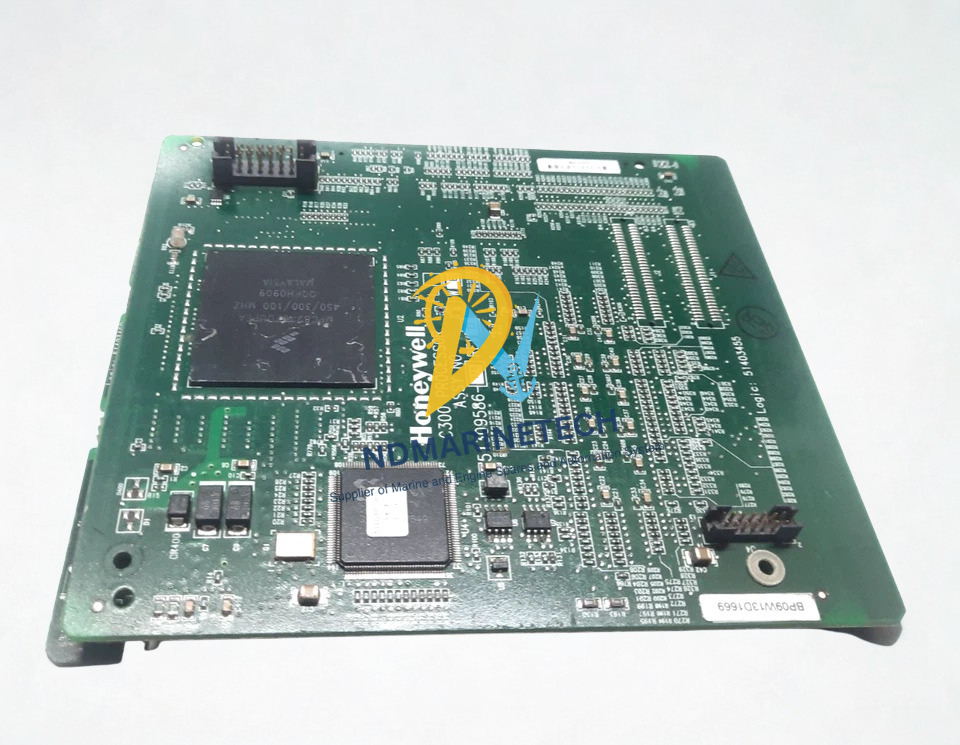

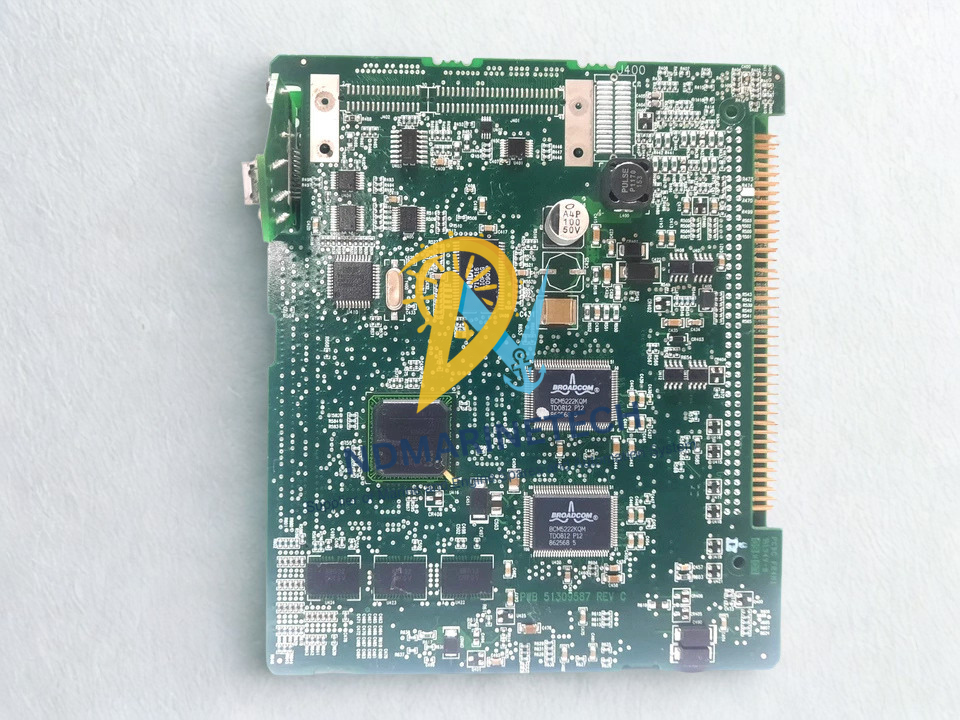

Honeywell 51309586-175 Rev D C300 Process Control Assembly

The Honeywell 51309586-175 Rev D is a core C300 processor printed wire assembly (PWA) for the Honeywell Experion Process Knowledge System (PKS) distributed control system (DCS). This module is the primary computational hardware for the C300 controller architecture, running on the sturdy 51305969 Rev A PCB platform.

This assembly executes complicated control strategies on a highly predictable, consistent schedule and is designed to run Honeywell’s deterministic Control Execution Environment (CEE) software. The 51309586-175 delivers the processing power, sub-second failover redundancy and hardened security profiles to maximise system uptime and eliminate single points of failure when managing heavy industrial processes ashore or critical machinery automation in complex marine environments.

Model Details

Key Features

1. Real-Time Control with Deterministic Execution: Runs the Honeywell proprietary CEE layer to ensure exact 50 ms loop execution schedules without jitter, keeping crucial valve and motor loops perfectly steady.
2. Seamless Dual-Board Redundancy: Uses odd-even pairing topologies with conventional IOTA backplanes, enabling quick, zero-bump data synchronisation and hot-swap replacement during live operations.
3. Native Smart Device Protocol Integration: Easily handle simultaneous processing for open, advanced communication buses such as HART, Foundation Fieldbus, Profinet, Modbus and EtherNet/IP
4. Industrial-Grade Thermal and Physical Hardening: The Rev D assembly has improved the way heat moves along the PCB plane, so it can work continuously in temperatures from -40°C to +70°C.
5. Embedded Cybersecurity Profiles: Secure by design architecture with customisable device index safety locks to prevent unauthorised firmware injections and attempts to modify firmware that have not been verified.

Marine Engineer’s Guide:

-> As marine and field service engineers, we often experience C300 processor switches during periodic plant overhauls or emergency hot swapping on vessel automation racks. The C300 platform is very robust, but if you pay close attention to your backplane orientation and firmware alignment, you can avoid serious system integration issues.

-> Board Revision Profiles Verification: Before installing the new 51309586-175 Rev D on your existing IOTA, always check the revision level of your active secondary processor. For example, mixing a Rev D processor with an older revision board, such as a Rev B, in a redundant pair arrangement may sometimes cause you to receive non-critical synchronisation warnings or mismatch codes in your Experion Configuration Studio. You can guarantee clean, predictable sub-second switchovers by matching your redundant processor pairs at the board assembly and firmware levels.
