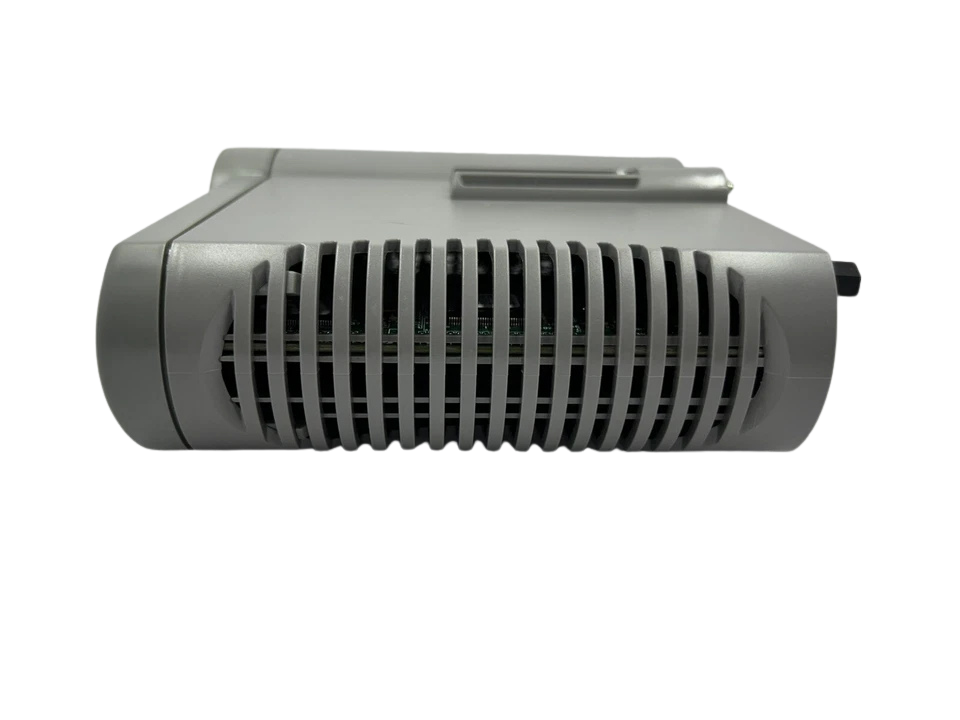

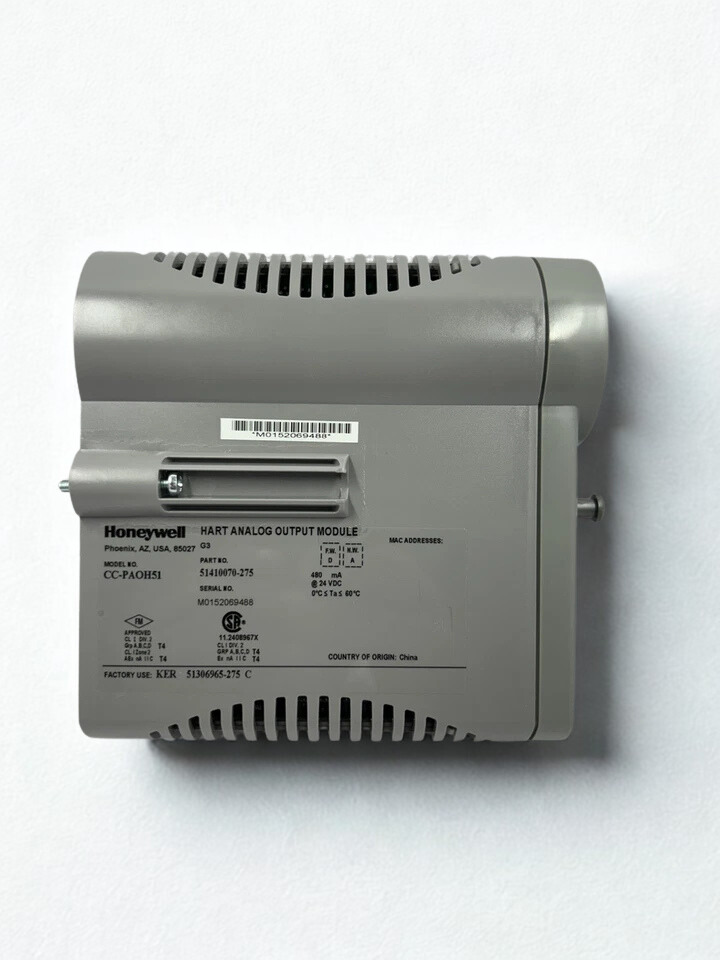

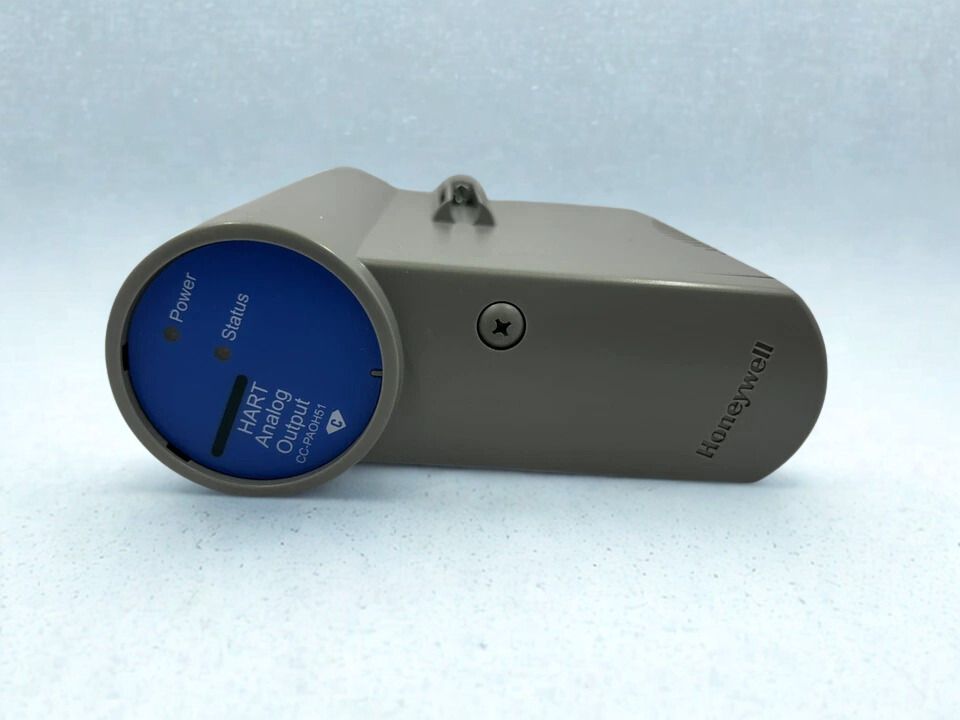

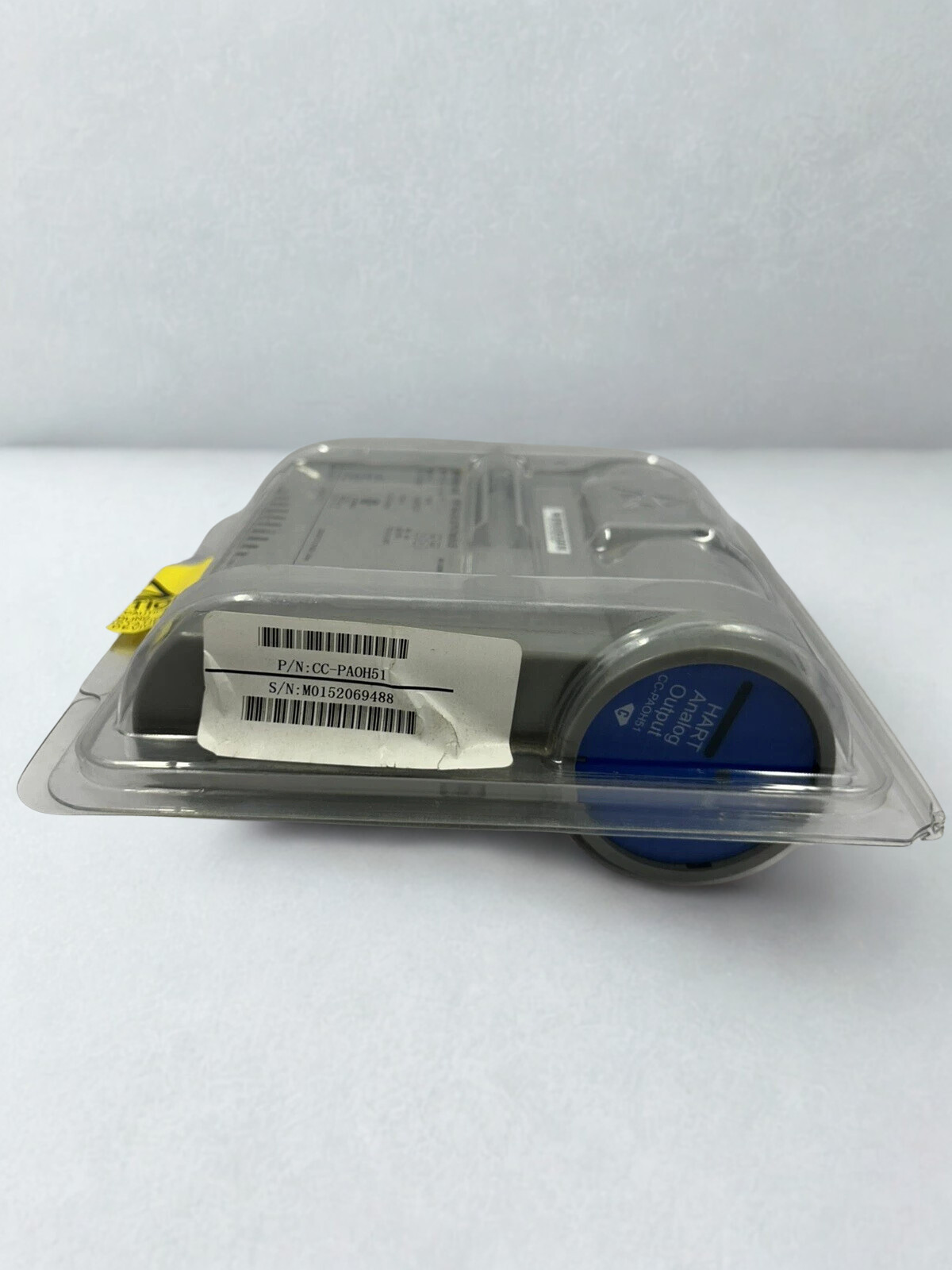

Honeywell CC-PAOH51 51410070-275 HART Analog Output Module

Honeywell CC-PAOH51 HART Analog Output Module (51410070-275)

The Honeywell CC-PAOH51 is a high-level analogue output module with 16 channels that works with the Experion PKS Series C architecture. This module gets digital orders from the C300 controller and transforms them into 4–20 mA signals that modulates final control elements in closed-loop systems. Because of this, HART-enabled field instruments like the Fisher DVC6200 positioners and the Masoneilan SVI regulators can talk to each other in both directions. The IOTA (Input Output Termination Assembly) lets this device link directly to Woodward governors and ABB ACS880 drives in marine power management systems.

Operational uptime in high-vibration environments is maintained by the fact that the module can filter out common-mode noise at 60Hz, which is typical in shipboard electrical grids. The CC-PAOH51’s internal circuitry fixes harmonic distortion that develops in the engine room because of massive variable frequency drives (VFDs). The 51410070-275 PCB is protected from salt-air ionization and humidity levels over 95% by its conformal coating.

Technical Specifications

Industrial Applications

• Precision Actuator Control helps you put control valves and dampers in chemical processing and power plants exactly where you want them.
• Variable Speed Drives (VSD): These systems send exact setpoints to motor control and frequency control systems.
  Field Instrument Powering: Sending control signals and loop power to oil and gas refinery tools at the same time.
• Process Automation: Centralized control of heating elements and flow regulators in plants that create pharmaceuticals and clean water.

Maintenance & Preventive Actions

• To keep the IOTA terminal screws from breaking loose from vibrations, use a calibrated 1/4-inch torque driver to tighten them all to 0.5Nm.
• Check the ripple levels of the 24V DC power source with a Fluke 125B ScopeMeter. They should not go above 100mV peak-to-peak.
• Check the 50-pin IOTA connector pins with a 10x LED jeweler’s loupe for galvanic discoloration.
• Check that the 4–20mA loop output matches what the Experion control station says it should be using a Beamex MC6 field communicator.
• Utilize Honeywell FDM to back up device descriptors and calibration parameters and fault data for your HART device.
• To clean the module’s faceplate and ventilation slots, use a cloth that doesn’t leave lint and compressed dry air.
• Withdraw the module from the IOTA slot and use a megger to examine the insulation on the field line at 250V DC to see if the cable jacket is coming off.
