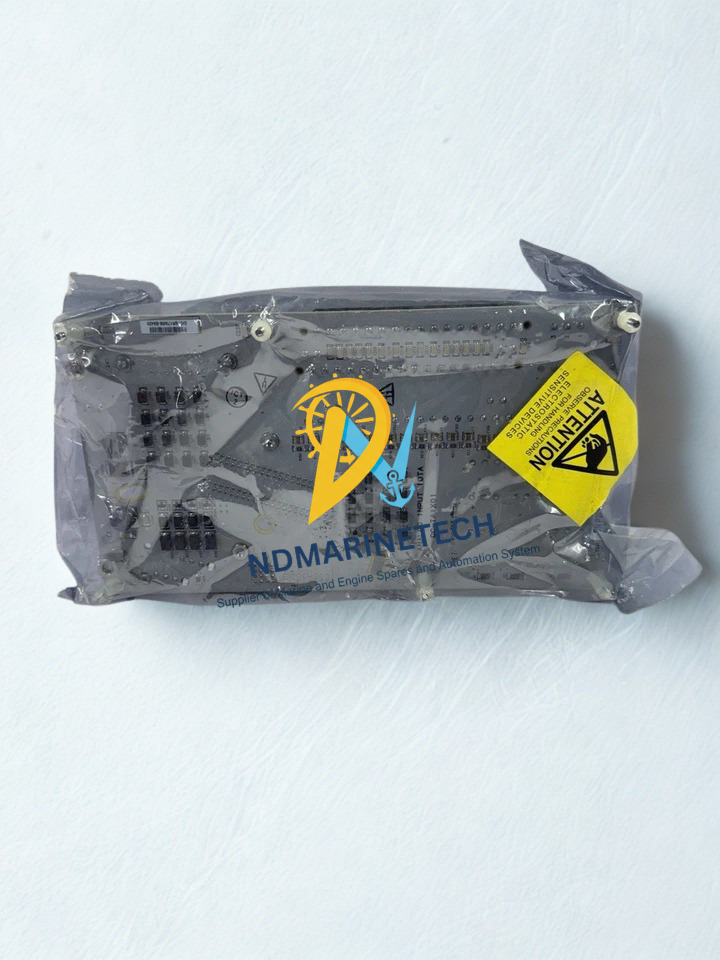

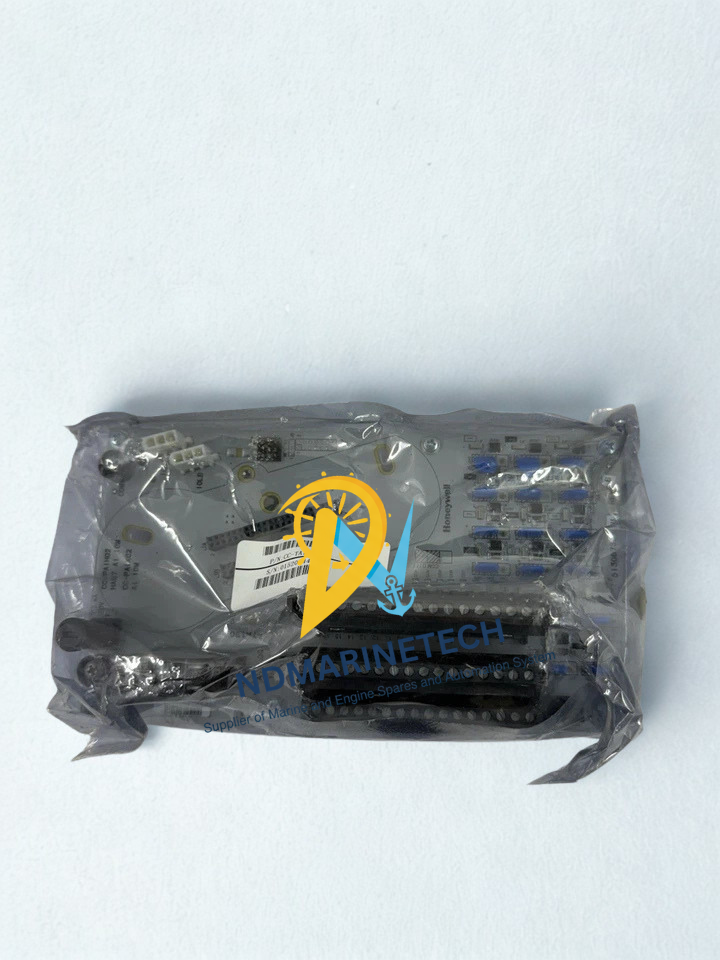

Honeywell CC-TAID01 51306733-175 Analog Input Module

Honeywell CC-TAID01 Experion PKS C-Series 16-Channel HART Differential Analog Input IOTA Module

The Honeywell CC-TAID01 (MPN: 51306733-175, Revision B) is a high performance 16 channel differential Analogue Input IOTA (Input/Output Termination Assembly) block for the flagship Experion PKS C-Series distributed control system (DCS). This rugged module is the key field-wiring interface, linking analogue process variables (4-20mA loop signals, 1-5V or 0-10V configurations) from field transmitters directly to the Experion control processor architecture.

The CC-TAID01 is designed to route digital Highway Addressable Remote Transducer (HART) protocol overlays without any loss, allowing instrumentation engineers to achieve high accuracy, 16-bit resolution process monitoring with cross-talk mitigation and excellent common-mode noise rejection, due to its advanced differential signalling layout.

Features

1. 16 Differential Channels Maximises wiring density and protects signal integrity against loop interference and floating ground potentials.
2. HART Protocol Pass-Through: Simultaneous route mapping of secondary variables, device diagnostics and remote instrument configuration.
3. Hot-Swappable C-Series Architecture Designed for continuous process industries to minimise downtime in planned upgrades or routine module replacements.
4. Galvanic & Comm-Mode Isolation Internal circuit protection rated to 500 Vrms isolation protects critical system backplanes from catastrophic field transients.
5. Ruggedized Mechanical Form-Factor Small 9 inch DIN-rail mount form-factor designed to endure extended temperature ranges and severe vibration profiles.

Compatibility & Cross-References

System Compatibility

• Fully integrated with Honeywell Experion PKS C-Series systems.
• Mates directly with the CC-PAIH01, CC-PAIH02, and CC-PAIH51 High-Level Analog Input Modules with HART processing.
• Integrates flawlessly with C300 Controllers via dedicated IO-Link backplane topologies.

Part Number Cross-References

• 51306733-175
• 51306733175
• CC-TAID01 Rev B
• CC-TAID11

Technical Specifications

Engineer’s Insight:

In marine environments and heavy industrial processing plants, electrical “ground loops” are a recurring nightmare due to hull bonding, structural welding, or long field cable runs.

Because the Honeywell CC-TAID01 is a true differential IOTA, it samples the voltage drop across the positive and negative legs independently rather than referencing a single shared ground plane. This design characteristic provides an exceptional defense against stray electrical noise frequently encountered on ships and industrial plants.
