Honeywell FC-PUIO01 51454294-176 Universal Safety I/O Module

Honeywell FC-PUIO01 51454294-176 | Universal Safety I/O Module

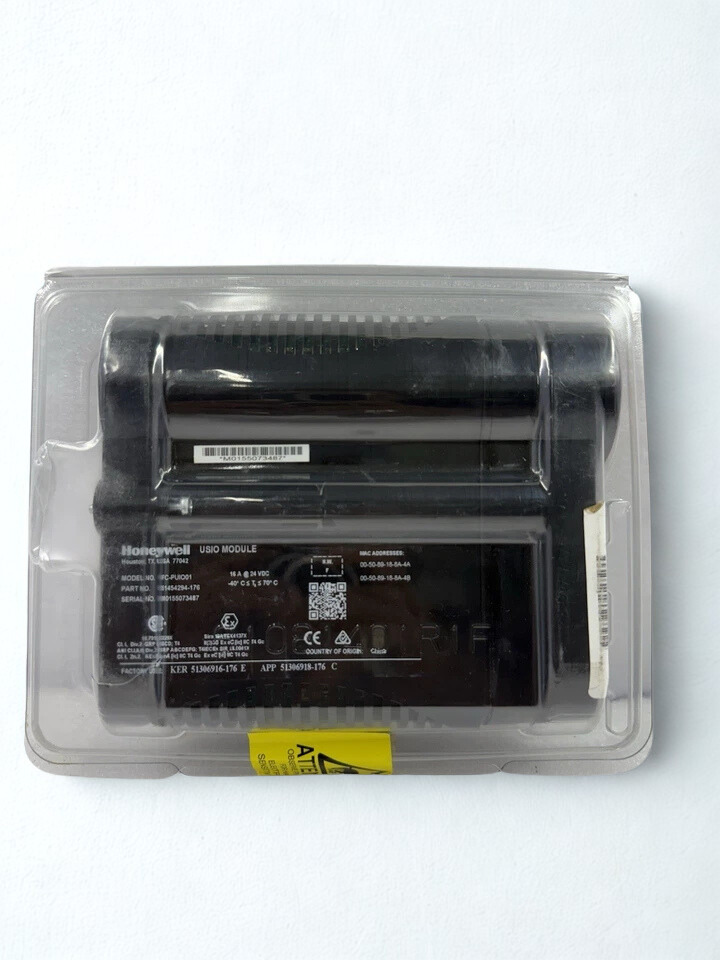

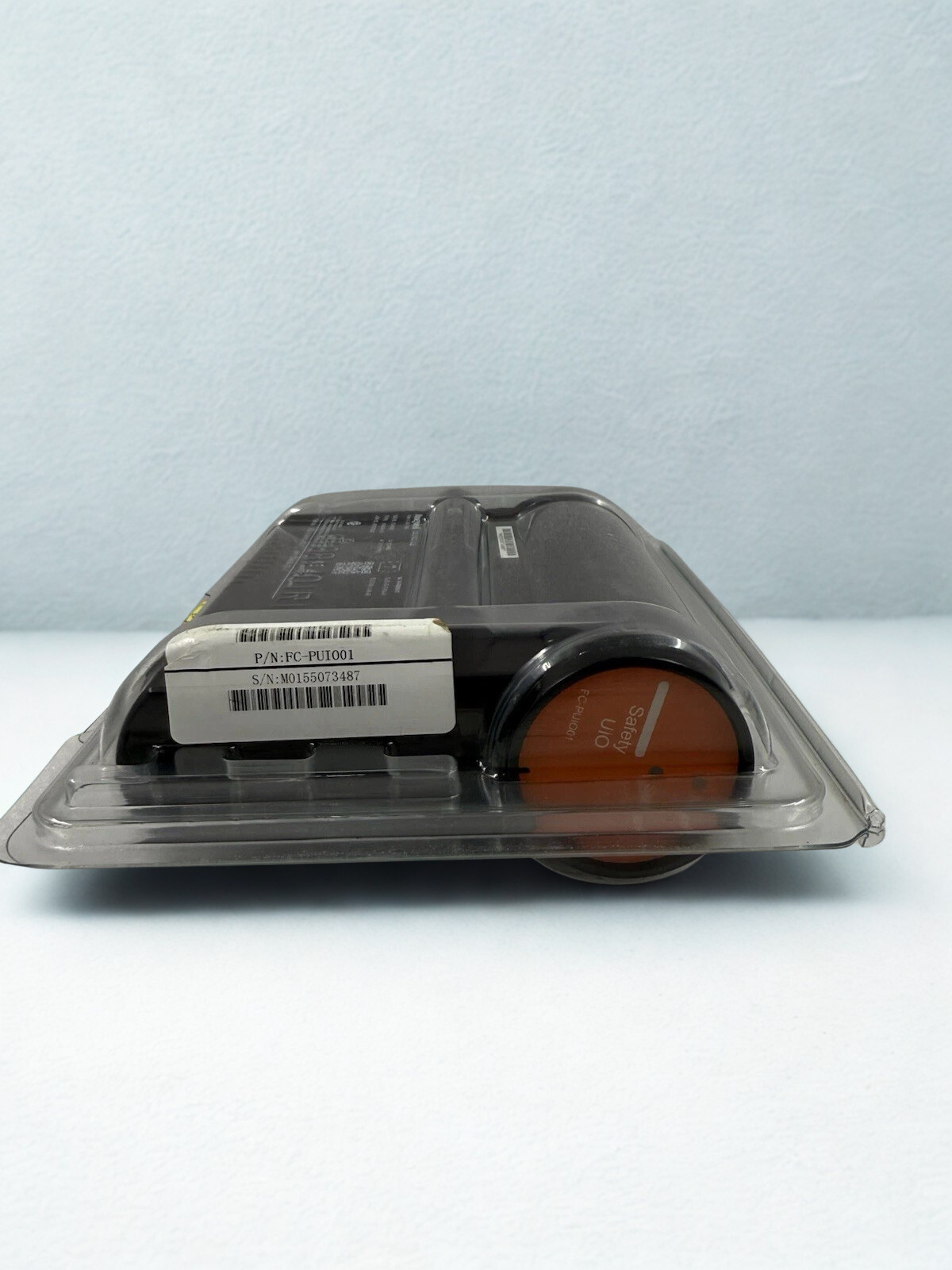

The Honeywell FC-PUIO01 51454294-176 is a 32-channel universal safety module. It functions as the primary field interface for the Honeywell Safety Manager (SM) system. It manages 24VDC digital inputs, digital outputs, and 4-20mA analog I/O on a single board. The module integrates directly with the Safety Manager controller via the redundant I/O bus. It provides SIL 3-rated protection for critical marine systems. These include Emergency Shutdown (ESD), Fire and Gas (F&G) detection, and Boiler Management Systems (BMS).

Operational reliability is maintained through internal galvanic isolation. This protects against 60Hz grid fluctuations and THD (Total Harmonic Distortion) in diesel-electric propulsion loops. The module carries a conformal coating to resist electrolyte bridge formation in 95\% non-condensing humidity. It remains operational at temperatures up to 70°C inside uncooled engine room cabinets. The hardware filters out low-frequency engine harmonics that typically cause signal jitter in standard PLC hardware.

Technical Specifications

Industrial Applications

• Emergency Shutdown (ESD): Provides SIL 3-certified logic for high-integrity tripping of ESDVs and fuel pumps during process excursions to safely trip valves and pumps when something goes wrong.
• Fire and Gas Detection: Combines smoke, heat, and flame detectors with fast logic execution to protect the whole plant.
• Burner Management Systems (BMS) make sure that industrial boilers and furnaces start up, run, and shut down safely.

Pro-Engineer Technical Insights

Terminal creep is a type of failure that happens when a ship vibrates. Micro-vibrations that happen all the time make the copper wire strands inside the screw clamp compress. Over time, this makes contact resistance higher. In the end, the module causes a false Open Wire fault even though the field device is working fine. During each dry-dock cycle, ETOs should check the terminal tension again. Check the plastic housing for carbon track marks or changes in color. These show that high-impedance connections are causing localized heating.
