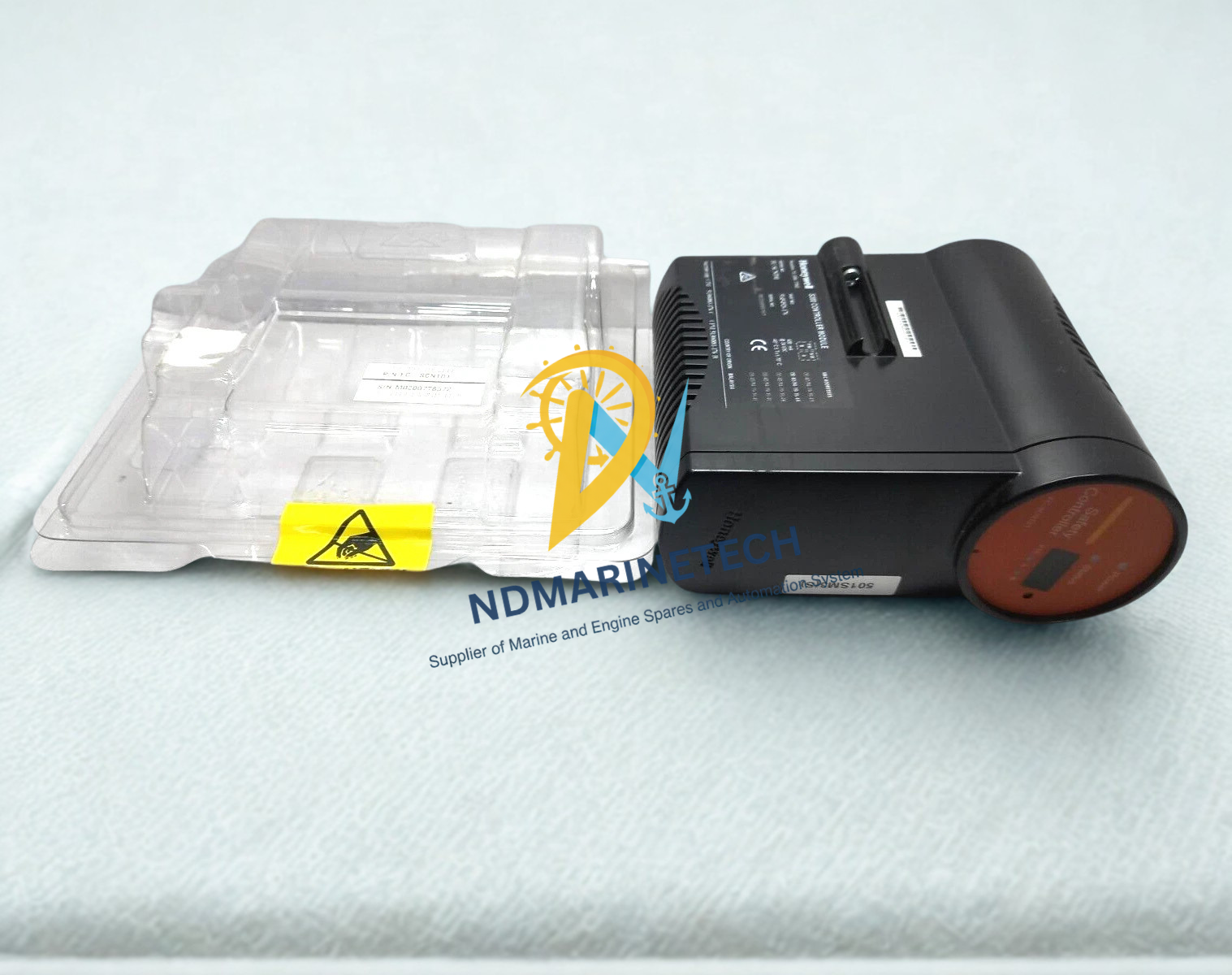

Honeywell FC-SCNT01 S300 Safety Controller Module 51454926-176

Honeywell FC-SCNT01 S300 Safety Controller Module (51454926-176)

The Honeywell FC-SCNT01 is a safety-critical high integrity control processor module belonging to the well-known Honeywell Safety Manager SC S300 series. This module acts as the central brain of a Safety Instrumented System (SIS) and is designed to mitigate hazards in dangerous industrial environments. It performs critical Safety Instrumented Functions (SIFs) by constantly evaluating the input data against pre-determined safety limits to prevent catastrophic machine failure, explosions or environmental disaster. The economical 400 mA current rating and dual-channel architecture offer automated processing facilities with unsurpassed fault tolerance and high precision monitoring.

Model details:

Model Number: FC-SCNT01

Manufacturer Part Number (MPN): 51454926-176

Alternate Part Number: 51306883-176C

Product Line: Safety Manager SC (S300 Controller Series)

Technical Details:

Applications

1. Emergency Shutdown Systems (ESD): Rapidly separates sources of dangerous energy or closes critical process valves under high pressure or heat excursions.
2. Burner Management Systems (BMS) – management of safe ignition sequence management, flame monitoring and fuel shut-off activities on industrial boilers and marine furnaces.
3. Fire and Gas Systems (F&G): Monitors poisonous gas, combustible vapours and flame detectors to activate plant-wide suppression loops fast.
4. Offshore & Marine Control Units: These are used for controlling safety-critical process parameters and are located in engine control rooms, cargo pumping systems and oil platforms.
5. Turbomachinery & Compressor Control Protects large rotating machinery against overspeed circumstances, surge phenomena and catastrophic physical failures.

Our Engineer’s Insight:

For maritime engineering and offshore oil applications, equipment reliability is not simply an efficiency issue, it’s a requirement for crew safety. The Honeywell FC-SCNT01 51454926-176 is the last line of defence for maritime automation networks. The 32 bit core handles very well the high speed transient inputs from field sensors, and is perfect for high vibration engine rooms and dynamic positioning.

Maintenance and Integration

1. Loop Impedance Matching If you are operating near the 400mA limit on your safety loop actuators, be sure to carefully work out line resistance drops. High field barrier resistance values could lead to occasional trip faults downstream.
2. Firmware Synchronisation: When deploying this module in a redundant multi-processor architecture, ensure that the active and backup slot modules have identical firmware revisions to avoid data desynchronisation during failover testing.
3. Shielding Protocols: Terminate all communication wire shields to the specialised chassis ground bar; do not float them near the module housing. High frequency EMI from marine alternators can interrupt the internal safety bus.
