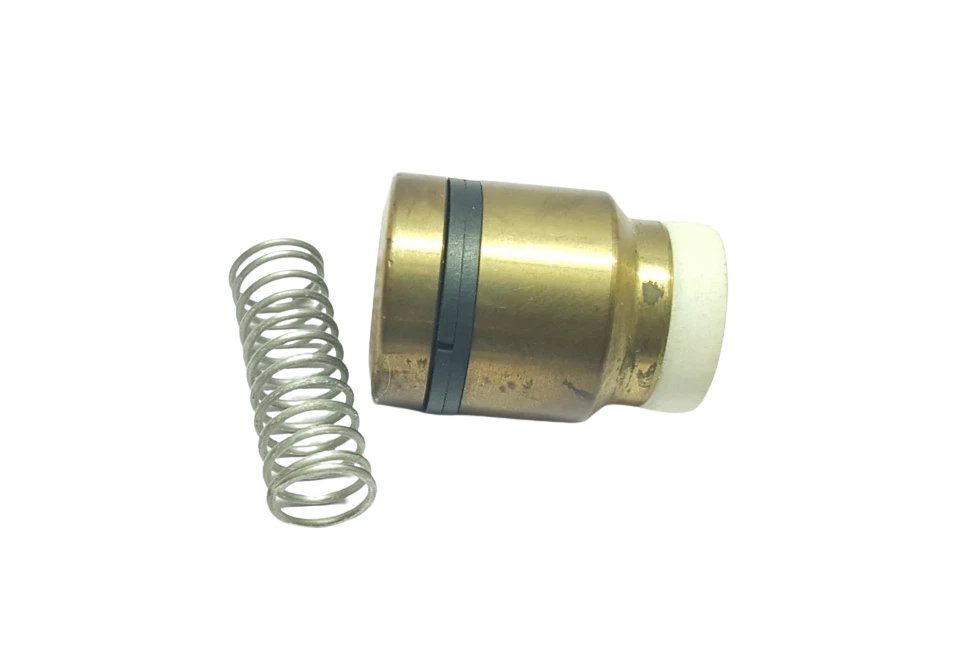

Kockum Sonics Piston Compl. for Valve TV 780 / TV 781

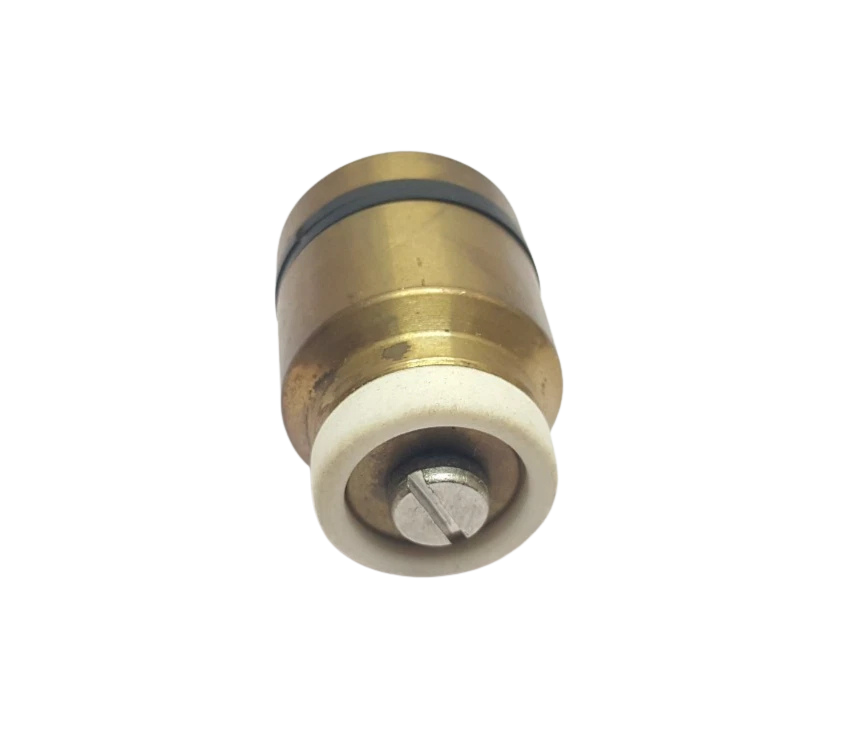

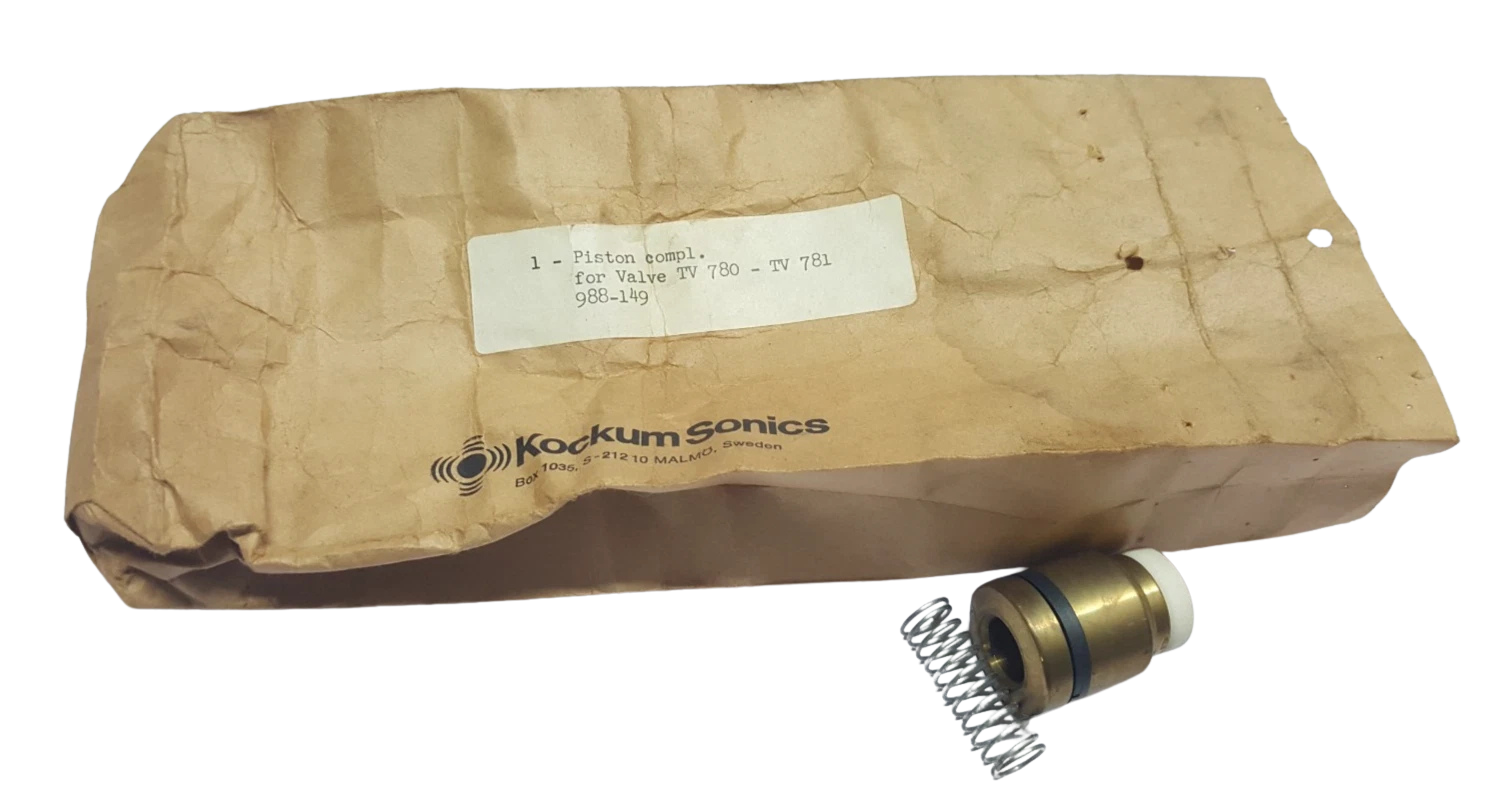

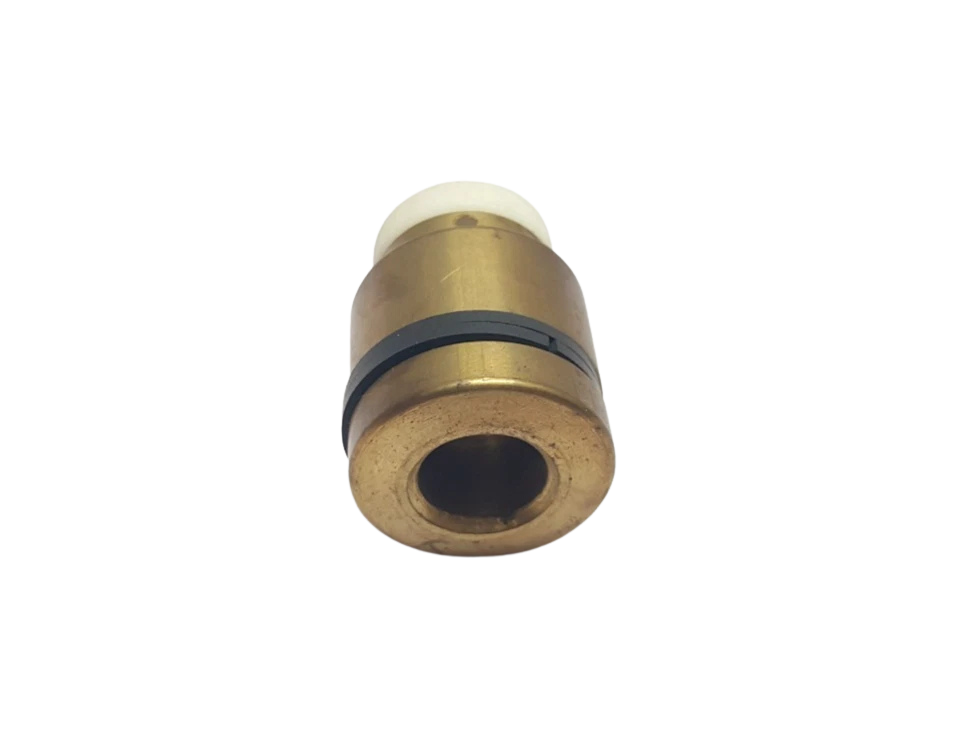

Kockum Sonics Complete Piston Assembly for Valve TV 780 / TV 781 (MPN: 988-149 / 39880149)

The Kockum Sonics Piston Complete (Part No. 988-149 / Art No. 39880149) is an OEM internal operating assembly designed specifically for high-pressure electro-pneumatic operating valves in the TV 780 and TV 781 series. These valve units control the main working air delivered to Kockum Sonics SUPERTYFON® acoustic signaling whistles aboard commercial vessels, offshore installations, and industrial signaling stations.

Engineered to operate in demanding marine environments, this piston assembly includes the calibrated return spring, precision-machined sliding guide body, dynamic sealing elements, and valve seat interface. It manages rapid pressure differentials up to 30 bar (435 psi), ensuring instant spool shifting and airtight sealing to eliminate leakage and prevent delayed whistle activation under IMO COLREG 1972 requirements.

Model Details

• Manufacturer: Kockum Sonics AB
• Designation: Piston Complete with Spring for Solenoid Valve
• Drawing / Part Number: 988-149
• Standard Article Number (Art. No.): 39880149
• Applicable Valve Models: TV 780, TV 781, and TV 780-series valve blocks
• Parent System: Kockum Sonics SUPERTYFON® Marine Whistle Series (e.g., AT 150, MKT 150, KT 75)

Technical Specifications

Key Features

1. Precision Hydro-Pneumatic Balancing: Machined to fine clearance limits to ensure instantaneous piston displacement with low sliding friction.
2. 30-Bar Dynamic Pressure Rating: Heavy-duty casing and internal relief geometries withstand continuous operating pressures up to 30 bar without binding.
3. Calibrated Fatigue-Resistant Spring: Custom-rate helical spring ensures immediate reset, preventing air blow-by and horn shudder.
4. Direct Drop-In Architecture: Direct OEM replacement geometry eliminates field machining or housing modification during offshore maintenance.
5. Corrosion-Resistant Metallurgy: Salt-spray and moisture-resistant alloy construction eliminates galvanic corrosion inside unheated pneumatic enclosures.

Applications

• Commercial Marine Fleets: Main operating valve overhauls on container vessels, bulk carriers, tankers, and LNG/LPG vessels.
• Offshore Energy Platforms: Fog signal and evacuation warning horn systems on FPSOs, drillships, and fixed platforms.
• Periodic Drydock Maintenance: Direct replacement during intermediate and 5-year classification society surveys.
• Industrial & Civil Signaling: High-output pneumatic blast horns for quarries, mines, rail yards, and coastal warning towers.

Frequently Asked Questions

What causes a Kockum Sonics TV 780 valve to leak air through the horn continuously?

Continuous air discharge is almost always caused by a degraded valve seat, damaged dynamic seals, or particulate matter trapped under the piston 988-149. Over time, moisture and compressor carryover erode the elastomer seals, preventing the spring from returning the piston to its closed seating position.

How do I confirm whether I need part number 988-149 or a complete TV 780 valve?

If the valve body casting, electrical solenoid, and internal cylinder liner are free from deep scoring, pitting, and cracks, installing this complete piston assembly (39880149) will fully restore operating performance and sealing integrity. If the valve housing bore is worn oval or heavily corroded, the complete valve assembly must be replaced.

Can this piston be used on both AC and DC solenoid versions of the TV 780?

Yes. The piston complete assembly (988-149 / 39880149) is the mechanical and pneumatic working core located in the valve base. It operates independently of the pilot solenoid voltage (whether 230V AC, 115V AC, or 24V DC).

What is the recommended maintenance interval for the TV 780/781 piston assembly?

The piston assembly, spring, and internal seals should be inspected every 2.5 years during intermediate safety surveys and renewed or fully overhauled every 5 years during drydock, or sooner if cycle frequency is high or air supply quality is compromised.

Does the piston kit include the return spring?

Yes, the Kockum Sonics 39880149 / 988-149 reference is supplied as a complete piston assembly including the calibrated heavy-duty return spring and dynamic seals.
