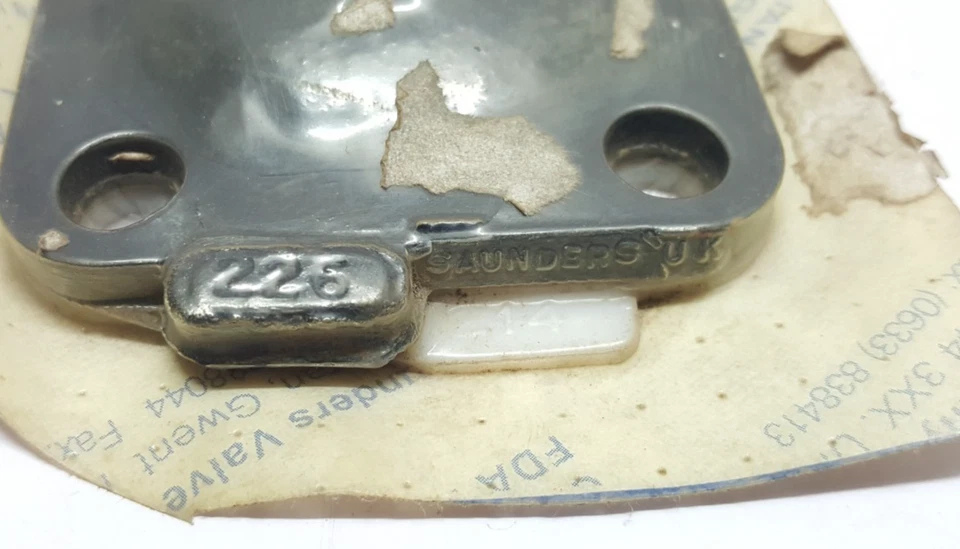

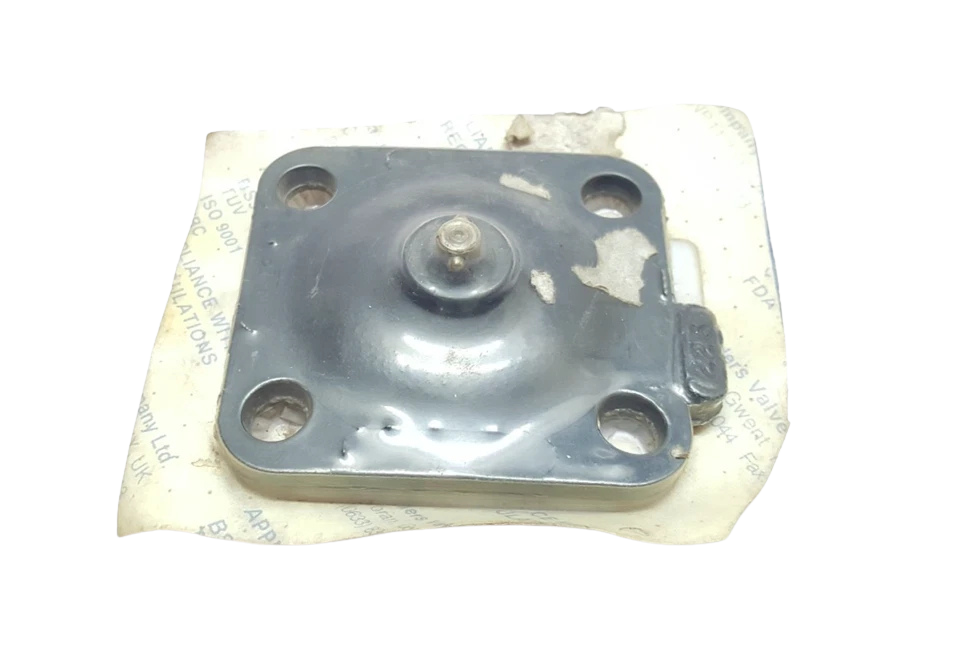

Saunders 226 Diaphragm Damper Diaphragm

Saunders 226 Diaphragm Damper Membrane

The Saunders 226 Diaphragm is an engineered, fabric-reinforced elastomeric barrier designed specifically for high-frequency pulsation dampers, surge suppressors, and diaphragm-operated flow-control assemblies. Built to handle cyclical mechanical stress and wide fluid compatibility profiles, the Saunders 226 grade provides reliable separation between hydraulic/process process media and pneumatic charging chambers.

In marine fuel injection loops, boiler dosing systems, and aggressive chemical processing skids, pressure spikes rapidly fatigue standard membranes. The 226 formulation uses a cured synthetic elastomer matrix with a woven internal reinforcement layer, reducing hysteresis losses, preventing micro-perforations under rapid pressure reversal, and stabilizing volumetric displacement throughout its rated operational life.

Model Details

• Manufacturer: Saunders / Crane ChemPharma & Energy
• Pattern/Series: 226 Damper / Valve Series
• Material Grade: 226 Grade Elastomer (Synthetic Rubber with high-tensile fabric reinforcement)
• Manufacturer Part Number (MPN): 226-DIA-DN025 (Standard baseline variant for DN25 / 1″ pattern; suffix denotes size/stud arrangement)

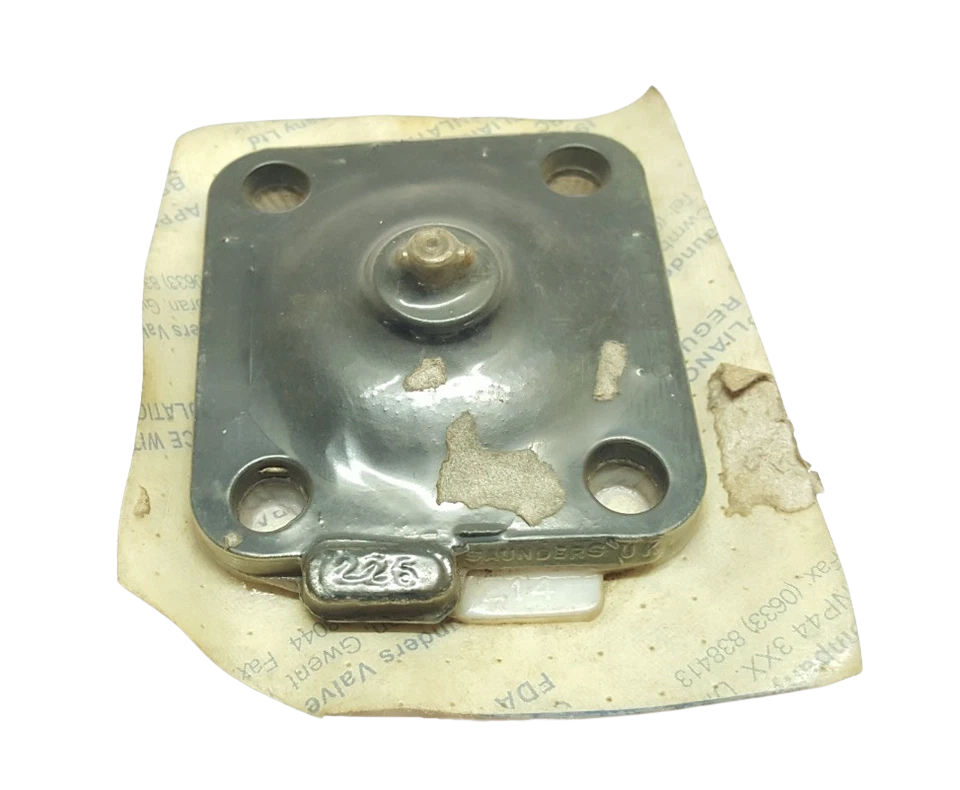

• Fastening Type: Molded center stud / central bolt-hole pattern (per damper chamber casting design)

Part Number Cross-References

• Saunders OEM: 226-025-E, 226-040-E, 226-050-E
• Marine Engine Builder Refs: MAN Energy Solutions 512.045-226, Wärtsilä 226-PMP-DAM
• Direct Aftermarket Equivalents: CR-226-NBR/EPDM, HYD-DP-226-S

Technical Specifications

Key Features

1. Engineered Multi-Ply Reinforcement: Incorporates high-denier embedded fabric mesh to withstand cyclical pressure spikes without dimensional stretching or rupture.
2. Minimal Permeation Matrix: Low-porosity synthetic compounding prevents gas migration from nitrogen pre-charge cavities into the process fluid.
3. High Dynamic Fatigue Resistance: Designed for tens of millions of continuous deflection cycles in positive-displacement pump discharge lines.
4. Media Neutrality: Chemically stable across marine heavy fuel oil (HFO), low-sulfur marine gas oil (MGO), lubricating oils, cooling brine, and general industrial chemical feeds.
5. Integral Sealing Bead: Molded peripheral seal ridge ensures leak-free flange compression without requiring external liquid gaskets.

Equipment Compatibility

• Saunders Valves & Chambers: Type A, Type KB, and 226 Series pulsation dampening vessels.
• Marine Fuel & Oil Modules: Alfa Laval, Auramarine, and Westfalia fuel supply and booster units (FCM/BM).
• Metering & Dosing Pumps: Milton Roy, Prominent, and Lewa positive-displacement metering systems requiring suction/discharge dampening.
• Auxiliary Marine Systems: Sludge discharge lines, oily water separator (OWS) feeds, and thermal fluid expansion bypasses.

Applications

• Marine Propulsion Fuel Lines: Absorbing high-frequency pressure waves from fuel injection pump spill events in MAN B&W, WinGD, and Wärtsilä installations.
• Boiler Dosing Systems: Smoothing out pulsating flow from multi-plunger chemical injection pumps.
• Sanitary & Seawater Scrubbers: Managing turbulent surges in scrubber effluent dosing and wash-water recirculation systems.
• Industrial Paint & Solvent Dispensing: Preventing line chatter, fluid hammer, and gauge vibration in precision delivery systems.

Frequently Asked Questions

How often should the Saunders 226 diaphragm be inspected in marine fuel applications?

Inspect the diaphragm every 4,000 to 6,000 running hours, or during scheduled auxiliary engine dry-dock overhauls. If pulsation pressure gauges indicate irregular needle oscillation or fluctuating delivery pressure, conduct an immediate teardown inspection.

Can compressed air be used instead of nitrogen for the damper charge?

No. Never use compressed air or pure oxygen in pulsation dampers handling hydrocarbons or volatile fluids. Compressing oxygen across an elastomeric boundary handling hot fuels creates an explosive diesel effect hazard if the diaphragm ruptures. Use high-purity dry nitrogen exclusively.

What is the maximum allowable storage shelf life for these diaphragms?

Stored in original packaging at 15°C to 25°C away from direct sunlight, electric motors (ozone generation), and moisture, the Saunders 226 elastomeric diaphragm maintains a shelf life of up to 5 years from the cure date stamped on the packet.

What are the direct indicators that the internal damper diaphragm has ruptured?

The primary signs are zero pulsation absorption (fluid lines and pressure gauges vibrating heavily), process fluid escaping through the gas charging valve stem during a pressure check, or rapid loss of nitrogen pressure without external gas valve leakage.
