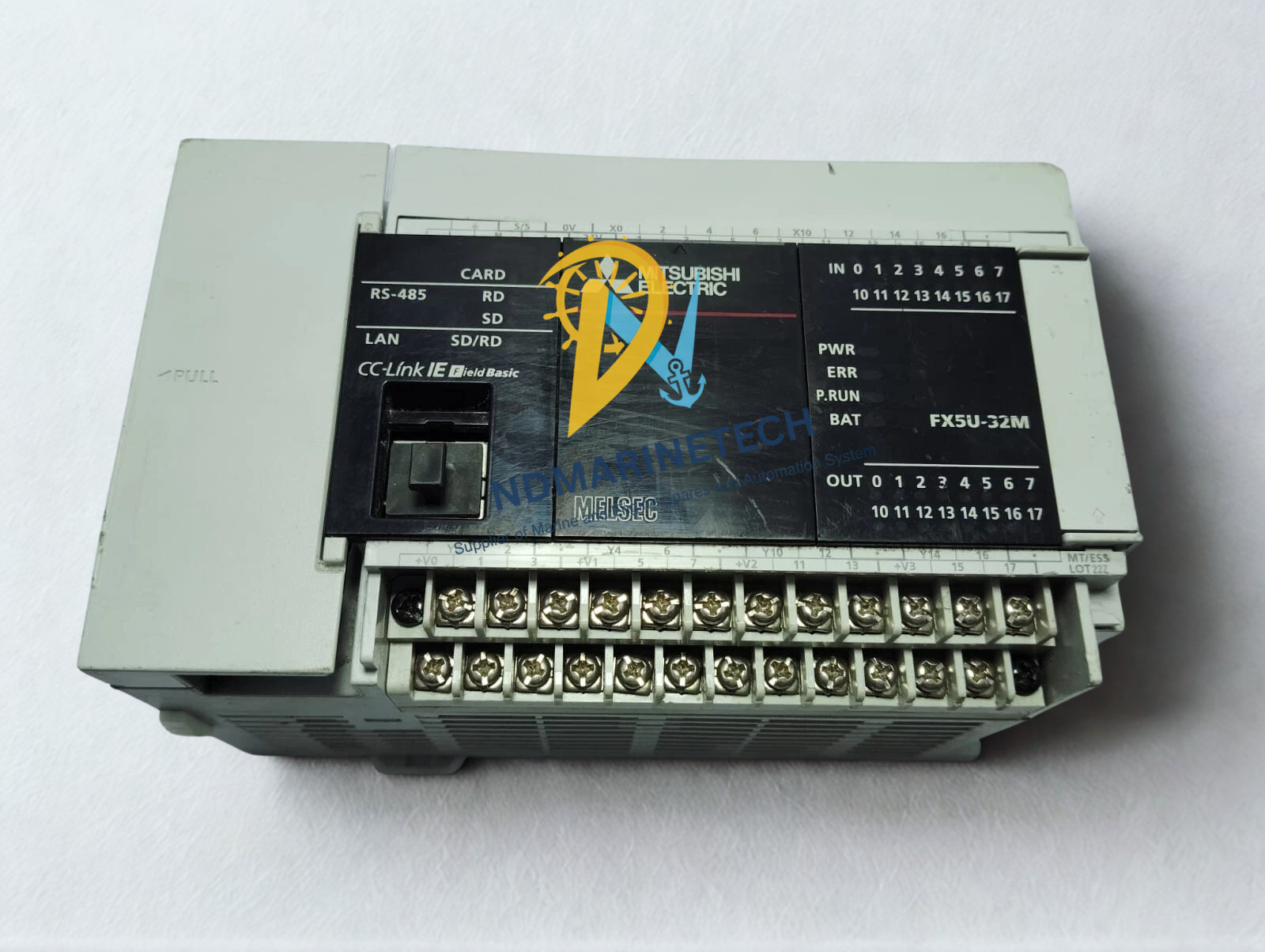

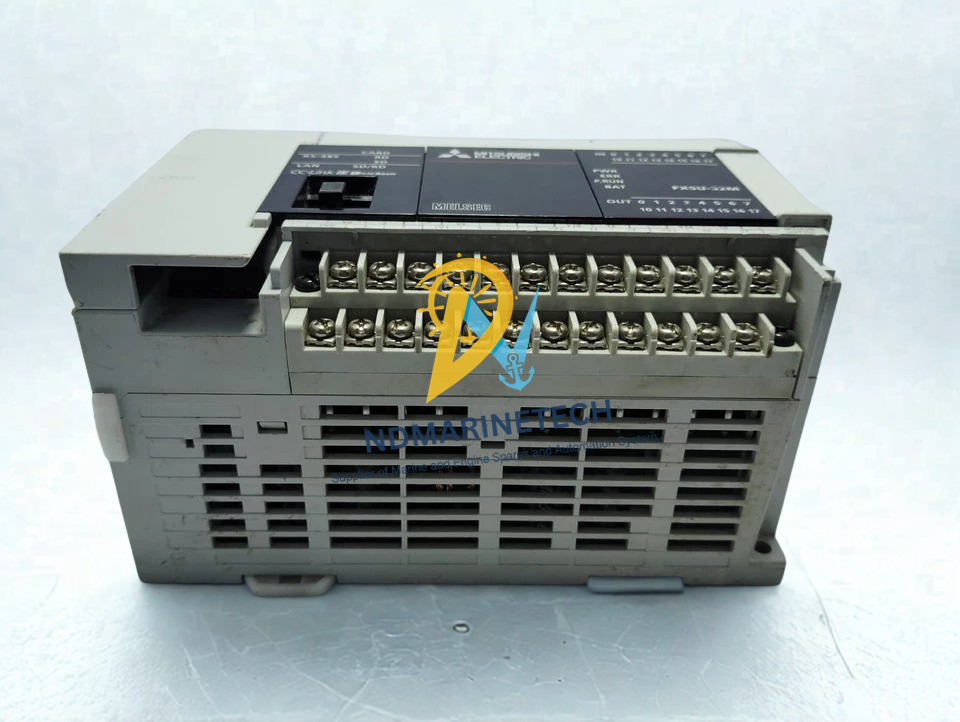

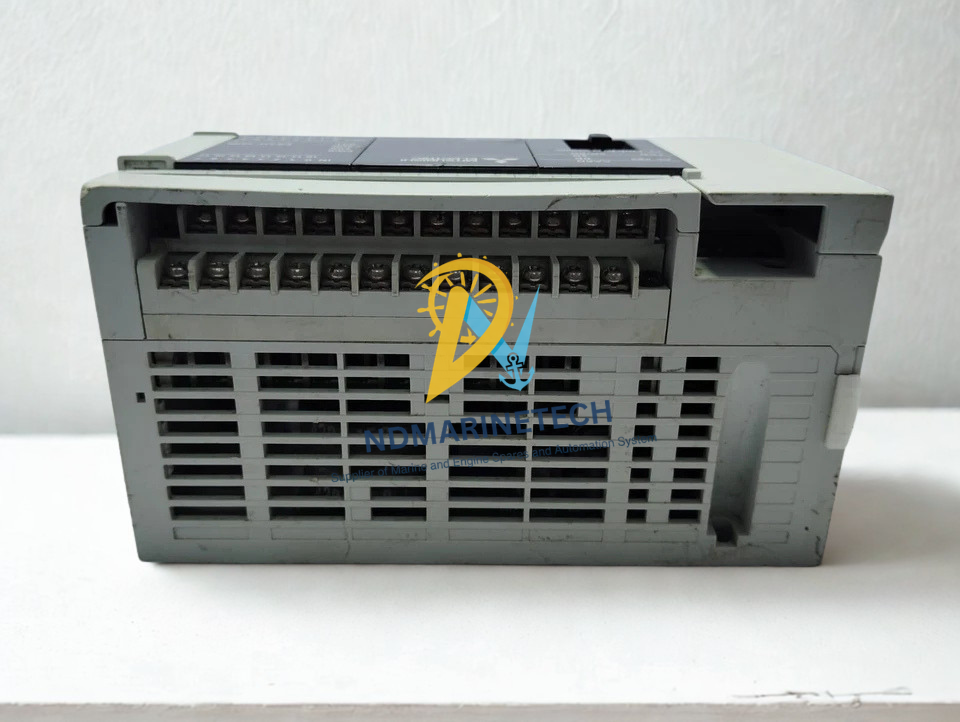

Mitsubishi FX5U-32MT/ESS iQ-F PLC Module

Mitsubishi FX5U-32MT/ESS MELSEC iQ-F Programmable Controller

The Mitsubishi FX5U-32MT/ESS is a major member of the MELSEC iQ-F family, providing the next generation of compact control for automation applications with demanding requirements. This CPU module bridges the gap between simple micro-controllers and complex modular PLCs with a lightning fast execution speed of 34 ns per basic command.

It features 16 built-in 24V DC inputs (Sink/Source) and 16 Transistor Source outputs, ideal for high-speed, high-precision positioning and switching applications. Its Ethernet, RS-485 and analog capabilities make it a powerful hub for modern network design and is built for the demanding, zero-fail situations of industrial production, processing plants and maritime control systems.

Model Details:

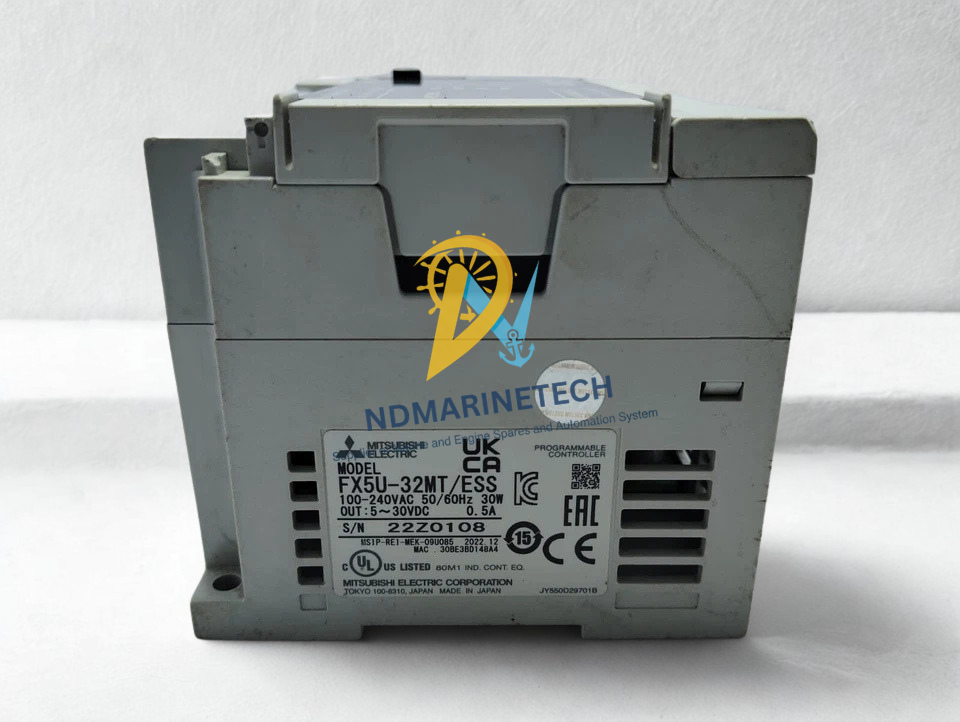

• Model Name / Part Number: FX5U-32MT/ESS
• Manufacturer Part Number (MPN): 280491
• Global Order Code: 09U085
• Product Line: MELSEC iQ-F Series

Technical Specifications: FX5U-32MT/ESS

Main Features

1. Advanced iQ-F Execution Engine: Dual-core processing capability for complex PID loops, high-speed counters (up to 200kHz), and multi-axis interpolation without cycle time loss.
2. Integrated Communication Suite: Built-in Ethernet for smooth SCADA, MQTT and peer-to-peer networking, and RS-485 Modbus RTU/ASCII for simple legacy peripheral connection.
3. Built-in Analog I/O (2-channel analog inputs, 1-channel analog output) No need for expansion cards in basic process loops with 2 analog inputs and 1 analog output built right into the chassis.
4. High-Safety Transistor Source Outputs: Configured as Standard Source (ESS), each point rated at 0.5A for reliable connection with latest field relays, solenoids and VFD triggers.

Where to Use?

• Packaging & Conveying Systems Multi-Axis Positioning Axes Sorting Gates Synchronization of Labeling & High Speed Wrapping Equipment.
• Water & Wastewater Management: Alternating management of several pumps, level sequencing, chemical dosing loops automation and remote telemetry outstations.
• HVAC & Environmental Controls: Compressor modulation, air handling unit scheduling (AHU), commercial boiler cascade control.

System Compatibility

• Software Requirement: Fully programmed and diagnosed using GX Works3 (part of the iQ Works engineering suite).
• Hardware Expansion: Fully compatible with FX5-ADP expansion adapters, FX5 extension modules, and legacy FX3-series modules via the FX5-CNV-BUS conversion interface.
• Battery Options: Accepts the optional FX3U-32BL buffer battery for long-term retentive memory protection during prolonged power blackouts.

Part Number Cross-References

• Direct Predecessor: FX3U-32MT/ESS (Legacy hardware upgrade pathway)
• Alternative Variants: FX5U-32MT/ES (Sink Logic output variant), FX5U-32MR/ES (Relay output variant)

Marine Engineer’s Guide:

When deploying the FX5U-32MT/ESS in high-vibration environments—such as marine engine rooms or offshore drilling platforms—the mechanical stability of your control panel is paramount.

Although this unit supports standard 35mm DIN rail mounting, we strongly advise using the integrated direct-mounting screw holes in high-vibration applications to prevent micro-fretting corrosion on terminal connections.

How to Install?

1. Output Protection: The transistor outputs on this unit are “Source” type logic (ESS notation). If you are switching inductive loads like heavy solenoids, always install an external flyback diode across the DC load. This absorbs inductive spikes and protects the internal transistors from premature voltage breakdown.
2. Grounding Protocols: The FX5U features an isolated functional ground (FG) terminal. Ensure this is connected via a dedicated, low-impedance strap directly to your common structural ground. Never daisy-chain this ground line with variable frequency drives (VFDs) or heavy switched-mode power supplies to avoid high-frequency noise from corrupting your analog inputs.
3. Firmware Matching: If you are swapping an older revision FX5U with a new replacement unit, always upload the configuration using GX Works3 to verify firmware compatibility, especially if you utilize the built-in Ethernet/IP or Modbus TCP communication matrices.
