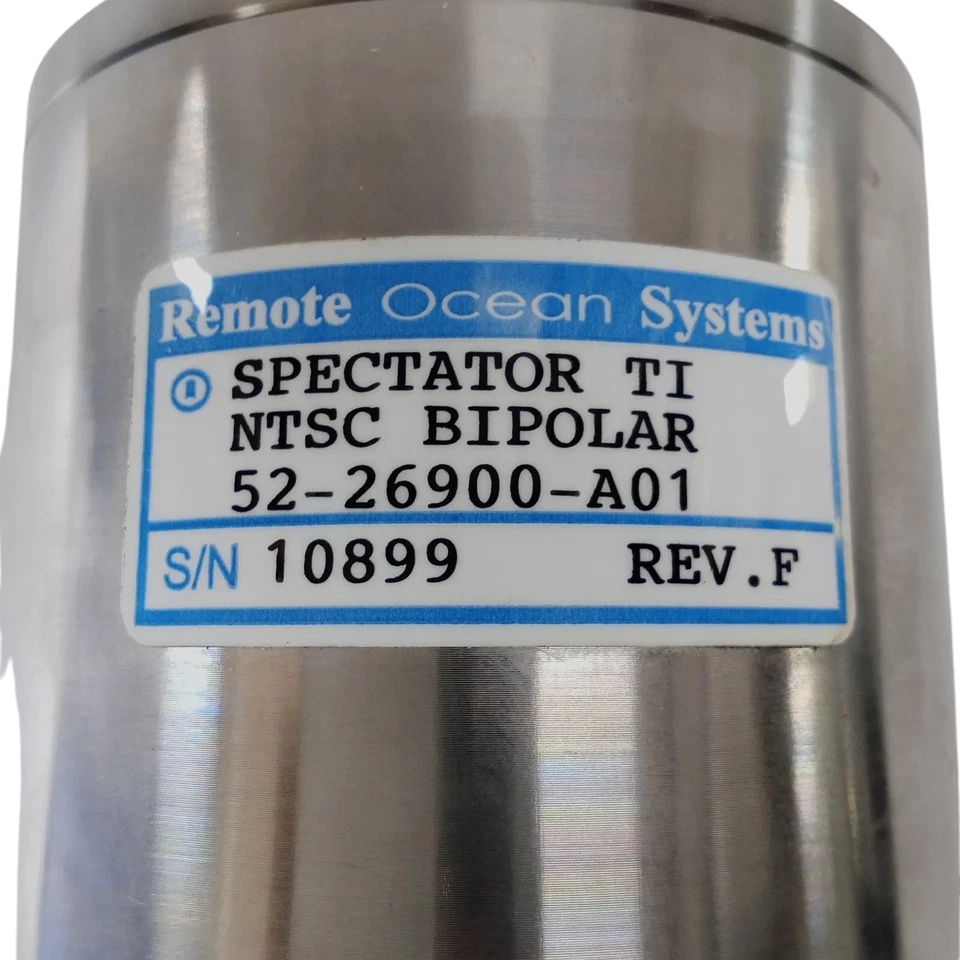

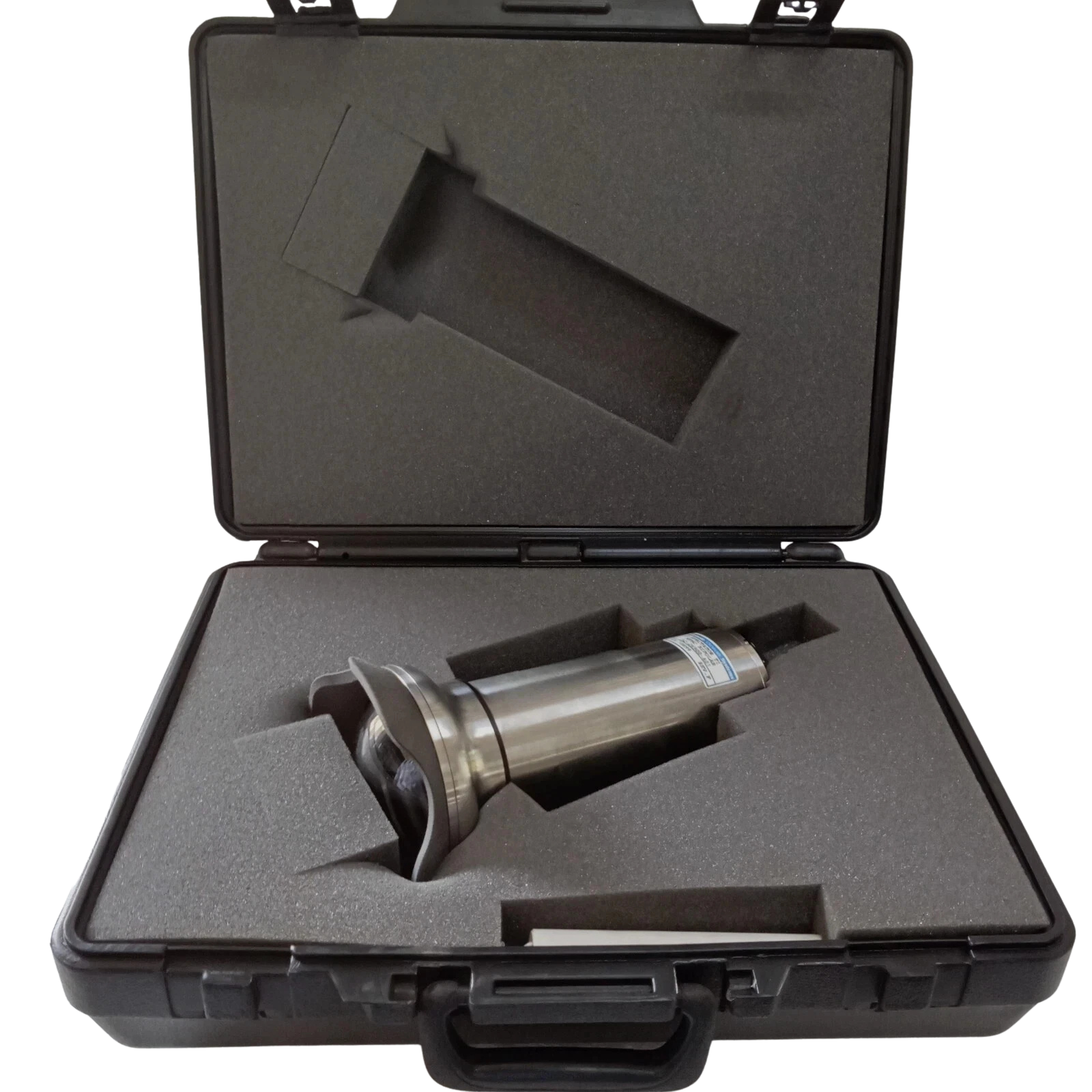

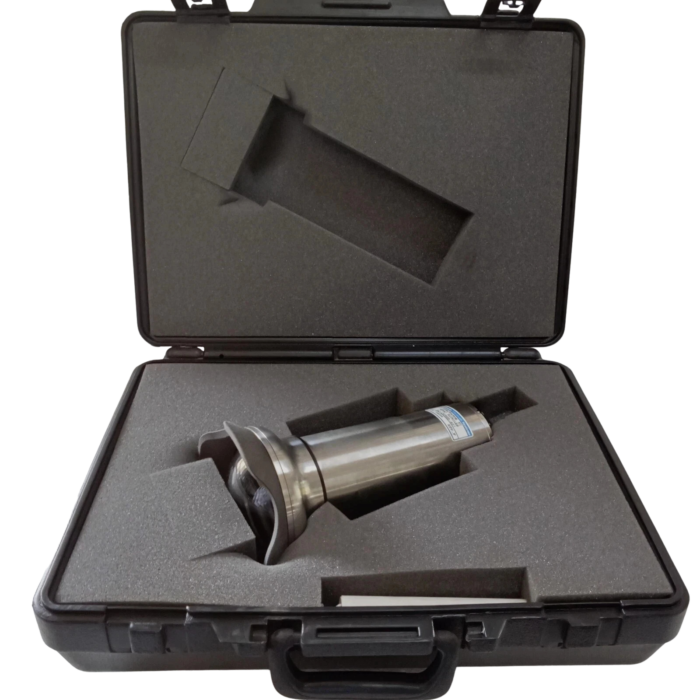

Remote Ocean Systems 52-26900-A01 Bipolar Spectator 36:1 Camera

Remote Ocean Systems 52-26900-A01 NTSC Bipolar Spectator 36:1 Color Zoom Inspection Camera

The Remote Ocean Systems (ROS) 52-26900-A01 Spectator represents a specialized subsea optical system engineered specifically for deep-submergence operations down to 3,000 meters (10,000 feet). Designed with a dual-mode control architecture, this model integrates a bipolar telemetry protocol alongside standard serial telemetry, allowing retrofitting across both vintage analog control skids and modern subsea fiber-optic multiplexers.

The internal imaging module utilizes a 1/4-inch Sony Super HAD CCD sensor delivering true NTSC composite output with horizontal resolution exceeding 530 TV lines. Optical clarity is governed by an integrated 36:1 optical zoom assembly (supplemented by a 12:1 digital zoom engine for a combined 432:1 dynamic zoom ratio). Housed in high-integrity 6061-T6 hard-anodized aluminum with an optical-grade sapphire or scratch-resistant fused quartz port, the 52-26900-A01 provides subsea operators with extreme focal precision, minimum scene distortion, and low-light surveillance capability down to 0.1 lux in color and 0.01 lux in sensor boost mode.

Model Details

• Manufacturer: Remote Ocean Systems (ROS)
• Model Line: Spectator Subsea Zoom Camera Series
• Full Model Designation: Spectator-36:1 Bipolar / Tri-State
• Manufacturer Part Number (MPN): 52-26900-A01
• Video Standard: NTSC Composite (EIA RS-170 compliant)
• Depth Rating: 3,000 m (approx. 10,000 ft / 4,350 psi hydrostatic pressure)

Technical Specifications

Features

1. 36:1 Optical / 432:1 Total Dynamic Zoom: Precision electromechanical optical package delivering wide field-of-view inspection angles down to ultra-tight macro inspection capabilities on subsea BOPs and wellheads.
2. Bipolar & Serial Control Capability: Built-in bipolar command decoder enables control over legacy 2-wire/3-wire DC voltage reversal topologies without dedicated RS-232/RS-485 serial communication links.

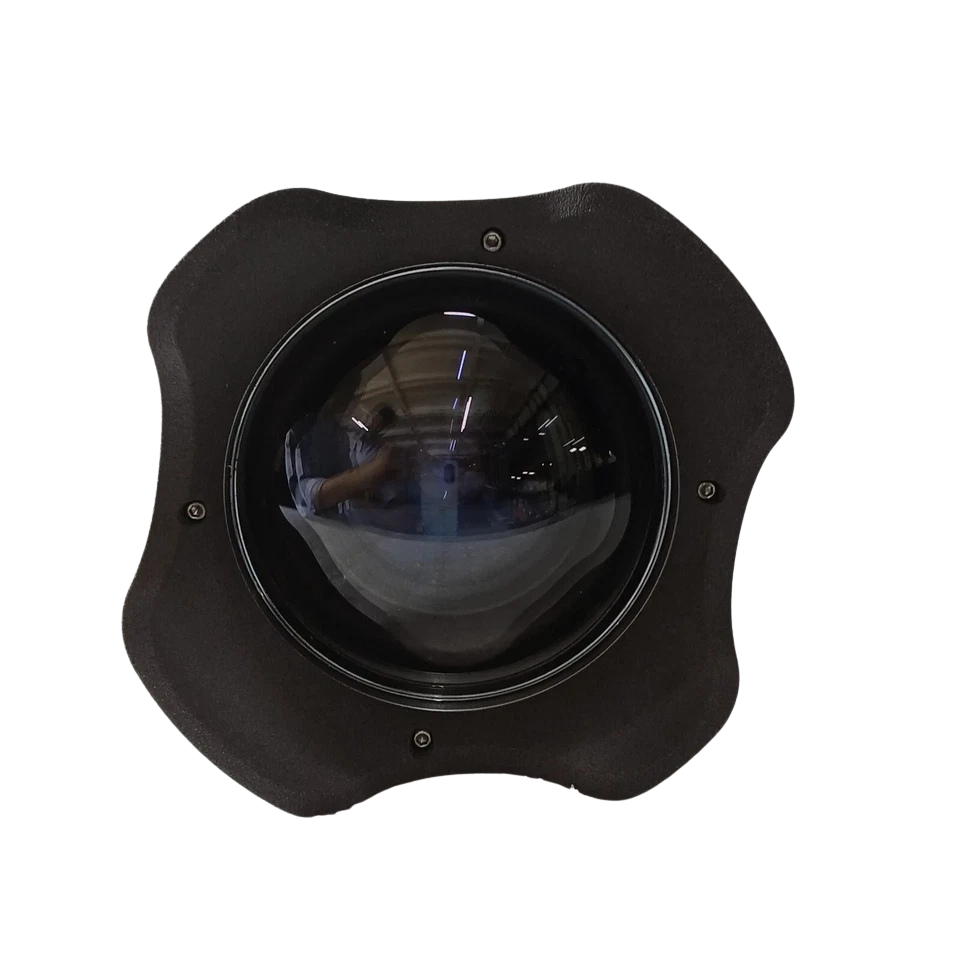

3. Optical-Grade Hemispherical/Flat Port: Scratch-resistant, high-hydrostatic-pressure sapphire optical window engineered with water-correction refractive index calibration to eliminate peripheral chromatic aberration.
4. Low-Light Sensor Architecture: 1/4-inch Sony Super HAD interline transfer CCD yields minimum usable video at 0.1 lux faceplate illumination, reducing reliance on high-wattage primary ROV illuminators.
5. Electrically Isolated Structural Shell: Internally isolated ground framework minimizes ground loops, cathodic interference, and RF hum caused by large hydraulic power units (HPUs) or high-voltage subsea thruster lines.

Applications

• Work-Class ROV Primary Tooling & Navigational Pan/Tilt Systems: Structural node monitoring, pipeline touchdown tracking, and deep-water mooring inspections.
• Subsea Wellhead & BOP Intervention Tooling: High-magnification lock pin verification, gasket seat seating inspection, and valve position telemetry.
• Nuclear Reactor Pool & Spent Fuel Rack Inspections: Radiation-tolerant remote visual inspection inside holding pools and containment vessels.
• Oceanographic Research Platforms & Benthic Crawlers: Marine ecosystem documentation and abyssal boundary layer recording.
• Trenching, Ploughs & Cable Burial System Monitoring: Active burial shoe verification and seabed cable feed observation under heavy turbidity conditions.

Compatibility

• Pan & Tilt Actuators: ROS PT-10, ROS PT-25, ROS PT-35, Schilling Robotics electric Pan & Tilt units, Kongsberg/Simrad heavy-duty pan units.
• ROV Telemetry Multiplexers: Focal Technologies Model 907 / Model 914 multiplexers, MacArtney NEXUS multiplexer units, SMD Quasar/Atom survey telemetry racks.
• Work-Class & Inspection-Class ROVs: Oceaneering Magnum / Millennium, TechnipFMC Triton XLX, Saipem Innovator, Subsea 7 Cougar / Leopard fleets.
• Surface Control Units: Compatible with standard ROS rack-mount camera controllers (CCU), legacy tri-state joystick consoles, and customized Pelco-D/ROS-ASCII serial telemetry control units.

Part Number Cross-References

• 52-26900-A01: Primary ROS Part Number (NTSC / Bipolar / 36:1 Optical Zoom / 3,000m Depth Rating).
• 52-26900-A02: PAL European Broadcast Variant (625 Lines / 50 Hz).
• 52-26900-Series: Base Spectator 36:1 Mechanical and Electrical Architecture.
• Equivalent Legacy Codes: ROS Spectator-II Bipolar 36X-N.

Frequently Asked Questions

What makes the ROS 52-26900-A01 different from standard subsea inspection cameras?

The 52-26900-A01 incorporates a high-grade 36:1 optical telephoto lens assembly coupled to a bipolar control board. Unlike basic fixed-focus cameras, it allows operators stationed thousands of meters above the seabed to carry out wide-area standoff navigation and zoom in for macro-scale defect identification on hydraulic fittings or weld seams.

Can the 52-26900-A01 camera be controlled via serial RS-232 or RS-485?

Yes. Although optimized for bipolar control setups, the internal logic board features multi-protocol decoding capability. By reconfiguring internal jumper blocks or software addressing (refer to manual section 4.2), the camera accepts industry-standard serial command strings for focus and zoom actuation.

How is the video signal transferred without degradation over long umbilicals?

The camera outputs an uncompressed 1.0 Vp-p into 75-ohm composite NTSC signal. For umbilicals over 1,000 meters, this signal is routed directly into an onboard ROV subsea multiplexer (such as a Focal 907 system) where it is digitized and converted into optical pulses across single-mode fiber to prevent the high-frequency attenuation common to coaxial copper runs.

What maintenance schedule is required for the O-ring seals?

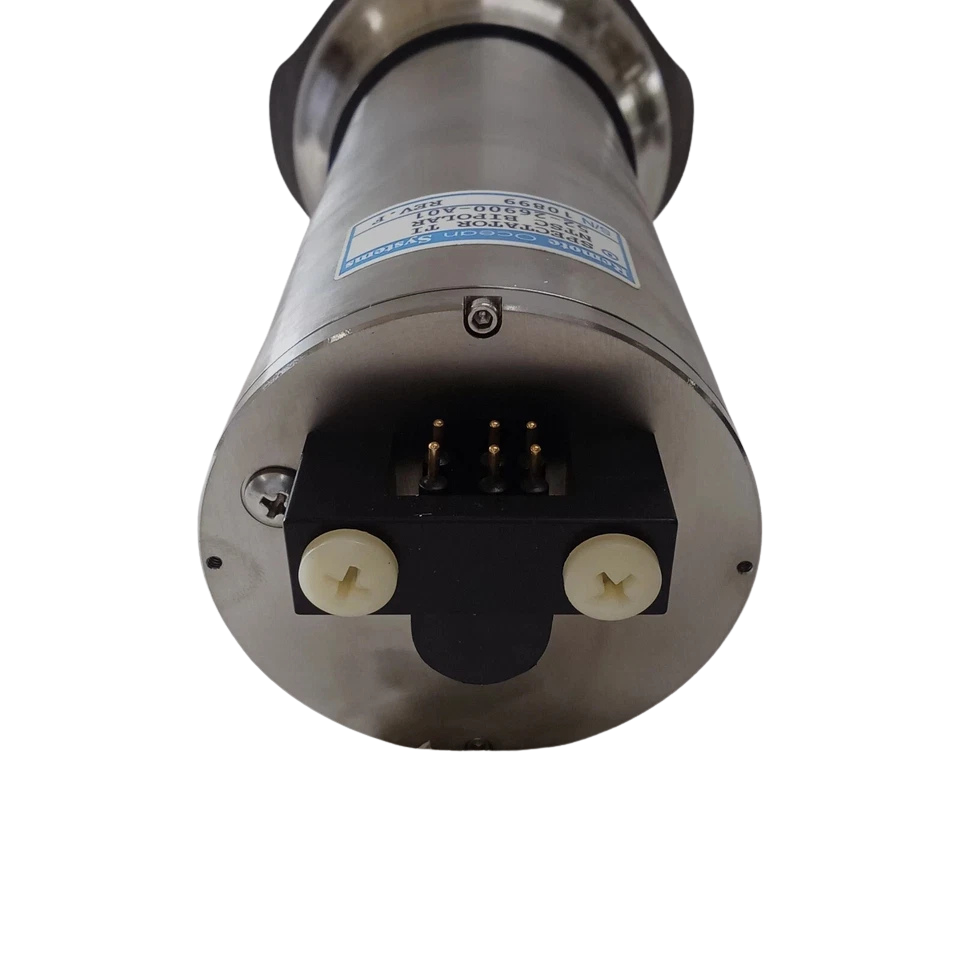

For active deep-water operations, perform a visual inspection of the outer bulkhead connector and faceplate O-rings every 30 operational days. Conduct a full teardown, dimensional inspection, and replacement of all primary and secondary Viton/Buna-N elastomeric seals every 12 months or 500 dive cycles, accompanied by a hydrostatic chamber pressure certification.
