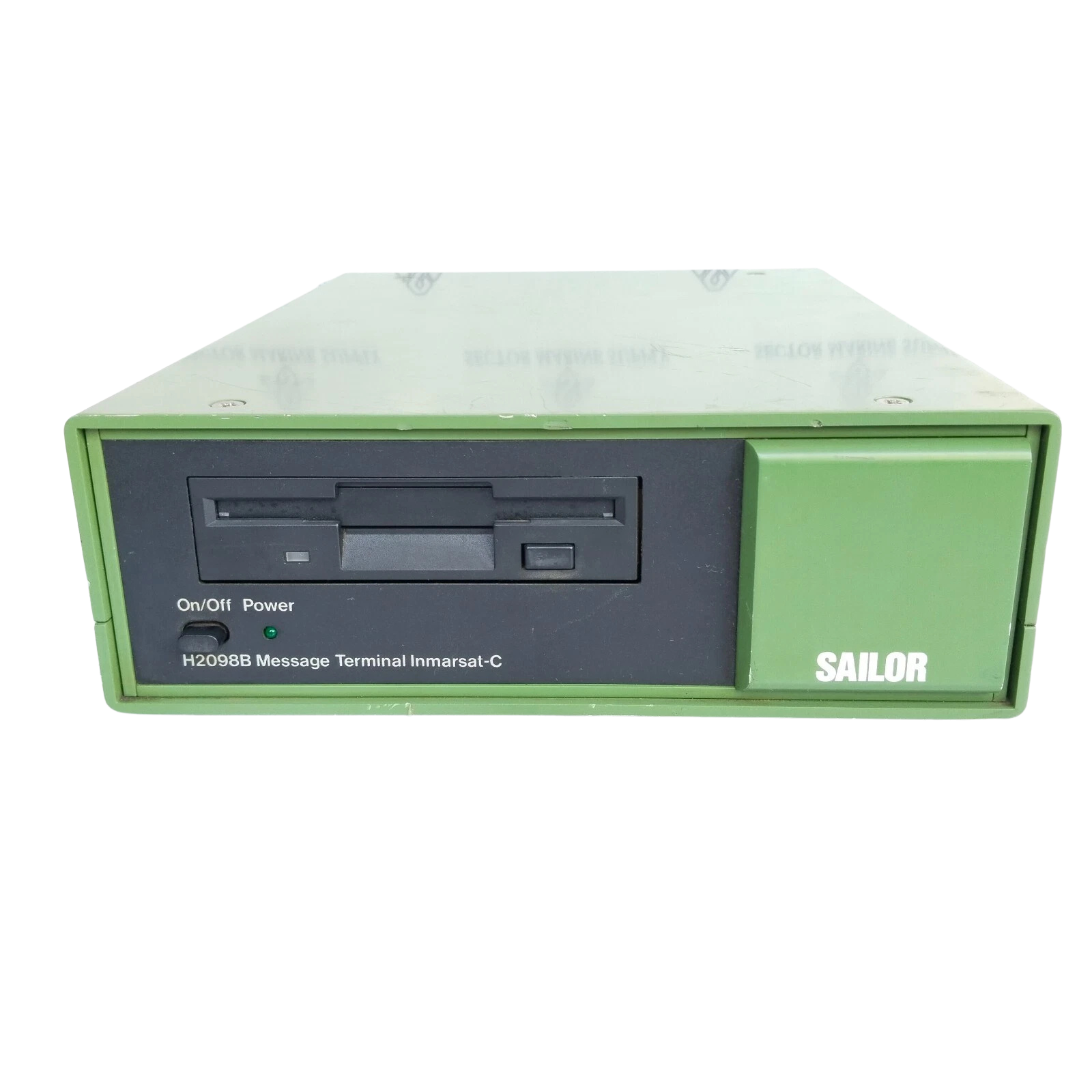

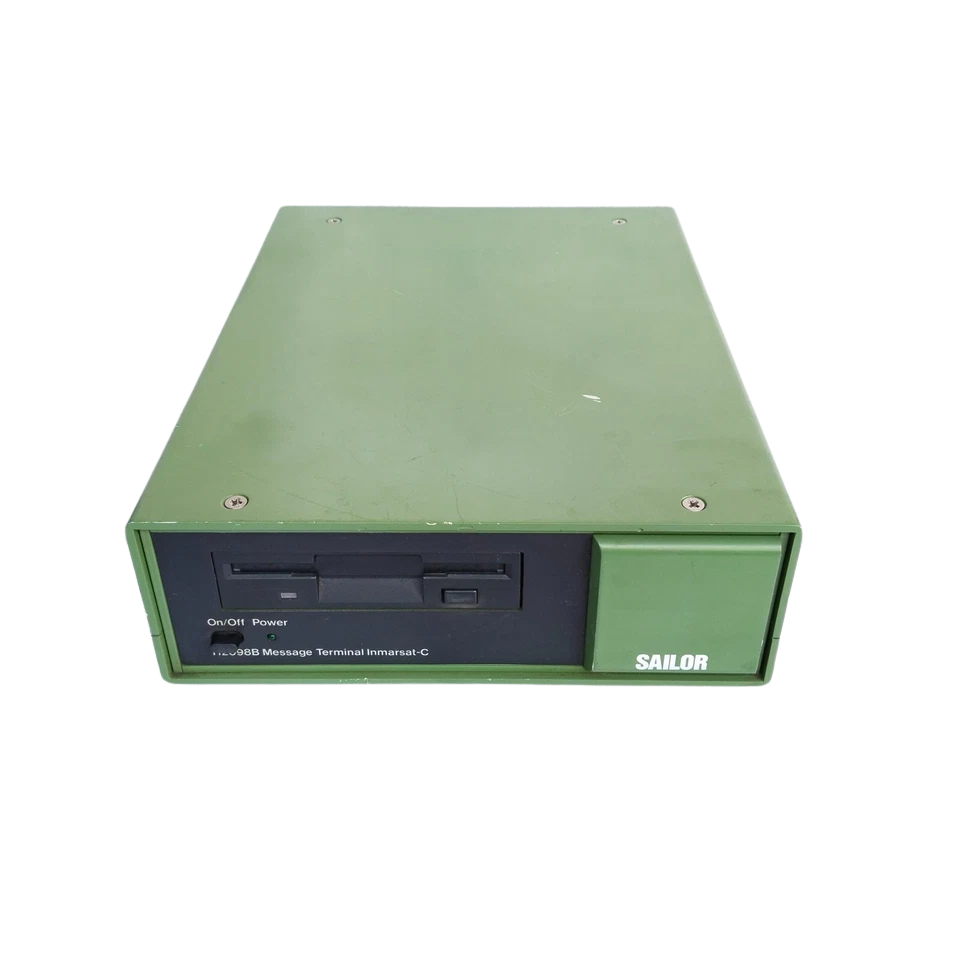

SAILOR H2098B Message Terminal (Inmarsat-C / GMDSS)

The SAILOR H2098B is a visual display and data logging terminal engineered for deep-sea vessels operating under SOLAS GMDSS Sea Areas A1, A2, A3, and A4. Functioning as the primary human-machine interface (HMI) for the SAILOR H2095B / H2095C and Thrane & Thrane TT-3020 series Inmarsat-C transceivers, the H2098B provides mission-critical handling of Distress alert generation, Enhanced Group Calling (EGC), SafetyNET/FleetNET messaging, and two-way marine telex transmission.

Housed in a ruggedized, corrosion-resistant chassis optimized for console flush-mounting or bracket installation on navigation bridges, the H2098B integrates a high-contrast, night-vision-adjustable flat panel display with hardware-level communication watchdogs to maintain uninterrupted operation under severe vibration, thermal extremes, and vessel supply transients.

Technical Specifications

Part Number Cross-References

• Thrane & Thrane Equivalent: TT-3606A / TT-3606B
• Debeg OEM Identifiers: Debeg 3657E
• S.P. Radio Production Reference: 55.102 / 56.064

Key Features

1. Dedicated GMDSS HMI Architecture: Hardware-coded terminal routines dedicated strictly to emergency distress transmissions, marine telex, and EGC monitoring without risk of PC operating-system crashes.
2. Wide-Ranging DC Power Conditioning: Operates stably across 10.5 V to 32 V DC ship power feeds, handling typical battery backup drops and charge spikes without requiring external DC-DC stabilizers.
3. Bridge-Optimized Dimming Control: Wide-spectrum backlighting adjustment ensures full legibility in bright sunlight while reducing night-vision degradation during dark bridge watches.

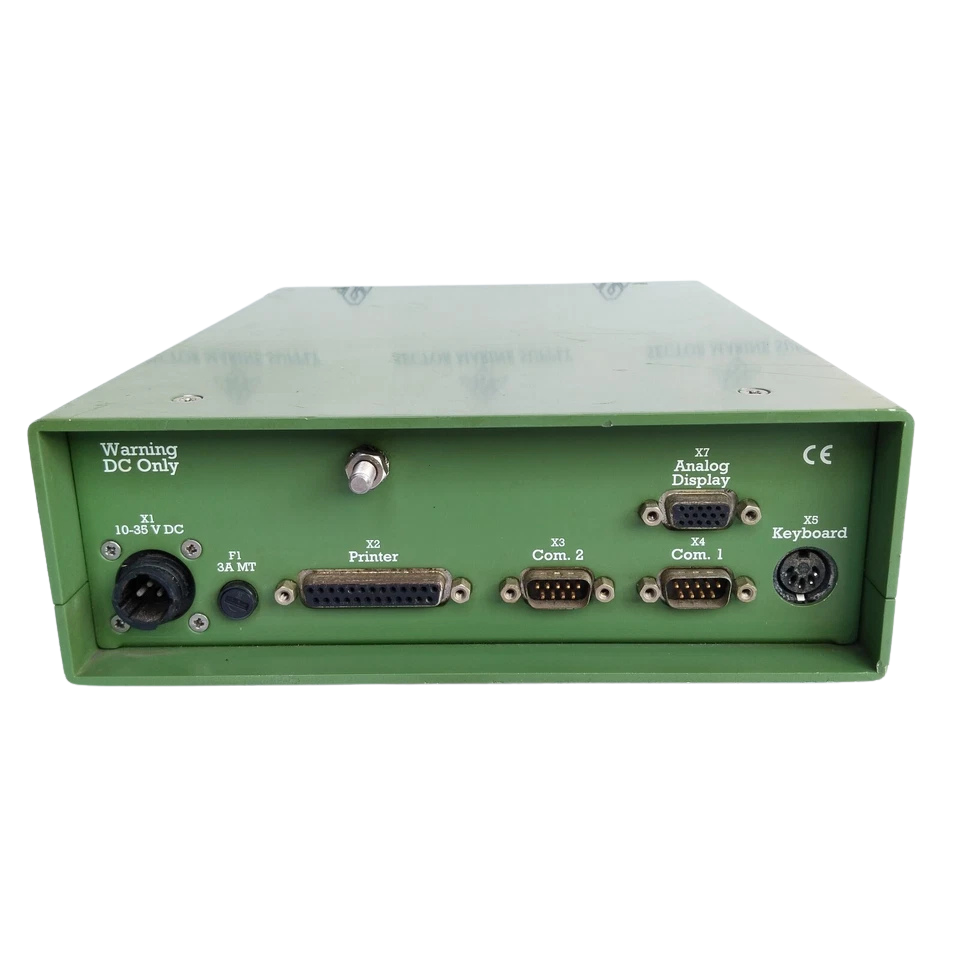

4. Continuous Hardcopy Logging Interface: Direct Centronics parallel communication interfaces seamlessly with GMDSS-approved dot matrix printers for regulatory-mandated EGC safety logs.
5. Ruggedized Vibration-Dampened Chassis: Marine-grade mechanical housing engineered to endure standard low-frequency bridge deck resonances and structural shock.

Applications

• Direct replacement terminal for failing display units within existing SAILOR System 2000 GMDSS consoles.
• Dedicated Inmarsat-C telex messaging interface for commercial merchant fleets, offshore support vessels (OSVs), tugboats, and deep-sea fishing trawlers.
• Shore-side testing stations, marine electronics calibration workshops, and simulator training centers for maritime academies.

Frequently Asked Questions

Can the SAILOR H2098B be directly swapped with a Thrane & Thrane TT-3606A?

Yes. The SAILOR H2098B is the S.P. Radio-branded OEM execution of the Thrane & Thrane TT-3606A. The internal processor board, interface pinouts, operating voltage parameters, and communication firmware are mechanically and electrically identical.

Does the H2098B terminal store messages when the power is turned off?

Incoming and outgoing telexes and EGC messages are primarily cached in the non-volatile memory of the connected Inmarsat-C transceiver (e.g., H2095C / TT-3020C). When the H2098B is powered back up, it interrogates the transceiver’s memory buffer and repopulates the message directory.

Why does the terminal fail to recognize the keyboard during boot?

Ensure you are using the original SAILOR H2099 or Thrane TT-3601A keyboard. Standard domestic PC keyboards with adaptors frequently draw excessive 5V bus current or utilize modern USB-to-PS/2 conversion controllers that are incompatible with the synchronous serial decoding matrix of the H2098B terminal board.

Can I run the H2098B on both 12V and 24V ship battery systems without adjusting internal jumpers?

Yes. The terminal incorporates a wide-range switch-mode DC-DC input stage rated from 10.5V DC up to 32V DC, allowing direct connection to either 12V battery configurations or commercial 24V marine emergency backup banks.
