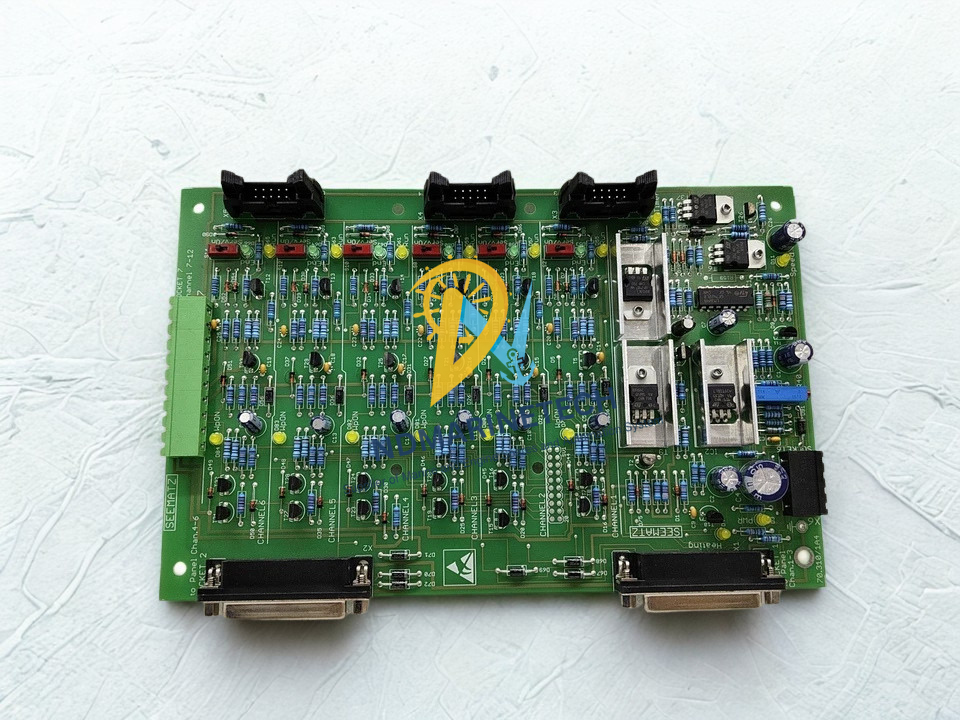

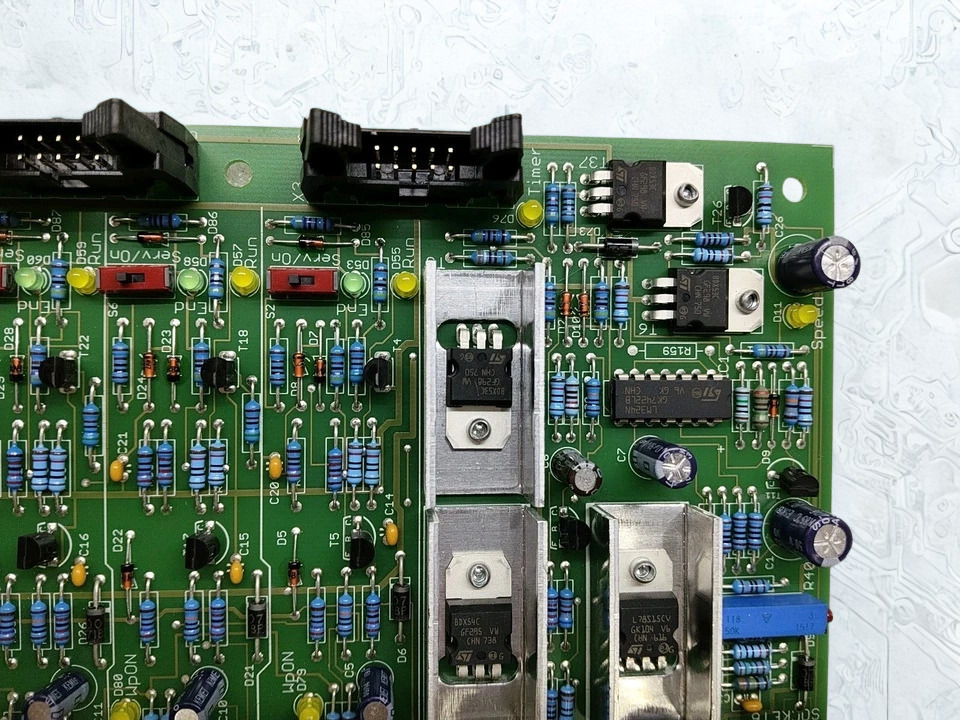

SEEMATZ 70.310/1A4 PCB Panel for Control Modules 1-6

SEEMATZ 70.310/1A4 PCB Panel for Searchlight Control Modules 1-6

The SEEMATZ 70.310/1A4 is a mission critical Printed Circuit Board (PCB) developed for the flawless operation of SEEMATZ marine searchlight control systems. Designed for the high-salinity environment, this PCB is the central nervous system of Control Modules 1-6, allowing accurate communication between the bridge console and the external searchlight unit. This genuine SEEMATZ component provides the reliability needed for safe night navigation and SAR operations, whether during routine refits or urgent repairs.

Model Details:

Brand: SEEMATZ (Peters & Bey)

Model Name: PCB Panel for Control Module 1-6

Part Number (MPN): 70.310/1A4

Category: Marine Navigation & Searchlight Spare Parts

Technical Details

Applications

• Commercial Cargo Vessels and Tankers.
• Offshore Supply Vessels (OSV) and Tugboats.
• Luxury Yachts and Passenger Ferries.
• Naval and Coast Guard Patrol Craft.
• Maintenance and Overhaul of SEEMATZ Searchlight Series (Type 351, 463 etc).

Expert Engineer Insight:

When replacing the 70.310/1A4 PCB, the most common failure point isn’t the board itself but static discharge during installation. Always use an anti-static wrist strap. Additionally, before powering up the new board, inspect the wiring harness for ‘green rot’ (copper oxidation). A clean board on a degraded wire will lead to intermittent signal loss in heavy seas.

Installation Guide:

1. Isolate Power: Ensure the searchlight breaker is locked out before opening the control module housing.
2. Terminal Check: Use a contact cleaner on the ribbon cable connectors to ensure zero-resistance communication.
3. Housing Seal: While the PCB is durable, always check the Gasket of the control box. If the seal is brittle, the new PCB will fail prematurely due to moisture.
