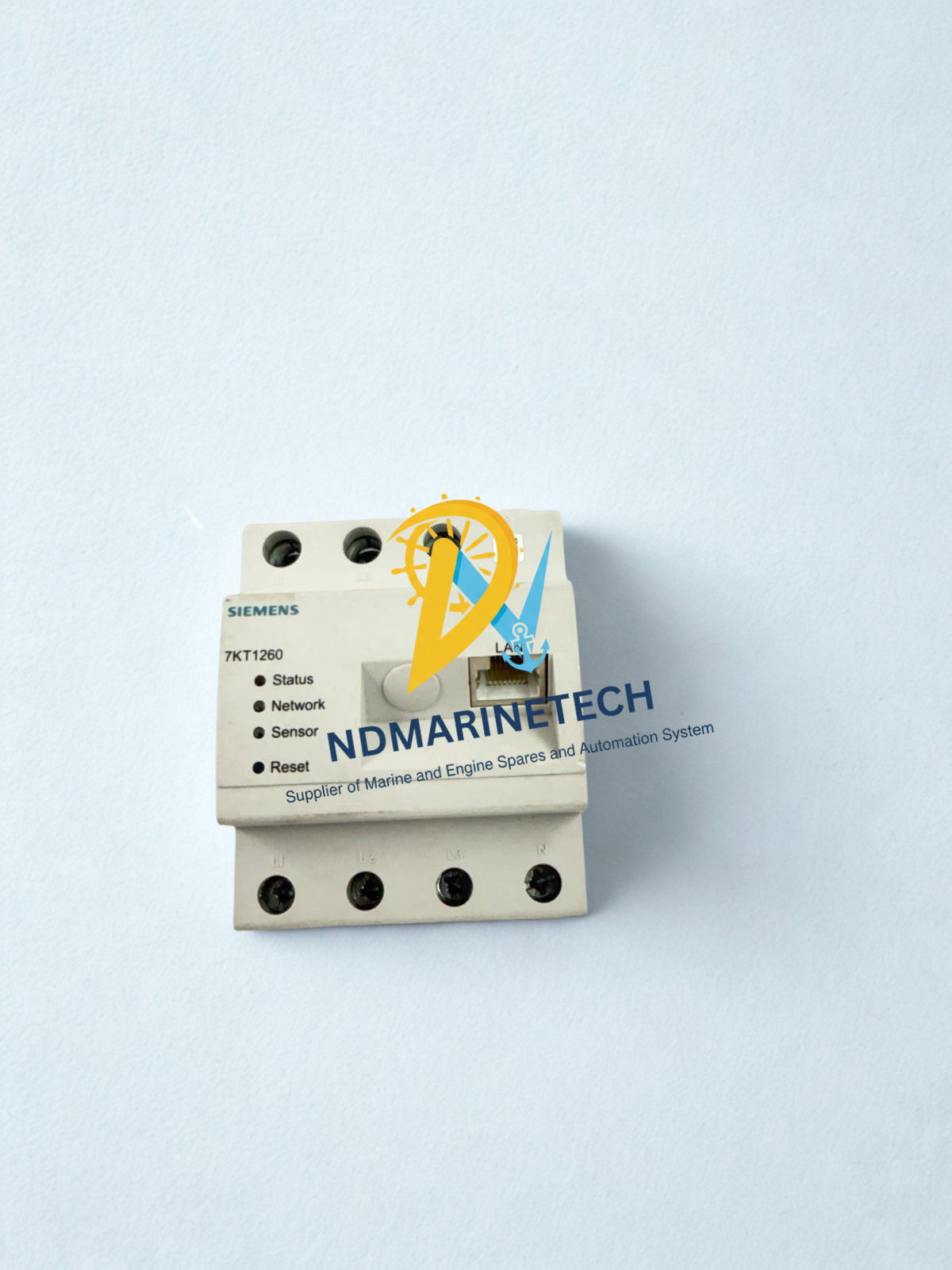

Siemens 7KT1260 Data Manager Module – SENTRON PAC1200 Multi-Channel Energy Management
The brain of the Siemens SENTRON PAC1200 multi-channel current monitoring system is the new Siemens 7KT1260 Data Manager Module. This fully integrated smart metre is designed to provide absolute transparency in power distribution networks with native 3-phase active and reactive power energy metering.
Designed for scalable structural efficiency, a single 7KT1260 module can enable real-time data acquisition from up to 96 independent phase-measurement sensors. It effortlessly aggregates power metrics and hosts an embedded web server for easy cross-platform administration and data visualisation using regular PC browsers or mobile devices without significant software deployments.
Model Details
- Brand: Siemens
- Model: 7KT1260
- Manufacturer Part Number (MPN): 7KT1260
- GTIN/EAN: 4001869528632
- Product Series: SENTRON PAC1200 Multi-Channel System
- Condition: New
Technical Specifications
| Feature / Parametric Value | Specification Details |
|---|---|
| Product Type | Data Manager / Smart Meter Module |
| Supply Voltage at AC 50 Hz | 230 V AC |
| Supply Voltage at AC 60 Hz | 400 V AC |
| Supported Sensors | Up to 96 single-phase current sensors (40 A / 63 A variants) |
| Measurement Parameters | Active power, Reactive power, Frequency, Energy consumption |
| Data Memory | Integrated flash memory for historical logging |
| Communication Interface | Ethernet / Integrated Web Server (TCP/IP) |
| Data Output Format | CSV Export, App interface, Browser configuration |
| Mounting Type | DIN Rail / Series Installation Accessories |
| Dimensions (W x H x D) | 70 mm x 85 mm x 32.7 mm |
Siemens 7KT1260 Official Technical Datasheet
Applications
- Marine and offshore power grids manage auxiliary distribution panels, propulsion-assist sub-networks and sub-feeder lines on board commercial vessels.
- Industrial Automation & Machinery: Monitoring real-time energy profiles of robotic assembly cells and multi-axis motor control centres (MCC) .
- Commercial Building Infrastructure: Peak load profiling and sectional cost centre accounting for different corporate facility sectors.
- Data Centres and IT Facilities Overall power usage effectiveness (PUE) maximised via monitoring of important power distribution units (PDUs).
Engineer’s Insight:
Today’s ships cannot afford the luxury of localised energy visibility; it is a must for operational compliance and machinery protection. The Siemens 7KT1260 module provides engineers with the unique benefit of being able to connect ring-shaped split-core sensors on outgoing lines without the need to physically break or cut crucial cable. This preserves insulation integrity on important machine feeders.
