Hypertherm 041802-00L Power Distribution PCB

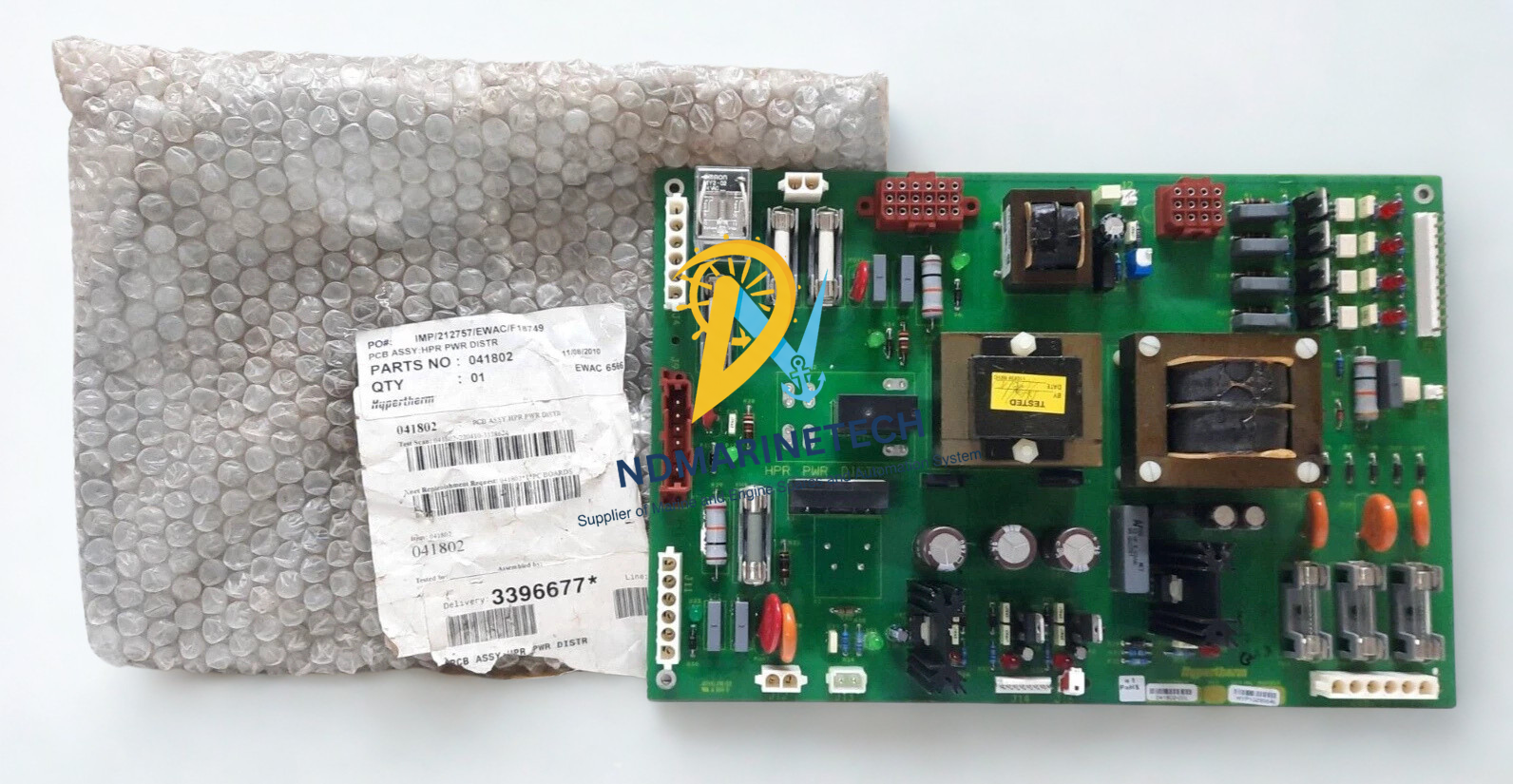

Hypertherm 041802-00L Power Distribution Circuit Board

The Hypertherm 041802-00L Power Distribution Circuit Board (HRP PWR DISTR) is a high performance, critical part, designed specifically for Hypertherm HyPerformance plasma cutting systems including the heavy-duty HPR260XD and HPR400XD. This industrial grade printed circuit board assembly (PCBA) is the main nerve centre for power distribution within this plasma power supply unit. It controls, distributes and isolates high amperage current and low voltage control signals consistently for consistent pilot arc stabilisation and faultless cutting torch mechanics.

This PCB is built to survive in difficult operational environments such as shipyards, offshore fabrication platforms and heavy industrial manufacturing facilities. It helps your plasma system achieve optimal arc voltages, eliminating downtime and safeguarding expensive downstream electronics from unexpected line-voltage changes.

Model Details:

• Brand: Hypertherm
• Part Number / MPN: 041802-00L
• Component Description: PCB Assembly: HPR Power Distribution
• Compatibility: Hypertherm HyPerformance HPR130XD, HPR260XD, and HPR400XD Plasma Cutting Power Supplies (Specifically optimized for systems handling heavy-cycle metal fabrication).

Technical Details

Features: Hypertherm 041802-00L

1. Optimised Power Regulation: Internal plasma sub-systems direct reliable, balanced power routeing which directly preserves torch consumables and prevents premature arc breakdown.
2. Advanced Multi-Stage Fuse Protection: Features a heavy-duty fuse matrix (3A, 6.3A slow-blow, and 10A modules) to immediately isolate faults and prevent catastrophic board failure.
3. Industrial-Grade Thermal Resiliency Built with high-spec substrate layers designed to resist the severe radiant heat and electrical noise of high-amperage metal cutting.
4. Plug and Play OEM Architecture: Engineered as a direct-fit replacement item to optimise factory geometry and wiring harness configurations to minimise maintenance downtime.
5. Stringent Marine & Heavy Industrial Spec Coated to resist moisture, fine metallic dust and salt-air oxidation to meet stringent standards necessary for long term shipyard reliability.

Engineer’s Insight:

The Hypertherm 041802-00L power distribution board handles significant high-frequency noise and voltage spikes. On a vessel or a remote workshop running off auxiliary generators, a minor fluctuation in line voltage can easily trip or fry generic components. This OEM board is explicitly engineered with tighter component tolerances to damp those exact surges before they reach the main control processors.

Useful tips from us:

1. Complete Isolation: Always lock out and tag out (LOTO) the primary breaker before opening the right-side service panel. Wait at least 5 minutes for the massive capacitors inside the HPR power supply to completely discharge.
2. Check Your Fuses First: If your system is throwing a power distribution error code, check the on-board fuses (F1 through F7) with a multimeter before replacing the entire board. A blown 6.3A slow-blow fuse (Part 108075) can easily be swapped out.
3. Mitigate Corrosion: When installing this board in coastal regions or maritime repair shops, ensure the cabinet seals are fully intact. When replacing the wiring harness plugs onto the 041802 board, verify tight seating; loose connections introduce localized resistance, which generates heat and leads to premature board failure.
