TURCK IM1-12EX-T Isolating Switching Amplifier 7541227

TURCK IM1-12EX-T Isolating Switching Amplifier (Ident No. 7541227)

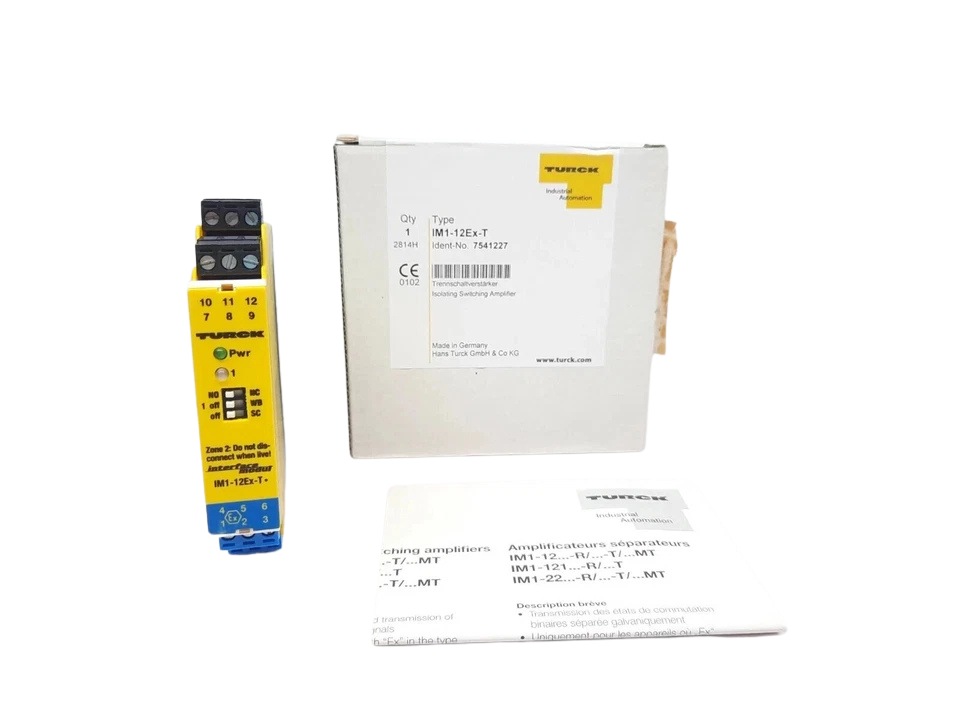

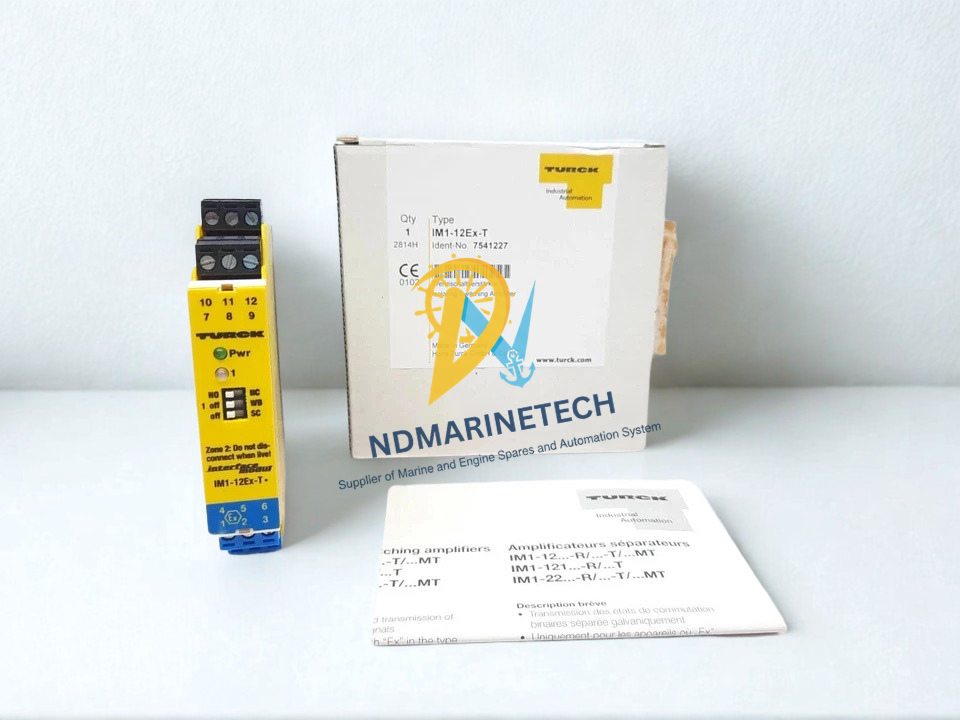

The TURCK IM1-12EX-T (Ident No. 7541227) is a high-performance 1-channel isolating switching amplifier for use as an inherently safe interface between hazardous area field devices and safe area control systems. This interface module receives binary signals from sensors compliant to EN 60947-5-6 (NAMUR) or mechanical volt-free contacts and provides complete galvanic separation to ensure that your control environment is not compromised by hazardous energy surges.

Key Features

• Safe Ex Interface: Safe transfer of binary digital input signals from dangerous surroundings (zone 0, 1, 2 or explosive risk zones) into the safe zone.
• Dual Transistor Outputs 2 potential free, short circuit proof and reverse polarity protected solid state transistor outputs for high frequency switching and life time.
• Complete line monitoring Onboard user-selectable (ON/OFF) wire-break and short-circuit monitoring that flags field-side loop problems quickly.
• Functional Safety Certified Designed and rated to SIL 2 (IEC 61508) standards, providing reliability for important safety-instrumented systems (SIS).

Technical Specifications

Applications

1. Marine & Offshore Automation: Protection of cargo tank level switches, valve position feedback and engine room alert sensors on boats and drilling rigs.
2. Chemical & Petrochemical Processing: Processing intrinsic safety instrumentation loop signals in the vicinity of volatile fuel storage and chemical reactors.
3. Oil & Gas Refining: Segregating field instrumentation lines for downstream, midstream and upstream processing areas of concern.
4. Water & Wastewater Treatment: Enabling explosive gas environment level monitoring in pump station wet wells.
5. Pneumatic & Machinery Control: Hazardous area emergency stop and limit setups immediately interfaced to safe area PLCs.

Shipping & Lead Time Information

• In-Stock Items: Ships within 24–48 hours from our logistics hub.
• Worldwide Express Delivery: DHL, FedEx, and UPS options available for immediate hot-shot delivery to global ports or industrial facilities.
• Customs Tariff Number (HS Code): 8536698000 / 8536908530

Compatibility

The IM1-12EX-T interfaces with:

• PLC/DCS Digital Input Modules: Siemens SIMATIC S7-1200/1500, Allen-Bradley ControlLogix/CompactLogix (sink/source 24 VDC fast DI), Schneider Modicon, ABB 800xA, Yokogawa Centum VP, and Kongsberg K-Chief marine automation systems.
• Sensors: Turck, Pepperl+Fuchs, ifm efector, and Balluff inductive/capacitive NAMUR sensors conforming to EN 60947-5-6.
• Mechanical Contacts: Microswitches, limit switches, and pushbuttons installed in Ex zones (requires bridge resistor network when line fault monitoring is active).

Frequently Asked Questions

What is the difference between TURCK IM1-12EX-T and IM1-12EX-R?

The IM1-12EX-T features dual solid-state transistor outputs capable of high-frequency switching up to 5 kHz and unlimited operational switching cycles. The IM1-12EX-R utilizes mechanical relay contacts (SPDT/changeover) designed for direct high-current power switching but with lower frequency limits.

Can the IM1-12EX-T be mounted directly in hazardous zones?

The unit can be mounted in ATEX/IECEx Zone 2 inside an approved enclosure with at least IP54 protection. Its input terminals are rated intrinsically safe ([Ex ia Ga]) and connect directly to devices located in Zone 0, Zone 1, and Zone 2.

How do I clear a red fault LED on the front panel?

A red LED indicates an input circuit failure (short circuit or wire break). Check field wiring for continuity or ground shorts, verify correct NAMUR sensor polarity (Terminal 1 positive, Terminal 2 negative), or disable line monitoring if connecting passive dry contacts without a parallel resistor network.

What is the maximum output current rating for each transistor channel?

Each potential-free transistor output can continuously switch up to 50 mA (0.05 A) at a maximum voltage of 30 VDC. For higher load switching, the transistor should drive an external interposing relay or connect directly to a high-impedance PLC digital input card.
