Turck IM1-451EX-T 7541189 Isolating Switching Amplifier

Turck IM1-451EX-T Isolating Switching Amplifier (Ident. No. 7541189)

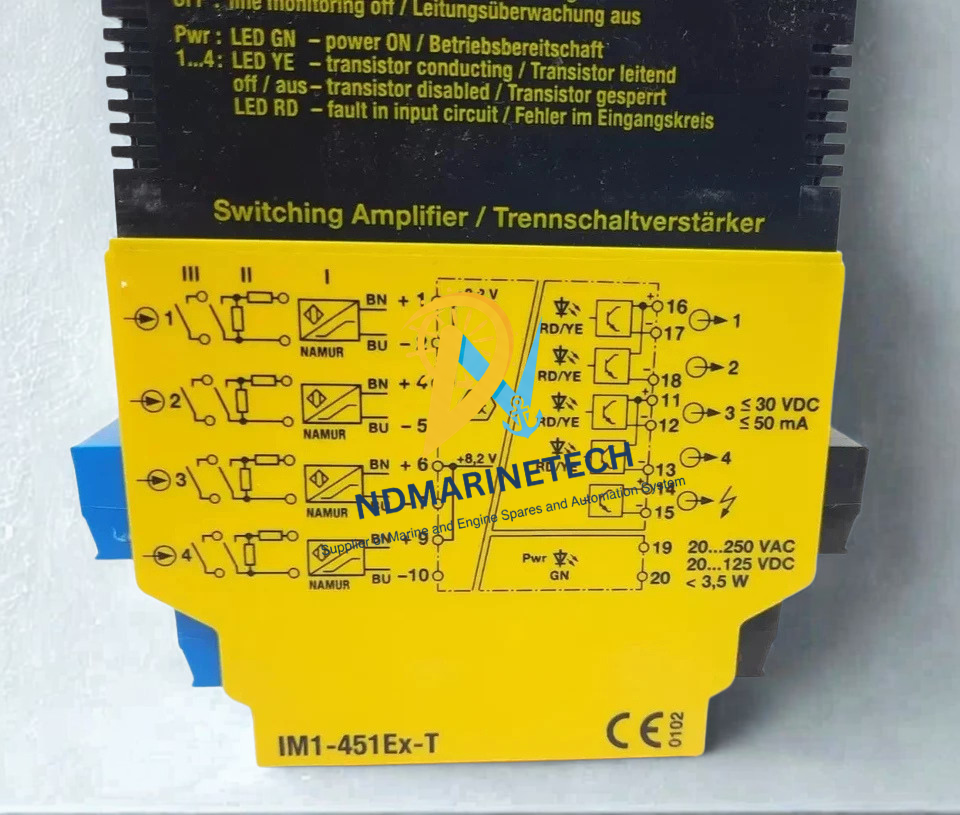

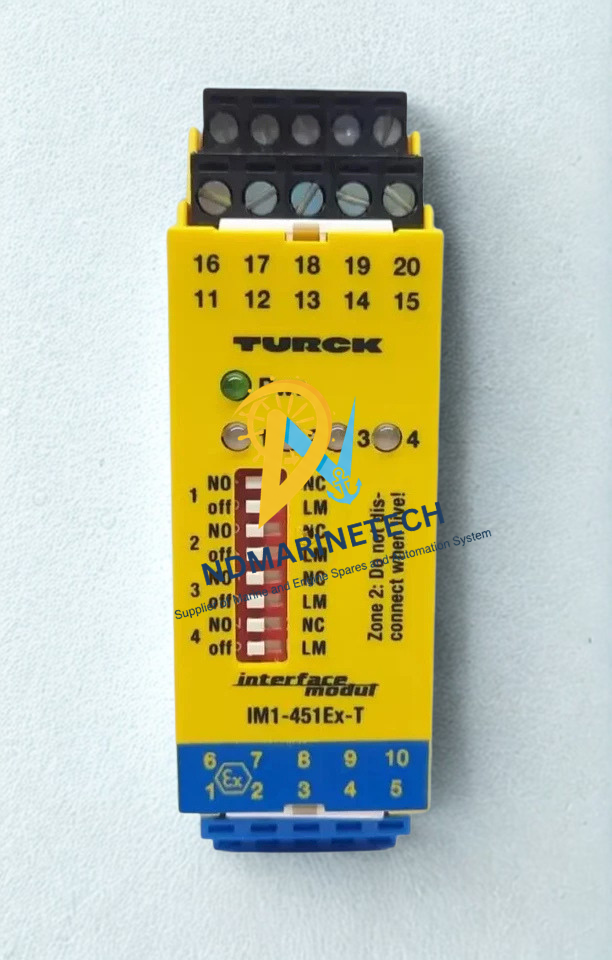

The Turck IM1-451EX-T (Ident. No. 7541189) is a high-quality 4-channel isolating switching amplifier for the safe transmission of binary signals from intrinsically safe areas (Ex-area) to non-intrinsically safe areas. The device is designed for critical industrial and maritime automation control loops and has an ultra-reliable 4 channel architecture with 5 potential-free, short-circuit proof transistor outputs and a dedicated common alarm indicator. It offers total galvanic isolation, eliminating ground loop currents, decreasing transient spikes and guaranteeing clean signal integrity in most volatile operating situations.

Identification & Condition

• Brand: TURCK
• Model: IM1-451EX-T
• Manufacturer Part Number (MPN) / Ident. No.: 7541189
• Product Series: IM Series (Interface Module)
• Condition: New

Technical Details

Part Number Cross-References & Compatibility

• Alternative Series Variant: Turck IM1-451EX-R (Ident No. 7541188 — Note: This variant utilizes electromechanical relay outputs instead of the high-speed transistor outputs featured on the -T version).
• Direct Hardware Substitutions: Often cross-referenced with comparable intrinsic safety isolation barriers from Pepperl+Fuchs (KFD2 series) and Phoenix Contact (MACX MCR series) in standard digital-input processing loops.
• Field Compatibility: Engineered for absolute interoperability with standard NAMUR proximity sensors, intrinsic limit switches, magnetic pickups, and floating electrical contacts situated inside hazardous zones.

Industrial and Marine Applications

1. Hazardous Cargo & Tank Gauging Safe transfer of the digital data from tank level sensors, pressure switches and temperature controllers aboard LNG/chemical tankers.
2. Engine Room Automation & Safety Loops: Provides a critical isolation buffer for fuel management manifolds, emergency shutdown (ESD) circuits, and bilge alarms.
3. Offshore Drilling & Petrochemical Refineries: Protects control structures controlling pneumatic valves, motor limit indications and valve position feedback devices.
4. Water and wastewater treatment plants: Controls hazardous digital instruments in wet wells, chemical metering stations and methane recovery facilities.

Our Engineer’s Guide:

1. DIP Switch Calibration for Mechanical Contacts: If you are connecting this barrier to simple non-NAMUR mechanical switches (like an engine room bilge float or a simple door microswitch), the device’s wire-break (WB) and short-circuit (SC) monitoring must be switched off, unless you explicitly wire external resistors in series and parallel with the contact (such as the Turck WM1 resistor module). Leaving diagnostic monitoring active on bare mechanical contacts will flag a perpetual input fault (red LED status).
2. Mind the Temperature Limits in Heavy Machinery Enclosures: While the module is rated up to +70°C, be aware that UL and FM approvals drop that ceiling down to +60°C. If you are panel-mounting this device within an engine room control cabinet or near exhaust purifiers, always maintain a minimum spacing of 5–10mm from high-heat sources or implement active cabinet ventilation.
3. Isolate Intrinsic Safety Cabling: Ensure that all blue-coded intrinsic safety input lines leading from the field to the lower terminals of the IM1 module are strictly segregated from standard non-IS power cables inside your trunking. Mixing these runs compromises the intrinsic safety barrier concept completely.

Frequently Asked Questions

Can I run standard dry limit switches through the IM1-451EX-T?

Yes. You can wire standard mechanical dry contacts to the intrinsically safe inputs. To maintain line-fault detection without continuous open-circuit alarms, wire a parallel/series resistor network at the contact. Alternatively, switch off line monitoring for that channel.

What is the functional difference between the transistor outputs and relay outputs in the IM series?

The IM1-451EX-T features solid-state NPN/PNP compatible transistor outputs capable of high switching speeds (up to 3 kHz) with zero mechanical wear. Relay models (such as IM1-451EX-R) use mechanical contacts suitable for direct high-voltage AC load switching at lower frequencies.

Can the IM1-451EX-T be installed directly in hazardous zones?

The module can be mounted inside a Zone 2 / Class I, Division 2 area provided it is housed in an IP54-rated (or better) certified enclosure. Its input circuits are rated intrinsically safe for connection to devices operating in Zone 0 / Zone 20 / Class I, Div 1 locations.

How does the common alarm output terminal function?

Terminal pair 11/12 operates as a common fault transistor output. If any enabled channel detects an input wire break or short circuit, the alarm transistor switches state, allowing a single DCS input point to monitor safety loop integrity across all four channels.
