Woodward EASYGEN 3200-5 (P/N: 8440-1831 REV. F) Engine Generator Control Unit
Woodward EASYGEN 3200-5 (P/N: 8440-1831 REV. F) Flush mounted generator control unit with display for advanced power management, load sharing, and synchronization for marine switchboards, standby emergency networks, and island/parallel grid operations. The 8440-1831 Rev. F offers full generator set protection, breaker control and automated engine management in demanding marine and industrial applications. It includes FlexInâ„¢ adjustable analog input topology, CANopen/J1939 protocols and Class 1 True RMS power sensing.

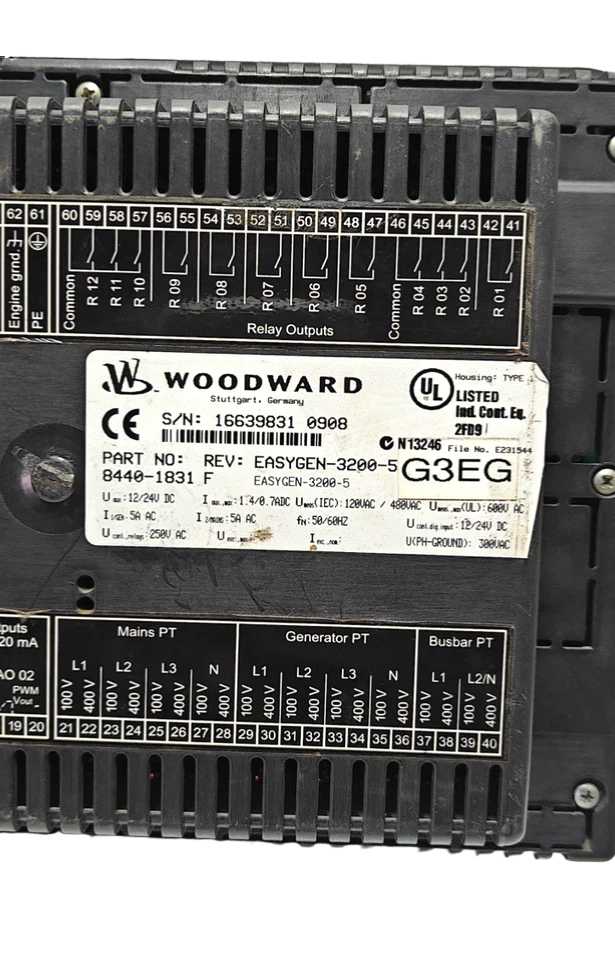

Model Details
- Manufacturer: Woodward Inc.
- Model Series: easYgen-3000 Series (P2 Generation)
- Model Identification: EASYGEN-3200-5
- Manufacturer Part Number (MPN): 8440-1831
- Hardware Revision: REV. F

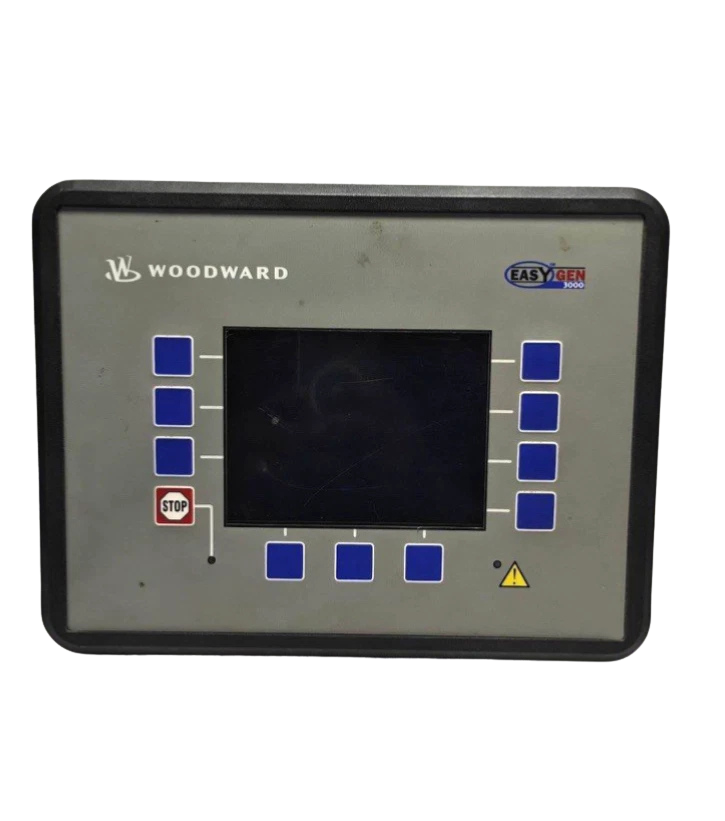

- Mounting Configuration: Front panel flush mount with 5.7″ QVGA liquid crystal display and keypad
Technical Details: Woodward EASYGEN 3200-5 8440-1831
| Parameter Specification | Technical Value / Range |
|---|---|
| Auxiliary Power Supply (Uaux) | 12/24 VDC Nominal (8.0 to 40.0 VDC continuous endurance) |
| Power Consumption | Max. 14 W (Intrinsic unit draw); < 0.15 W per measuring path |
| Generator / Mains AC Voltage Input | 100/120 VAC and 400/480 VAC nominal; Max 600 VAC (UL rated), Phase-to-Ground 300 V CAT III |
| AC Current Inputs (I1 Gen / I2 Mains) | 1 A or 5 A AC secondary (Isolated True RMS, Class 1 Accuracy) |
| Nominal Frequency Range | 50 / 60 Hz (Operating measurement band: 40.0 to 85.0 Hz) |
| High Impedance Measuring Path | 2.0 MΩ input resistance per path |
| Discrete Inputs / Relay Outputs | 12 Discrete Inputs (12/24 VDC isolated); 12 Relay Outputs (Galvanically isolated, 250 VAC / 2 A) |
| FlexIn™ Analog Inputs | 3 Configurable channels (VDO 0-180Ω / 0-500Ω, 0/4-20 mA, 0-5 V) |
| Analog Outputs | 2 Speed / Voltage bias control outputs (±10 V, 0-20 mA, PWM configurable) |

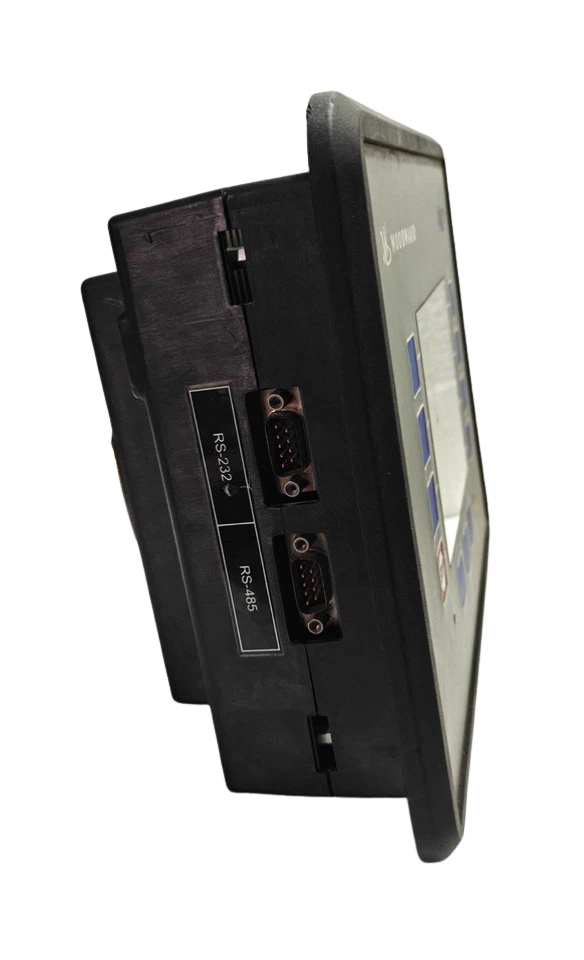

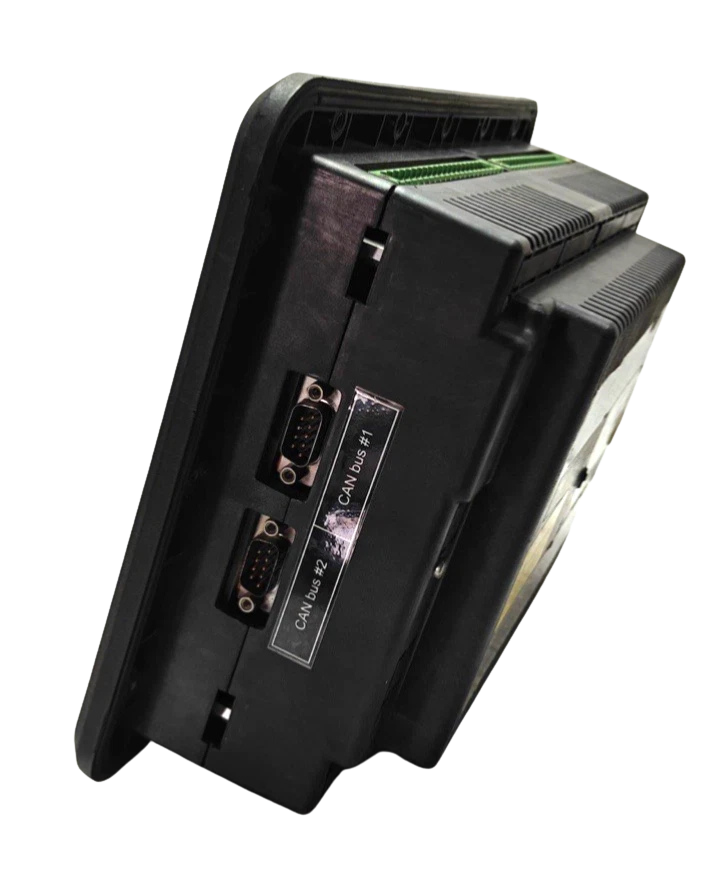

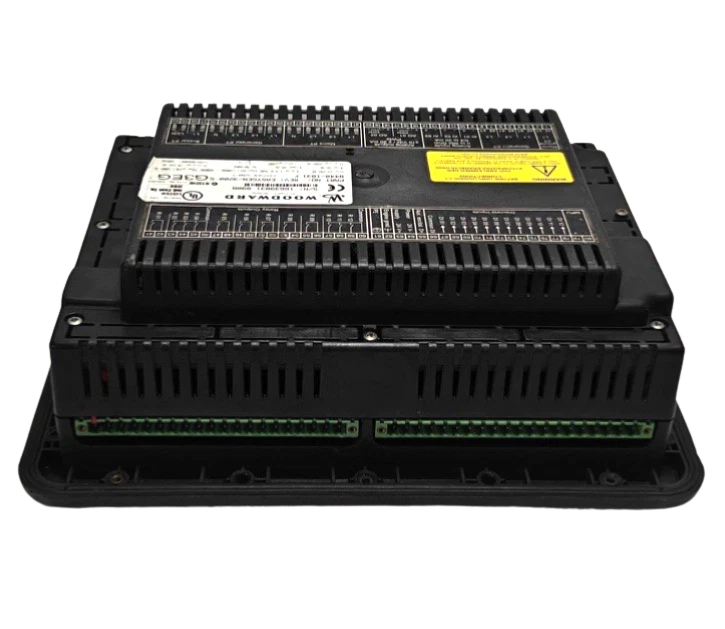

| Communication Ports | 2x CAN Bus (CANopen/J1939), 1x RS-485 (Modbus RTU), 1x Ethernet (Modbus TCP), 1x USB Port |
| Operating Temperature | -30°C to +70°C (-22°F to +158°F) |
| Protection Class / Enclosure | IP54 Front Seal with gasket; IP20 Rear Terminals |
| Dimensions & Weight | 282 mm x 217 mm x 99 mm; Approx. 2,150 g (4.74 lbs) |
Compatible Equipment Models & System Integration
The Woodward 8440-1831 Rev. F integrates seamlessly with modern electronic engines, legacy mechanical engines, and generator switchboard peripherals:
- Engine Control Units (ECUs): Caterpillar ADEM III/IV/A4, MTU ADEC/MDEC, Cummins PowerCommand/CM850, Volvo Penta EMS2, Perkins/Deutz J1939 controllers.
- Automatic Voltage Regulators (AVRs): Basler DECS-100/200, Caterpillar VR6, Marathon DVR2000E, Stamford MX321/MX341 via ±10 VDC or PWM bias signals.
- Remote Panels: Fully compatible with Woodward RP-3000 remote display panels.
- Paralleling Networks: Drops directly into existing easYgen-3000 series networks (e.g., 3100-5, 3200-5, 3500-5).
Part Number Cross-References
- 8440-1831 (Primary MPN with display, front mount)
- 8440-2082 / 8440-2083 (Updated easYgen-3200XT series equivalents)
- 8440-2081 (Cabinet back-mount variant without display)
- 8923-2318 (Replacement terminal connector plug kit)
Key Features
- Advanced Synchronizing & Load Sharing: Features integrated phase matching, slip frequency auto-synchronization, and real-time kW/kVAR reactive load distribution over dedicated CAN bus networks.
- FlexInâ„¢ Adaptive Inputs: Three software-configurable analog channels accepting VDO resistive pressure/temperature sensors, 0-20 mA current loops, or 0-5 V signals without external signal converters.
- Comprehensive Breaker Logic: Built-in open/closed transition logic for automated transfer between utility mains (MCB) and generator breakers (GCB) with soft loading and unloading ramps.
- J1939 & Modbus Communications: Native CAN 2.0B supporting SAE J1939 engine parameter retrieval alongside dual Modbus RTU/TCP protocols for SCADA integration.
- Rugged Marine Construction: Sealed IP54 front panel housing with high-resistance transient voltage suppressor protection designed to withstand severe vibrations on diesel generator skids.
Frequently Asked Questions
What is the main difference between the Woodward EASYGEN 3200-5 (8440-1831) and the 3100-5 series?

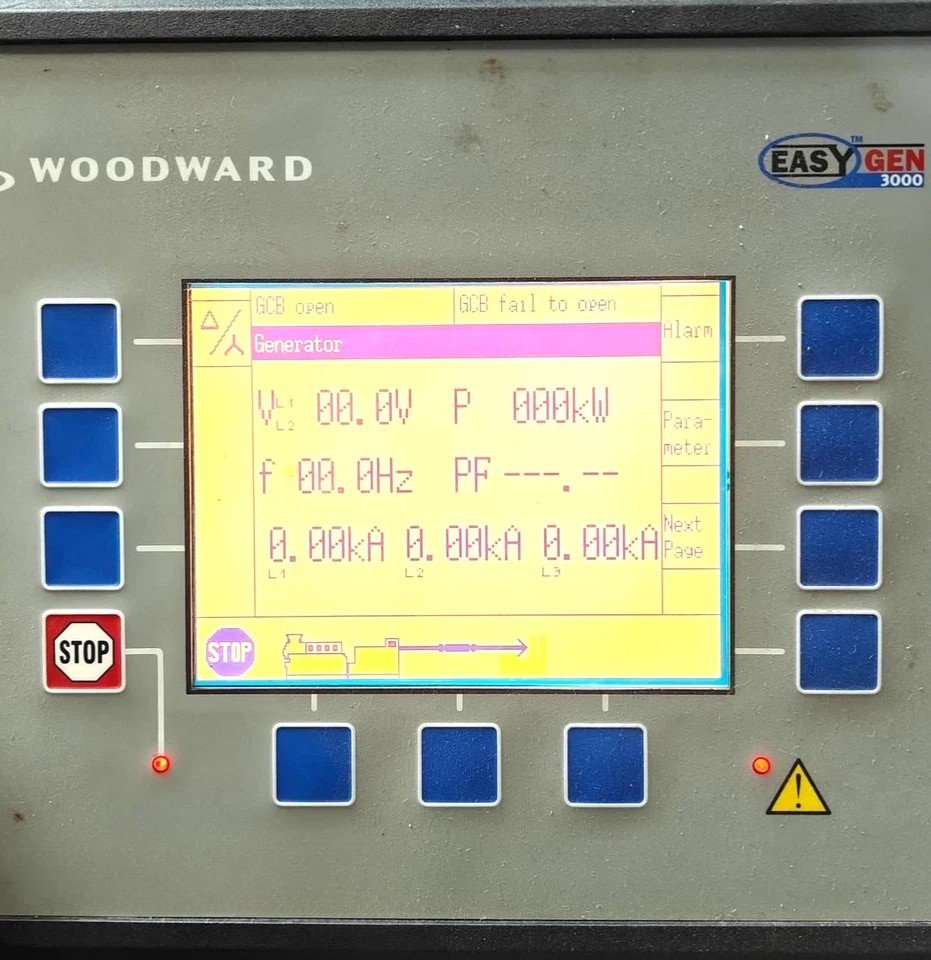

The EASYGEN 3200-5 (P/N 8440-1831) features a front-panel graphic LCD with an interactive membrane keypad and synchroscope. The 3100-5 series is a rear cabinet-mounted variant designed without an integrated display screen, intended for remote panel interaction or SCADA control.
Does the 8440-1831 Rev. F controller support direct speed and voltage bias to electronic governors?
Yes. The controller provides two galvanically isolated analog outputs capable of delivering ±10 V, 0–20 mA, or PWM control signals directly to voltage regulators (AVR) and speed governors or engine ECUs.
How do I resolve a CAN load share communication fault on the EASYGEN 3200-5?
Check network continuity across terminals, verify that the baud rate is set identically across all connected units (typically 250 kbps or 500 kbps), and confirm that 120 Ω line termination resistors are present at both ends of the CAN bus.
Can this unit handle 480V or 600V nominal generator AC sensing directly?
Yes, the 8440-1831 accepts direct AC voltage input sensing up to 600 VAC (UL rating) without requiring external potential transformers (PTs). For systems exceeding 600 VAC, external PTs must be configured in the software setup.
