Terasaki EMI-103 PCB Board | Japan-Made

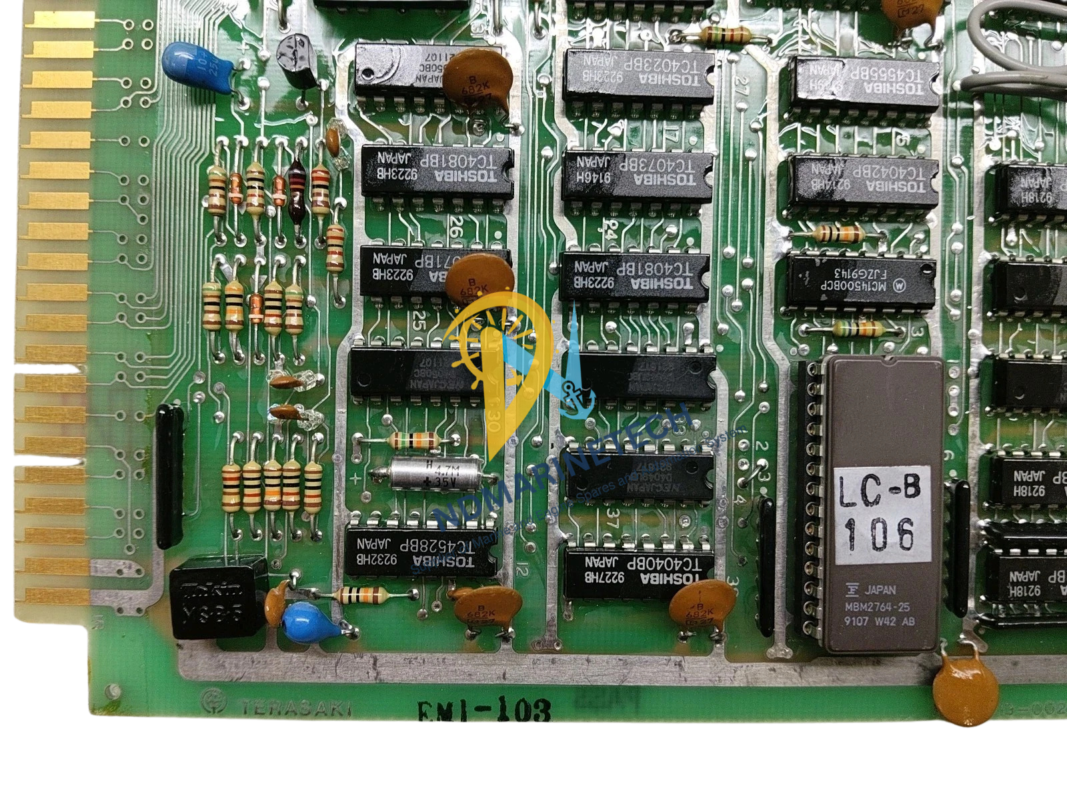

Terasaki EMI-103 Electronic Circuit Board PCB Module

The EMI-103 module is often used as a control unit and logic interface in Terasakis larger power management systems. This board is built to last in a marine environment, with a focus on its capacity to handle extreme humidity, sea mist, and constant mechanical vibration. Its standardized gold-plated edge connections and small size make it easy to plug and play replace during maintenance periods.

The Terasaki EMI-103 is a high-performance electronic circuit board that was made just for industrial automation frameworks and maritime power systems that need precision management. In high-demand applications, the EMI-103 module is an important part that makes that signal processing and logic control are always the same. Japan makes it to very high standards. This printed circuit board (PCB) is as strong and reliable as Terasaki is known for, whether it is used in basic switchgear assembly or advanced engine room automation.

Specifications

Our Engineers’ Expert Tips:

1) Inspecting the Edge Connectors

In my experience, 80% of PCB failures in the marine sector are actually due to poor contact. Periodically inspect the gold-plated pins on the EMI-103. If you see signs of oxidation or fretting, use a specialized electrical contact cleaner or a soft eraser to gently clean the contacts.

2) Guard Against Salt-Creep

Even in air-conditioned control rooms, salt mist can settle on the board over time, leading to short circuits between traces. Ensure the control cabinet seals are intact. If you find dust buildup, use low-pressure dry air to blow the board clean—high-pressure air can actually drive contaminants deeper into the components.

3) The Cold Solder Check

Due to the high vibration levels in marine environments, keep an eye on the heavier components on the board (like capacitors). Use a magnifying glass during your annual inspection to check for hairline cracks in the solder joints. Catching these early prevents a total system blackout.

4) Safe Replacement Procedure

Always discharge yourself (use an ESD wrist strap) before handling the EMI-103. Modern logic chips are highly susceptible to static. When installing, ensure the board is fully seated in the rack before locking the retaining clips to prevent arcing during startup.
