ABB HBS01-CJC REV K I/O MTU Module Base

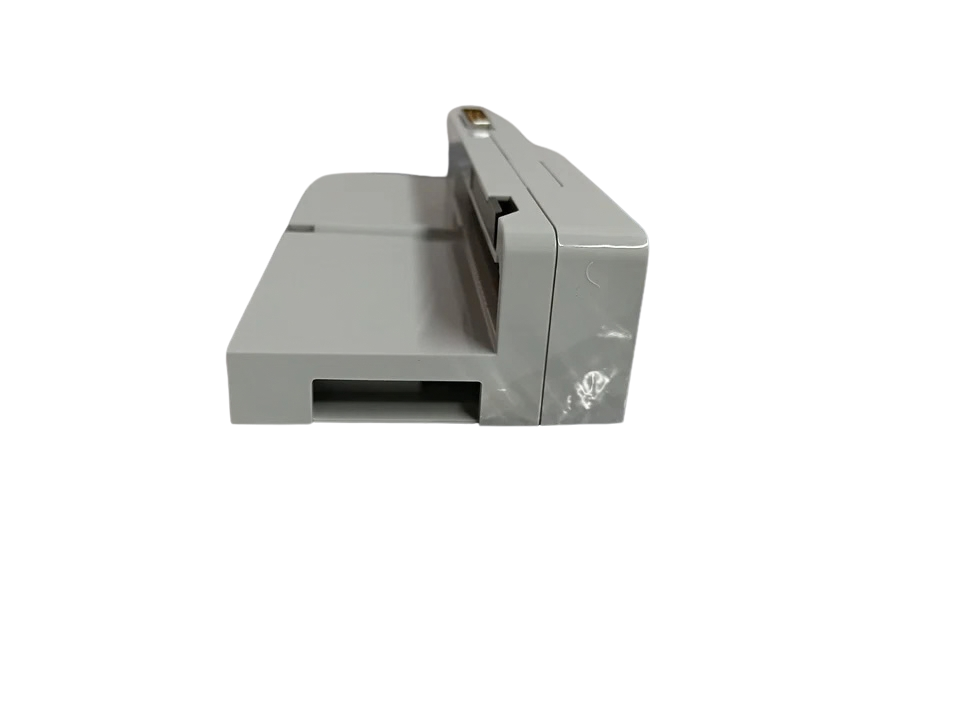

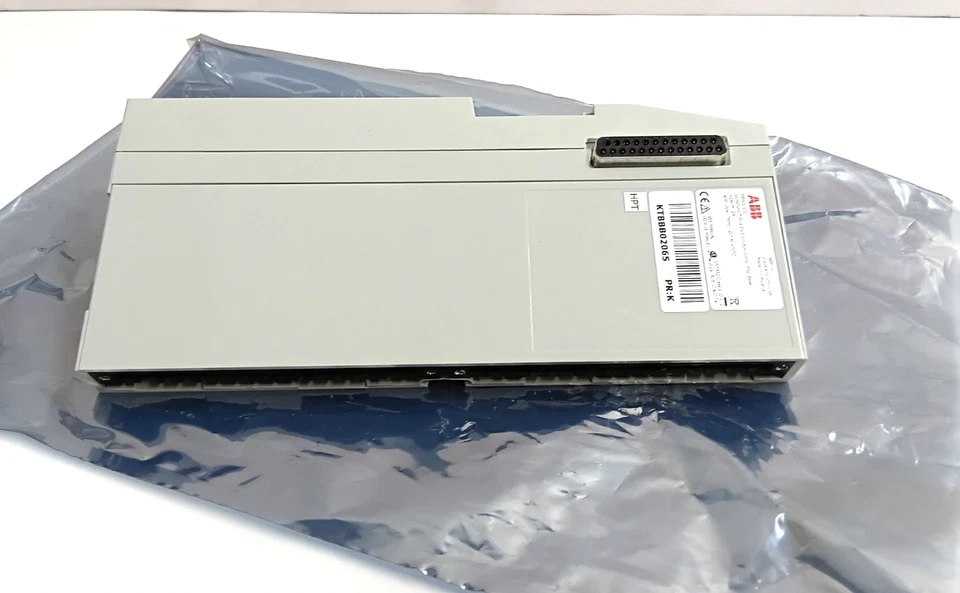

ABB HBS01-CJC REV K I/O MTU — Symphony Plus SD Series Module Termination Unit

The ABB HBS01-CJC (Revision K) is a horizontal-mount Module Termination Unit (MTU) engineered for the ABB Symphony Plus SD Series distributed control system (DCS). Designed to host singular analog temperature and low-level voltage input modules, the HBS01-CJC integrates an onboard, high-precision Resistance Temperature Detector (RTD) dedicated to Cold Junction Compensation (CJC). This hardware architecture ensures millivolt-level measurement fidelity directly at the termination interface, eliminating thermocouple drift caused by temperature differentials across marshalling cabinets and field junction points.

Revision K incorporates refined trace routing, robust EMI/RFI suppression, and reinforced terminal retaining latches for industrial environments subjected to severe thermal cycling and mechanical vibration. The base establishes local power distribution, module keying, and redundant HN800 I/O bus communication directly through high-reliability backplane traces, enabling singular analog channels to run with minimal wiring interference.

Model Details

• Manufacturer: ABB
• Product Line: Symphony Plus / SD Series I/O
• Model: HBS01-CJC
• Hardware Revision: Revision K
• ABB Part Number / MPN: HBS01-CJC / SP-HBS01-CJC (Corrosion-resistant conformal variant: HBS01-CJCA)
• Legacy & Alternate Part Numbers: 8VZZ000403R1, 8VZZ000403H1 (family base ref), HBS01CJC-K
• Associated I/O Modules: AI03 (8-Channel RTD), AI04 (16-Channel TC/mV)

Key Features

1. Integrated Cold Junction Compensation (CJC): Embedded precision RTD element at the terminal block interface delivers real-time thermal compensation for isothermal gradient accuracy across all 16 thermocouple points.
2. High-Integrity Bus Interface: Native interface for redundant HN800 high-speed serial I/O communication links (150 mm bus span), maintaining deterministic execution cycles across adjacent MTUs.

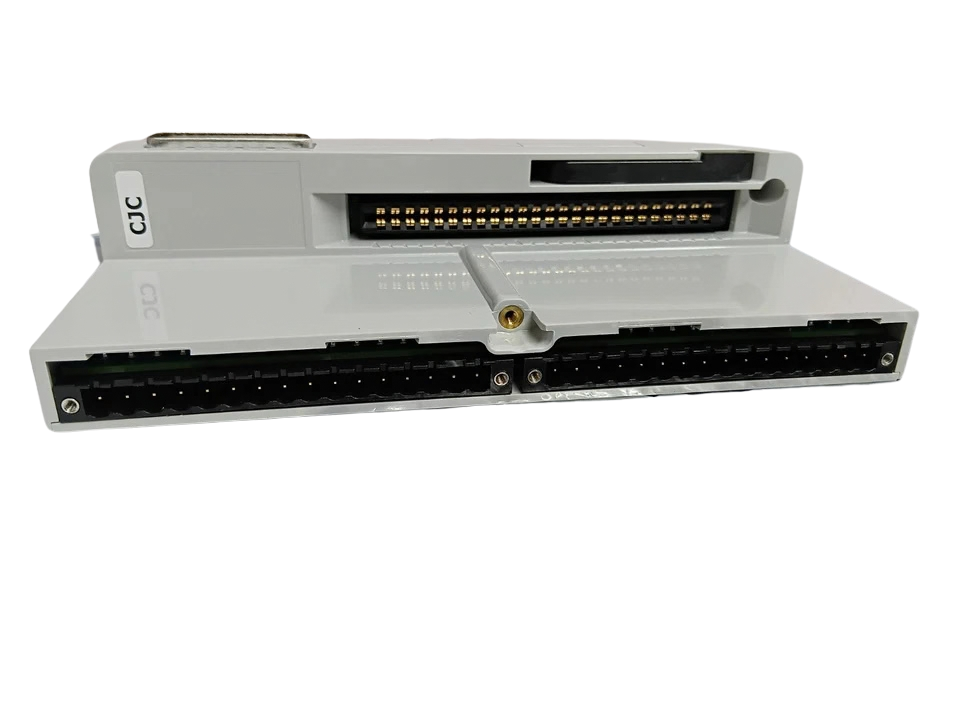

3. Flexible Field Interface: Dual 16-point screw-clamp or spring-tension terminal headers accommodate direct field termination (#22 to #12 AWG) or direct hookup to SPK0x standard marshalling cable assemblies.
4. Extreme Galvanic Isolation: Factory tested to 1,500 VAC for 60 seconds, preventing destructive ground-loop potential differentials from penetrating the internal processing hardware.

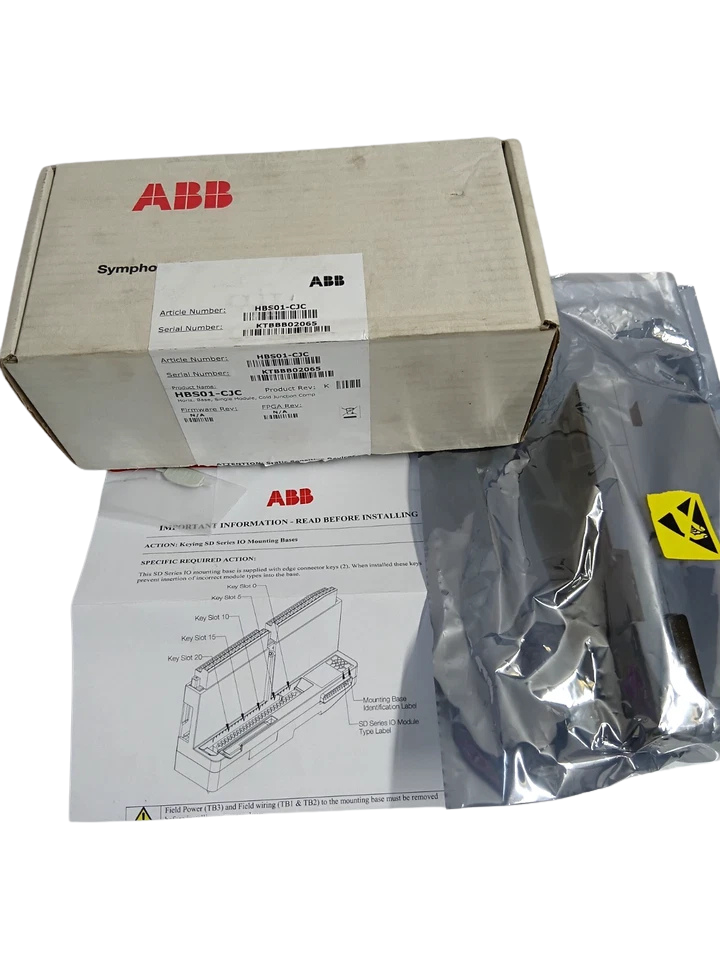

5. Fail-Safe Mechanical Keying: Dedicated physical keying pins eliminate module mismatch errors during maintenance by preventing incompatible I/O cards from seating in the base.

Compatible I/O Modules & System Hardware

• Analog Input Modules: ABB Symphony Plus AI03, AI04.
• System Controllers: HPC800, BRC400, BRC410, SPC700 executing on Symphony Plus architectures.
• Interconnecting Bus Cables: HN800 local bus jumper kits (150 mm standard length).
• Marshalling Assemblies: ABB SPK0x_-yy prefabricated terminal trunking cables.

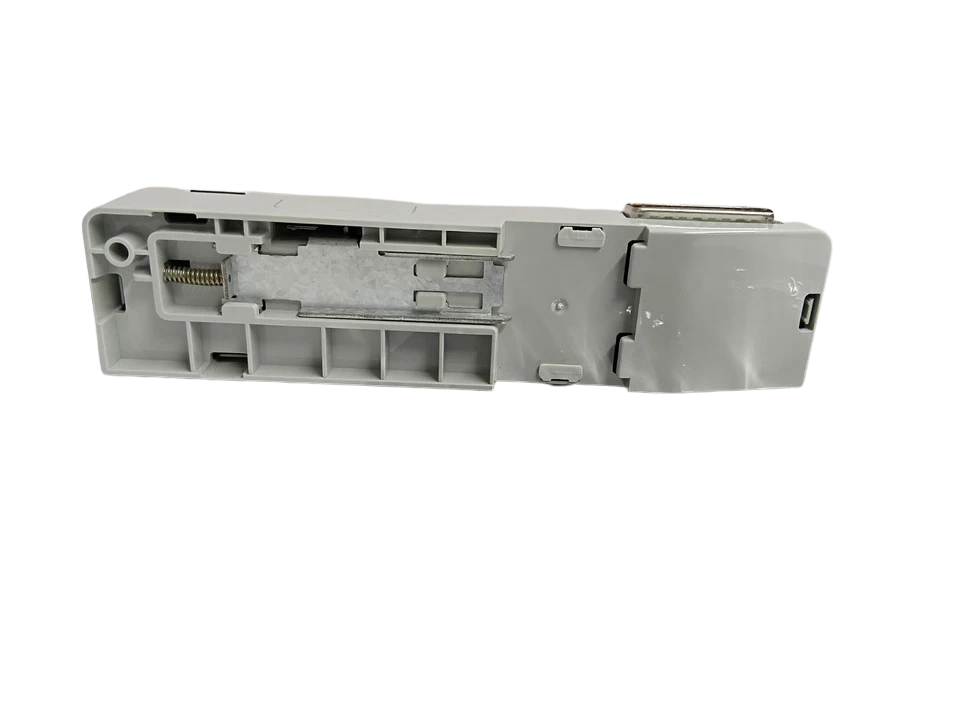

• Mounting Rails: Standard symmetric TS35 DIN rail (35 mm x 7.5 mm or 35 mm x 15 mm).

Part Number Cross-References

• HBS01-CJC REV K (Current singular horizontal CJC base)
• HBS01-CJCA (Harsh environment variant with ISA S71.04 G3 conformal coating)
• HBR01-CJC (Redundant configuration base for redundant TC/RTD inputs, dual-width 90 mm)
• 8VZZ000403R1 / 8VZZ000403H1

Applications

• Marine Automation & Monitoring (AMS): Main engine exhaust gas temperature (EGT) arrays, cylinder head monitoring, scavenge air manifold thermal tracking, and turbocharger bearing monitoring.
• Offshore Floating Production (FPSO/FLNG): Flare gas header temperature monitoring, separator vessel level/pressure/temperature analog processing, and compressor lube-oil thermal tracking.
• Combined-Cycle & Thermal Power Plants: Steam turbine casing thermocouple arrays, boiler superheater/reheater metal tube skin monitoring, and generator stator winding RTD matrices.
• Heavy Chemical & Petrochemical: Distillation column multi-point tray temperature readings, reactor bed runaway early detection loops, and catalytic cracking thermal monitoring.

Frequently Asked Questions

What is the primary function of the ABB HBS01-CJC MTU?

The ABB HBS01-CJC serves as the physical mounting and wiring interface for singular AI03 (RTD) and AI04 (Thermocouple/mV) modules in ABB Symphony Plus DCS environments. It provides line-level connection to the redundant HN800 bus and features an internal cold junction reference sensor for thermocouple linearization.

What is the key difference between HBS01-CJC and HBR01-CJC?

The HBS01-CJC is a singular (single module) horizontal termination base with a compact 45 mm footprint. The HBR01-CJC is a redundant base (90 mm width) that accepts redundant pairs of AI04/AI03 modules to provide dual-channel hardware fault tolerance.

Can I install an analog output (AO) or digital input (DI) module into this base?

No. The HBS01-CJC features built-in mechanical keying slots configured specifically for AI03 and AI04 module enclosures. This mechanical lock prevents other modules, such as AO01 or DI01, from seating, preventing electrical mismatch faults.

What size field wiring can be landed directly on the MTU?

The HBS01-CJC terminal headers accept wire gauges ranging from #22 AWG to #14 AWG solid or stranded wire. Up to #12 AWG stranded wire is permissible for specific ground or field loop applications without terminal modification.

Does the HBS01-CJC support live hot-swapping?

While the active I/O module (such as the AI04) seated into the base supports hot-swapping procedures under authorized bypass control, the HBS01-CJC termination unit itself hosts the common backplane cabling and field leads; disconnecting the base MTU from the DIN rail requires de-energizing local power to prevent disruption to the downstream HN800 segment.

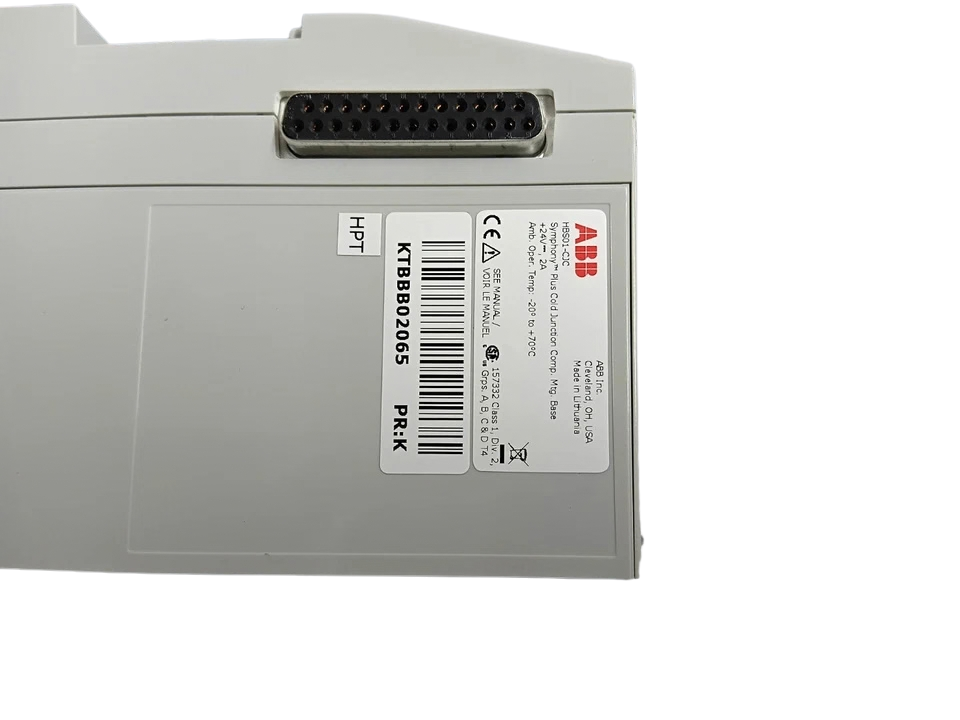

How do I recognize Revision K over earlier revisions?

Revision K features laser-etched nomenclature on the side housing displaying “REV K” adjacent to the part number, along with modernized terminal locking clips and updated internal component trace layouts compared to earlier revisions A through G.
