Atlas Copco PF4000-G-PN-HW 8433 6148 00 Nutrunner Controller

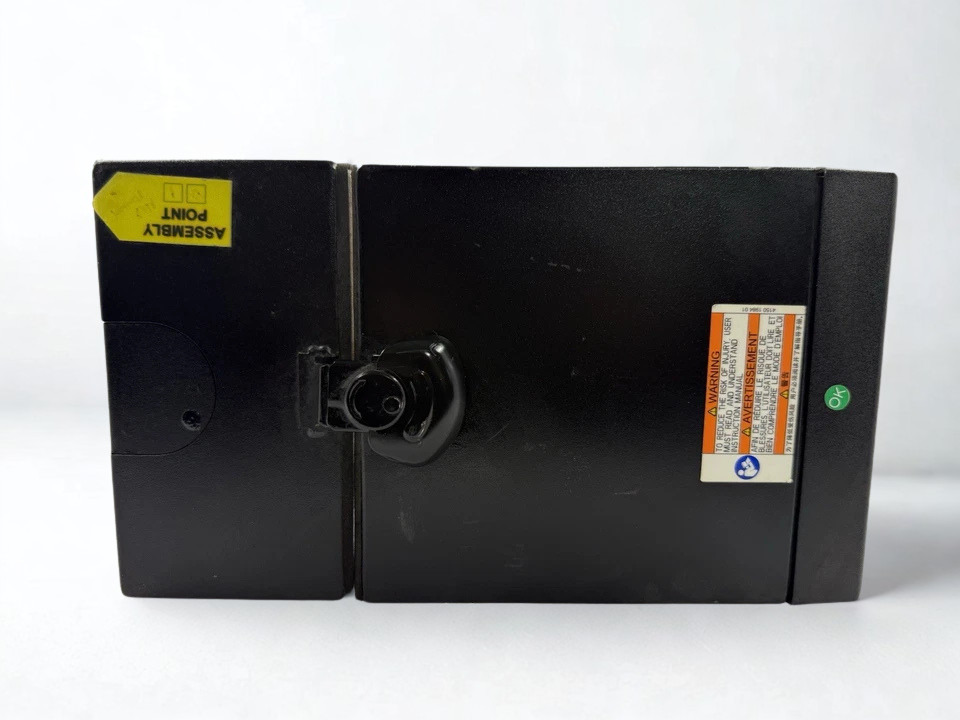

Atlas Copco Power Focus PF4000-G-PN-HW Nutrunner Controller (Art No. 8433 6148 00)

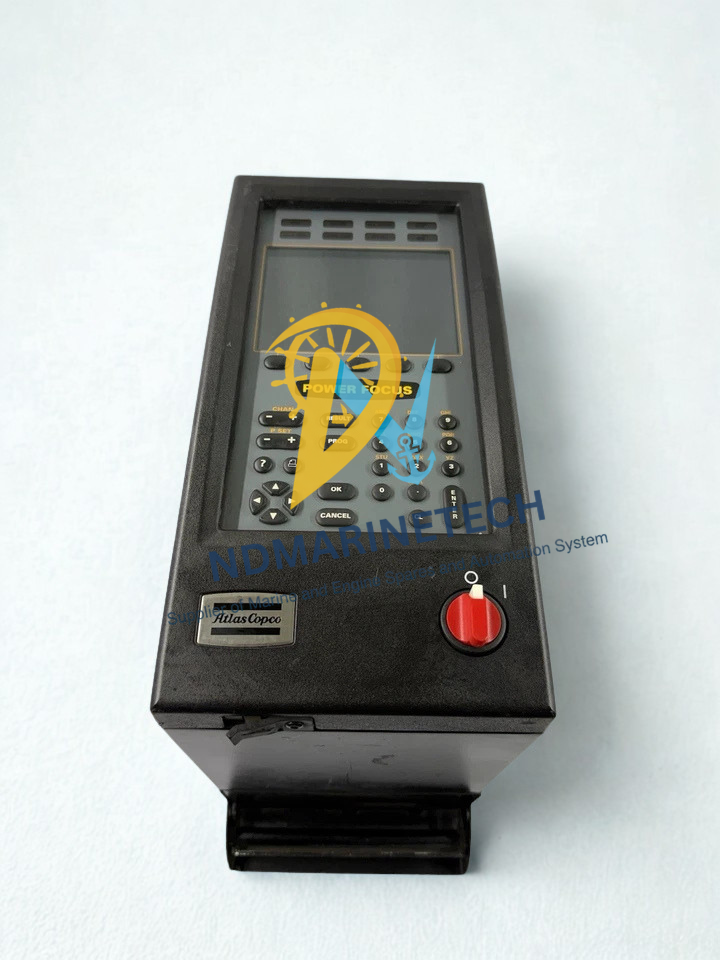

The Atlas Copco Power Focus PF4000-G-PN-HW (Article Number: 8433 6148 00) is a multi-axis-capable, high-end graphic tightening controller engineered for safety-critical and high-torque assembly applications. Operating on the proven Power Focus 4000 architecture, the -G (Graphic) variant features an integrated full-color LCD interface for real-time torque/angle curve rendering, parameter adjustment, and statistical process monitoring directly at the station without requiring a remote PC terminal.

The Power Focus 4000 (PF4000) series is the best way to control modular tools. The G-PN-HW variant is designed to integrate perfectly with industrial networks and uses Profinet protocols to talk to larger PLC systems. This unit is made to run Atlas Copco’s Tensor line of electric nutrunners. It gives closed-loop feedback that takes the guesswork out of important fastening tasks.

This controller meets ISO quality standards since it can track and accurately measure torque. You can use it to secure cylinder heads on a marine diesel engine or put together precision aerospace parts.

Model Details

• Manufacturer: Atlas Copco Industrial Technique
• Product Series: Power Focus 4000 (PF4000)
• Model Code: PF4000-G-PN-HW

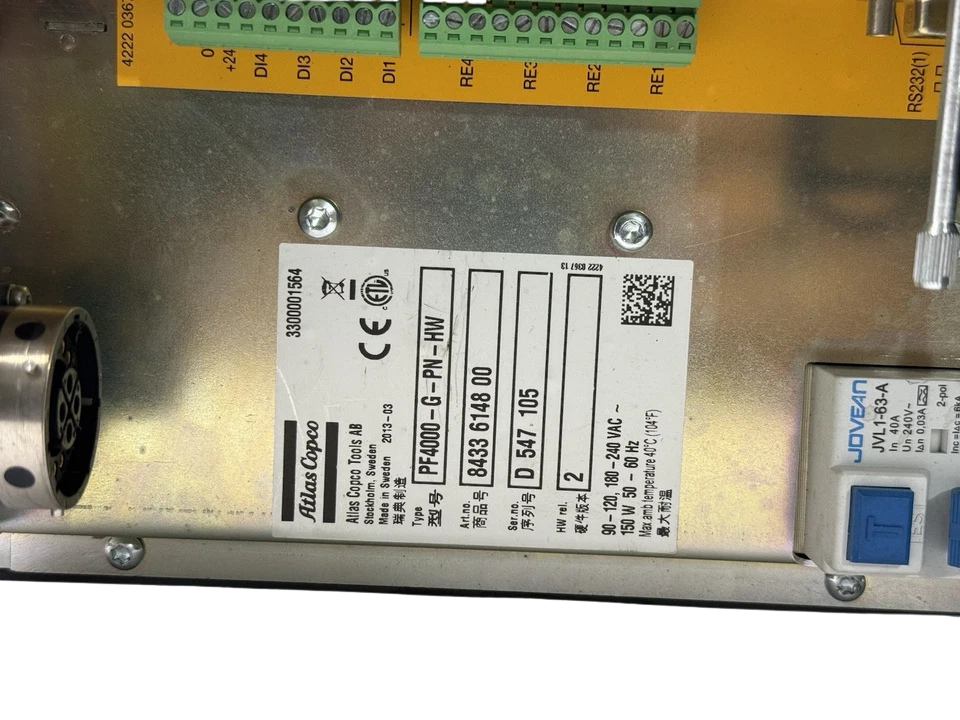

• Manufacturer Part Number (MPN / Art No.): 8433 6148 00 (Alternative format: 8433614800)

Technical Details:

Key Features

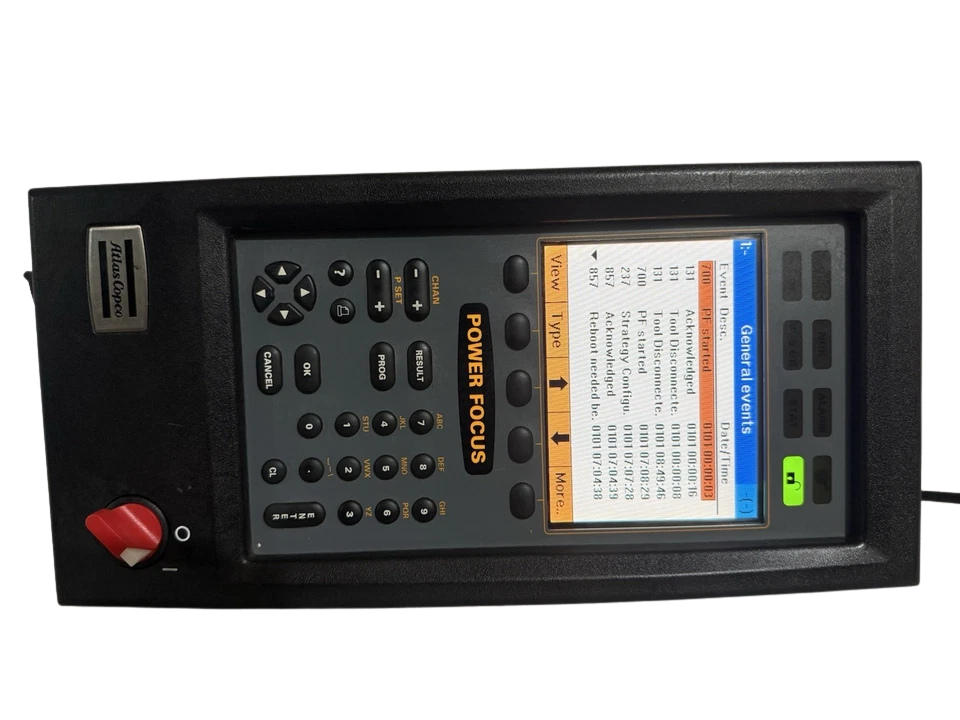

1. Real-Time Graphic Curve Analysis: Built-in 1/4 VGA color display provides on-controller visualization of Torque vs. Angle, Torque vs. Time, and Angle vs. Time tightening profiles for immediate deviation analysis.
2. Deterministic PROFINET Connectivity: Integrated Dual RJ45 PROFINET ports provide real-time cyclic I/O communication, alarm reporting, and recipe control directly to industrial PLCs and SCADA networks.
3. Advanced Multi-Stage Tightening Logic: Supports QuickStep, Ergostop, Two-Stage, Reverse, Yield-Control, and Multi-Program Pset sequencing (up to 250 parameter sets) to prevent joint relaxation and strip failures.
4. Traceability & Data Storage: Stores up to 10,000 tightening cycles and 5,000 statistical data points locally with onboard RBU (Rapid Backup Unit) support for rapid hardware swapping without programming loss.
5. Ruggedized Industrial Enclosure: Built to withstand harsh plant-floor and marine engine room environments with heavy-duty internal filtering against voltage transients and industrial RFI/EMI interference.

Applications

• Marine & Offshore Engineering: Precision torque tightening on diesel engine cylinder heads, connecting rod bolts, fuel injection manifolds, turbocharger housings, and pump skids.
• Automotive & Commercial Vehicles: Safety-critical assembly of brake calipers, steering columns, powertrain mounts, suspension linkages, and EV battery module enclosures.
• Power Generation & Wind Energy: High-tensile electrical busbar connections, wind turbine yaw bearing bolting, and switchgear mechanical assemblies.
• Aerospace & Defense: Structural frame fastening, turbine sub-assemblies, and safety-audited mechanical assemblies requiring 100% torque/angle data archive.
• Heavy Industrial Automation: Multispindle automated robot cells, fixtured gantry nutrunning stations, and high-speed production lines.

Pro Tips From Our Engineer:

1) The First Principle of Troubleshooting

Never assume the most expensive component has failed. When a tool like the PF4000 stops communicating, engineers often jump to the board is fried.

Pro Tip: Always check the physical layer first. 90% of industrial failures are caused by loose cables, oxidized pins, or power fluctuations. In marine environments, it’s always the connector until proven otherwise.

2) Master the Feel of Torque

While the Atlas Copco controller provides the digital readout, a true engineer understands the mechanical reality.

Pro Tip: Develop a calibrated hand. Even when using high-precision nutrunners, perform a manual check on a few fasteners to feel the joint’s yield. If the tool says it hit 50Nm but the fastener feels soft, you likely have a material defect or a bottomed-out hole that the sensor didn’t catch.

3) Documentation is Your Best Tool

An engineer without a logbook is just a hobbyist.

Pro Tip: Every time you solve a unique error code (like a specific Fieldbus mismatch on a Profinet module), write down the solution. Standard operating procedures (SOPs) are often written in offices; real-world workarounds are written in the trenches. Your future self will thank you when that same error appears three years from now.

4) Respect the Cold Start

Electronics and heavy machinery hate sudden thermal or electrical shocks.

Pro Tip: When powering up a control rack or a main engine, follow a staged sequence. Let the electronics reach operating temperature before initiating high-torque cycles. This prevents condensation-related shorts and allows sensors to stabilize, ensuring your first tightening cycle is as accurate as your last.

5) Always Have a Rollback Plan

Before updating firmware or changing the configuration on a controller like the PF4000, ensure you have a way back.

Pro Tip: Utilize the RUM (Rapid Unit Memory) module or a USB backup. Never modify a working system without a verified backup of the current parameters. In engineering, Hope is not a strategy; a verified configuration file is.

Frequently Asked Questions

What does the “G-PN-HW” designation mean on this Atlas Copco controller?

“G” designates the Graphic front panel with a built-in LCD screen for live trace curves and local programming. “PN” indicates the factory-integrated PROFINET fieldbus module for industrial Ethernet networking. “HW” refers to the Hardware chassis generation.

Can I replace an older PF4000-C (Compact) unit with this PF4000-G model?

Yes. The PF4000-G is fully backward-compatible with PF4000-C models with the same fieldbus configuration. It uses identical electrical connections, mounting bolt patterns, and tool cables, while giving you the added advantage of a front-panel display for local parameter modification.

How do I back up and restore tightening programs on the PF4000-G-PN-HW?

Tightening programs (Psets) and system setups can be backed up using the physical Atlas Copco RBU cartridge or digitally extracted through the RJ45 Service Ethernet port using Atlas Copco ToolsTalk PF software.

Does the PF4000-G-PN-HW work with cordless Tensor STB tools?

The standard PF4000-G-PN-HW (8433 6148 00) is designed primarily for corded DC electric tools (Tensor ST/STR/S/ETD). Cordless Tensor STB tools require either a dedicated IRC Focus controller or a PF4000 equipped with the optional industrial Wi-Fi/Bluetooth communication expansion module.

What is the difference between part numbers 8433 6148 00 and 8433 7148 00?

Article number 8433 6148 00 represents the earlier generation hardware architecture, while 8433 7148 00 represents the refreshed hardware iteration. Both share identical functional tightening algorithms, PROFINET connectivity, and tool cable compatibility.
