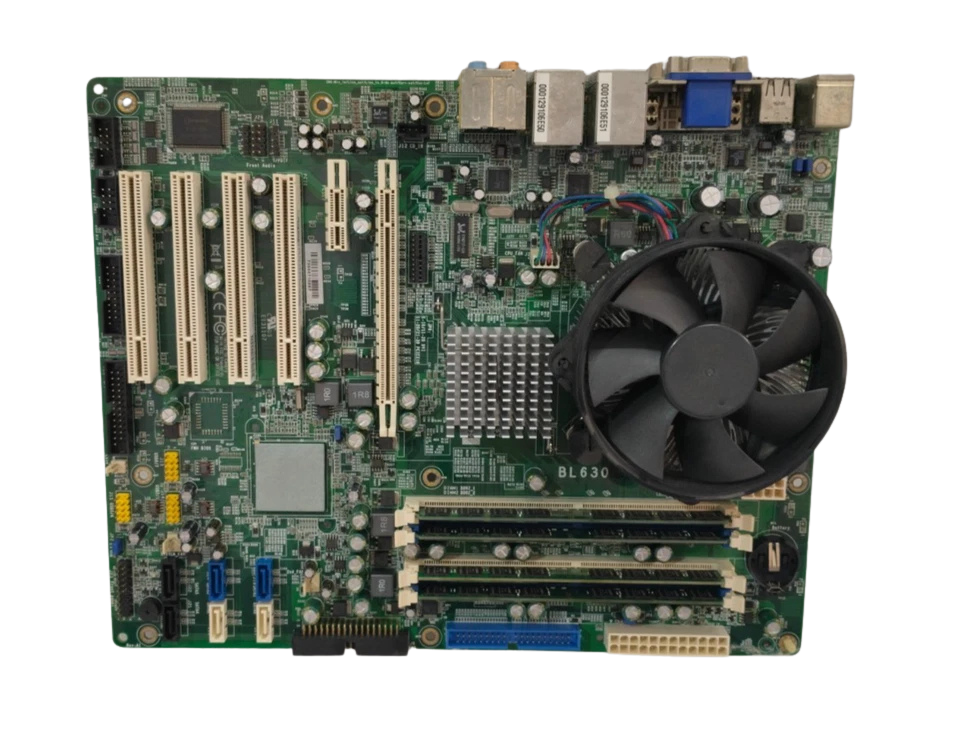

Dynamic E150630 BL630 MO-VO 94U-0 Motherboard

Dynamic E150630 | BL630 | MO-VO | 94U-0 Industrial Motherboard

The Dynamic E150630 (BL630 / MO-VO 94U-0) is an industrial heavy duty high-reliability motherboard for mission critical automation, Distributed Control Systems (DCS), Programmable Logic Controllers (PLC) and marine navigation computing infrastructure. Built on robust industrial-grade printed circuit board architecture carrying the 94V-0 / 94U-0 flammability rating, this motherboard guarantees superior thermal stability, extended operational lifecycles, and resilient performance under continuous vibration and harsh environmental fluctuations typical of engine control rooms and offshore platforms.

Model Details

• Manufacturer: Dynamic / DFI OEM Architecture
• MPN (Manufacturer Part Number): BL630
• Series / Board ID: E150630
• Sub-Designation: MO-VO / T65080
• PCB Flammability Standard: UL 94U-0 / 94V-0 Compliant

Hardware Specifications

Compatible Equipment Models

• Industrial Rackmount PCs (IPC-Series)
• Marine Automation Workstations & Bridge Control Consoles
• CNC Machine Tool Controllers
• Automated SCADA Data Acquisition Terminals
• Legacy Robotic Controller Power & Logic Racks

Key Features

1. High-Grade Industrial Stability: Built on heavy copper-layer 94U-0 circuit boards designed to resist thermal stress and electrical noise interference.
2. Robust Core Processing: Optimized for legacy Intel LGA 775 multi-core processors running hard real-time operating systems.
3. Redundant Network Capability: Dual onboard Gigabit LAN channels provide fault-tolerant network failover for critical SCADA loops.
4. Comprehensive Expansion: Features multiple PCI and PCI Express slots to accommodate proprietary legacy instrumentation and communication cards.

Applications

• Marine Engine Room Monitoring and Alarm Systems
• Offshore Oil & Drilling Rig Automation Nodes
• Commercial Cargo Vessel Navigation Computers
• Factory Floor CNC Machining Centers
• Power Generation Substation Control Gateways

Engineer Expert’s Guide

1. Engineer’s Note: When retrofitting or replacing this motherboard in marine or heavy industrial environments, always verify the BIOS power-state recovery configuration. Set the AC Power Recovery option to “Always On” to ensure automated system restoration following an unexpected generator blackout or dead-bus condition.
2. Thermal Management: Ensure the chassis intake fans are free of salt-mist accumulation. The Q35 chipset and LGA 775 processors rely heavily on active airflow; restricted airflow inside sealed bridge consoles can cause thermal throttling.
3. RAM Selection: This board explicitly requires Non-ECC DDR2 DIMMs. Installing server-grade ECC memory modules will result in a continuous POST beep error code and a failure to boot.
4. BIOS Backup: Because these legacy industrial motherboards utilize a standard CR2032 CMOS battery, replace the coin cell prior to installation in remote locations to prevent loss of custom BIOS parameters during routine maintenance shutdowns.

Frequently Asked Questions

Is the Dynamic E150630 motherboard compatible with standard consumer ATX cases?

Yes, the board follows standard ATX form-factor mounting dimensions and rear I/O shield layouts, making it compatible with standard industrial rackmount chassis.

Does this motherboard support RAID configurations?

Yes, depending on the specific southbridge chip variant (such as the ICH9R found on -DR variants), it supports hardware-assisted RAID levels 0, 1, 0+1, and 5.

How can I verify if my existing processor is supported?

The board supports Intel Core™2 Quad, Core™2 Duo, and select 45nm Wolfdale processors running on a 1333/1066/800 MHz FSB through the LGA 775 socket framework.
