Fuji FM-10RF-305 Air Motor

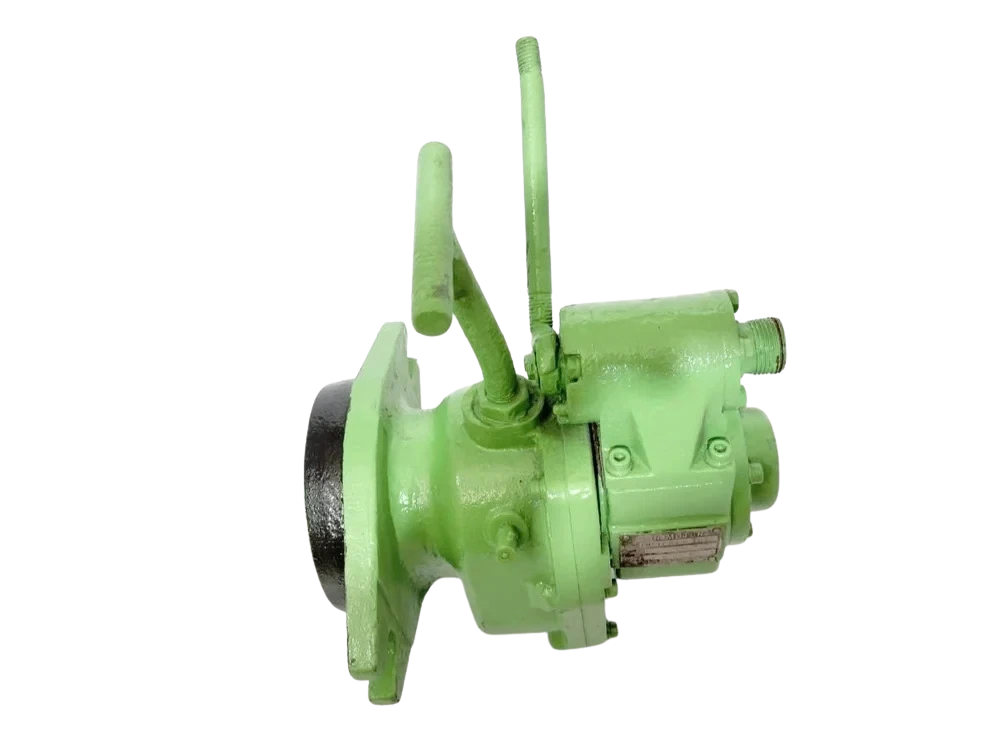

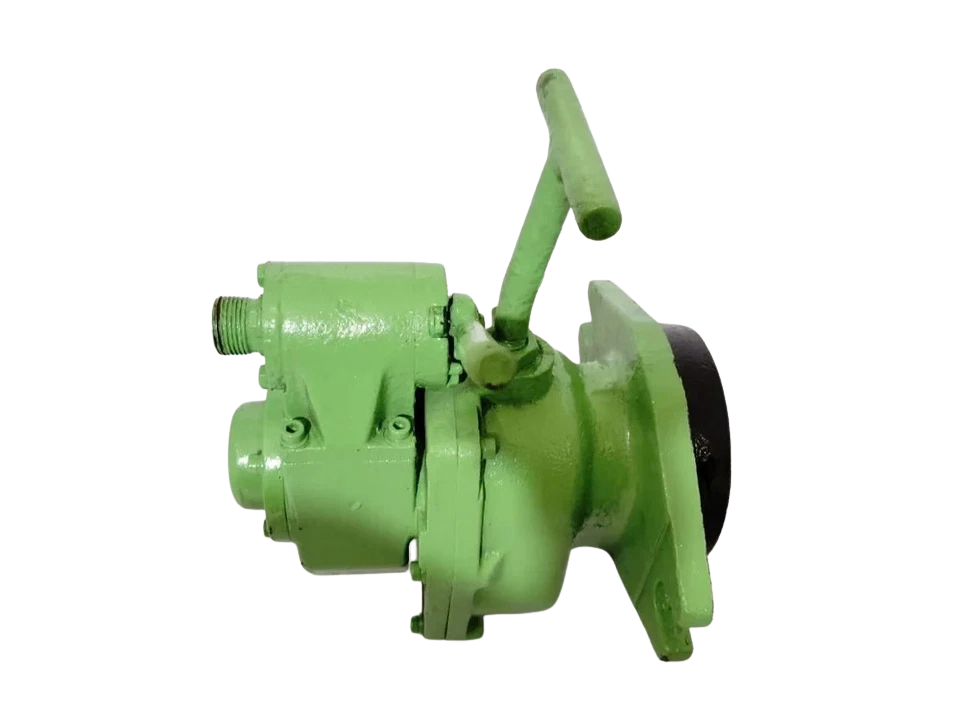

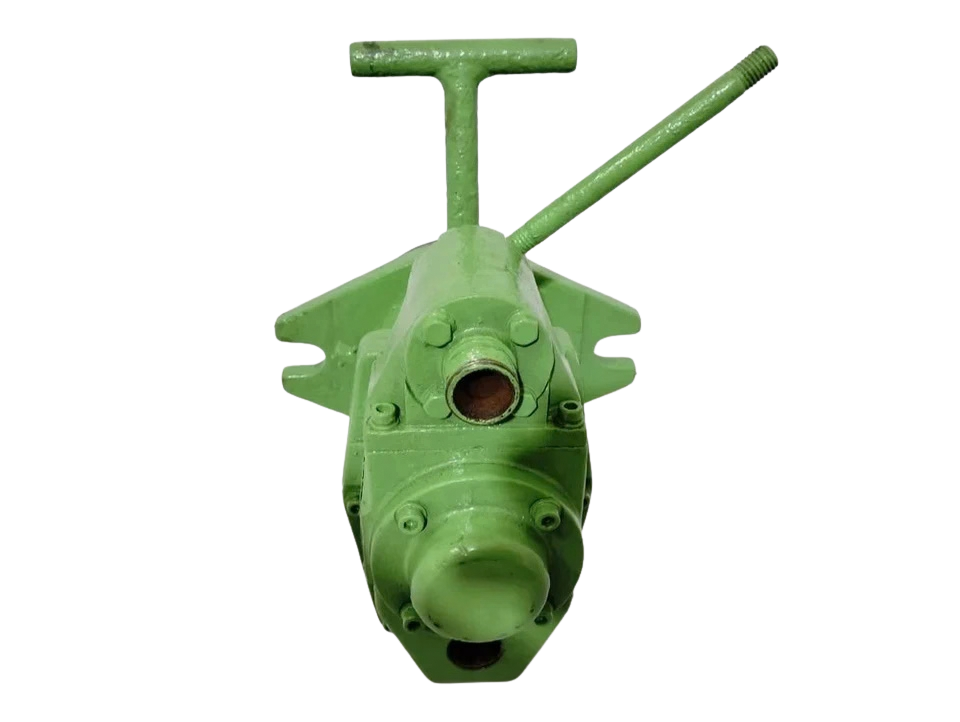

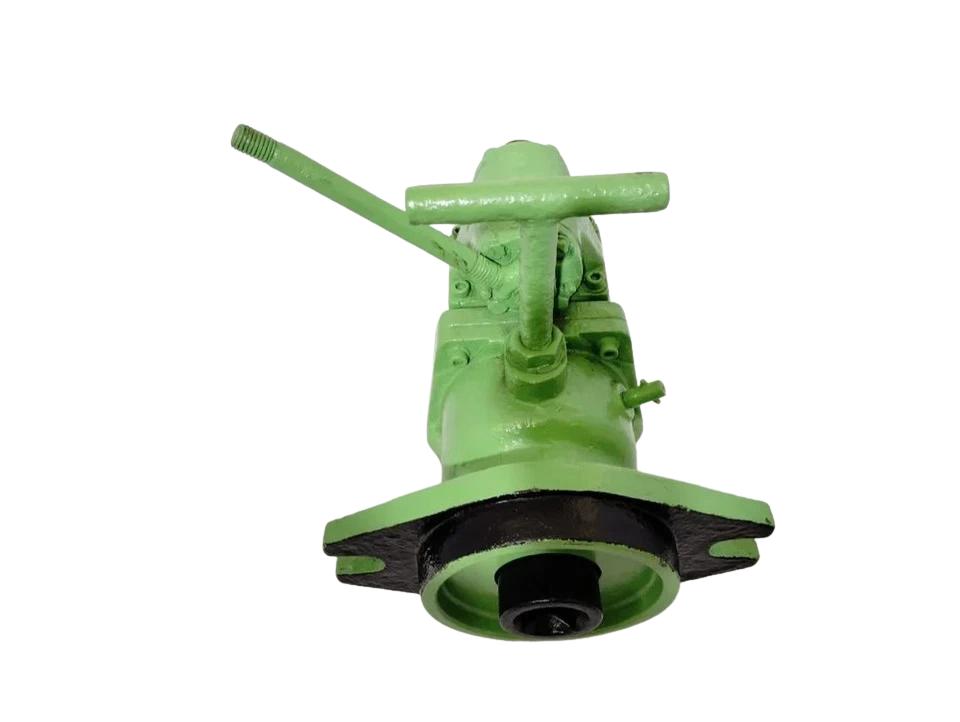

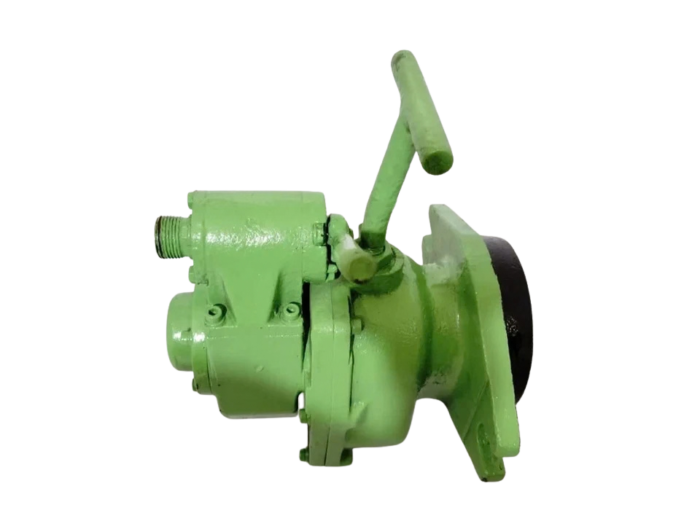

Fuji FM-10RF-305 Reversible Rotary Air Motor

The Fuji FM-10RF-305 is an industrial-grade, heavy-duty rotary pneumatic motor engineered in Japan for critical marine, offshore, and petrochemical service. Designed to deliver non-sparking, variable-speed mechanical drive power under continuous load, the FM-10RF series operates via a precision multi-vane rotary mechanism paired with high-torque integral reduction gearing.

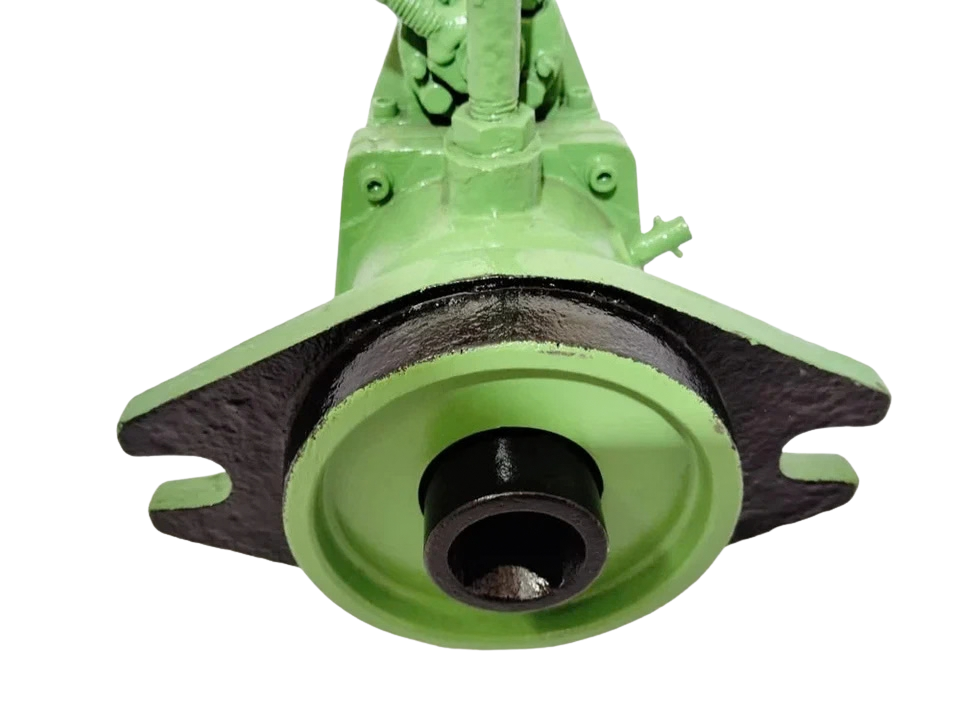

Constructed from dense, high-tensile cast iron, the FM-10RF-305 withstands harsh, washdown, salt-mist, and potentially explosive working environments where standard electric drives present severe hazard risks. Featuring integrated bidirectional control valving, the motor can reverse instantly under full operating pressure without internal damage or lag, delivering maximum breakaway and holding torque across marine winches, capstans, slurry agitators, valve actuator override systems, and pipe servicing machinery.

Model Details

• Manufacturer: Fuji (Fuji Air Tools / Japan)

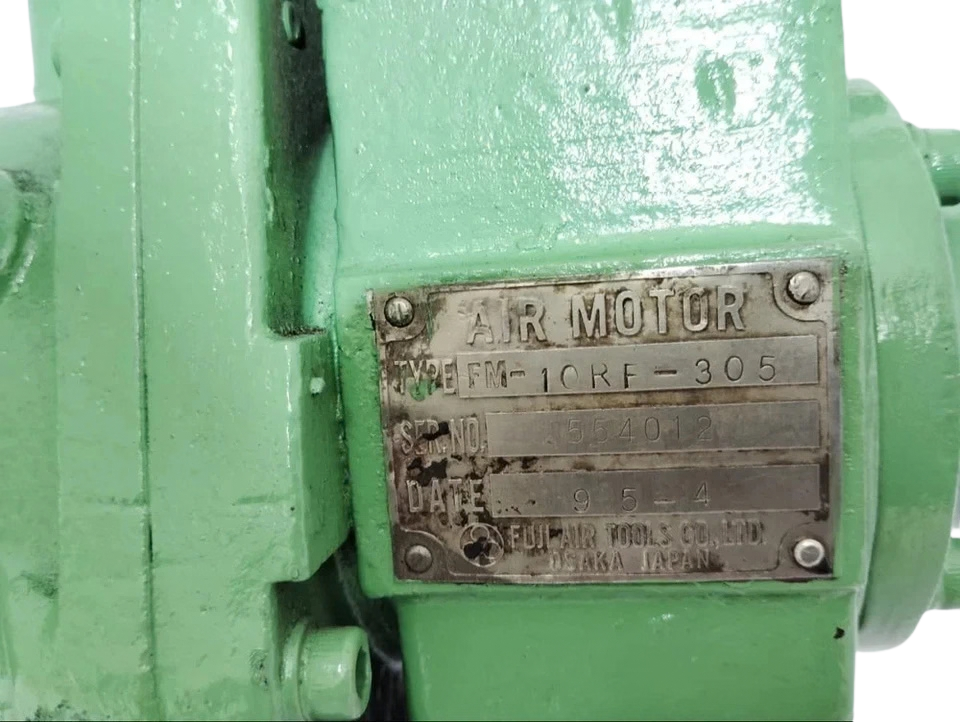

• Model Code: FM-10RF-305
• Series: FM Industrial Heavy Duty Air Motor Line
• Type: Multi-Vane Reversible Geared Rotary Pneumatic Motor
• Control Architecture: Integrated Rotary Lever Directional Control Valve
• Country of Origin: Japan

Features

1. Instantaneous Bidirectional Reversal: Direct-action directional spool and lever assembly allows smooth, instantaneous transition between clockwise (CW) and counter-clockwise (CCW) rotation without de-energizing the main feed line.
2. Continuous Stall-Duty Capability: The multi-vane rotary design tolerates continuous stall conditions indefinitely under rated air pressure without coil burn-out, heat degradation, or structural seizure.
3. Rugged Heavy-Duty Cast Iron Construction: Closed, sealed crank and housing assembly prevents particulate ingress, external salt corrosion, and internal contamination in harsh deck or foundry conditions.
4. High-Torque Reduction Powertrain: Internal hardened planetary/spur gear reduction system yields massive breakaway torque at low RPM, ideal for heavy hoisting, pulling, and mechanical tensioning.

Technical Details

Applications

• Process Vessel Agitation: Mixing paint, drill mud, corrosive chemical slurries, and explosive volatile compounds.
• Remote Mechanical Actuation: Operating heavy marine butterfly and ball emergency shutoff valves (ESD) on cargo tankers.
• Shipyard & Maintenance Tools: Pipe bevelling machines, flange facers, boring bars, and heavy underwater/splash-zone rotary cutters.
• Hazardous Environment Conveyors: Petrochemical factory feed tracks, grain silo elevators, and mine loading conveyors.

Direct Machinery Fit:

• Marine Air Hoist & Tugger Winches (Samgong, Toku, Ingersoll Rand, Atlas Copco marine units)
• Portable Flange Facers & Pipe Cutters (Climax, E.H. Wachs, Mirage portable machine tools)
• Industrial Fuel & Solvent Dispensing Skid Pumps

Interchangeable Cross-References & Equivalent Series:

• Fuji FM Series: FM-1R, FM-2R, FM-10R series
• Toku Heavy-Duty Rotary Air Motors: MR-Series equivalent
• Gast Rotary Vane Models: Compatible retrofit for 4AM / 6AM / 8AM geared reductions where directional lever valving is required
• Ingersoll Rand: Multi-vane geared models (e.g., M004 / MO07 geared reversible air motors)

Frequently Asked Questions

Can the Fuji FM-10RF-305 air motor be operated in ATEX or explosive gas zones?

Yes. Because it is purely powered by pneumatic pressure and generates no electrical sparks or electromagnetic arcs, the Fuji FM-10RF-305 is inherently safe for hazardous operations such as Class 1 Div 1, Zone 1, and Zone 2 environments (fuel barges, offshore platforms, paint mixing cells, and chemical pump stations). Grounding braids should be fixed to the foot mounts to prevent external static charge buildup.

How do I regulate the output speed and torque of the FM-10RF-305?

Speed is regulated by throttling the intake air volume using a flow control valve or the motor’s integral control lever. Output torque is adjusted by varying the operating air pressure via a pilot regulator upstream. Lowering pressure drops output torque without changing the fundamental torque-speed slope.

What should I do if the air motor stalls or loses speed under rated load?

First, check dynamic supply pressure at the inlet with a test gauge while the motor runs; pressure must read 0.50–0.63 MPa under full load. Second, check that the exhaust silencer is clear of frozen condensation, sludge, or carbon buildup. Third, inject 10–20 ml of light flushing oil into the inlet port and cycle the motor in reverse to free stuck rotary vanes.

Can the motor be mounted in any orientation?

The FM-10RF-305 can be mounted horizontally or vertically. When mounting with the drive shaft facing downwards, ensure the shaft seal is in prime condition to prevent dirt ingress, and verify that the inline oiler provides steady atomization to lubricate upper and lower rotor bearings equally.

How often should the internal rotor vanes be inspected or replaced?

Under continuous daily operation, inspect vane width and check for feathering or chipping every 1,500 to 2,000 running hours. If the motor is fed clean, properly lubricated air, vanes can reliably run for over 4,000 operational hours before wear dictates replacement.
