HONEYWELL CC-TAID11 IOTA

The Honeywell CC-TAID11 (Part Number: 51306731-175) is a high-performance analog input/output termination assembly (IOTA) made just for the Experion PKS (Process Knowledge System) C300 series. This module is the most important physical link between the C300 Controller and field instrumentation. It protects industrial environments from surges and makes sure that signal conditioning happens without any problems.

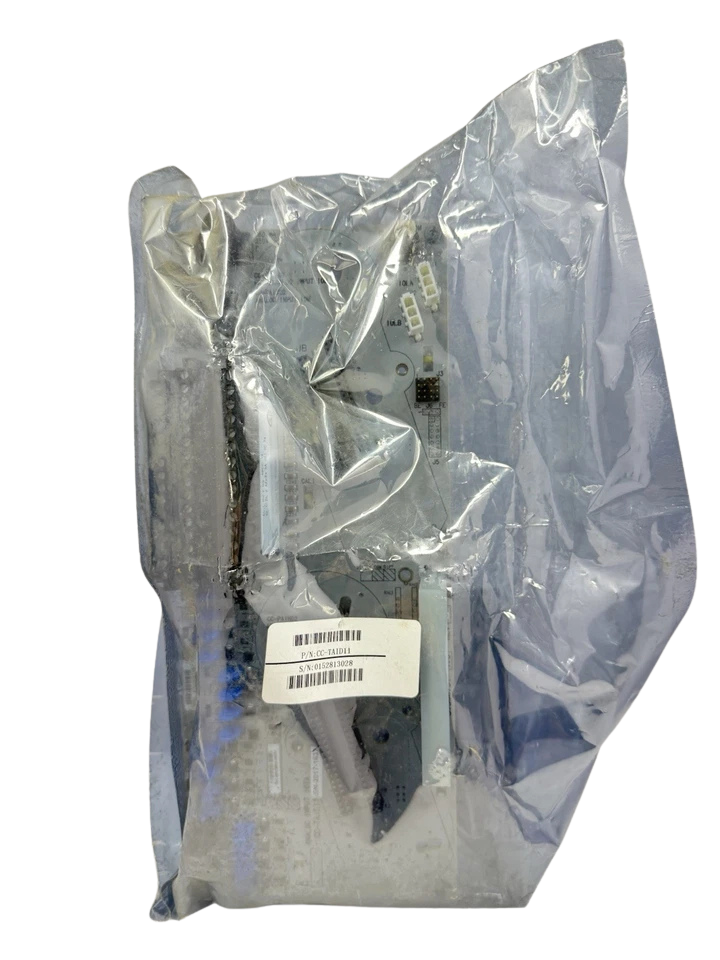

It is an analog input IOTA that can handle a wide range of high-level analog signals. This is important for the reliability of mission-critical processes in oil and gas, power generation, and chemical manufacture. This device comes in a sealed pack, which keeps it safe from dirt and other contaminants until it is installed.

Specifications

Applications

• Offshore Platforms: Keeping an eye on pressure and temperature sensors in corrosive ocean environments.
• Refining and Petrochemical: Keeping an eye on flow rates and levels in process loops in dangerous areas.
• Power Plants: Connecting to turbine control systems and extra boiler instruments.
• Water Treatment: Combining signals from many remote telemetry units.

NDMarineTech’s Pro Tips:

1. Corrosion Prevention: Even though this is a seal pack unit, once installed in a marine environment (like an FPSO or LNG carrier), ensure your control cabinet utilizes active dehumidification. Analog signals are highly sensitive to creeping resistance caused by salt-air oxidation on termination points.
2. Torque Settings: When landing your 4-20mA loops, use a calibrated torque screwdriver. Over-tightening the compression terminals on the CC-TAID11 can lead to hairline fractures in the PCB traces over time due to engine-room vibrations.
3. Redundancy Check: If you are using this in a DP (Dynamic Positioning) system, verify that your IOTA is configured correctly for redundant AI modules. The CC-TAID11 is the backbone; if the IOTA fails, your redundancy is moot.
