Nordson Problue L7 1123327 Hot Melt Adhesive System

Nordson Problue L7 1123327 Adhesive Application System

Nordson Problue L7 1123327 is a Hot Melt Adhesive Application System for Precision Manufacturing, Automated Packaging and Demanding Industrial Production Lines. This machine delivers superior viscosity control, reduced adhesive charring and increased operational uptime with an integrated design that combines rugged thermal management with intuitive digital controls. The equipment is designed for reliable processing of solid form hot melt materials providing accurate extrusion rates with high safety and energy efficiency criteria.

Model Details

• Brand: Nordson
• Product Category: Hot Melt Adhesive Application Systems
• MPN (Manufacturer Part Number): Problue L7 1123327

Technical Specifications: Nordson Problue L7 1123327

Key Features

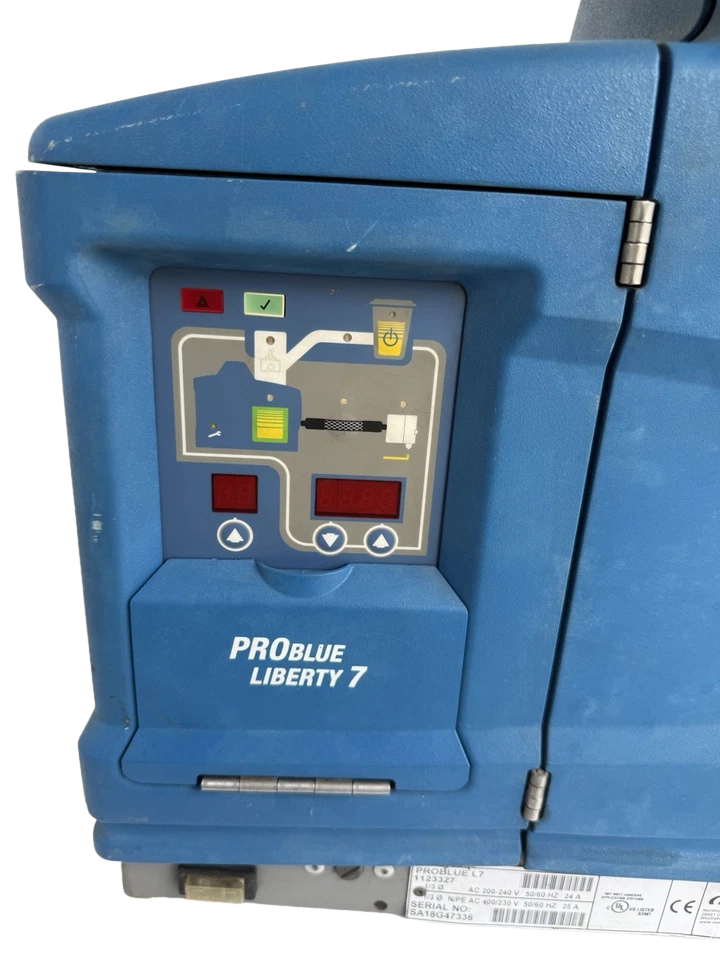

1. Status-at-a-Glance Monitoring: Instant optical feedback indicators highlight ready, fault, service, and precise temperature conditions for the tank, hoses, and application guns.
2. Teflon-Coated Melt Reservoir: Reduces thermal degradation and adhesive char buildup while accelerating system warm-up times via cast-in heating elements.
3. Quick-Disconnect Architecture: Features modular power inputs, pneumatic fittings, and industrial I/O plugs to minimize integration and maintenance downtime.
4. Advanced Programmable Control: Supports automated parent machine communication, remote temperature setbacks, and cycle enable/disable configurations.
5. Integrated Low-Level Protection: Standard tank level indicators prevent operator oversight, protecting pumps from dry-running and ensuring continuous output.

Terminal Allocations & Input/Output Ratings

• Primary Power Terminals: L1, L2/N, and Protective Earth (PE) studs rated for 200-240 VAC distribution feeds.
• Auxiliary Control Connectors: Multi-pin plug interfaces designated for remote gun triggers, pattern controller handshakes, and encoder tracking feeds.
• RTD Sensor Circuits: Dedicated low-voltage terminal blocks for precise closed-loop temperature tracking across independent hose and gun channels.
• Programmable I/O Lines: Optoisolated digital inputs for external setback activation and fault relay outputs signaling system readiness.

Compatible Equipment Models

• Nordson Hot Melt Hoses: Standard Blue Series and Liberty heated hoses matching 200-240V configurations.
• Dispensing Guns: Nordson AD-31, H200 series, and matching automatic application heads.
• Pattern Controllers: Compatible with Nordson EPC series and third-party PLC integration frameworks via standard digital I/O.

Part Number Cross-References

• Alternative Nordson SKUs: 1123328, 1123329, 1123330
• Legacy System Equivalents: Direct structural and functional upgrade substitute for select Nordson 3000-series melters with a 20% smaller footprint envelope.

Applications

• Corrugated case and carton sealing
• Tray forming and box erection lines
• Product assembly and non-wovens manufacturing
• Flexible packaging and labeling applications

Engineer Expert’s Guide

Marine & Industrial Engineering Best Practice: Always perform a complete system thermal lockout and bleed residual hydraulic pressure through the dump valve prior to servicing or replacing inline disposable filters. Ensure incoming electrical supply voltages match the internal transformer strapping precisely to prevent premature solid-state relay (SSR) fatigue.

Utilize the programmable remote setback feature during scheduled shift breaks to drop tank temperatures by 30°C to 40°C, drastically cutting down adhesive char accumulation and saving element energy.

Regularly inspect the quick-disconnect pneumatic fittings for micro-leaks to prevent moisture ingress into the adhesive reservoir, which causes foaming and nozzle spitting.

Frequently Asked Questions

What is the electrical requirement for the Nordson Problue L7 part number 1123327?

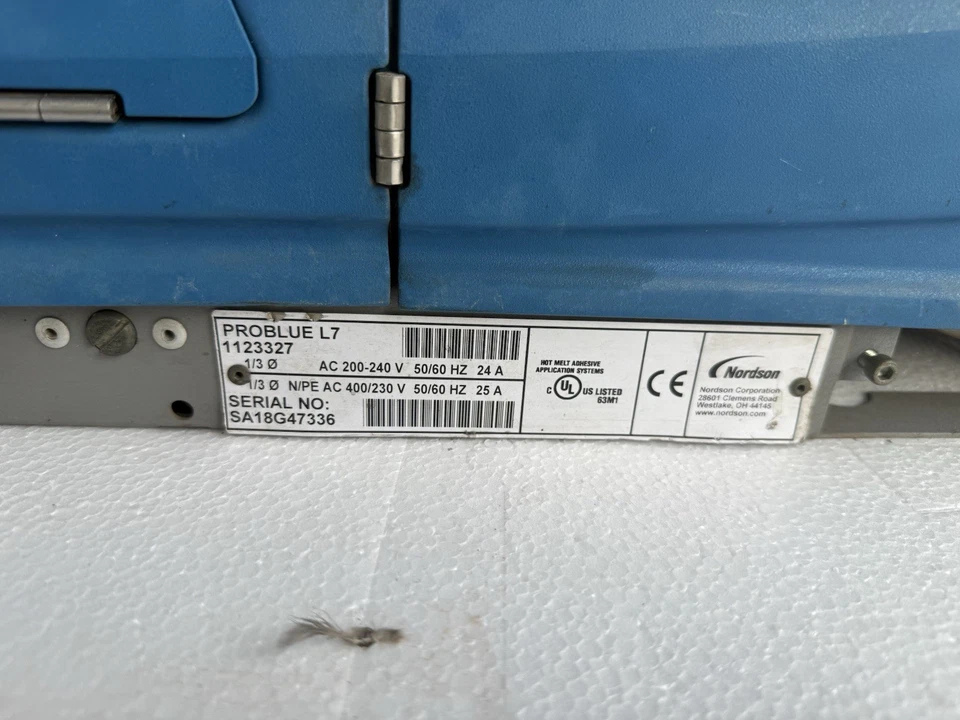

This specific model operates on a 200–240 VAC electrical supply configuration designed for 2 hose and gun setups.

Can this unit integrate with third-party packaging line PLCs?

Yes, the system features standard programmable inputs and outputs (I/O) that allow seamless handshake integration with parent machine controllers.

How often should the disposable inline filter be serviced?

The disposable filter element should be inspected routinely and replaced during scheduled preventive maintenance cycles to eliminate regular flushing requirements and maintain consistent flow.

What kind of hot melt adhesives are safe to run through this melter?

It is engineered for solid-form hot melt materials formulated to melt and extrude safely below 230°C (450°F).
