Rolls Royce RRRLY8 I/O Alarm Module

Rolls Royce RRRLY8 I/O Alarm Module

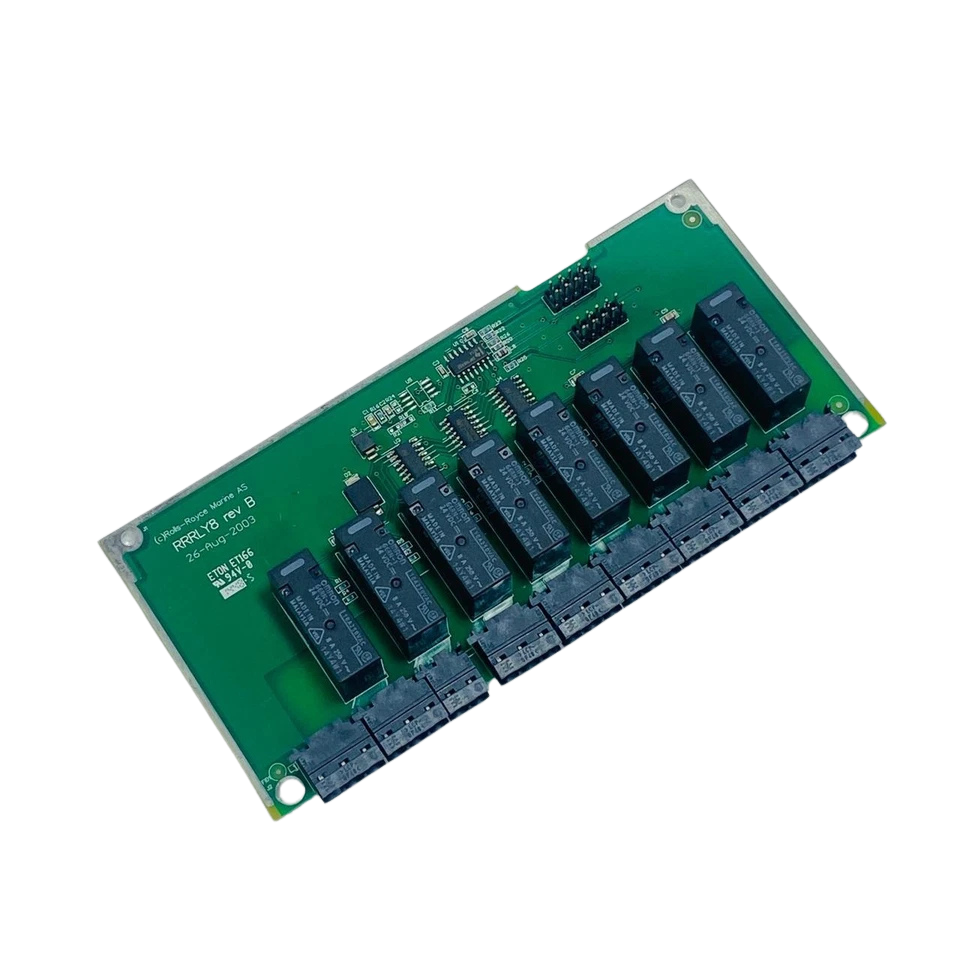

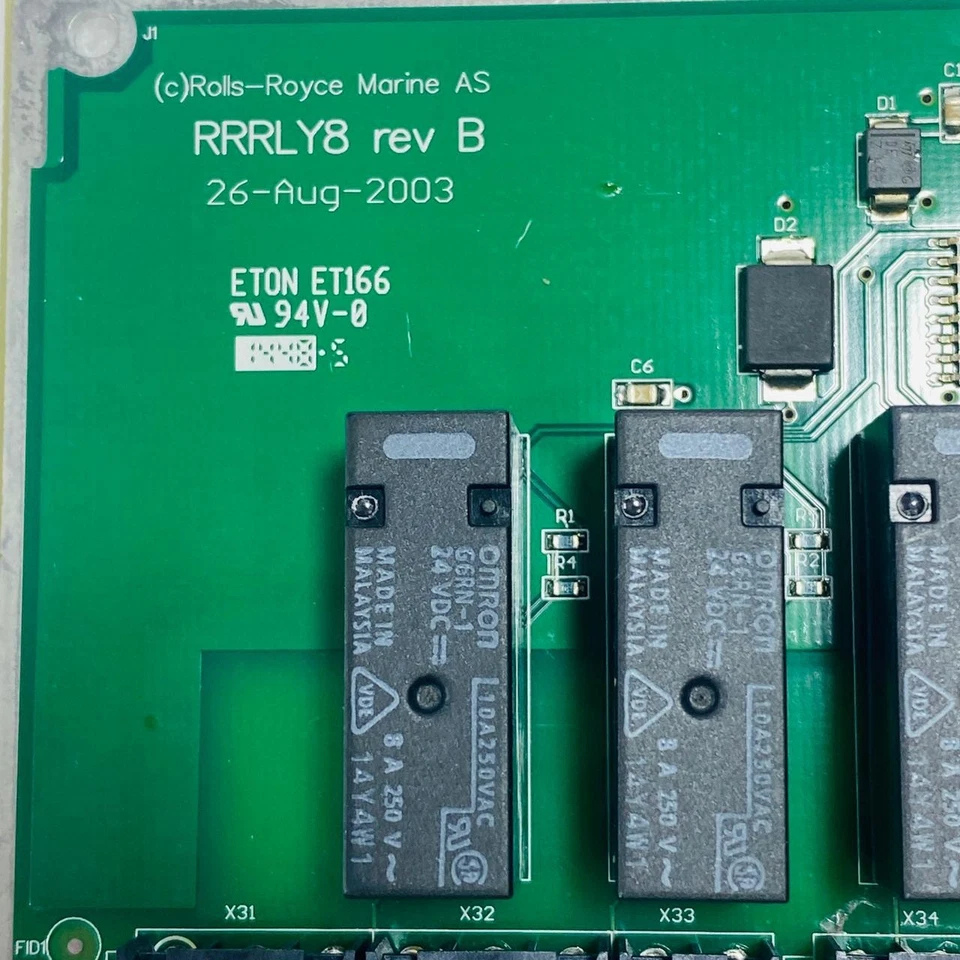

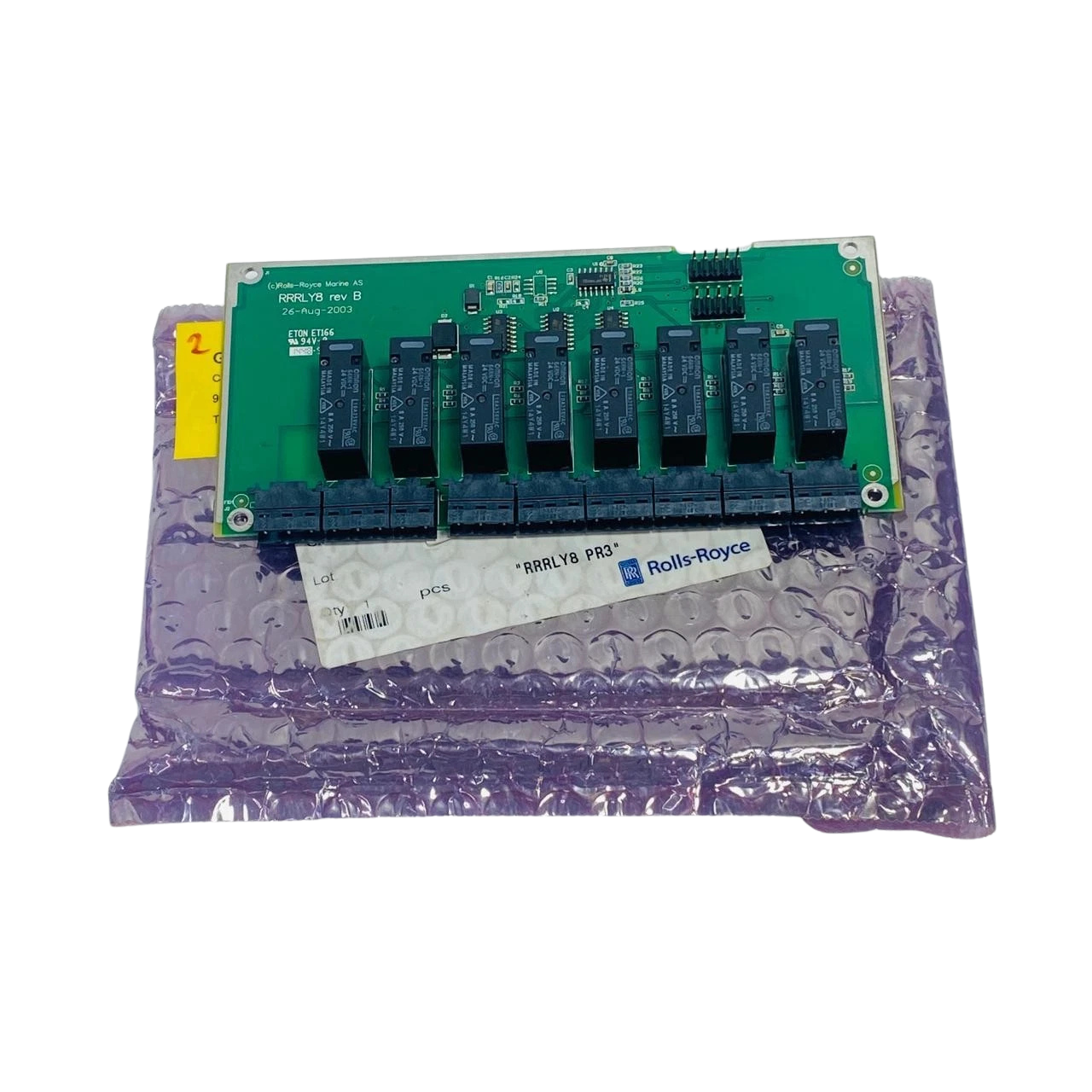

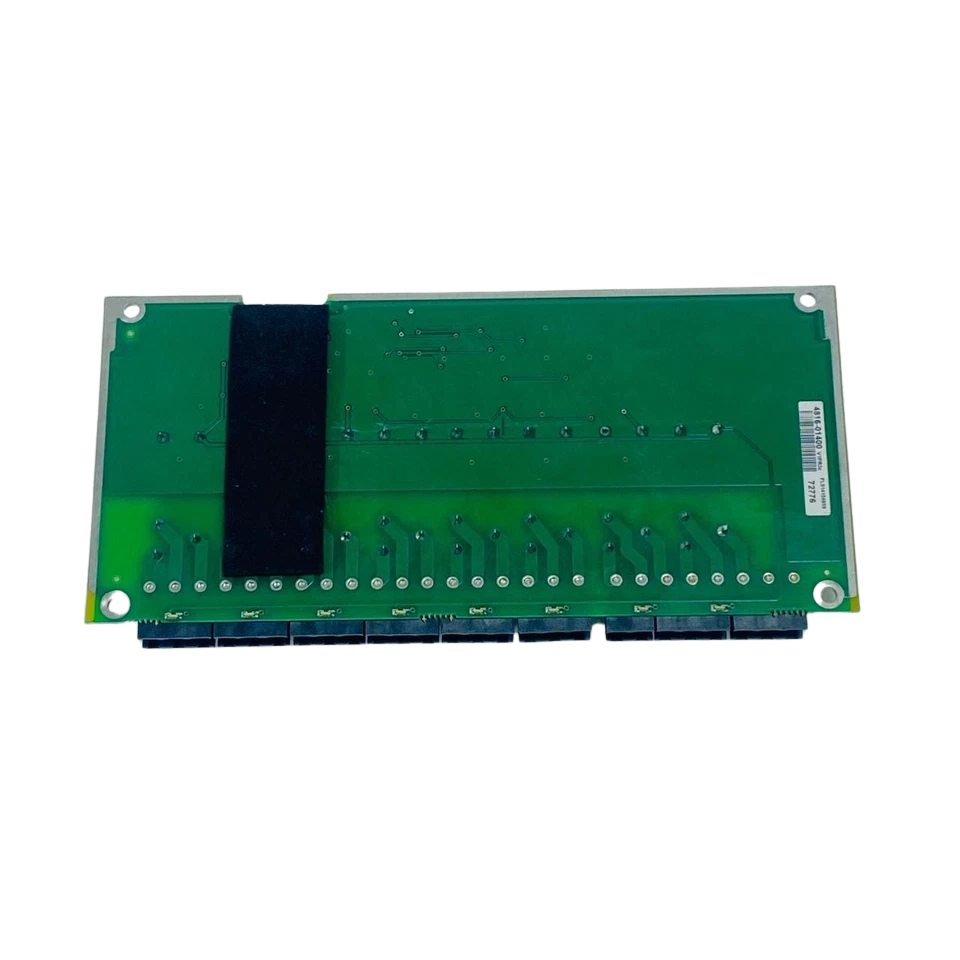

The Rolls Royce RRRLY8 is a 8-channel relay output interface module engineered specifically for mission-critical marine automation, alarm annunciation, and machinery control architecture. Developed under the rigorous standards of Rolls-Royce Marine (frequently paired with Weidmuller interface sub-assemblies), the RRRLY8 serves as an electromechanical bridge between low-voltage digital processing logic and high-current field actuators, safety shutoffs, visual strobes, and acoustic sounders.

Operating across ruggedized shipboard power networks, the unit isolates sensitive PLC/microcontroller backplanes from electrical transients, inductive kickback, and load switching spikes. Each channel provides potential-free, heavy-duty contact switching rated up to 8A at 250V AC/DC, making it an indispensable component in both distributed Engine Control Room (ECR) installations and bridge-integrated alarm systems.

Model Details:

• Manufacturer: Rolls-Royce Marine
• OEM Co-Manufacturer / Hardware Base: Weidmuller
• Model Number: RRRLY8
• Manufacturer Part Number (MPN): RRRLY8 / M21-1 / M23-1
• Part Number Cross-References:
  • Rolls-Royce RRRLY8-M21-1
  • Rolls-Royce RRRLY8-M23-1
  • Weidmuller RRRLY8 Series Interface Card
  • Complementary Set Series: RRPWR2006, RRDIO15, RRAIO16

Technical Specifications

Key Features

1. Heavy-Duty Switching Capacity: 8 galvanically isolated, potential-free electromechanical relay channels rated at 8A continuous switching up to 250V AC/30V DC.
2. High Galvanic Isolation: Superior dielectric withstand voltage (minimum 2.5 kV RMS coil-to-contact) isolating central processing units from marine ground loops and field spikes.
3. Integrated Transient Protection: Onboard flyback diodes and RC snubber filtration across coil circuits to eliminate inductive voltage spikes during high-cycle tripping.
4. Vibration & Shock Resistant: Ruggedized PCB construction conformal-coated to withstand the severe low-frequency mechanical vibration typical of main engine turbocharger zones and auxiliary genset flats.
5. High-Density DIN Enclosure: Compact terminal pitch utilizing heavy-duty cage-clamp screw terminals designed to maintain clamping force under severe marine vibration.

Applications

• Vessel Alarm & Monitoring Systems (AMS): Driving audible horns, bridge visual alarm panels, rotating beacon strobes, and dead-man alarm timer systems.
• Main Engine & Auxiliary Engine Safety Shutdowns: Piloting fuel oil quick-closing valves, air shut-off flaps, and low lubricating-oil trip solenoids.
• Machinery Space Control: Interfacing start/stop commands for heavy auxiliary motors, ballast/bilge pumps, cooling water circulation skids, and air compressors.
• Emergency Shutdown (ESD) & Safety Fire Loops: Potential-free interlock signalling into water-mist fire fighting units, fire damper releases, and watertight door status panels.

Frequently Asked Questions

What is the direct function of the Rolls Royce RRRLY8 module in an automation rack?

The RRRLY8 operates as an 8-channel relay interface unit that converts low-level 24V logic commands from central marine controllers into robust, isolated, potential-free contact closures capable of switching field devices rated up to 8A at 250V.

Can the RRRLY8 replace standard third-party industrial relay boards?

While generic 8-channel DIN relay blocks share similar contact ratings, the RRRLY8 features proprietary PCB traces, vibration damping, footprint compatibility, and terminal numbering designed specifically to integrate seamlessly into Rolls-Royce Marine and Weidmuller automation enclosures without wire loom re-engineering.

Are the relay contacts normally open (NO), normally closed (NC), or changeover?

The module supports full changeover contacts (SPDT / Form C) across its 8 channels, giving engineers the freedom to wire both fail-safe normally closed loops (de-energize to alarm) and normally open activation circuits (energize to trip).

How do I confirm if a malfunctioning channel is caused by the relay or the driving signal?

Check the input coil voltage across the channel trigger pins on the card. If 24V DC is present but the relay fails to close, verify coil continuity with an ohmmeter (power isolated). If the internal LED illuminates and the coil clicks, measure continuity across COM and NO: an elevated contact resistance (>0.2 Ω) indicates contact oxidation or burning, requiring card replacement.
