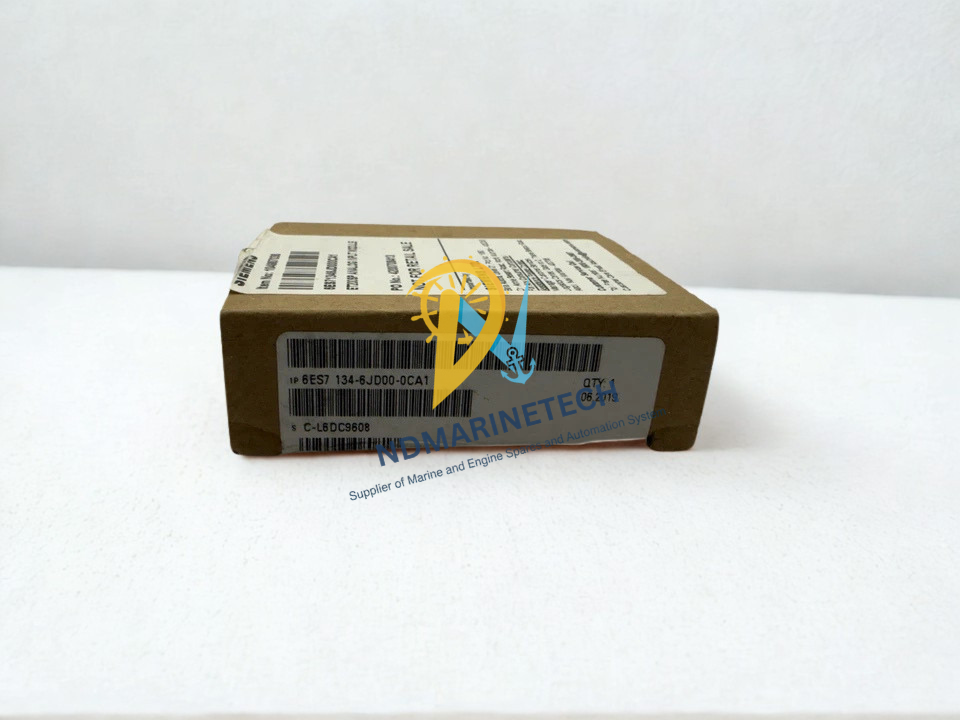

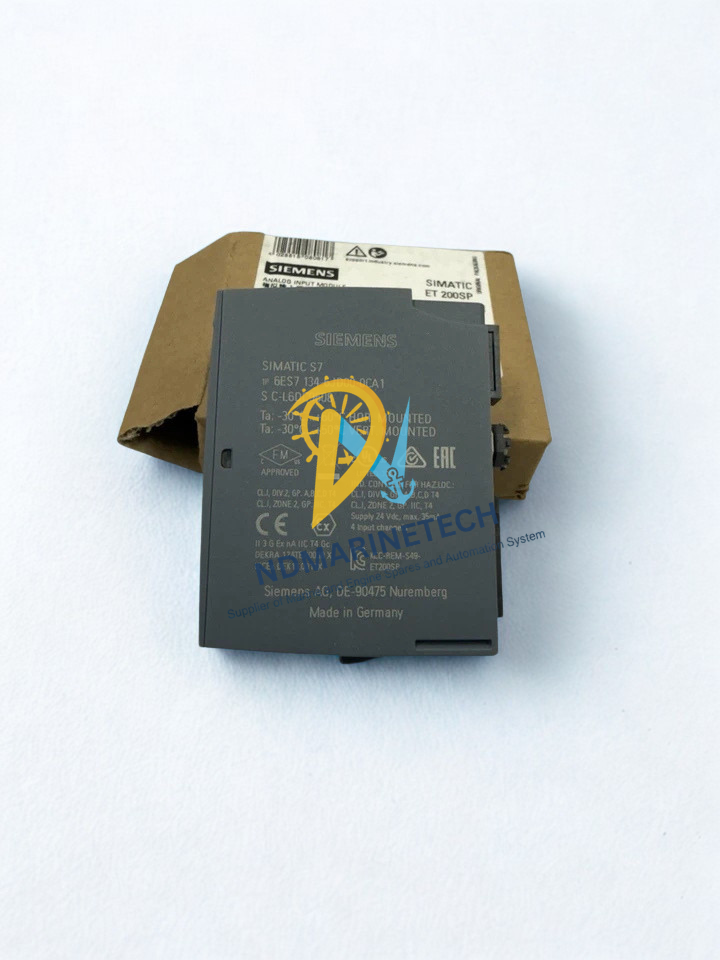

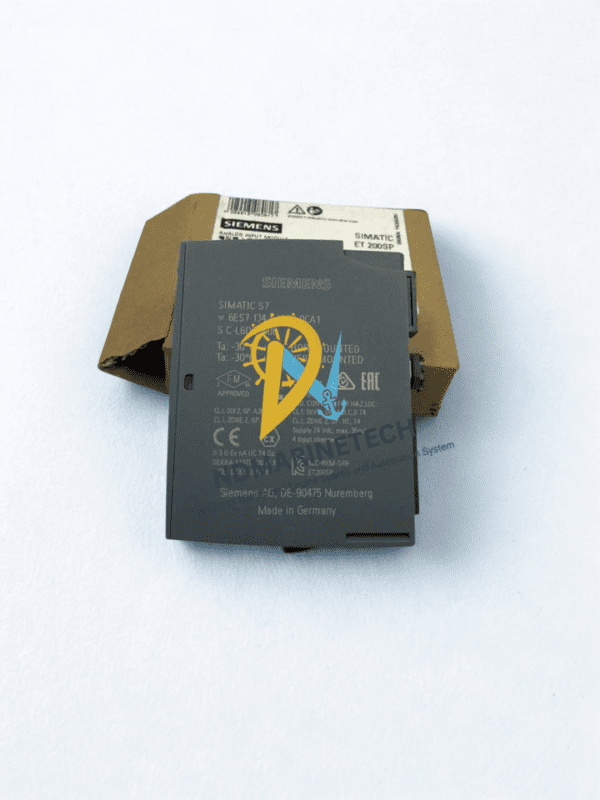

SIEMENS 6ES7134-6JD00-0CA1 | ET 200SP Analog Input RTD Module
- Brand: SIEMENS
- Product Series: SIMATIC ET 200SP
- Module Type: Analog Input (AI)
- Model Number: AI 4xRTD/TC 2-/3-/4-wire HF
- MPN: 6ES7134-6JD00-0CA1
- Condition: New
- Country of Origin: Germany
SIEMENS 6ES7134-6JD00-0CA1 ET 200SP Analog Input Module
The 6ES7134-6JD00-0CA1 is a small yet strong way to connect sensors to your PLC network. This module is a High Feature (HF) version, which means it has better diagnostics and accuracy than regular modules. It can connect with 2, 3, or 4 wires, which gives you a lot of options for upgrading previous vessel systems or making new automated skids. Because it is built into the TIA Portal, setting it up is easy, and its hot-swapping feature keeps downtime to a minimum during important tasks.
Key Features
- Advanced Diagnostics: Real-time monitoring for wire breaks or short circuits is critical for ensuring safety in unmanned machinery spaces (UMS).
- High Resolution (16-bit): Offers the granular data required for sensitive thermal operations and fuel usage monitoring.
- Flexible Wiring: Allows for two, three, or four wire RTD arrangements, which compensate for lead resistance in long cable runs across huge vessels.
- Compact Footprint: The ET 200SP architecture takes up to 50% less space in control cabinets than typical modular I/O.
- Hot-swappable: Replace the module while the system is still powered on, ensuring that critical maritime services continue to operate.
Technical Specifications
| Feature | Specification |
|---|---|
| Number of Channels | 4 Analog Inputs |
| Input Type | RTD (Pt100, Pt1000, Ni100, etc.) and Resistance |
| Resolution | 16 bits including sign |
| Connection Method | 2-wire, 3-wire, or 4-wire |
| Supply Voltage | 24 V DC (via Power Module) |
| Diagnostic Functions | Short-circuit, Wire-break, Overflow/Underflow |
| Isolation | 707 V DC (Type test) |
| Dimensions (W x H x D) | 15 x 73 x 58 mm |
| Weight | Approx. 30g |
