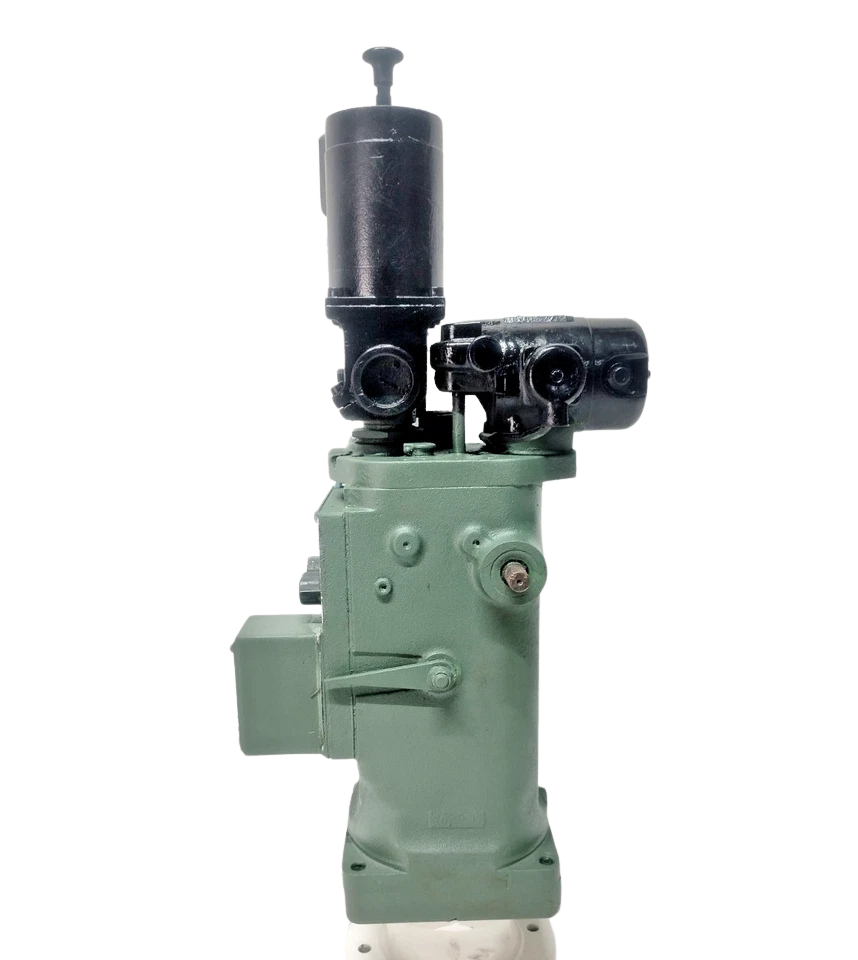

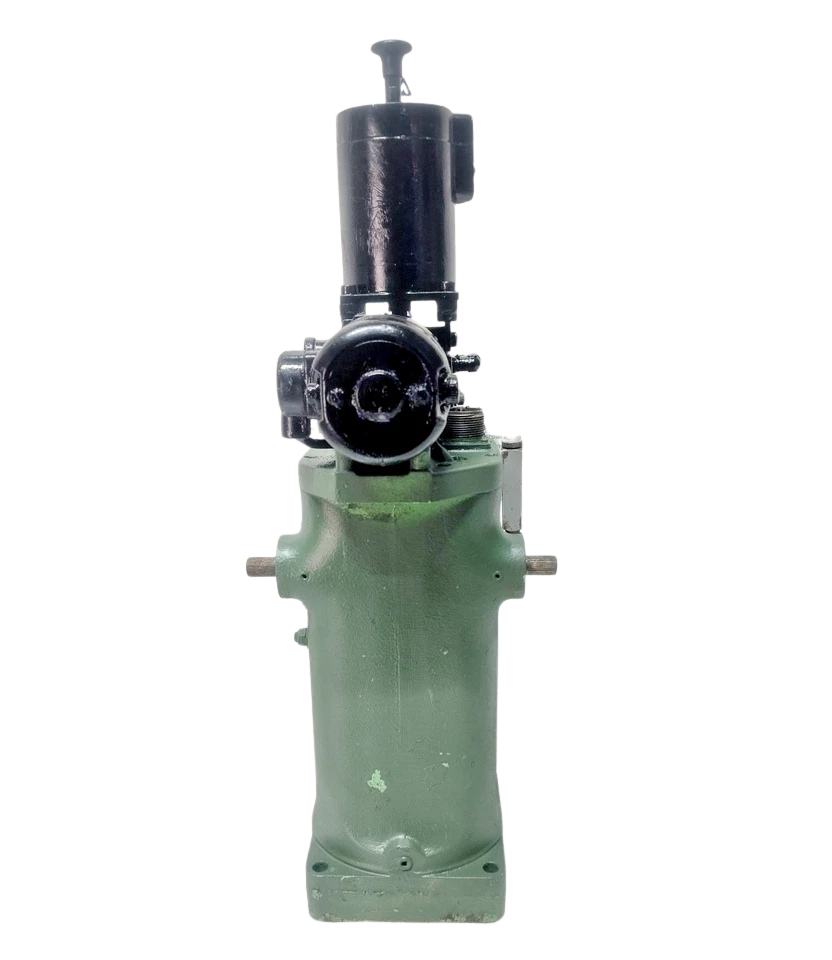

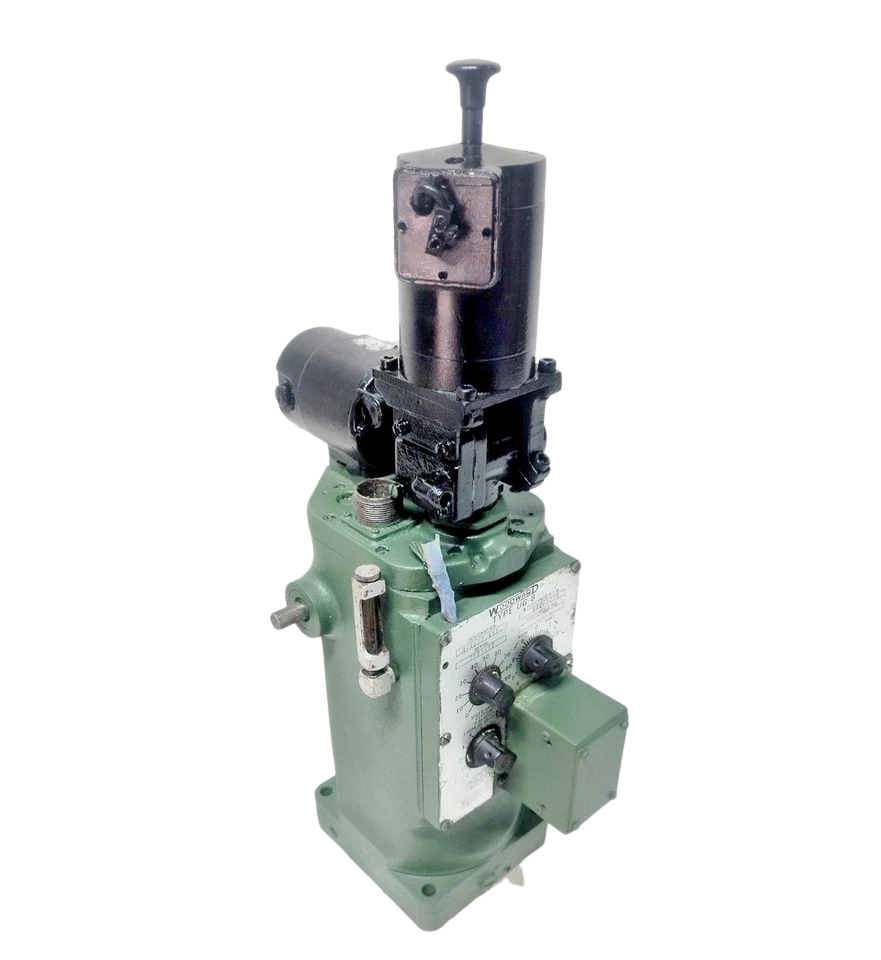

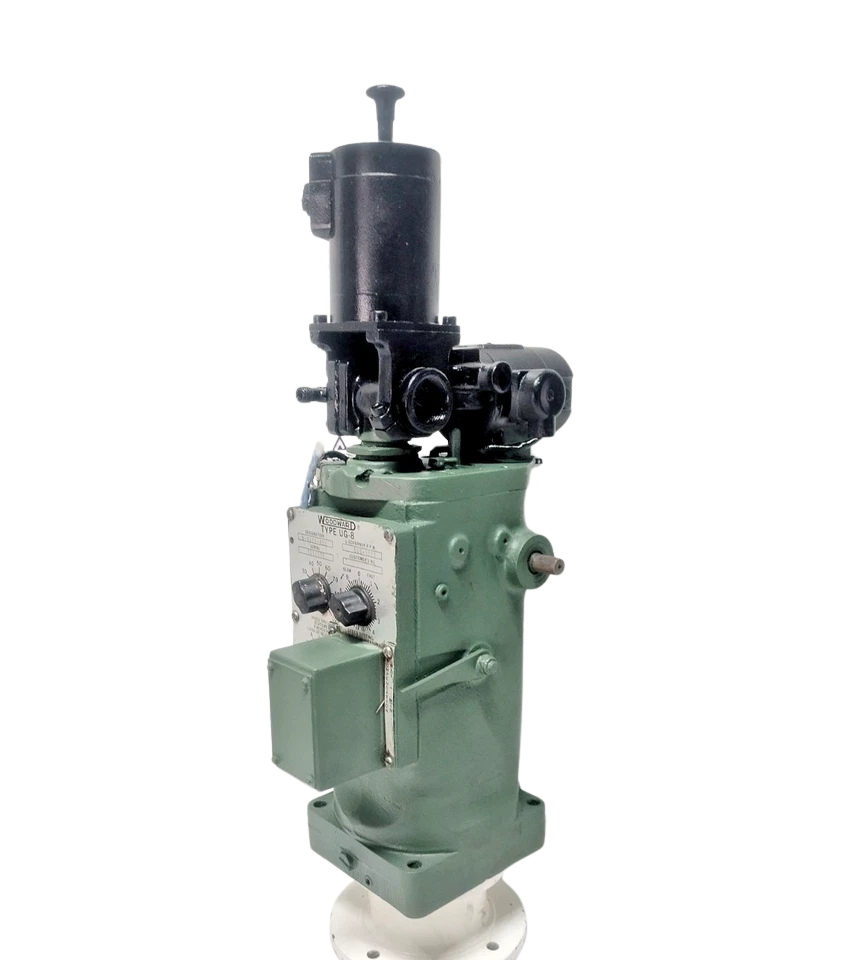

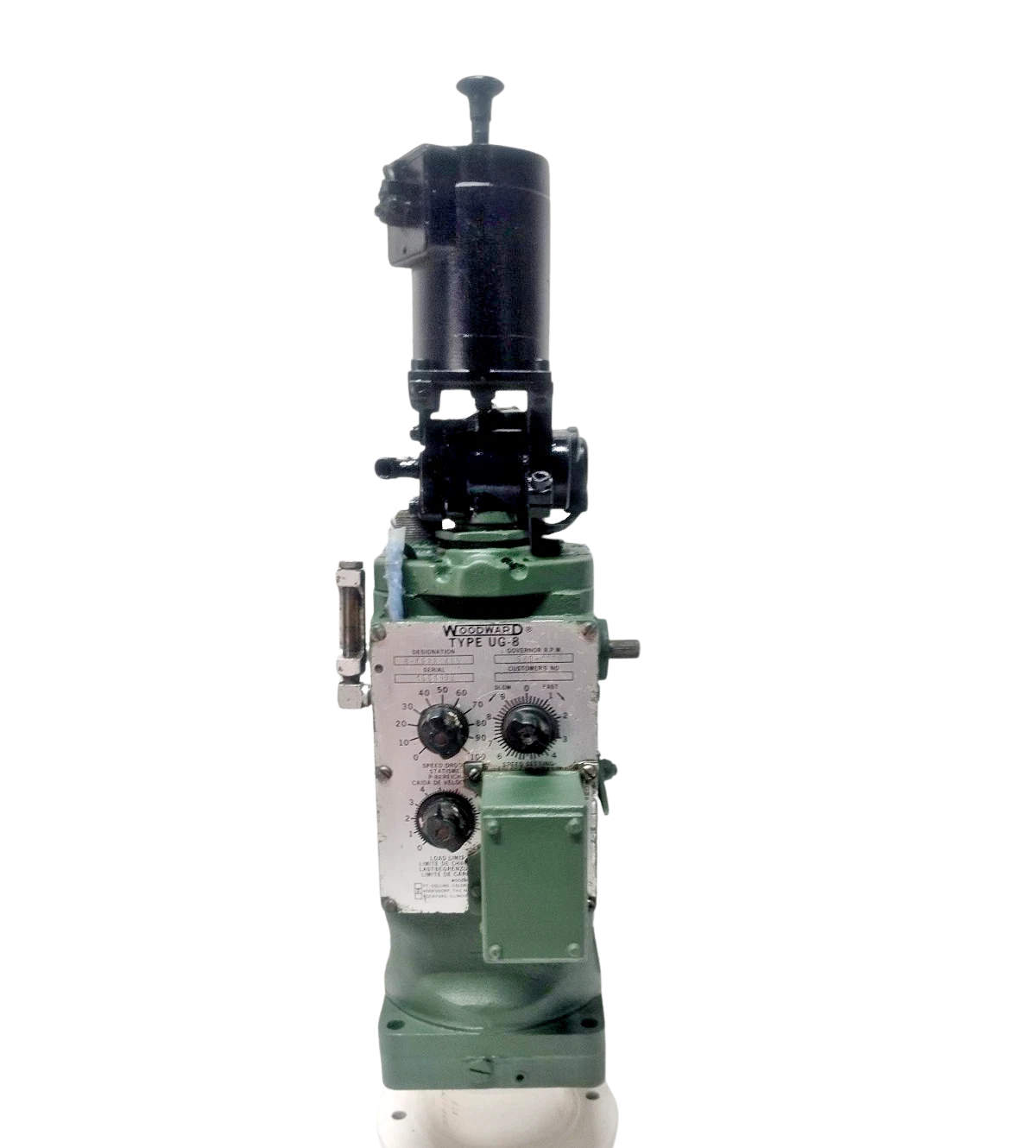

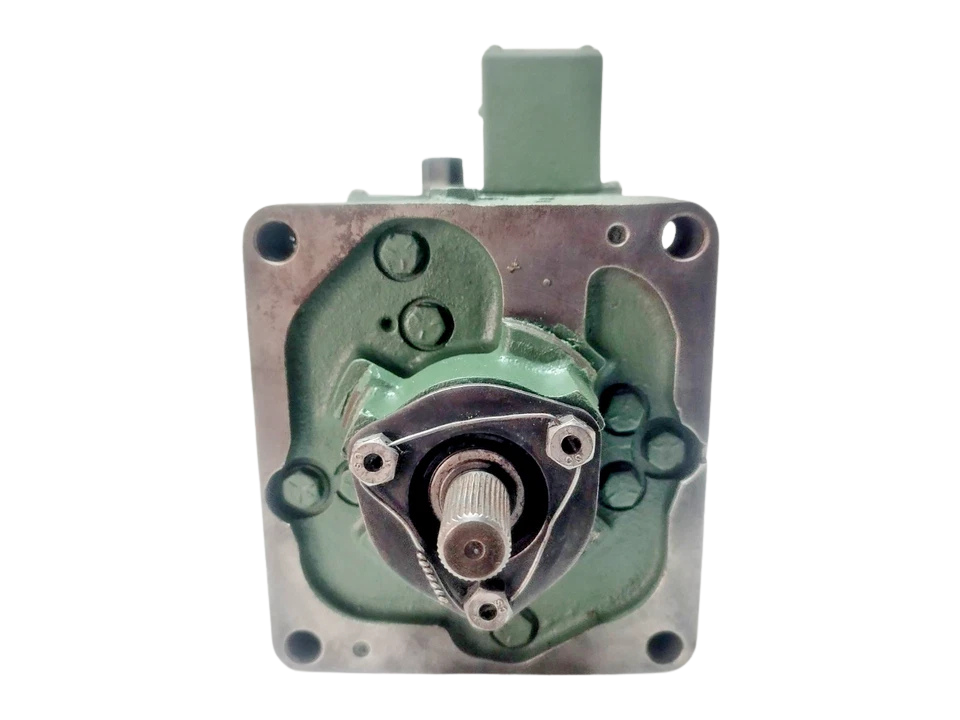

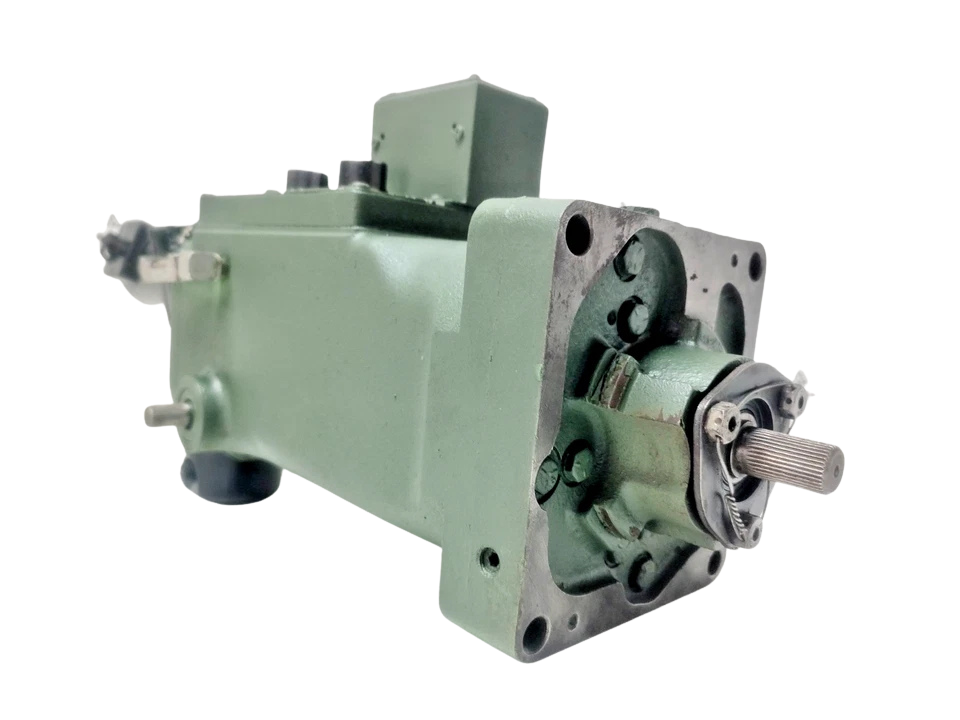

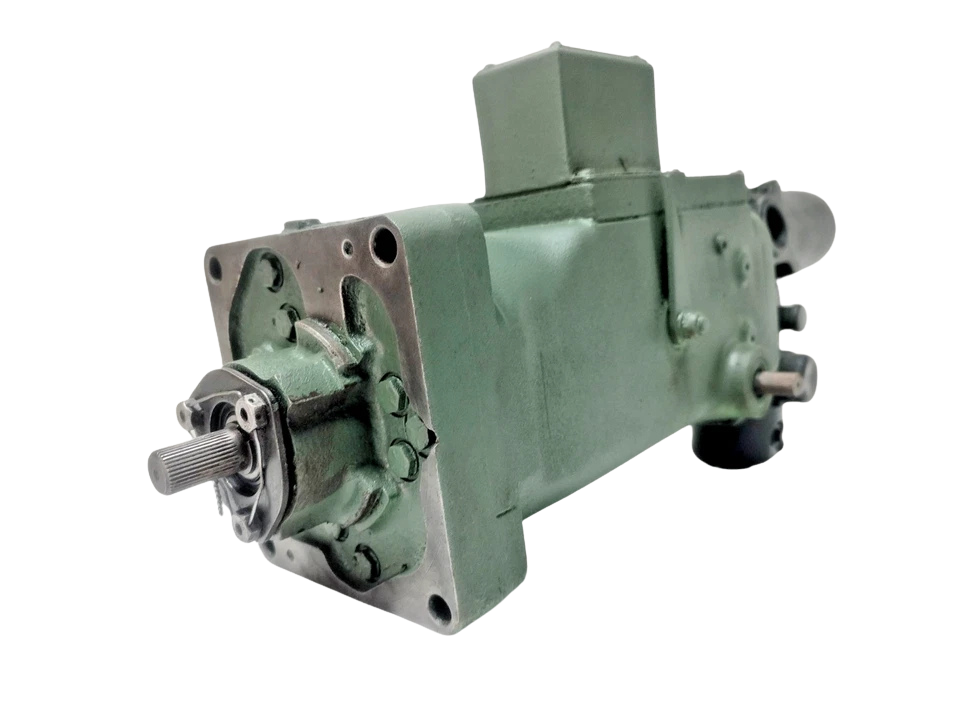

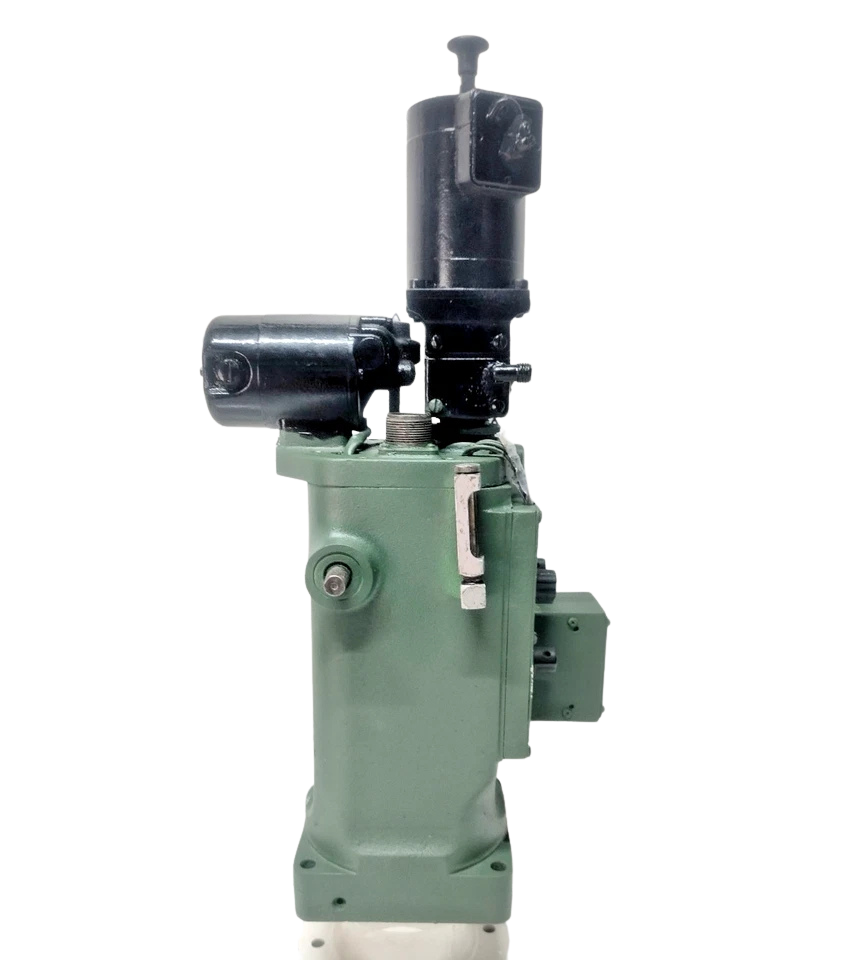

Woodward UG-8 Governor B-8522-455

Woodward UG-8 Dial Governor (Part No: B-8522-455) | RPM: 580–1220

The Woodward UG-8 Governor (Part Number: B-8522-455) is an industry-standard, mechanical-hydraulic speed droop/isochronous governor engineered for precise speed and load control of marine propulsion engines, auxiliary diesel generator sets, and industrial turbines. Featuring an operating speed range configured for 580 to 1220 RPM, this unit utilizes a self-contained hydraulic system driven by internal gear pumps and spring-loaded accumulators maintaining 120 PSI (827 kPa) internal working pressure.

Technical Specifications

Model Details

• Brand: Woodward Governor Company
• Product Line: UG (Universal Governor) Series

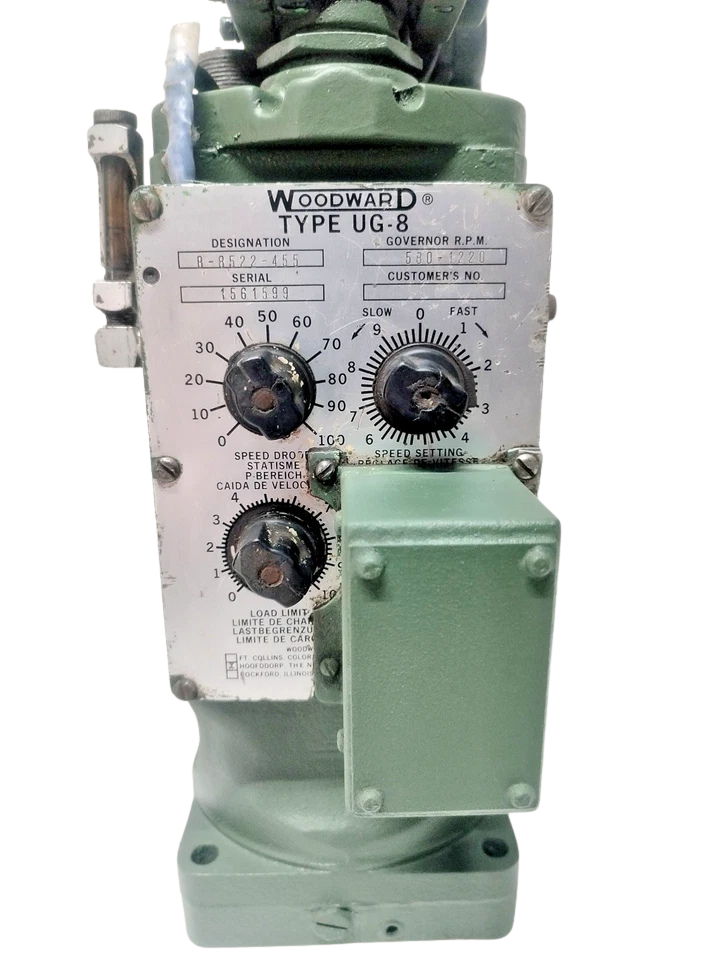

• Model: UG-8 Dial Configuration
• Manufacturer Part Number (MPN): B-8522-455
• Serial / Part Structure: B8522455 / 8522-455
• Control Architecture: Mechanical Flyweight Ballhead + Rotating Pilot Valve Plunger Bushing + Double-Acting Differential Power Piston with Hydraulic Dashpot Stabilization.

Features

1. Bi-Directional Drive Compatibility: Integrates a four-ball check valve manifold in the internal gear pump, enabling flawless operation in either clockwise (CW) or counter-clockwise (CCW) rotation without field modification.
2. True Isochronous or Droop Paralleling: Dial-adjustable speed droop (0 to 12.5%+) allows operators to toggle instantly between isolated isochronous generator control (dead constant frequency) and proportional droop sharing across switchboards.
3. Dashpot Hydraulic Compensation: Features an externally adjustable needle valve and compensation pointer lever to precisely calibrate stabilization damping to match specific prime mover inertia and load swing characteristics.
4. Mechanical Fuel Limiting & Emergency Shutdown: Equipped with a front-mounted load-limit dial mechanism that mechanically restricts maximum terminal shaft travel and provides positive manual shutoff.
5. Rugged Marine-Grade Cast Iron Construction: Designed for marine and harsh industrial duty, isolating the internal precision mechanism from structural engine vibration and extreme engine room thermal cycling.

Applications

• Marine Auxiliary Generator Sets: Speed and frequency regulation for medium-speed marine gensets operating on MGO or HFO.
• Marine Main Propulsion Engines: Mechanical throttle and rack governing for direct-drive or gear-reduced propulsion diesels requiring linear fuel-rack positioning.
• Stationary Island-Mode Power Plants: Baseload and standby diesel and dual-fuel power generation plants where generators are paralleled to common busbars.
• Industrial Compressor & Pump Drivers: Continuous-duty variable and fixed-speed governance on reciprocating gas compressors and high-pressure fire pumps.
• Steam & Gas Expansion Turbines: Mechanical governor control linking directly to throttle valves on industrial turbine systems.

Compatibility

• Wärtsilä / Sulzer: S20, AL20/24, AL25, and Z40 series engines.
• MAN B&W / Ruston: 6L23/30, 8L23/30, 28/32 series, and Ruston RK/RK270 engines.
• Daihatsu: DK-20, DC-17, DL-20, and DS-18 series auxiliary engines.
• Yanmar: M200, T220, S165, and S185 marine diesel engines.
• Caterpillar / MaK: MaK 453, MaK 332, and CAT 3500/3600 mechanical fuel-rack variants.

• Bergen / Rolls-Royce: K-Series and LDG/LSG series gensets.

Part Number Cross-References

• Direct Woodward Part Numbers: B-8522-455, 8522-455, 8522455
• Equivalent Family Codes: UG-8 Dial 8522 Series, UG-8L (Lever variations with matched speeder-spring rates), UG-5.7 / UG-10 frame alternatives
• OEM Cross-References: Fits various engine builders under internal part codes (e.g., MAN / Wärtsilä part prefixes for Woodward UG-8 dial governors).

Frequently Asked Questions

What is the specific difference between a Woodward UG-8 Dial and UG-8 Lever governor?

The UG-8 Dial governor uses a synchronizer knob and front-mounted dial to adjust the speed setting and speed droop manually or via an electric motor, making it ideal for generator sets and switchboard synchronizing. The UG-8 Lever type governor uses an external mechanical linkage/lever to control the speed setting, typically favored for variable-speed applications such as marine main propulsion throttles or dredge pumps.

How do I check if the internal accumulator pressure is functioning at 120 PSI?

A 1/8″ NPT port is provided on the governor housing into the hydraulic accumulator circuit. By plumbing a calibrated 0–200 PSI hydraulic pressure gauge into this test port while running the governor drive shaft above minimum operating RPM, you can verify whether the spring-loaded relief valves and accumulator pistons hold steady between 110 and 120 PSI.

Can this governor operate in both Clockwise (CW) and Counter-Clockwise (CCW) engine drives?

Yes. The Woodward UG-8 governor features an integrated four-way check valve manifold that automatically routes oil pumped by the drive gears into the accumulator cylinders regardless of shaft rotation direction.

Why is my governor output shaft experiencing high-frequency vibration (“jiggle”)?

“Jiggle” is almost always caused by improper alignment of the drive shaft, lack of backlash clearance in the engine governor drive gear train, or excessive torsional vibrations transmitted from the camshaft. Installing a spring-driven, oil-damped ballhead drive helps mitigate minor torsional vibrations, but drive gear runout and backlash should always be inspected mechanically.
