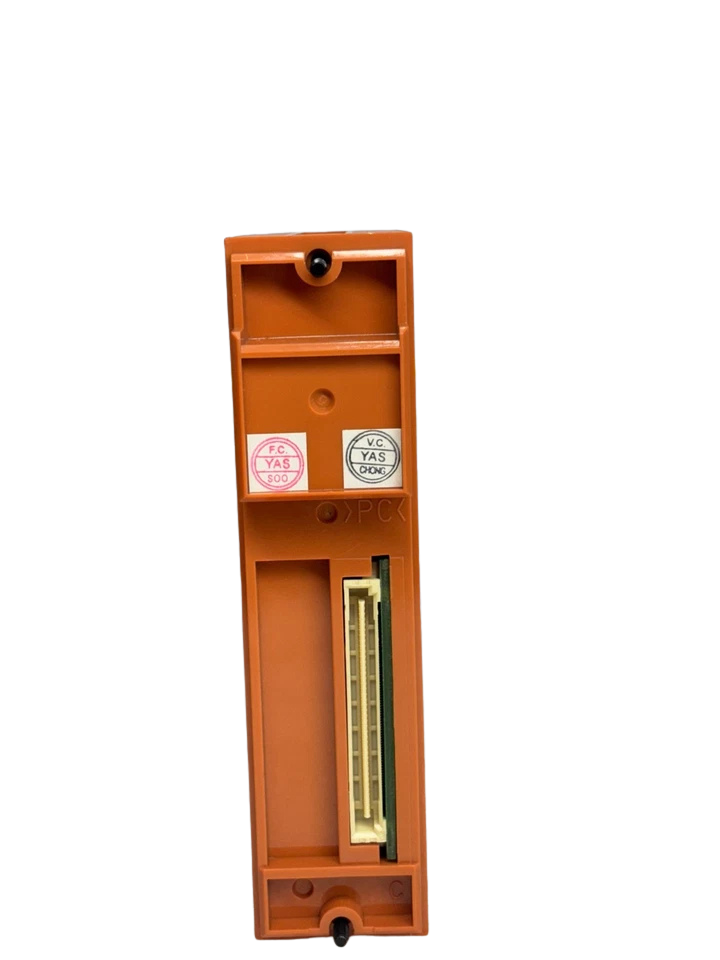

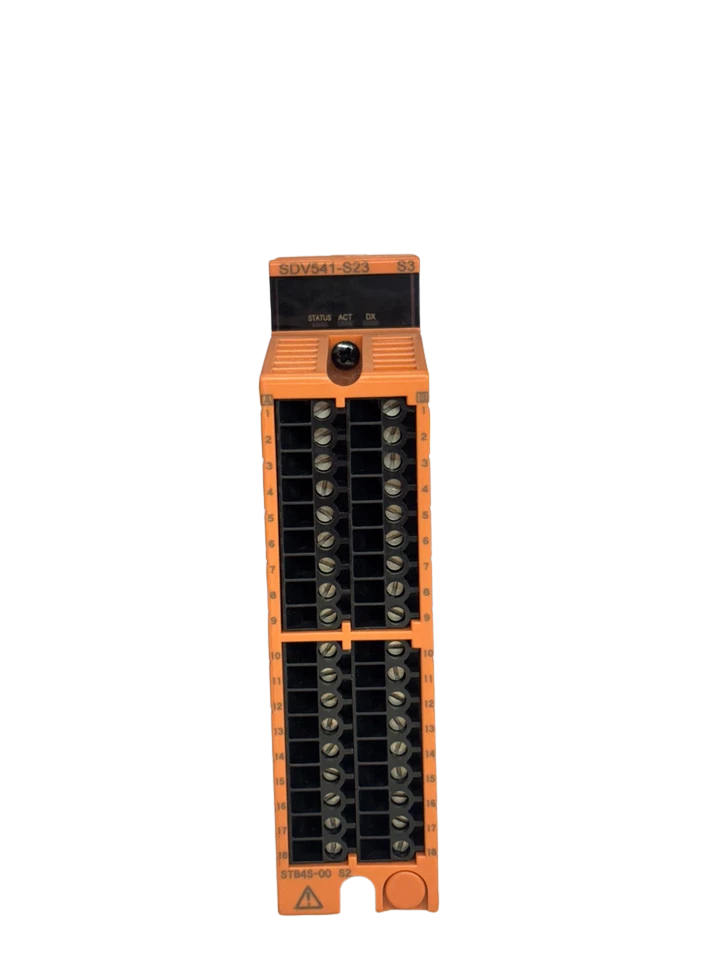

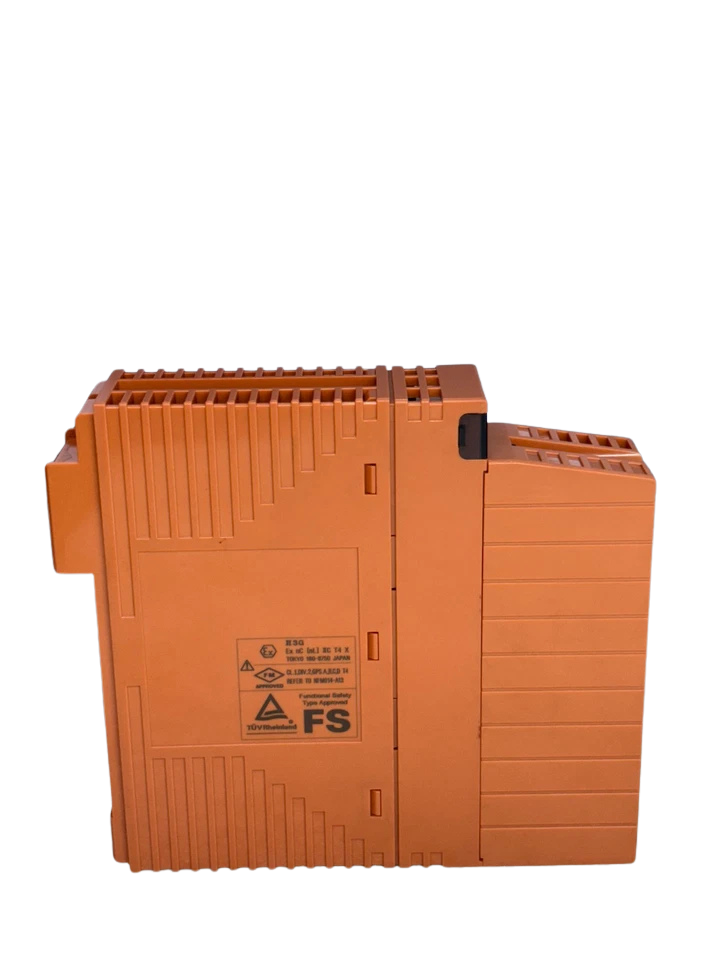

Yokogawa SDV541-S23-S3 Digital Output Module

YOKOGAWA SDV541-S23-S3 Digital Output Module (ProSafe-RS)

The Yokogawa SDV541-S23-S3 is a 16-channel discrete digital output module purpose-engineered for Yokogawa’s ProSafe-RS Safety Instrumented System (SIS). Built to satisfy strict IEC 61508 SIL 3 safety lifecycle architectures, this module executes deterministic current-sourcing (high-side switching) control for critical field trip devices, interlocks, solenoid valves, and indicator circuits.

The -S23 suffix with Style S3 denotes a standard-type module equipped with a dedicated MIL/pressure-clamp or terminal board interface and ISA Standard G3 conformal coating operating within an extended temperature rating of -20°C to +70°C. This conformal shielding renders it impervious to airborne contaminants, hydrogen sulfide, salt-laden air, and high-humidity environments typical of marine engine rooms, offshore drilling rigs, floating production storage and offloading (FPSO) vessels, and coastal petrochemical refining infrastructure.

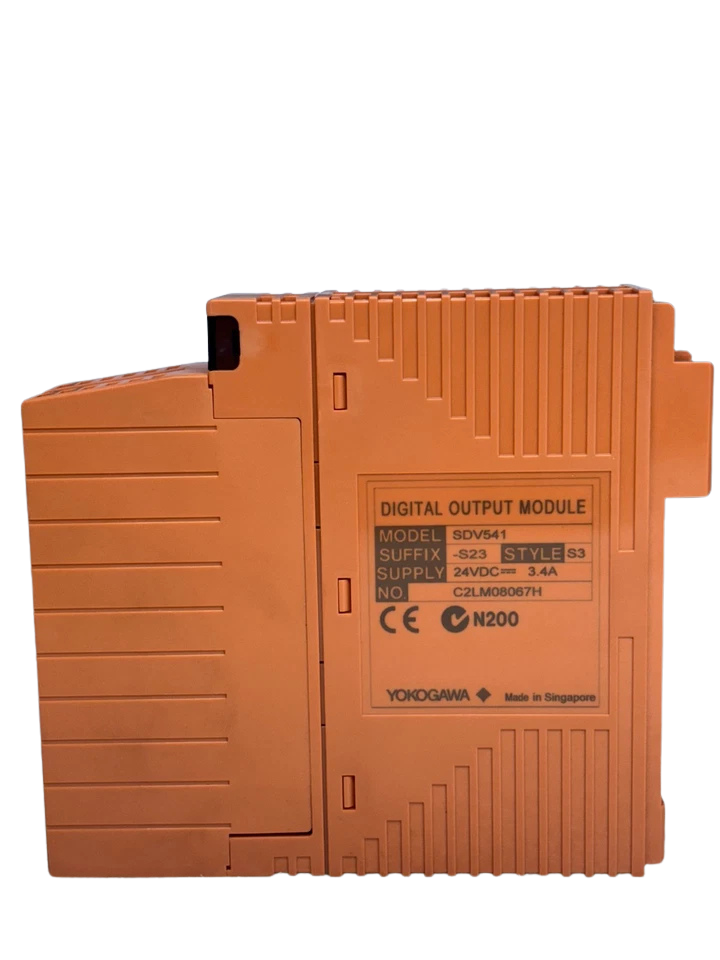

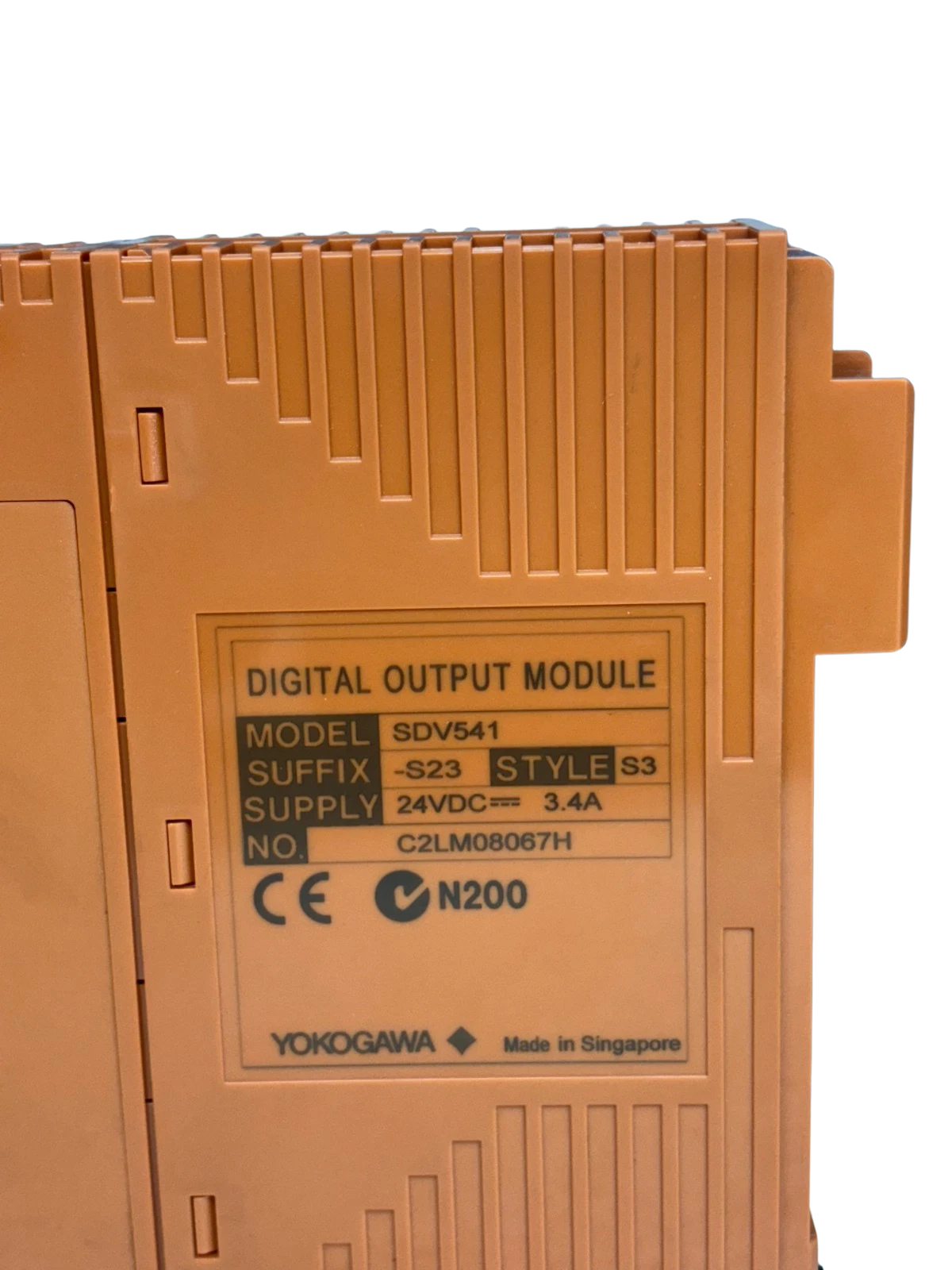

Model Details

• Manufacturer: Yokogawa Electric Corporation
• Base Model: SDV541 (Digital Output Module, 16-channel, 24 V DC)
• Full Part Number / MPN: SDV541-S23-S3 / SDV541-S23/S3

Features

1. TÜV-Certified IEC 61508 SIL 3 Compliance: Built on redundant dual-microprocessor architecture executing 1-out-of-2 with Diagnostics (1oo2D) logic, delivering maximum fail-safe integrity across critical safety instrumented functions (SIF).
2. 16 Isolated High-Side Sourcing Channels: Controls up to 16 discrete field loops with 24 V DC output at 0.2 A continuous load per channel (3.2 A maximum total per module) with an ultra-low output voltage drop
3. Built-in Continuous Pulse Diagnostics: Periodically injects narrow self-test pulses to detect open-circuit lines, ground faults, blown external fuses, and load mismatch without de-energizing active trip solenoids.
4. Rapid Safety Response Execution: Fast output response time rated at ≤30 ms, ensuring rapid ESD valve dumping and sequence isolation well within process safety times.

Part Number Cross-References

• SDV541-S23 (Standard Revision)
• SDV541-S33 (Extended temperature/style equivalent)
• SDV541-S23/S3 (Alternate syntax for Style S3)
• SDV541-S23-S3/PRP (Variant with custom factory pre-programming/testing)
• SDV531-S23 (8-Channel, 0.6 A/channel alternative for heavier inductive loads)

Frequently Asked Questions

What is the primary difference between Yokogawa SDV541 and SDV531?

The SDV541 provides 16 output channels rated at 0.2 A per point (max 3.2 A total per module), making it ideal for high-density safety logic and low-power trip coils. The SDV531 offers 8 isolated channels rated at 0.6 A per point (max 4.8 A total), designed for higher current inductive solenoid devices.

Does the SDV541-S23-S3 require external line monitoring resistors?

Unlike standard DCS digital output modules that require field-installed diode-resistor packs, the SDV541 utilizes integrated internal current-pulse diagnostics to detect line breaks and shorts automatically, provided the connected field load remains between 120Ω and 685Ω.

Can I hot-swap the SDV541 module while the safety system is running?

Yes, in dual-redundant (duplex) I/O configurations, you can replace a faulty SDV541 online without de-energizing the safety controller node or interrupting the safety instrumented function. Ensure strict electrostatic discharge (ESD) handling protocols are maintained during field replacement.

What does the G3 specification indicate on this Yokogawa module?

The “3” suffix designation indicates that the circuit assembly is factory-treated with conformal coating compliant with ANSI/ISA-71.04 Class G3. This safeguards conductive traces against atmospheric corrosion caused by sulfur dioxide, chlorine, high humidity, and airborne ocean salts.

Can an SDV541 output drive AC loads?

No. The SDV541 is exclusively engineered for 24 V DC current-sourcing (PNP) applications. To switch 110 V AC or 230 V AC field devices from a ProSafe-RS safety loop, the SDV541 must be paired with an interposing relay board (such as the Yokogawa SED4D with dry contact relays).
