Danfoss BRCF 032-B1 Actuator 160N4011

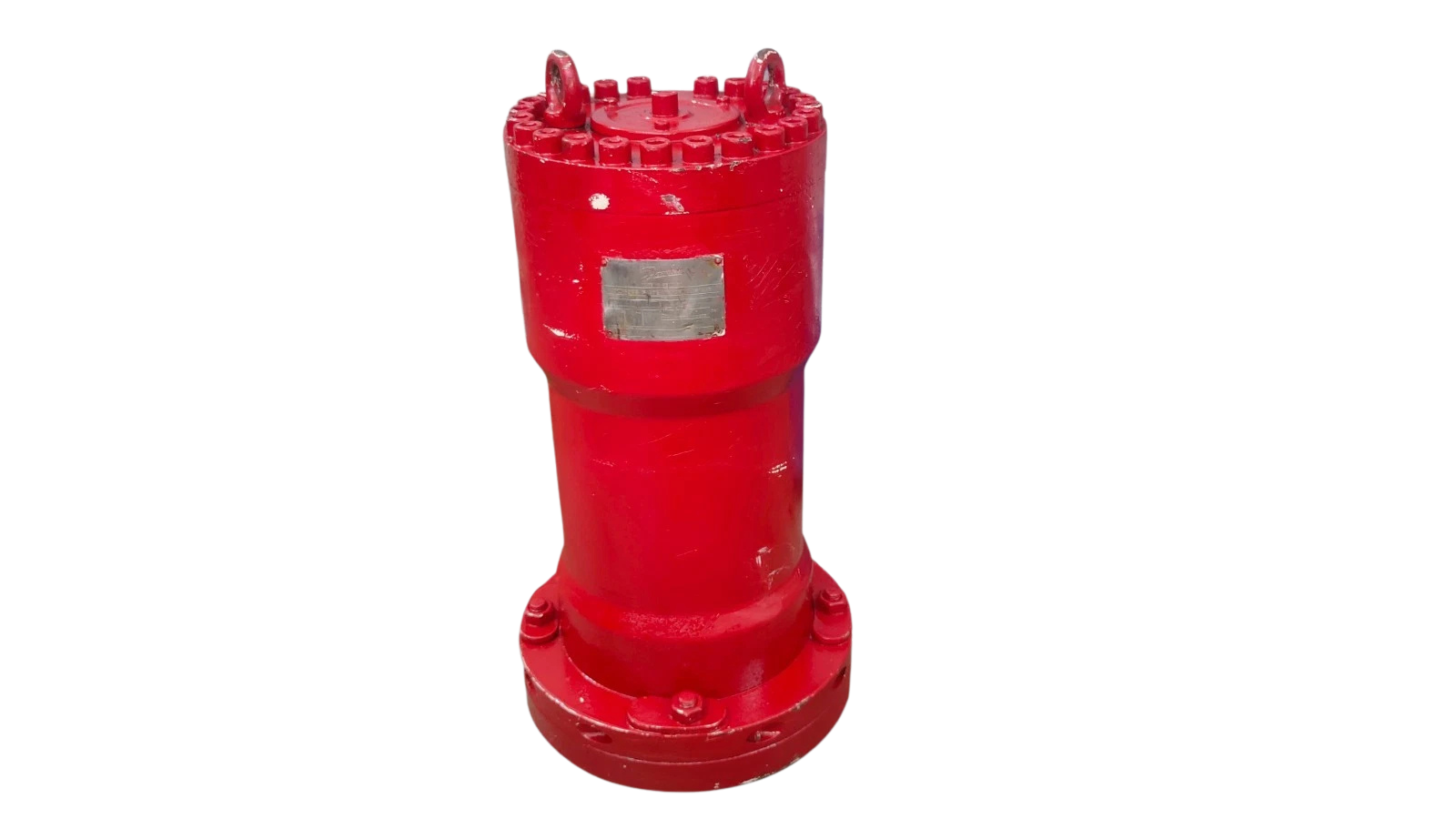

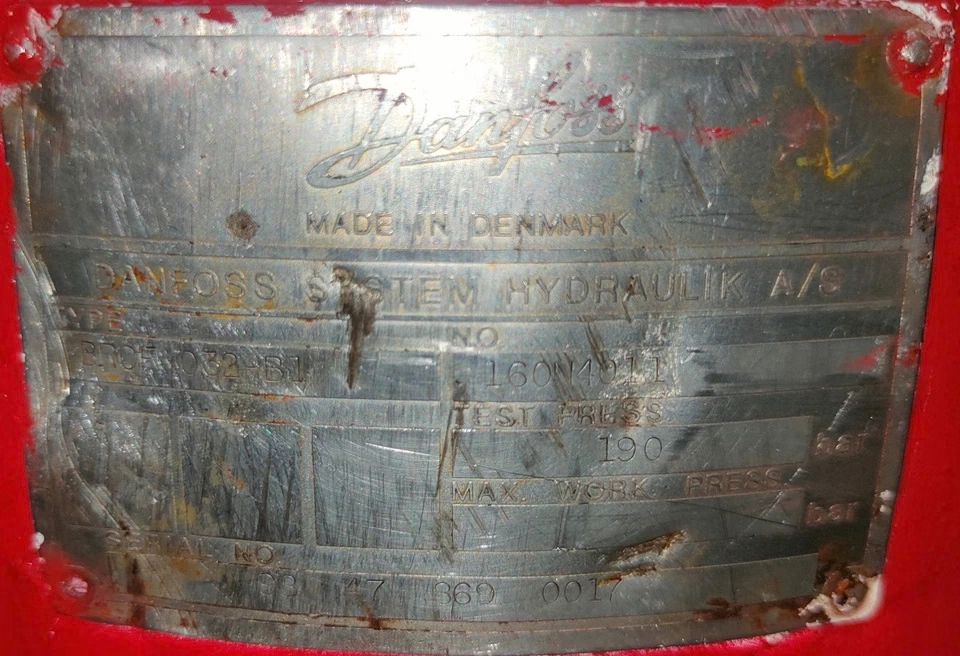

Danfoss BRCF 032-B1 Hydraulic Single Acting Balanced Rotary Actuator (160N4011)

The Danfoss / Damcos BRCF 032-B1 (MPN: 160N4011) is a heavy-duty, single-acting hydraulic balanced rotary actuator engineered specifically for quarter-turn (90° ±1°) valve automation in mission-critical marine and offshore environments. Employing Danfoss’s proprietary helical spline / balanced rotary mechanism, the BRCF 032-B1 converts hydraulic pressure into pure rotational torque without transferring lateral or radial thrust loads to the valve stem. This eliminates asymmetric spindle wear and significantly extends valve packing life.

The unit guarantees reliable fail-safe operation—either Fail-Close (FC) or Fail-Open (FO)—in the event of hydraulic signal failure or power blackout. Built with marine-grade ductile iron housing and specialized multi-lip sealing systems, the BRCF 032-B1 provides maintenance-free operation across cargo hold lines, ballast systems, bilge manifolds, and submerged applications.

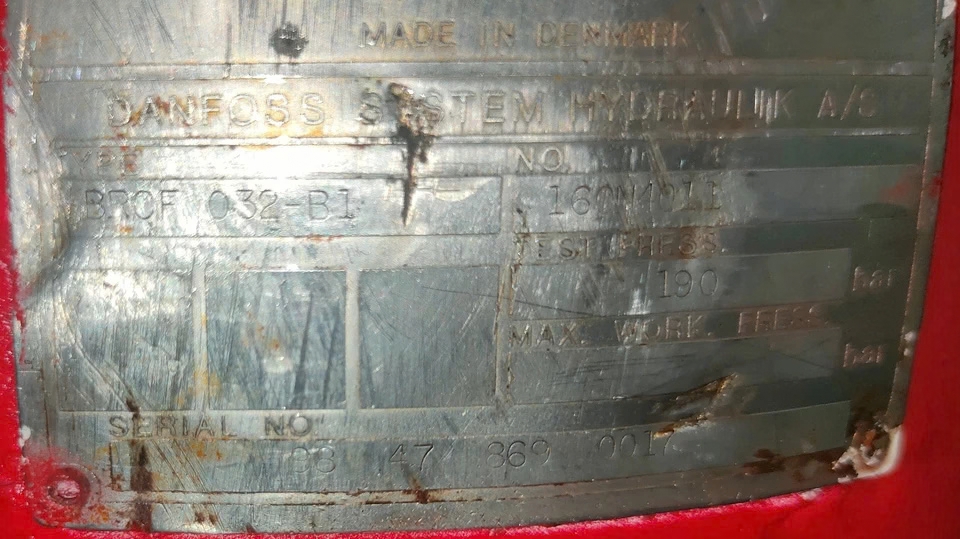

Model Details

• Manufacturer: Danfoss / Damcos
• Model Designation: BRCF 032-B1
• Actuator Type: Hydraulic Single-Acting (Spring-Return) Balanced Rotary Actuator
• Manufacturer Part Number (MPN): 160N4011
• OEM Seal Kit Part Number: 160N4260
• Valve Mount Standard: Direct flange mounting compliant with ISO 5211 / DIN 3337 bolt interfaces.

Technical Specifications

Features

1. Zero Radial Side-Load Architecture: Symmetrical helical splines balance all axial and lateral hydraulic reaction forces internally, delivering pure rotational torque directly to the valve shaft and preventing valve spindle bending or premature seat degradation.
2. Submersible & Severe-Service Housing: Marine-rated cast ductile iron construction coated with high-solid epoxy; engineered to operate continuously submerged in seawater, ballast tanks, or crude oil cargo environments.
3. Modular Direct-Mount Control Interface: Machined surface allows direct mounting of hydraulic control blocks (DPI, CB, or throttle valves) and direct-drive mechanical/electrical top-mounted position indicators without remote linkage drift.
4. Adjustable Mechanical End-Stops: Built-in travel stop screws allow precision field adjustment of the 90° travel limits (±1° open and close) to ensure tight shutoff across high-performance butterfly and ball valves.

Applications

• Shipboard Ballast Water Management Systems (BWMS): Overboard discharge, ballast tank isolation, and cross-over valves.
• Cargo Oil Piping & Tank Stripping Systems: Direct installation inside crude/product cargo tanks or topside deck manifolds.
• Bilge & Fire Main Lines: Remote fail-safe flooding isolation in engine room double bottoms and void spaces.
• Offshore FPSO & Drilling Rigs: Moonpool, seawater cooling, and subsea ballast manifold actuation.
• Marine Valve Remote Control Systems (VRCS): Fully integrated into hydraulic solenoid valve blocks and electro-hydraulic power packs.

Part Number Cross-References

• Danfoss / Damcos Actuator Assembly: 160N4011
• OEM Overhaul Seal Kit (Packing Set): 160N4260
• Legacy Part Numbers: 16N4011, 051-xxxx Series Damcos equivalents
• Mounting Kit Series: Danfoss BRC/BRCF 032 Intermediate Adaptor Flange Kits

Frequently Asked Questions

What is the functional difference between the Danfoss BRC and BRCF series?

The BRC series consists of double-acting balanced rotary actuators requiring hydraulic pressure on both port A and port B to open and close. The BRCF 032-B1 is a single-acting actuator fitted with a heavy-duty internal mechanical spring pack that provides an automatic, fail-safe return to either open or closed position whenever hydraulic pressure drops.

Can the Danfoss BRCF 032-B1 be installed inside ballast or crude oil tanks?

Yes. The BRCF series features an IP68 fully sealed, cast ductile iron construction designed for continuous submersed service in cargo oils, seawater, and ballast tanks. For submerged installations, ensure the breather/exhaust port is piped back above the high water/cargo line or connected to a closed return loop.

How do I adjust the end-stop angles on the BRCF 032-B1?

The actuator is equipped with mechanical travel stop bolts located on the external casing. By loosening the locknut, you can turn the stop screws clockwise or counterclockwise to achieve precision angular disc alignment at 0° (fully closed) and 90° (fully open) within a ±1° tolerance window.

What seal kit is required when overhauling the BRCF 032-B1?

The standard genuine Danfoss/Damcos overhaul packing set is part number 160N4260. This kit contains all dynamic piston seals, helical spline rings, O-rings, and wiper elements in marine-grade NBR/FKM elastomer compound.

What hydraulic oil viscosity is recommended for marine VRCS systems?

High-performance anti-wear mineral hydraulic oils matching ISO VG 32 or VG 46 (operating viscosity range 15 to 200 cSt) are recommended. The hydraulic oil must maintain cleanliness levels of ISO 4406 Class 18/16/13 to safeguard the precision-ground internal helical splines from particulate abrasion.
