Phoenix Contact BL2 PPC 1000 2404845 Panel PC
Condition: New – Open Box
- 100% SECURED PAYMENTS
- AVAILABLE IN STOCK - READY TO SHIP
- EXPRESS DELIVERY: WORLDWIDE DELIVERY BY FEDEX & DHL EXPRESS COURIER
- HASSLE FREE 14-DAY RETURNS
Phoenix Contact BL2 PPC 1000 (Order No. 2404845) Industrial Panel PC
The Phoenix Contact BL2 PPC 1000 (Order No. 2404845) is a ruggedized, fanless industrial panel PC engineered for continuous, mission-critical operations in demanding maritime automation, offshore machinery, and factory floor environments. Built on the Basicline 2 platform, this unit integrates an energy-efficient dual-core Intel® Celeron® N3350 processor, 4 GB DDR3L RAM, high-speed M.2 solid-state storage, and an analog resistive touch display.

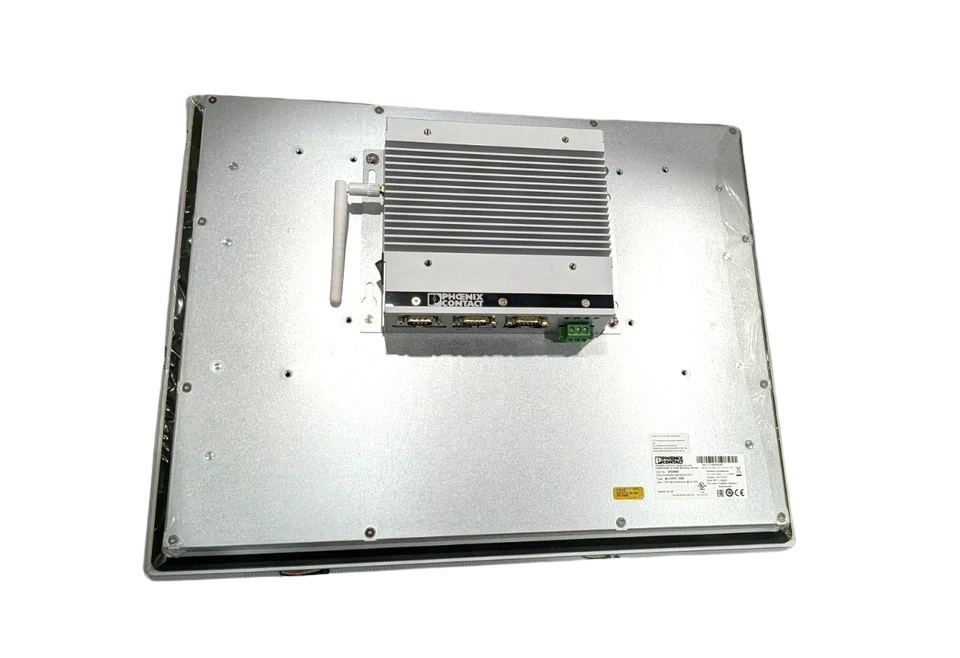

The front fascia provides an IP65 ingress protection barrier against washdowns, oil mists, and airborne particulates, while the back enclosure features an all-metal chassis with IP20 protection designed for passive, maintenance-free thermal convection. Outfitted with dual Gigabit Ethernet ports, isolated serial communication interfaces (RS-232/422/485), and broad DC power tolerance, the 2404845 is optimized to serve as an edge-level SCADA station, Machinery Alarm and Monitoring System (AMS) terminal, or decentralized PLC visualization node.
Model Details
- Series: Basicline 2 (BL2) Panel PC Series
- Model Designation: BL2 PPC 1000

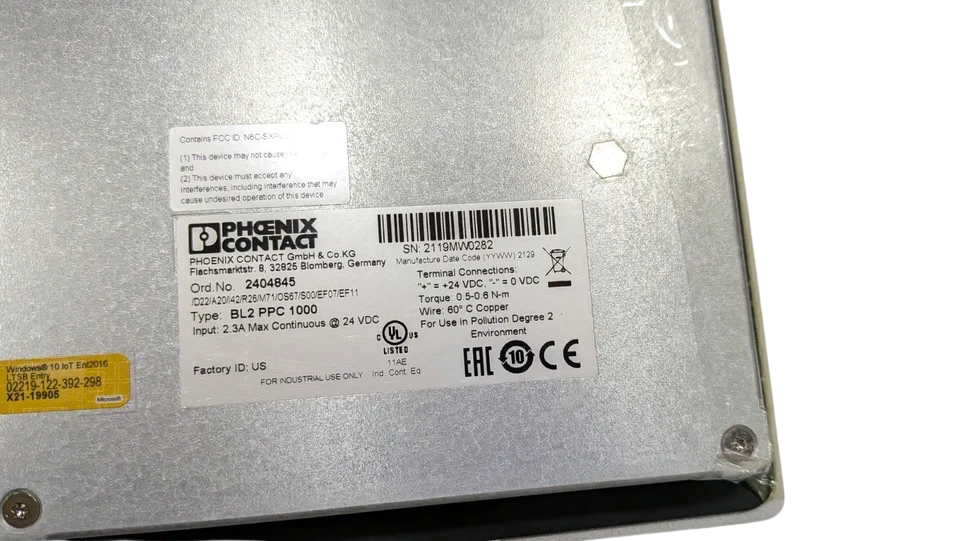

- Order Number (MPN): 2404845
- Order Code Variants: 2404845/D34/A20I42R26M71OS67S00EF00EF00 (Configured build)
- Touchscreen Interface: Analog Resistive (polyester surface) – gloved operation compatible
- Cooling Topology: 100% Passive / Fanless solid-state heat sink design
Technical Specifications
| System & Processing Specifications | |
|---|---|
| Processor | Intel® Celeron® N3350 (Dual-Core, 1.10 GHz base / 2.40 GHz burst, 2 MB Cache, 6W TDP) |
| System Memory (RAM) | 4 GB DDR3L SODIMM (1x 204-pin socket) |
| Mass Storage | M.2 2242 SATA III SSD (Standard configurations: 32 GB / 64 GB / 128 GB) |
| Cooling System | Passive heatsink (fanless convection cooling) |
| Expansion Slots | 1x Mini-PCIe (Full/Half-size, supports mSATA or fieldbus/wireless cards) |
| Display & Touch Characteristics | |
| Screen Diagonal | 30.7 cm / 12.1″ or 38.1 cm / 15.0″ TFT LCD active matrix (Configuration dependent) |
| Native Resolution | 1024 x 768 pixels (XGA), 4:3 Aspect Ratio |
| Backlight Unit | Solid-state White LED; MTBF > 50,000 hours (continuous runtime) |
| Touch Technology | 5-wire Analog Resistive (Polyester coated surface, gloved/stylus operation) |
| Input / Output & Network Interfaces | |

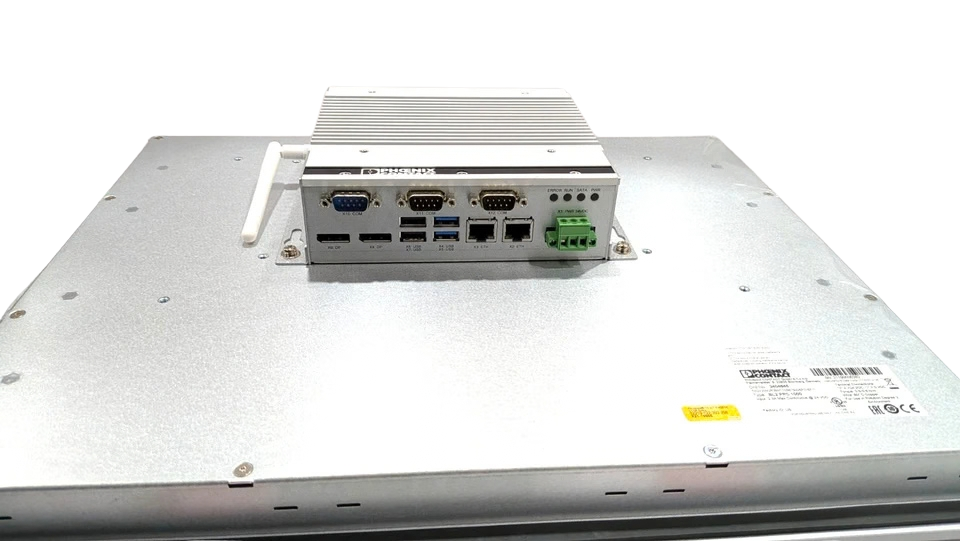

| Ethernet (LAN) | 2x RJ45 10/100/1000 Mbps Gigabit LAN (Intel® I210-AT controllers) |
| USB Ports | 2x USB 3.0 Type-A (High-speed 5 Gbps) | 2x USB 2.0 Type-A |
| Serial Interfaces (COM) | 1x RS-232/RS-422/RS-485 (DB9 Male, BIOS selectable) + 1x or 2x RS-232 (DB9 Male) |
| External Video Output | 1x DisplayPort (DP++ dual-mode external monitor output) |
| Electrical & Power Ratings | |
| Nominal Supply Voltage | 24 V DC (PELV / SELV regulated) |
| Permissible Input Voltage Range | 19.2 V DC to 28.8 V DC (-20% / +20% standard operational band) |
| Power Consumption | Typ. 18 W | Max. 36 W (Full processor loading with peripheral draw) |
| Power Terminal Allocation | 3-position plug-in COMBICON screw-clamp terminal block (Pin 1: +24V DC, Pin 2: 0V GND, Pin 3: Functional Earth FE) |
| Environmental, Mechanical & Enclosure | |
| Front Degree of Protection | IP65 / NEMA 4 (Gasketed panel mount sealing) |
| Rear Degree of Protection | IP20 (Galvanized steel housing) |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) with natural convection airflow |
| Storage / Transport Temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | DIN EN 60068-2-6 (1g continuous vibration, 10–150 Hz sweep) |
| Mechanical Shock Rating | IEC 60068-2-27 (15g acceleration, 11 ms half-sine pulse duration) |
Key Features
- Industrial Dual-Core Processing: Powered by the Intel® Celeron® N3350 processor (1.10 GHz base / 2.40 GHz burst, 6W TDP) paired with 4 GB DDR3L memory, yielding low thermal dissipation and stable 24/7 compute performance.
- IP65 Ingress Sealed Front Bezel: Industrial-grade NEMA 4/IP65 sealed front enclosure prevents the intrusion of saline atmospheres, moisture condensation, lubricating sprays, and airborne dust.

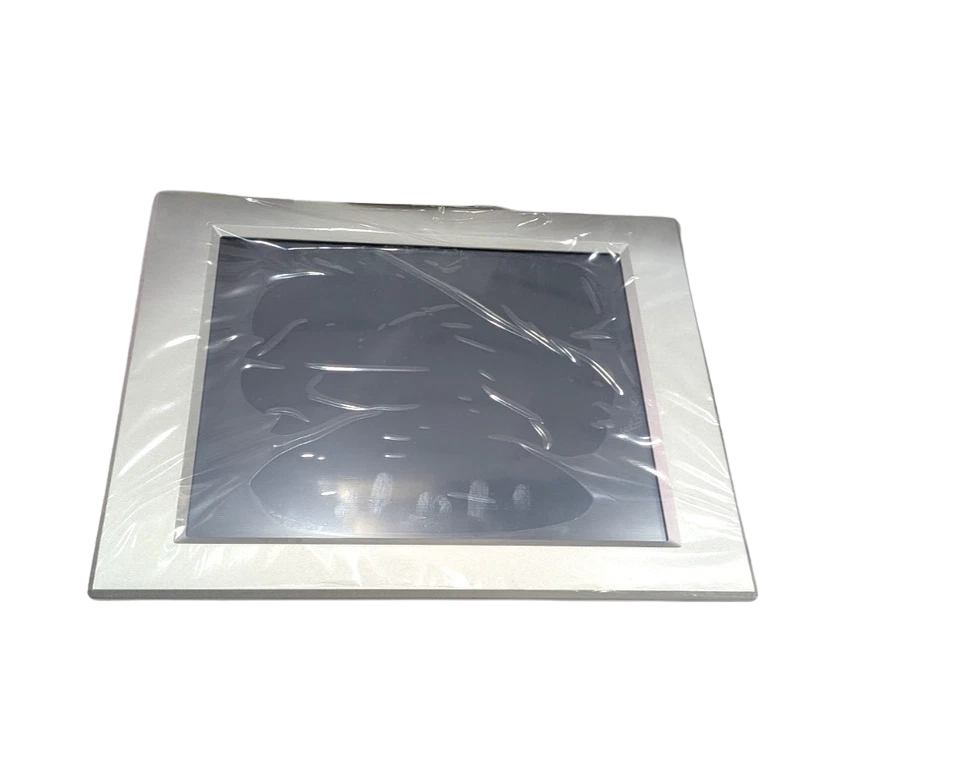

- Resistive Touchscreen Precision: 4:3 industrial TFT LCD with a multi-layer analog resistive touch overlay, ensuring tactile input capability while wearing work gloves in offshore and dirty shop-floor conditions.
- Deterministic Dual Network Isolation: Dual integrated RJ45 Intel® I210-AT Gigabit Ethernet controllers (10/100/1000 Mbps) allow hard physical segregation between supervisory OT control networks and plant IT infrastructure.
- Zero Moving Parts Architecture: Fanless heatsink design paired with high-endurance M.2 SSD storage eliminates mechanical points of failure caused by sustained structural vibration and mechanical shock.
Equipment Compatibility
- Phoenix Contact Automation Platforms: Native integration with ILC 1xx/3xx, RFC 4xx controllers, Axioline F/E I/O racks, and PLCnext control networks via Modbus TCP, OPC UA, or Visu+ SCADA engines.
- Third-Party Industrial PLCs: Siemens S7-1200 / S7-1500 (Profinet/TCP), Rockwell Automation ControlLogix / CompactLogix (EtherNet/IP via CIP), Schneider Modicon (Modbus TCP/RTU), and Omron Sysmac NJ/NX.
- Maritime Marine Monitoring Systems: Rolls-Royce / Kongsberg AutoChief, Wärtsilä marine automation networks, MAN B&W alarm monitoring cabinets, and scrubber/ballast water treatment systems (BWTS).
- Operating System Support: Windows 10 IoT Enterprise LTSB/LTSC (64-bit), Windows 11 IoT, and embedded Linux distributions (Ubuntu LTS, Debian, Yocto Project).
Applications
- Vessel Machinery Control Systems: Marine engine room automation, propulsion telemetry, bilge/ballast water management systems, and exhaust gas scrubber monitoring.
- Oil & Gas Offshore Platforms: Wellhead monitoring terminals, separators, bunkering flow metering, and decentralized marine auxiliary supervision.
- Factory Automation & Assembly: Assembly line cell visualization, CNC edge control, packaging line human-machine interfacing, and pick-and-place robotics dispatching.
- Water & Wastewater Treatment: Pumping station telemetry, reverse osmosis filtration control panels, and clarifier motor control center (MCC) panels.
- Critical Utilities & Energy: Gas turbine local operator panels, substation auxiliary power switchboard monitoring, and emergency diesel generator (EDG) supervision.
Part Number Cross-References & Alternates
- 2404845: BL2 PPC 1000 (Base 12″/15″ Celeron N3350, 4 GB RAM, Resistive Touch)
- 2404846: BL2 PPC 2000 (Intel® Pentium® N4200 Quad-Core, 8 GB RAM upgrade model)
- 1105780: BL2 PPC 2100 (Projected Capacitive / PCAP multi-touch version)
- 1016236: BL2 PPC 7000 (High-performance Intel® Core™ i5-7442EQ Quad-Core model)
- Phoenix Contact Designation: Basicline 2 PPC 1000 Series
Frequently Asked Questions
Can the Phoenix Contact BL2 PPC 1000 run standard Windows desktop software?
Yes. The unit is powered by an x86-64 Intel® Celeron® N3350 processor and supports standard 64-bit operating systems, including Windows 10 IoT Enterprise, Windows 10 Pro, and various Linux kernels. It natively executes industrial SCADA packages such as Phoenix Contact Visu+, Siemens WinCC, Wonderware, Ignition, and CODESYS HMI.
Can I operate the 2404845 touch screen while wearing heavy work gloves?
Yes. The BL2 PPC 1000 features a 5-wire analog resistive touch screen that responds to mechanical surface pressure rather than electrical body capacitance. It is fully operable while wearing leather, nitrile, rubber, or insulated heavy-duty work gloves, as well as with non-conductive plastic styluses.
What is the pin configuration for the 24 V DC power connector?
The unit utilizes a 3-pin Phoenix Contact COMBICON screw-clamp terminal block:
- Pin 1: +24 V DC (Power Input)
- Pin 2: 0 V DC (Return / Ground)
- Pin 3: FE (Functional Earth / Chassis Shield)
What is the primary difference between BL2 PPC 1000 and BL2 PPC 2000?
The BL2 PPC 1000 (Order No. 2404845) utilizes an Intel® Celeron® N3350 dual-core processor with 4 GB RAM, making it ideal for standard HMI visualization and low-to-medium compute tasks. The BL2 PPC 2000 (Order No. 2404846) features a faster Intel® Pentium® N4200 quad-core processor with 8 GB RAM, suited for data logging, edge-computing, and complex multi-screen SCADA servers.
Can this unit run on 12 V DC vehicular power or 110/230 V AC mains?
No. The BL2 PPC 1000 requires a dedicated 24 V DC industrial supply (nominal operational band: 19.2 V DC to 28.8 V DC). If connecting to AC mains (100–240 V AC), you must feed the terminal through an external regulated 24 V DC industrial switch-mode power supply.
