TMC Tamrotor Aircon L1 Controller 89525229

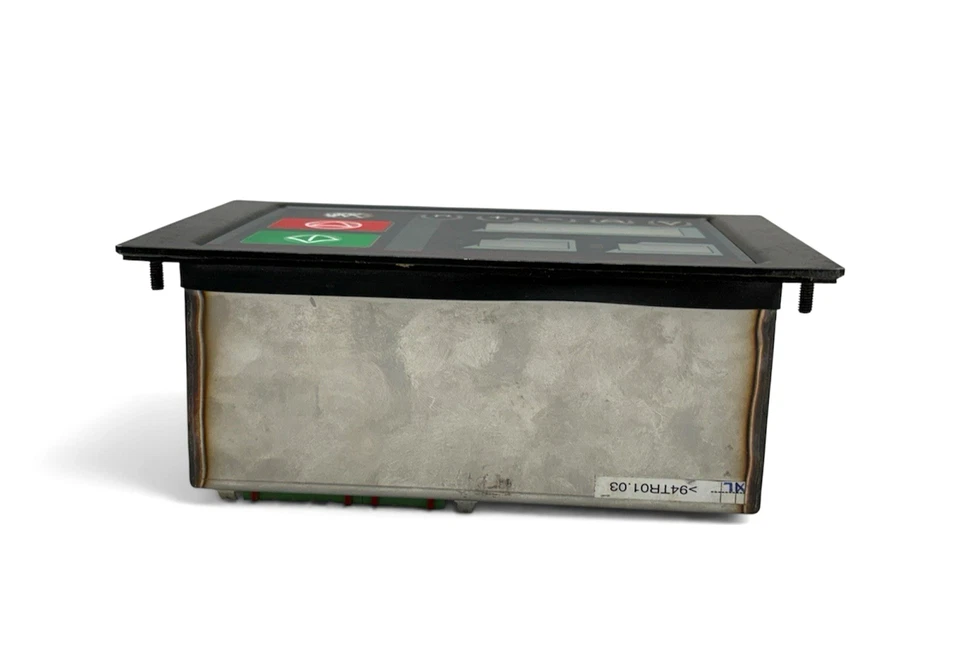

TMC Tamrotor Aircon L1 DIGI Pilot Controller (MPN: 89525229)

TMC Tamrotor Aircon L1 DIGI Pilot Controller (MPN: 89525229) is a sophisticated microprocessor based digital monitoring and management equipment for industrial and marine rotary screw compressors. The controller is designed for demanding marine environments and controls critical compressor characteristics such as discharge pressure, oil temperature, loading/unloading cycles and safety shut-downs.

As a marine engineering specialist, I can see that this unit offers precise closed loop automation, protecting auxiliary and control air systems from thermal overloads and pressure surges. This controller is compatible with all software versions (L1TRCE05, L1TRCE09, L1TRCE10, L1TRCE11) and easy plug and play drop in replacement in legacy and current Tamrotor compressor settings.

Technical Specification: Aircon L1 Controller

Key Features

1. Multi-Software Compatibility: Fully compatible with all native firmware versions (including L1TRCE05, L1TRCE09, L1TRCE10, and L1TRCE11) to match specific compressor serial iterations.
2. Robust Marine-Grade Architecture: Designed to withstand high vibration, ambient temperature fluctuations, and saline atmosphere exposure typical of ship engine rooms.

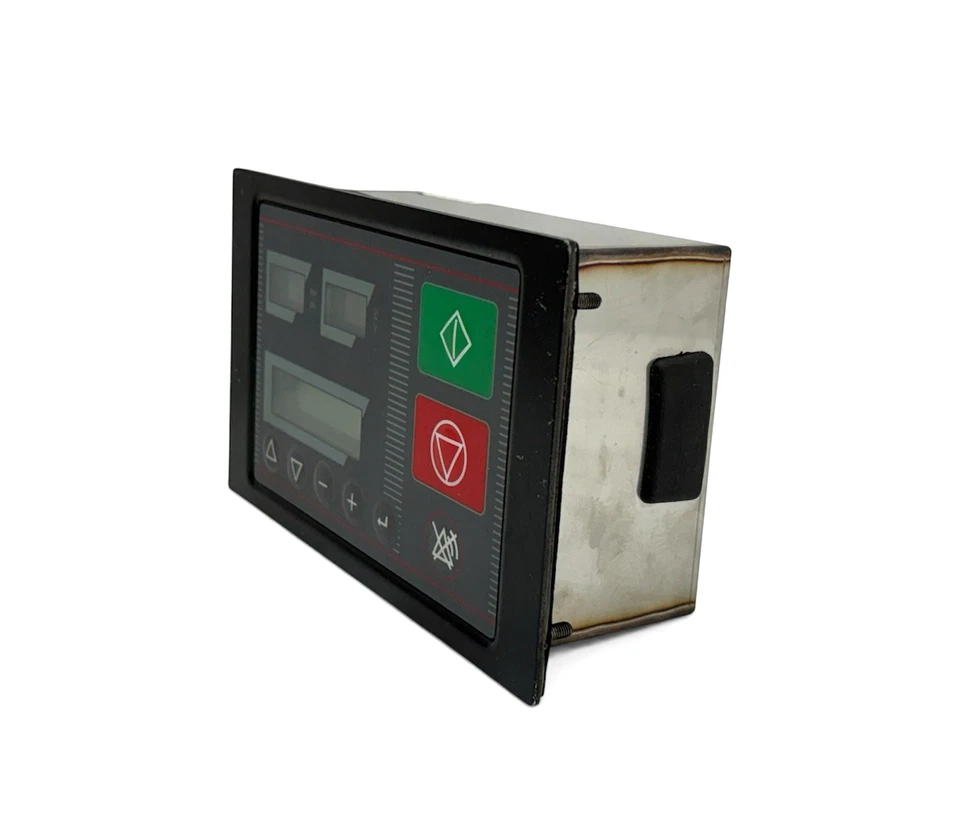

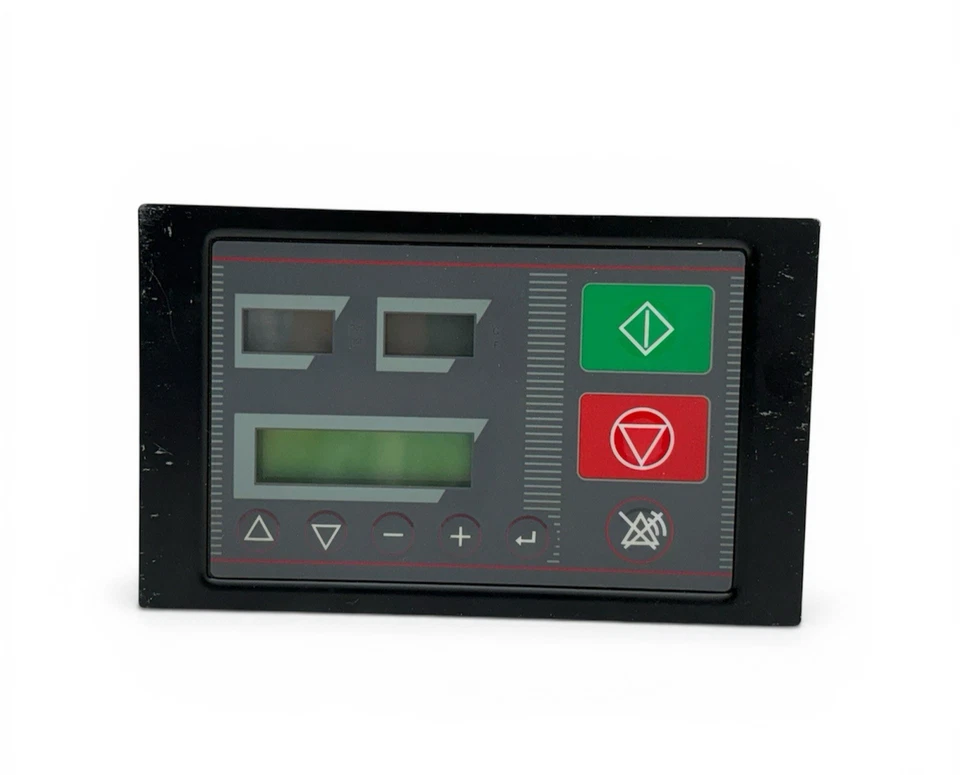

3. Comprehensive Digital Display & Interface: Real-time visual tracking of operational status, working hours, alarm codes, and maintenance intervals.
4. Integrated Safety Interlocks: Instantaneous fault response for high air discharge temperature, differential pressure anomalies, and motor overload conditions.
5. Optimized Energy Management: Automated load/unload modulation algorithm reduces power consumption and extends compressor airend lifespan.

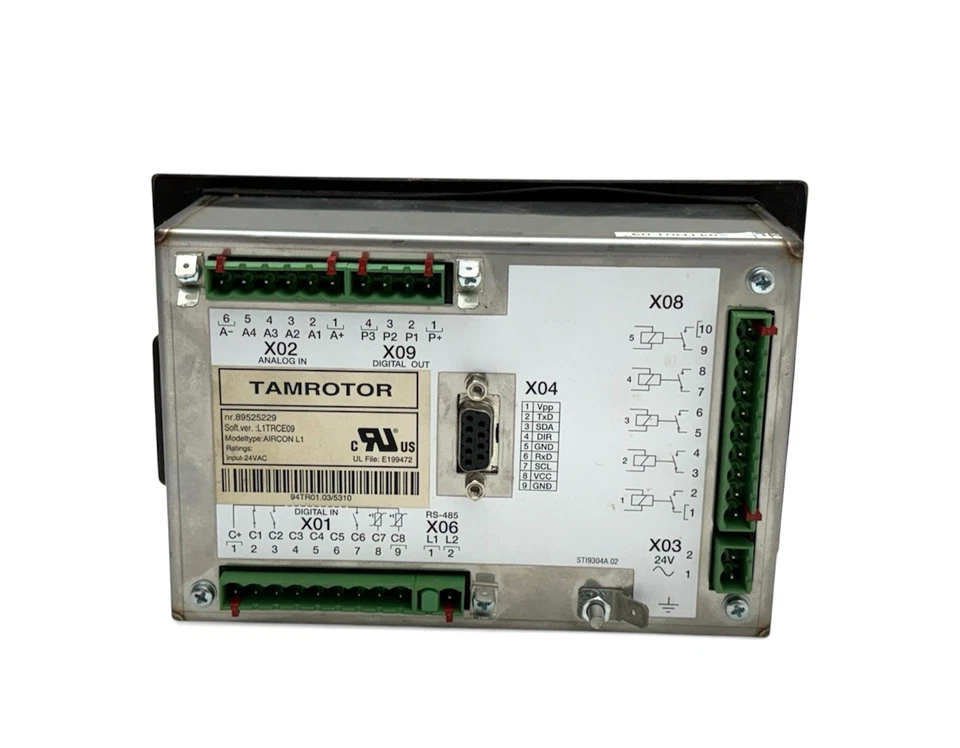

Input/Output Ratings & Terminal Allocations

• Power Supply Terminals: Designated for isolated 24 VAC supply feed from the control transformer. Ensure correct voltage phasing to prevent internal logic corruption.
• Digital Inputs: Opto-isolated inputs mapped for emergency stop, remote start/stop commands, motor thermal relay trip status, and air filter differential pressure switches.
• Relay Output Contacts: Dry-contact SPDT outputs configured for main motor starter solenoid, load/unload valve control, fault alarm signaling, and common warning indications.
• Analog Sensor Inputs: Configured for high-accuracy pressure transducers (4-20mA loop) monitoring working pressure and temperature resistance temperature detectors (PT100/PT1000).

Applications

• Marine instrument and control air packages on commercial merchant vessels.
• Offshore drilling platform utility air compressor systems.
• Industrial stationary rotary screw compressor automation skids.
• Shipboard engine room auxiliary pneumatic supply management.

Marine Engineer Expert’s Guide & Tips

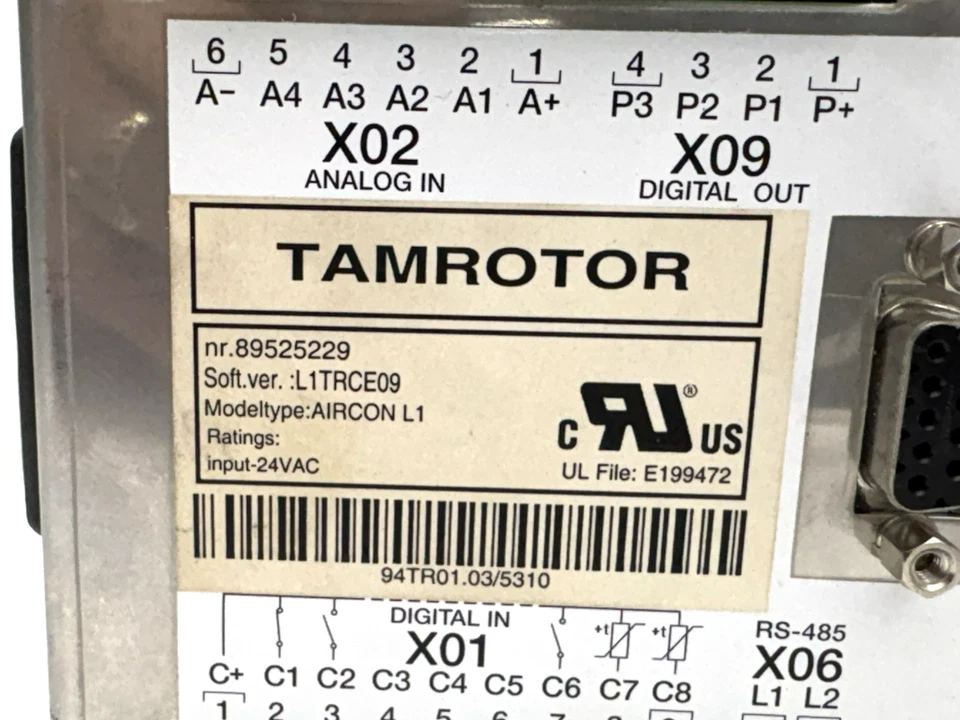

Engineer’s Tip: When replacing a Tamrotor Aircon L1 controller, make sure you check the specific software version code (ie L1TRCE09 or L1TRCE11) written on the EEPROM or startup screen of your original unit. If the firmware versions do not match, communication timeouts with the expansion modules of the compressor or misreading of the temperature curves are possible.

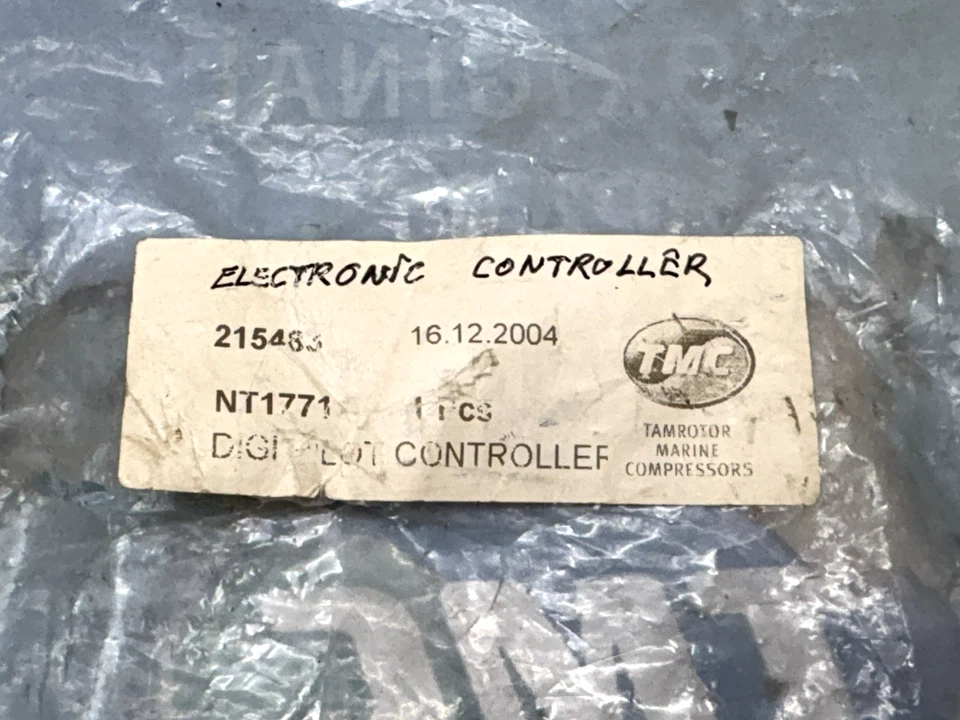

1. (Surge Protection) Fluctuations in the engine room electricity can cause voltage surges on 24 VAC lines. Your control panel should be equipped with a step-down transformer that is properly grounded and a functioning surge suppressor to protect the sensitive NT1771 processor.
2. (EEPROM backup): If you’re swapping a functioning unit for maintenance, jot down your custom parameters (loaded pressure ceiling, delta cut-out thresholds, running hour logs) to ease the re-commissioning process.

Frequently Asked Questions

Are all the software versions of the Tamrotor Aircon L1 Controller interchangeable?

The actual hardware footprint and the terminal layout are the same from version to version (L1TRCE05 through L1TRCE11) but having the correct software version that matches your specific compressor tier ensures seamless connection with current sensor calibrations and safety logic settings.

What happens if the controller indicates a communication issue during boot-up?

Check the stability of 24 VAC supply and check the RS485 data wiring terminals for loose connection or salt mist oxidation. Ensure that the incoming power source is the frequency (50/60 Hz) standard.

Does this unit have a warranty?

Yes. We offer a standard operational warranty on our new surplus and tested reconditioned units. Our marine engineering team provides complete technical support for your configuration questions.
