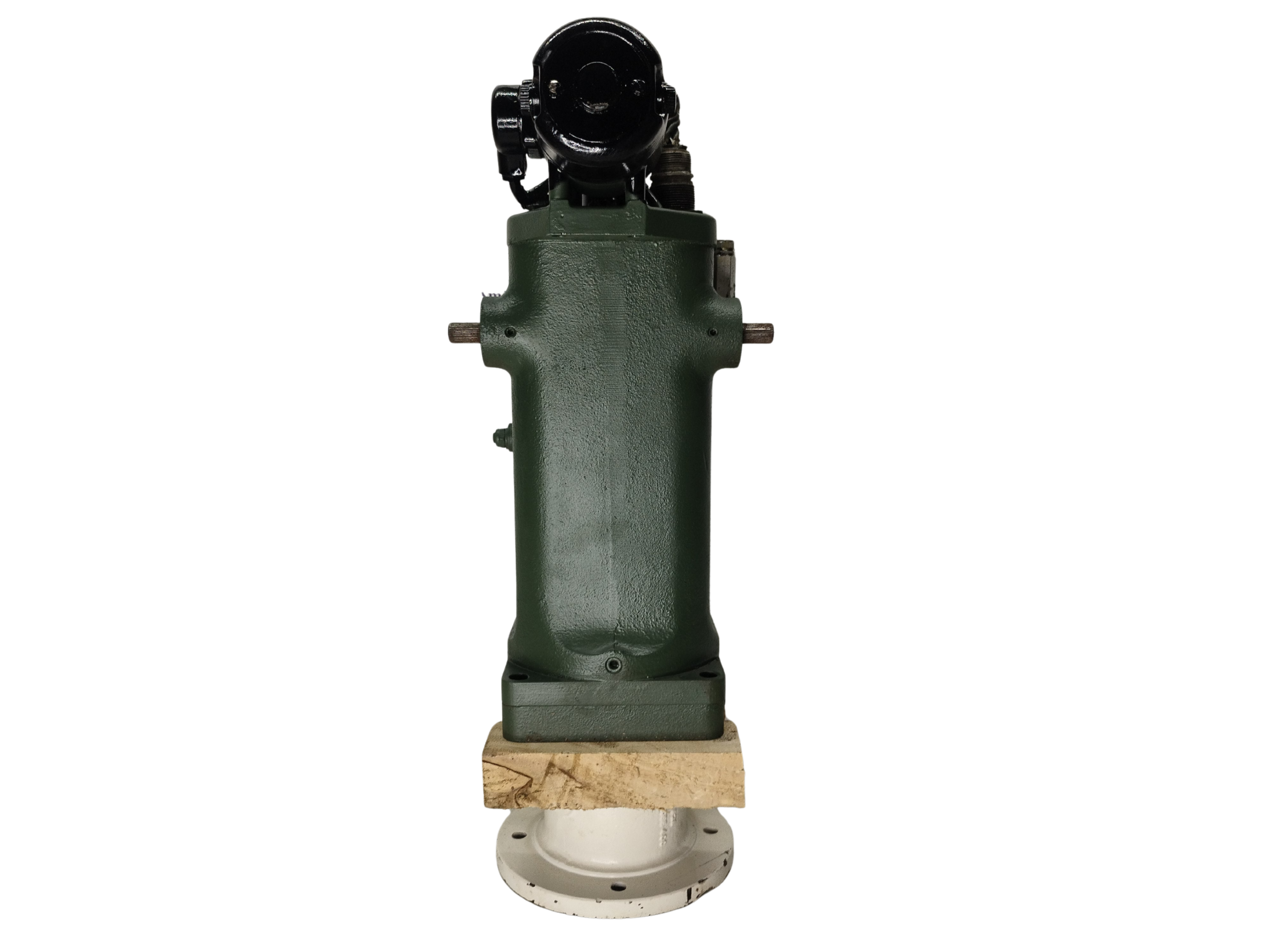

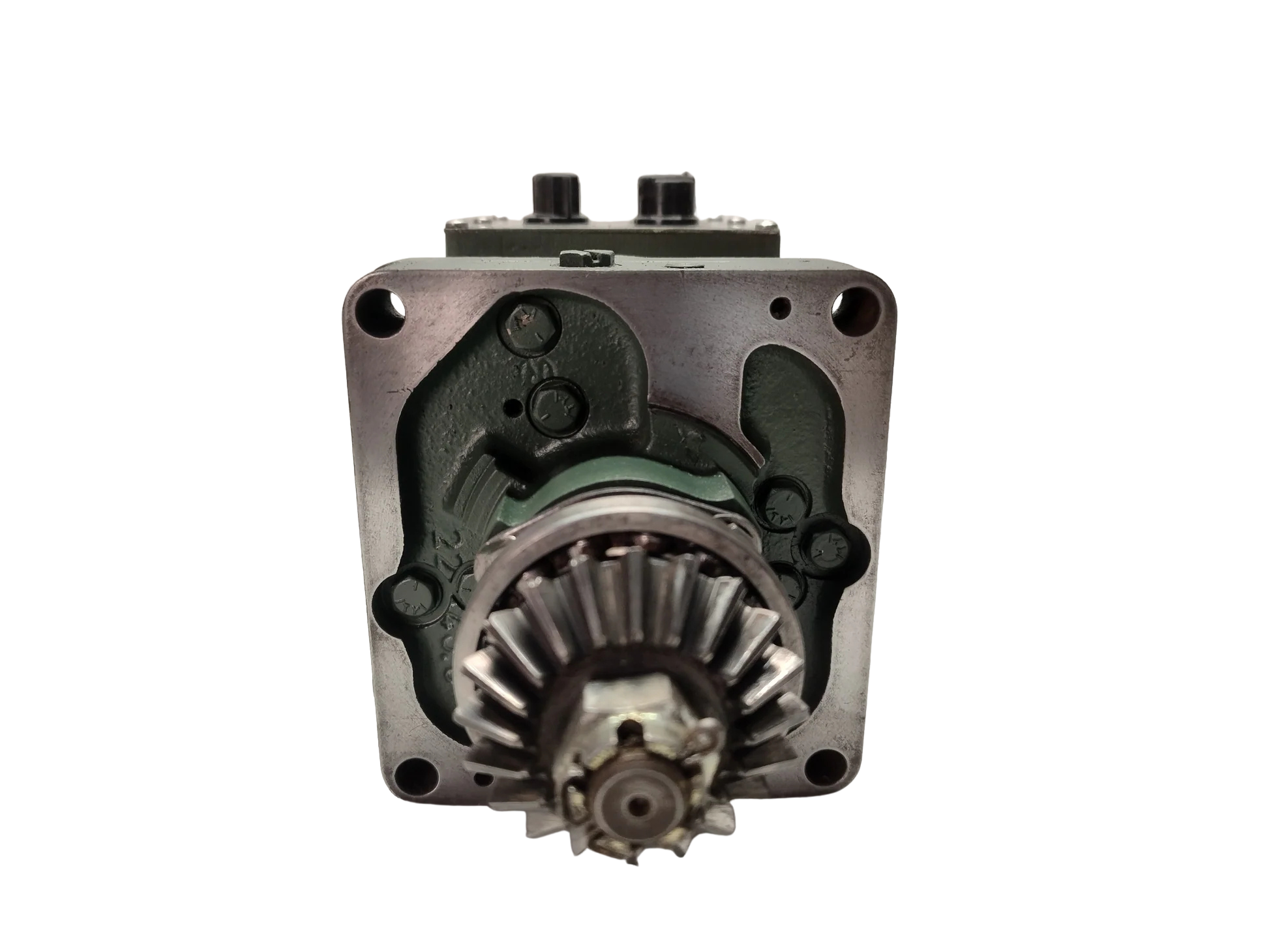

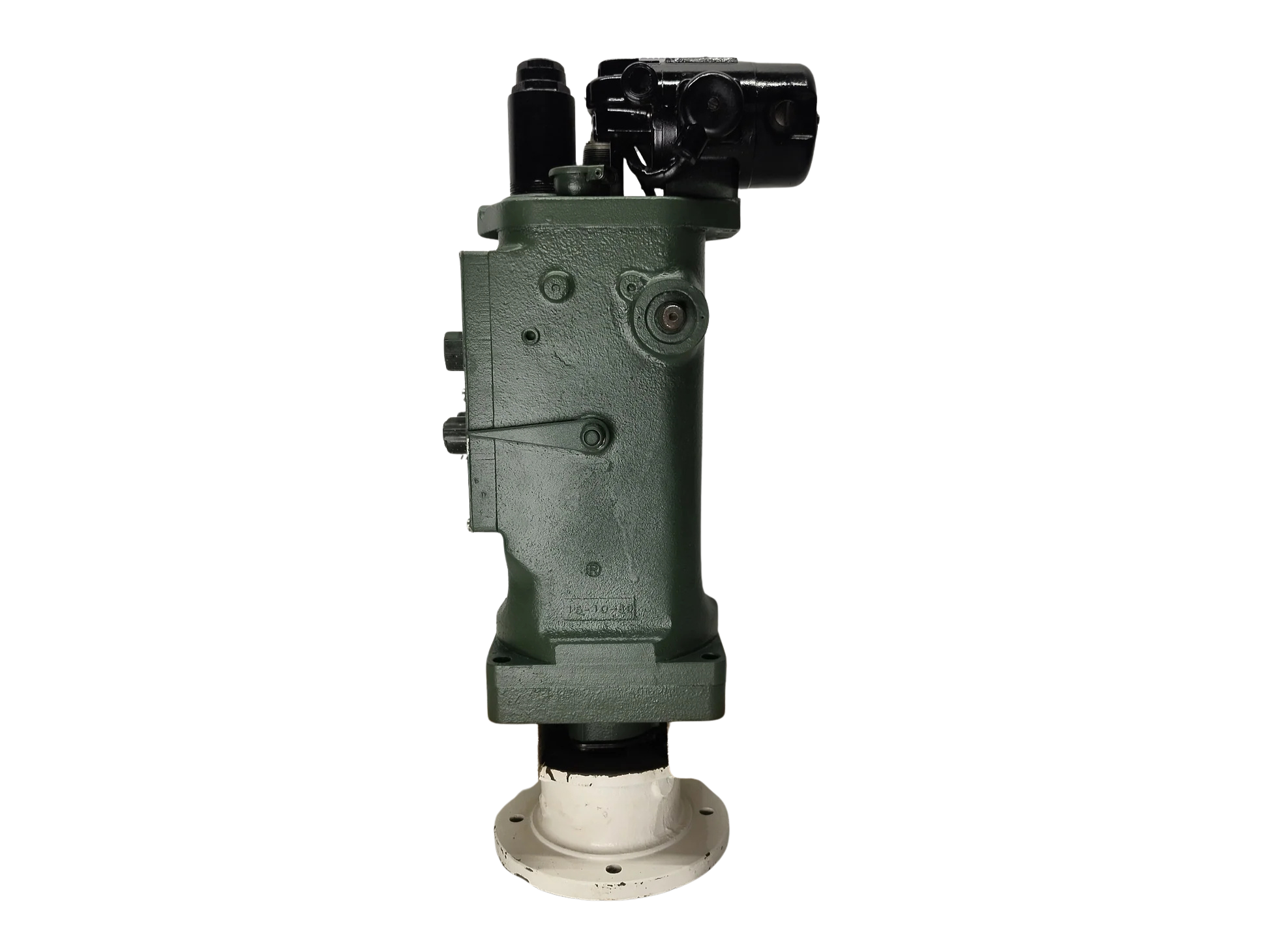

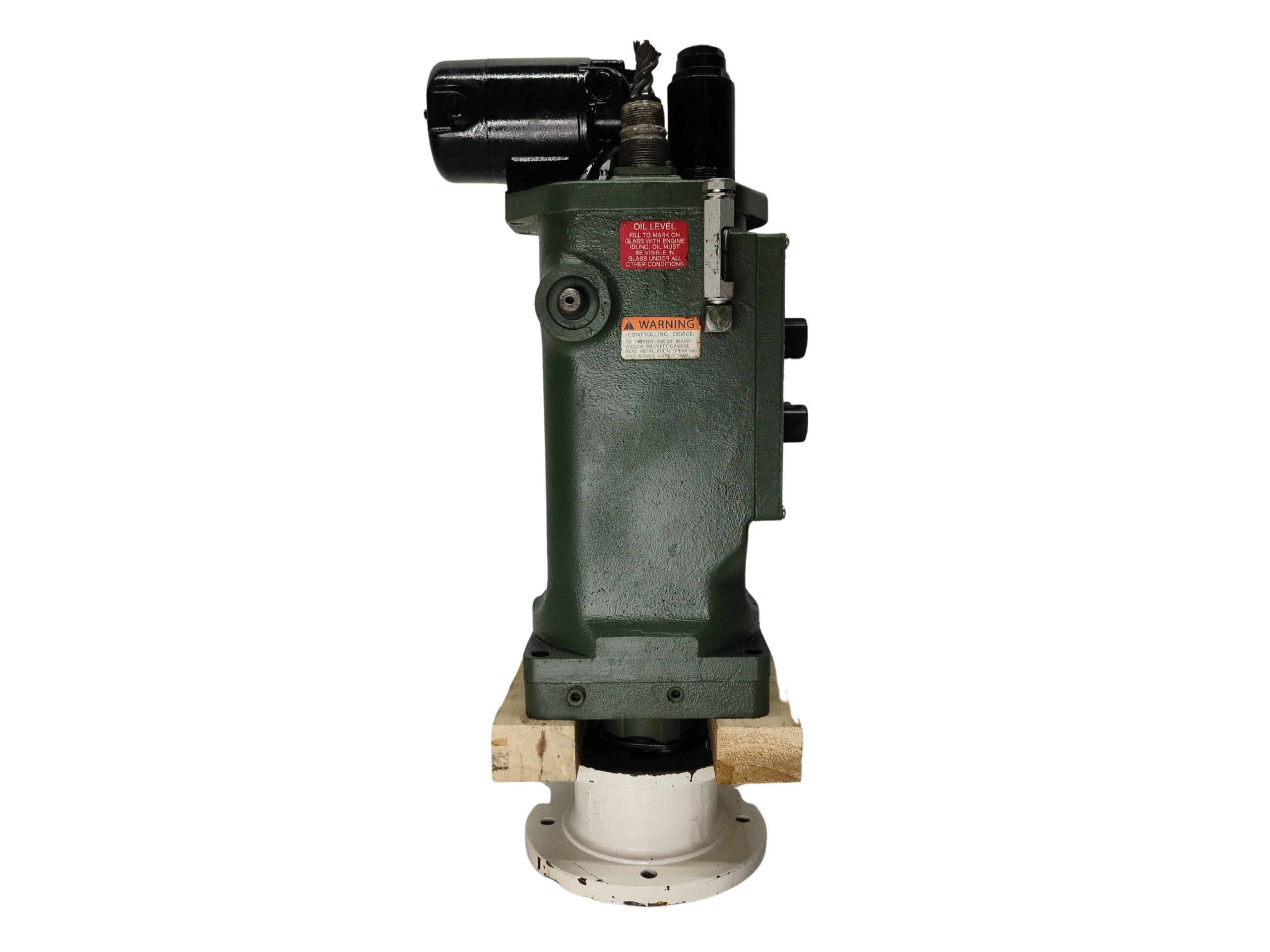

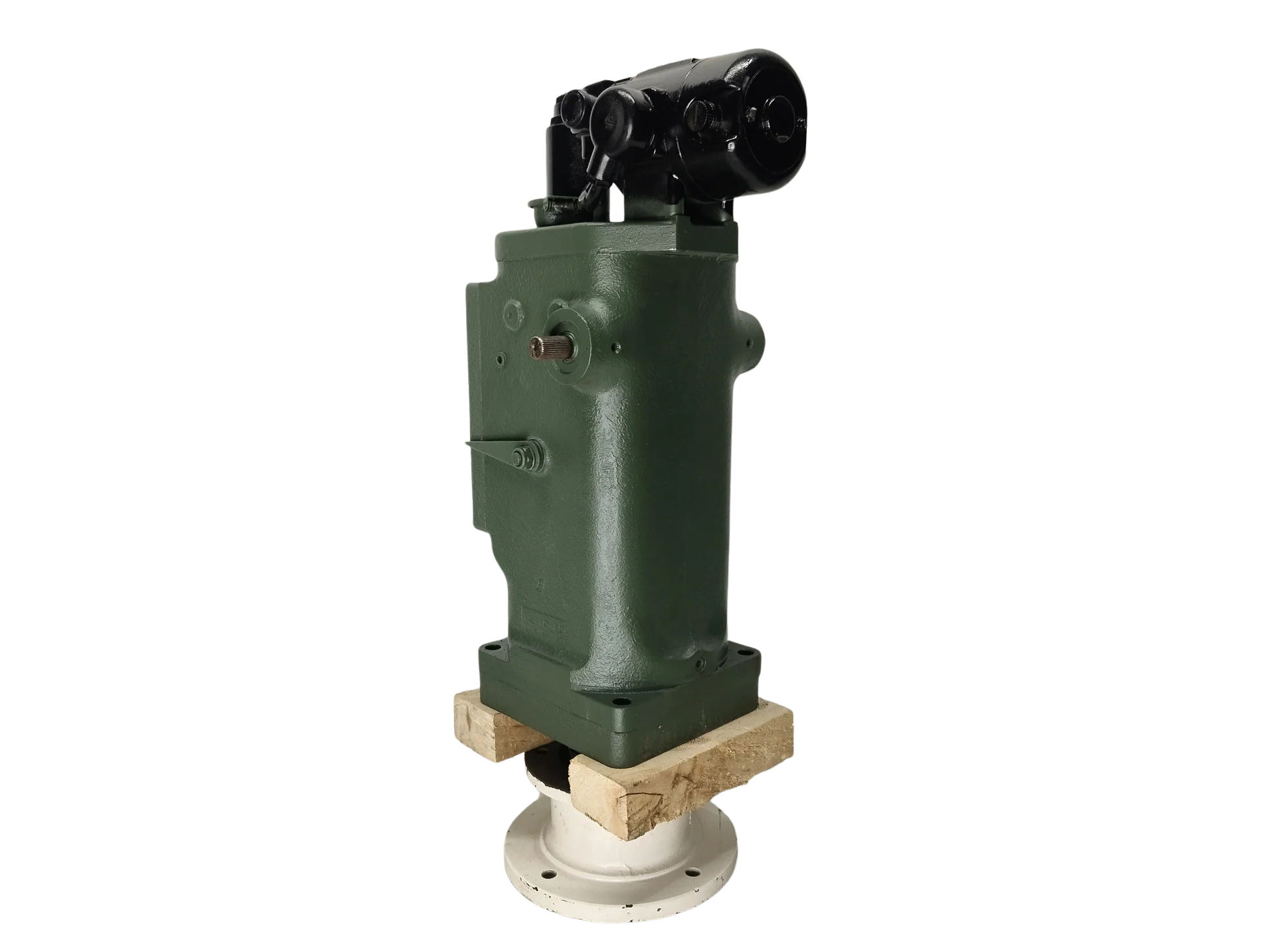

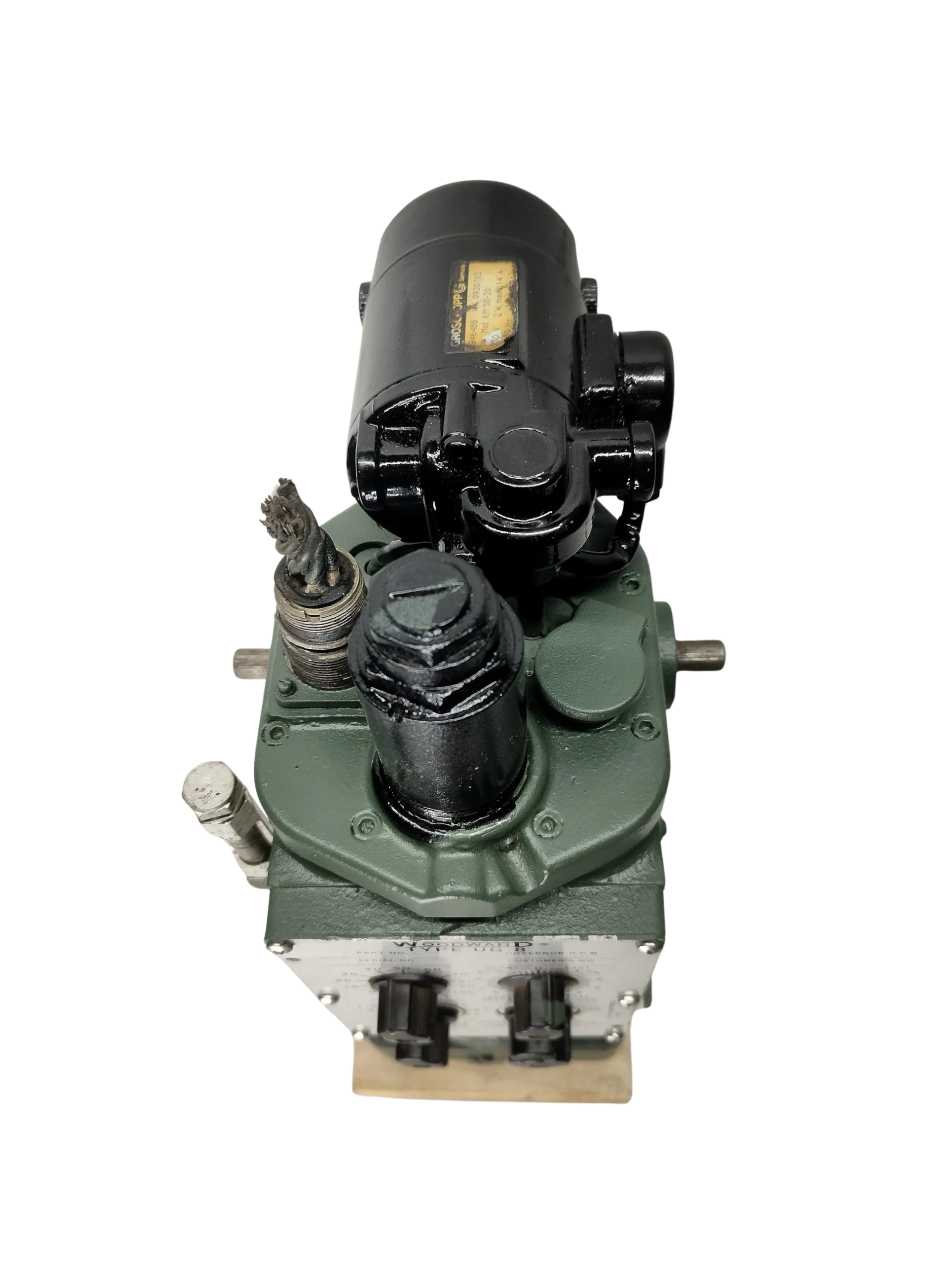

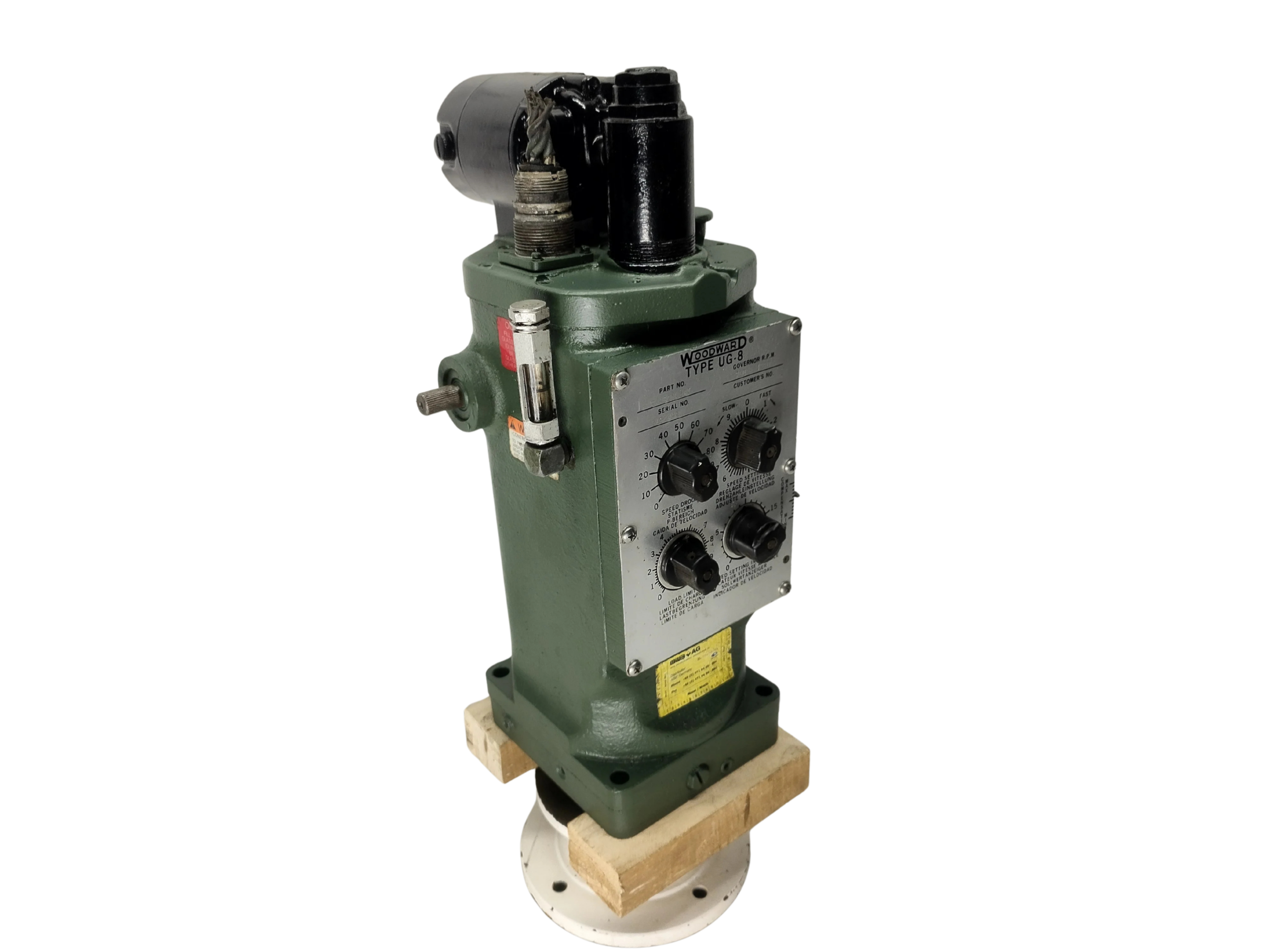

Woodward UG-8 Governor R8521-367 (750-1280 RPM)

Woodward UG-8 Governor R8521-367 (RPM Range: 750–1280) — Bench Tested

The Woodward UG-8 Governor (Part Number: R8521-367) is an industry-standard, mechanical-hydraulic speed droop governor engineered to regulate the speed and load distribution of medium- and high-speed diesel, dual-fuel, and gas engines, as well as steam and industrial turbines. Operating across an internal governor drive speed range of 750 to 1280 RPM, this unit delivers stable, isochronous speed regulation or precise proportional droop governing for single-unit or paralleled generator sets and marine propulsion systems.

This governor features an internal gerotor/gear oil pump, pressure-relief accumulator circuits, and a hydraulic power servo delivering a maximum work capacity of 13.2 N·m (9.7 lb-ft / 8 ft-lb nominal) across a 42° terminal shaft output angle. Driven through a standard 5/8″-36 serrated drive shaft, the R8521-367 utilizes independent flyweight/speeder-spring equilibrium combined with dashpot needle-valve compensation to dampen torsional pulsations and maintain steady-state speed stability within ±0.25%.

Model Details

• Manufacturer / Brand: Woodward Inc.
• Product Series: UG-8 (Universal Governor – 8 ft-lb class)
• Manufacturer Part Number (MPN): R8521-367
• Base Part Number: 8521-367
• Operational Drive Speed Window: 750 – 1280 RPM
• Output Configuration: Dual-ended serrated terminal shaft (0.500″-36 SAE)

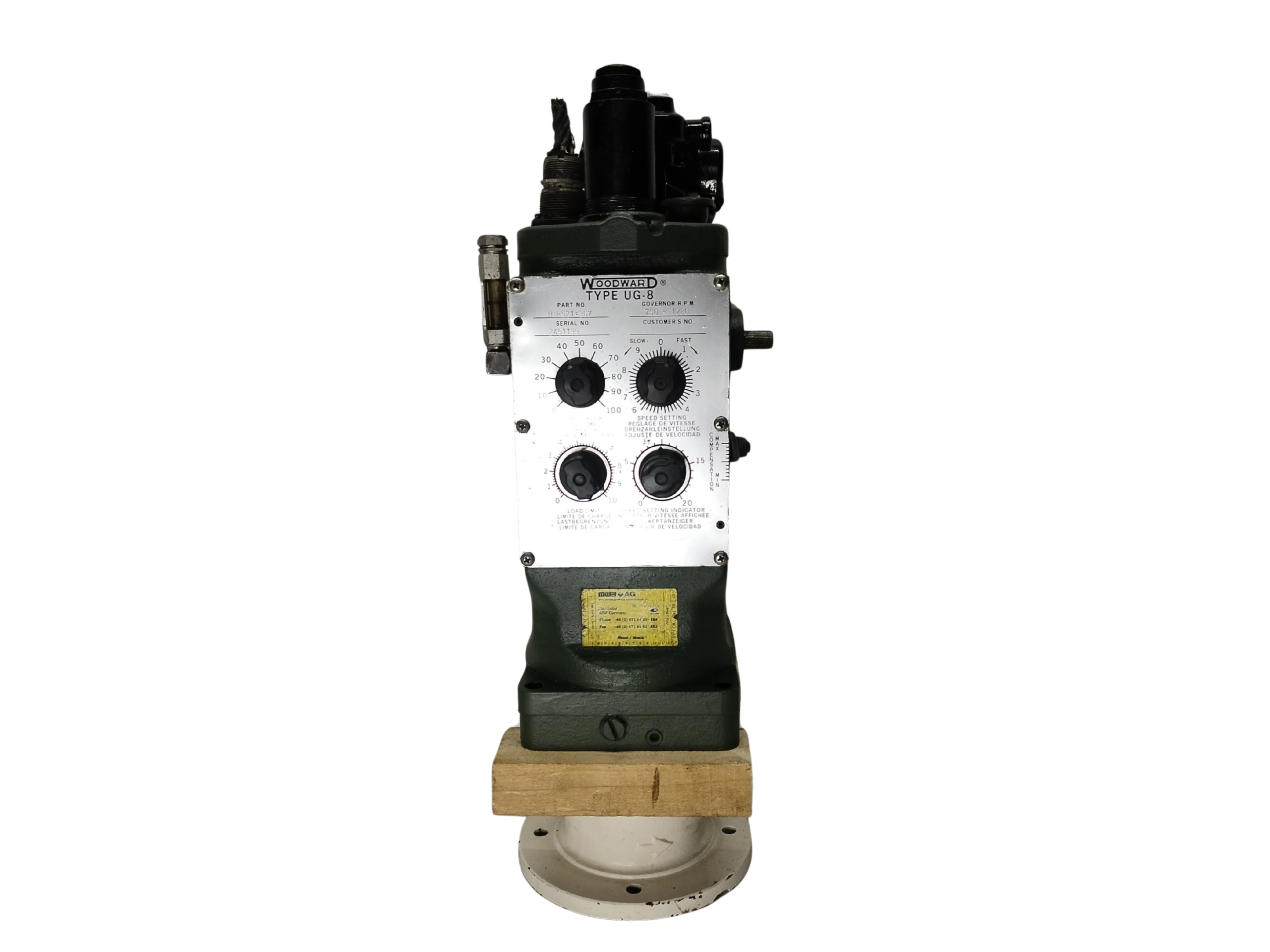

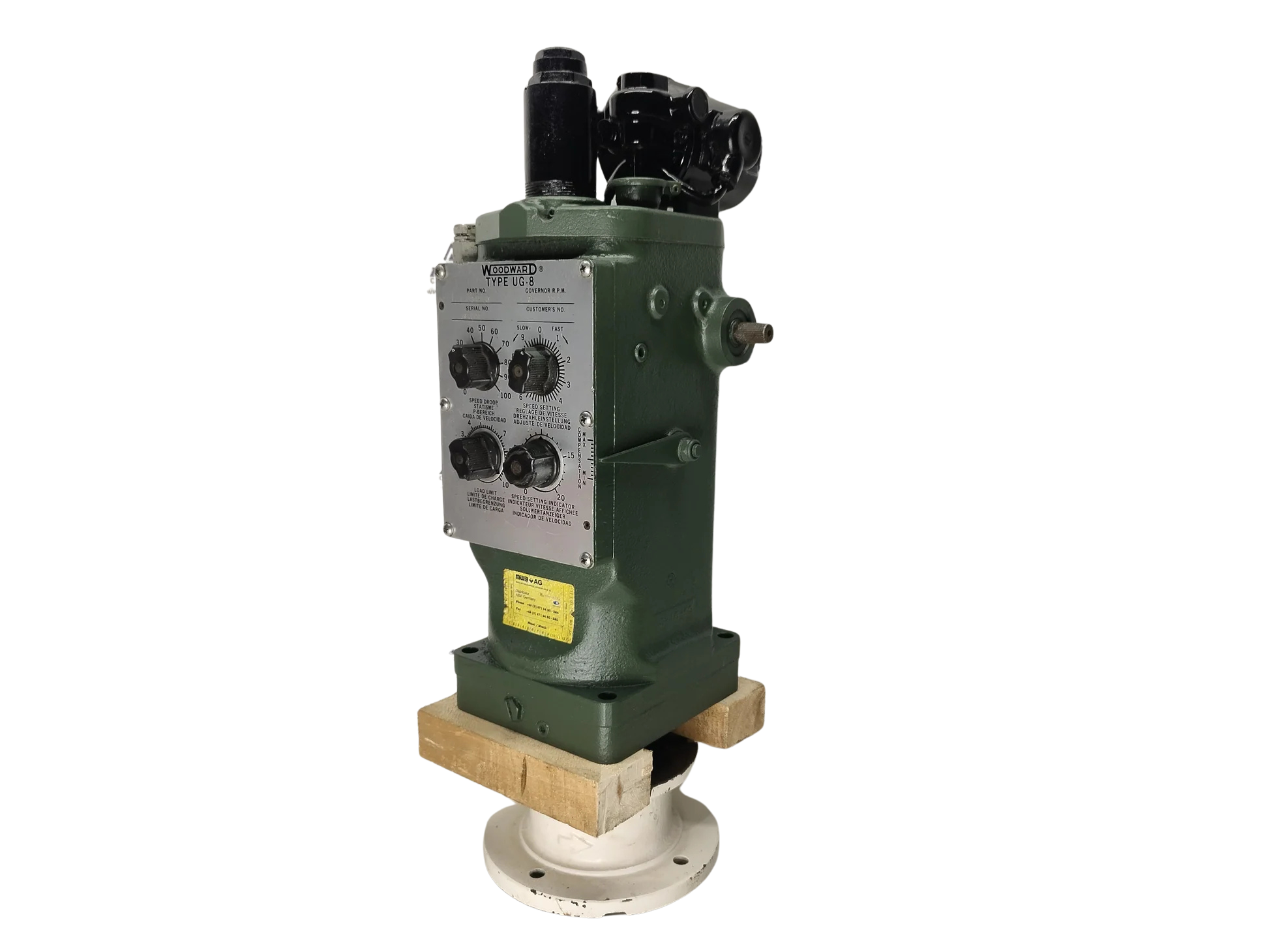

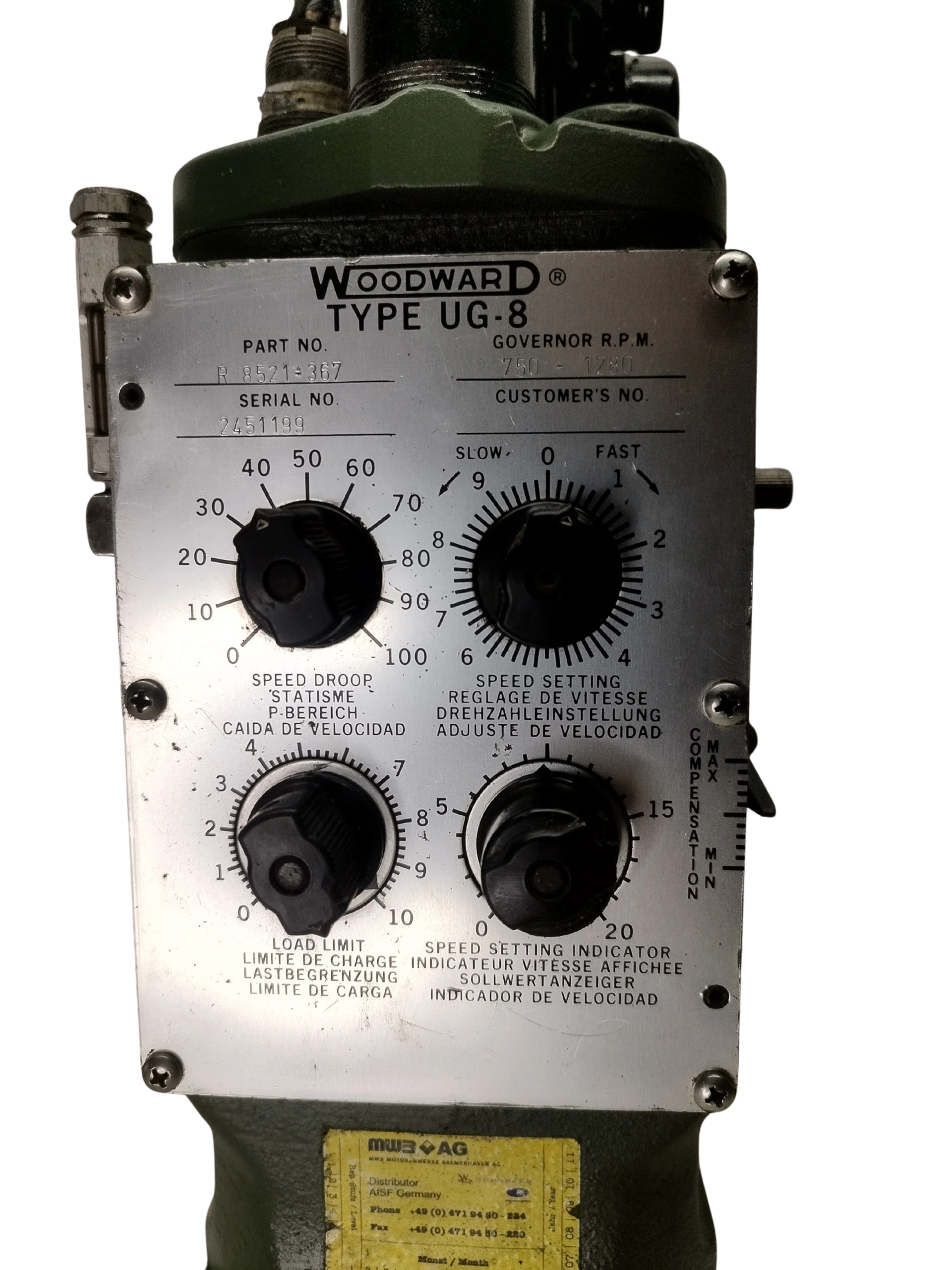

• Control Configuration: Dial Speed Setting with Synchronizer Knob, Manual Speed Droop adjustment (0–12.5% at rated RPM), and Load Limit / Mechanical Shutdown mechanism.

Technical Details

Features

1. Bi-Directional Internal Gerotor Pump: Incorporates a symmetrical four-ball check valve bank that automatically maintains 110–120 psi hydraulic rail pressure regardless of whether drive shaft rotation is clockwise or counter-clockwise.
2. Independent Hydraulic Dashpot Compensation: Precision-ground needle valve orifice and spring-loaded receiving piston assembly dampen hunting tendencies and match recovery dynamics to prime-mover mass inertia.
3. Mechanical Synchronizer & Load Limit Cam: Integrated dials allow manual speed trimming, droop synchronization across paralleled generator sets, and positive mechanical high-fuel rack limiting with immediate override to zero for engine shutdown.
4. Self-Contained Lubrication Sump: Operates completely isolated from external contaminated engine oil, eliminating the risk of fuel dilution, soot build-up, or cross-system metal debris entering the pilot valve spool.
5. Torsional Vibration Damped Ballhead: Spring-driven, oil-damped ballhead system isolates cyclical engine drive irregularities and gear lash from the centrifugal flyweights, eliminating terminal shaft jitter.

Equipment Compatibility

• Wärtsilä / Sulzer: Auxiliary and propulsion series including S20, AL20, AL25, AT25, and Z40 platforms.
• MAN Energy Solutions / B&W: Gen-set series L16/24, L21/31, L23/30, L27/38, and L28/32 engines.
• Caterpillar / MaK: MaK M20, M25, M282, M332, M453; Caterpillar 3500 and 3600-series engine drive arrangements.
• Yanmar & Daihatsu: Marine auxiliary engines including Yanmar S165, S185, M200, N21; Daihatsu DL-19, DL-20, DK-20, DC-17, PS-26 series.
• Bergen & Ruston: Rolls-Royce / Bergen K-series, B-series; Ruston RK215 and RK270 diesel generator platforms.
• Steam & Industrial Turbines: Coffin, Coppus, Dresser-Rand, and Terry mechanical drive auxiliary steam turbines.

Frequently Asked Questions

What does the R8521-367 part number signify on a Woodward UG-8 governor?

The prefix “R” designates a factory-overhauled and bench-certified unit. The base part number “8521-367″ specifies a dial-type UG-8 configuration configured with an operational drive speed band calibrated between 750 and 1280 RPM, equipped with a 5/8″-36 serrated drive shaft, dual-ended 0.500”-36 terminal output shaft, and standard internal gerotor boost pump.

Can the UG-8 R8521-367 governor run in both clockwise and counter-clockwise drive rotation?

Yes. The Woodward UG-8 features an internal hydraulic oil pump with an automatic four-ball check valve system. As long as the governor drive shaft is driven within the 750–1280 RPM range, the internal gerotor pump will pump oil in the correct direction, maintaining full 110–120 psi accumulator pressure regardless of prime mover camshaft rotation.

How do I adjust speed droop for paralleled diesel generators using the UG-8 dial?

For isolated single-unit generator operation (isochronous mode), set the speed droop knob to “0”. When running generators in parallel on an isolated switchboard, adjust the droop knob on each incoming governor between dial marks 30 to 50 (approximately 3% to 5% droop). This intentional frequency drop under load prevents cross-current surges and ensures stable kilowatt load sharing between sets.

Why is my newly installed Woodward UG-8 governor hunting or surging?

Governor hunting is almost always caused by one of three issues: trapped air in the hydraulic dashpot circuit, an open or incorrectly calibrated compensation needle valve, or excessive friction/lost-motion play in the mechanical linkage to the fuel injection pumps. Bleeding the dashpot system and adjusting the compensation needle valve usually solves the problem.

What is the required oil change interval for a Woodward UG-8 governor on a marine vessel?

Because the UG-8 utilizes a self-contained 1.9-liter oil sump isolated from the engine oil supply, change the governor oil every 2,000 running hours or every 6 months—whichever occurs first. Always drain the sump completely while hot to remove any suspended oxidation varnishes before refilling with clean SAE 30 or SAE 40 oil.
