Honeywell CC-PAIH51 51410069-275 HART Analog Input Module

Honeywell CC-PAIH51 HART Analog Input Module (51410069-275)

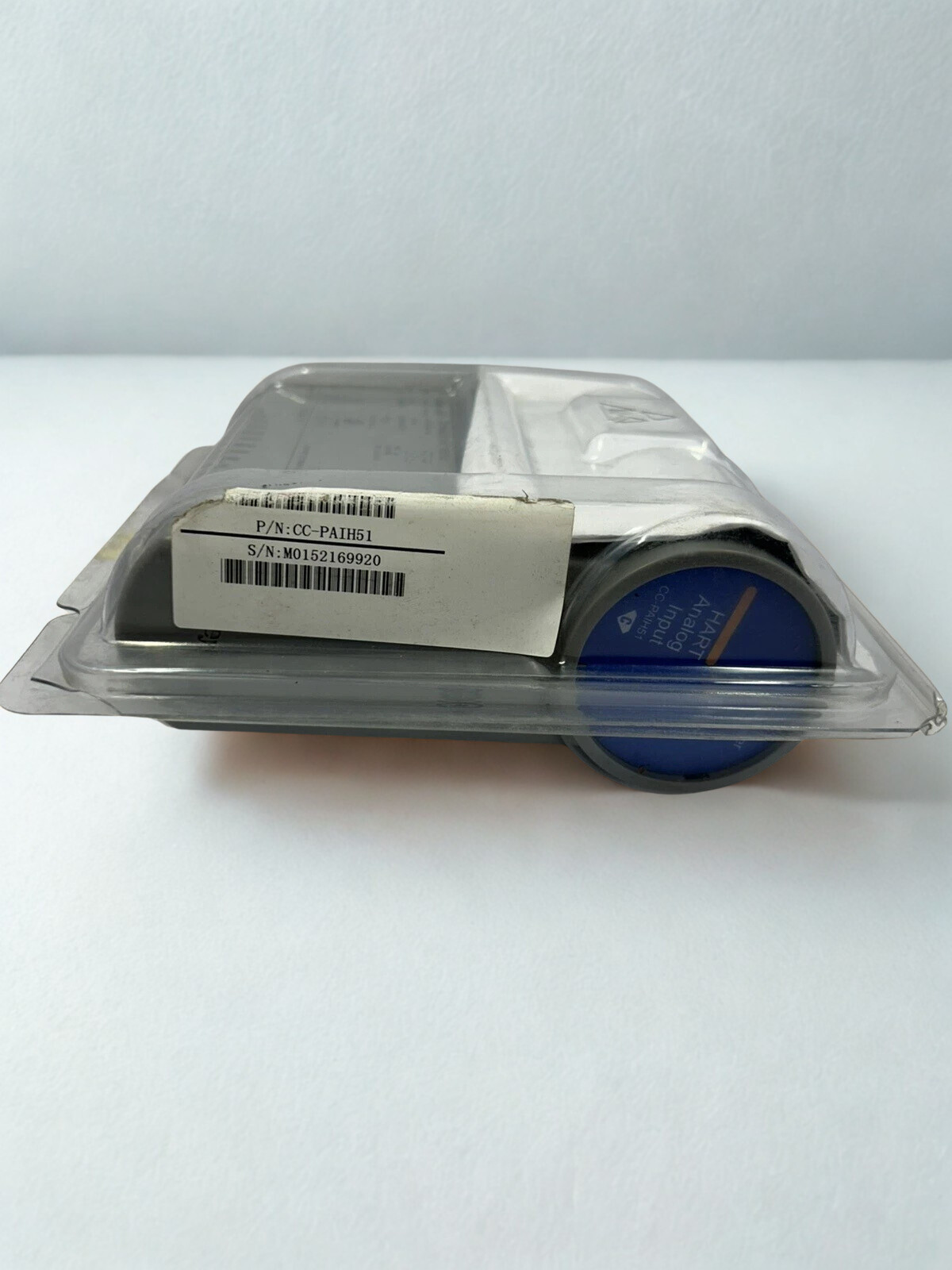

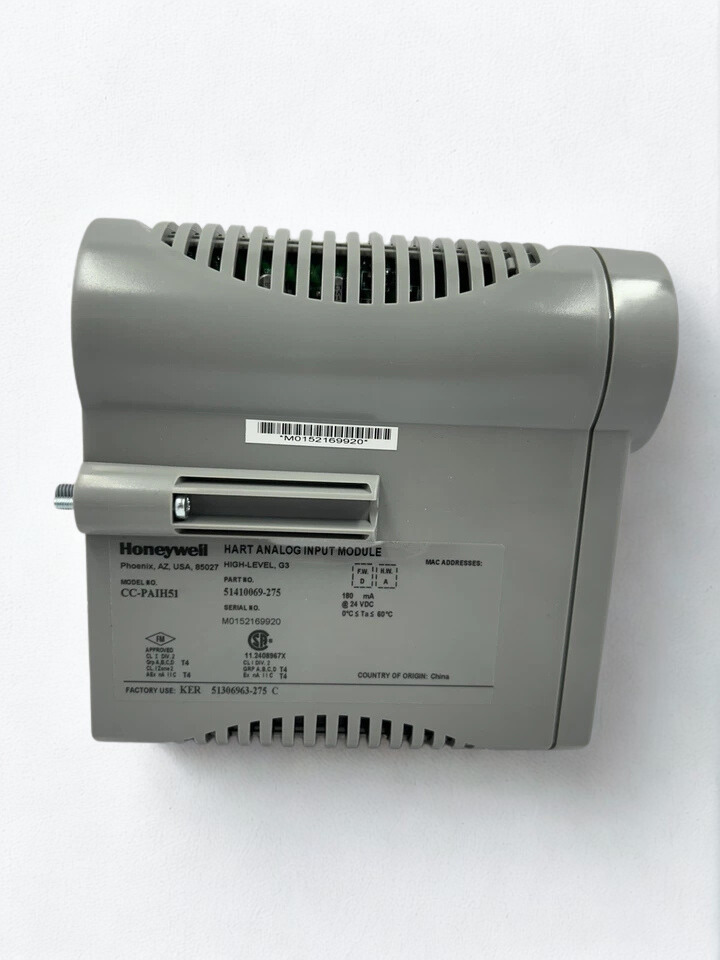

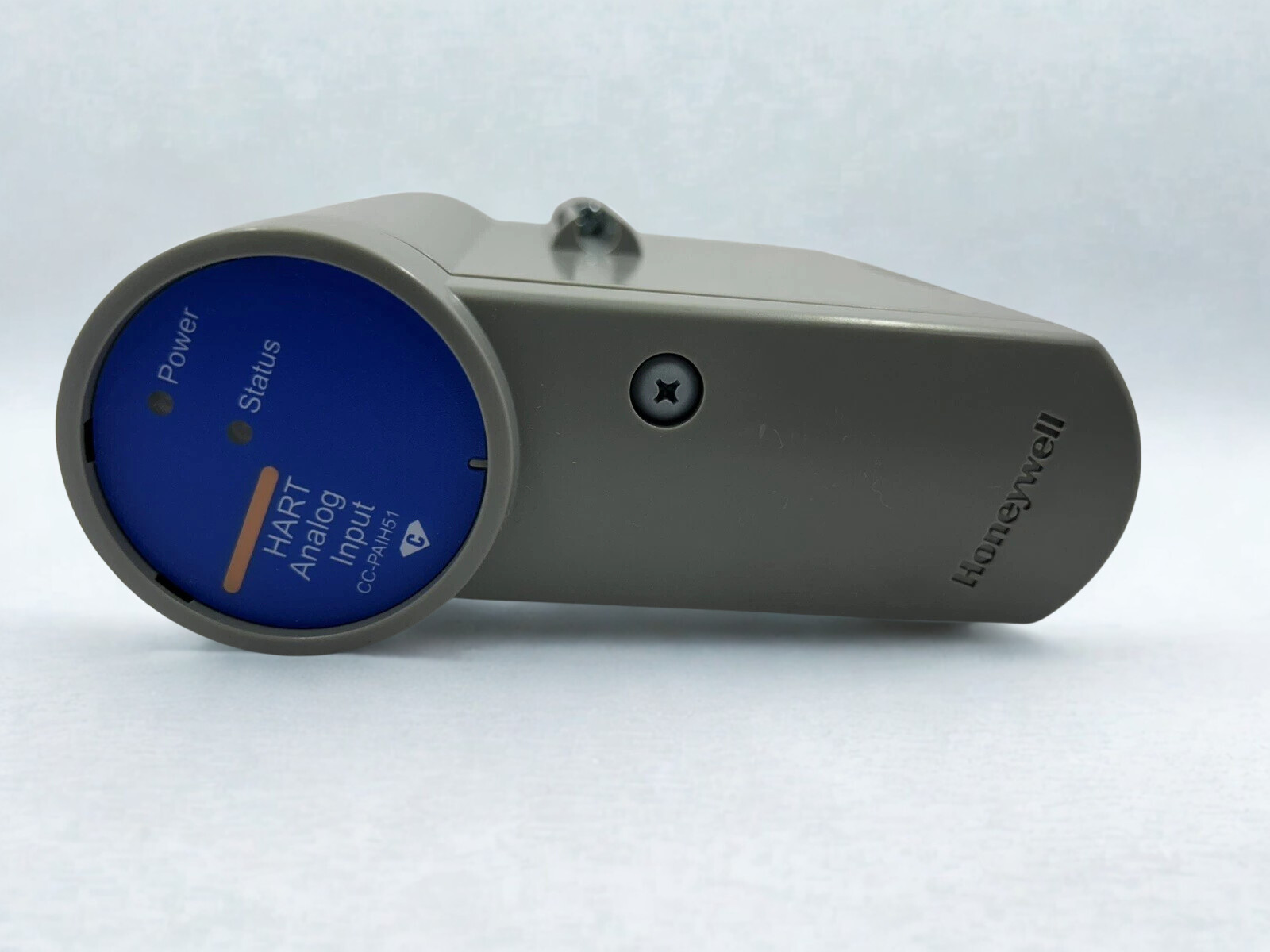

The Honeywell CC-PAIH51 (Part Number: 51410069-275) is a 16-channel HART-enabled analog input module with a high density. It is made for the Experion PKS Series C architecture. This module is the main link between field instruments like pressure transmitters on fuel oil purifiers or level sensors in ballast tanks and the Honeywell Safety Manager or C300 Controller in the marine power and control environment. It makes it possible to turn 4-20mA signals into useful process data, and it supports HART communication in both directions so that devices may be set up and advanced diagnostics can be done without stopping the main process variable.

The hardware’s capacity to keep the signal clear in maritime settings is what determines operational reliability. This is because diesel-electric propulsion systems often have high total harmonic distortion (THD) and 60 Hz grid oscillations. The CC-PAIH51 has a galvanic cell built in.

Technical Specifications

Maintenance & Engineering Insights

• Monthly Check: Look for “I/O Link” problems or “Soft Failure” lights that show signal loss that happens from time to time.
• Quarterly Tightening: Make sure that all terminal block screws are tightened to the manufacturer’s specifications to avoid joints with excessive resistance.
• Cleaning every six months: Use dry, low-pressure air to blow dust out of the heat-sink vents to keep lockers that don’t get enough air from getting too hot.
• HART Audit: Check that the HART version of the field instrument works with the firmware of the module to avoid handshake timeouts.

Pro-Engineer Tip:

Terminal Creep and Contact Fretting are things that experienced ETOs should be careful of. In places with a lot of vibration, like on ships with medium-speed engines, the tiny motions between the module’s pins and the backplane can cause tiny bits of debris to build up (fretting corrosion). This often shows up as “ghost” signal drifts or random 4-20mA spikes that are hard to find. If you get non-linear readings that go away when you re-seat the module, use a marine-grade contact enhancer and make sure the rack tensioning clips are fully engaged to reduce mechanical resonance.

System-Wide Solution

The CC-PAIH51 is not just an input card; it is a diagnostic node for the entire ship’s instrumentation network. By leveraging the HART passthrough, Fleet Managers can implement Predictive Maintenance (PdM). Instead of waiting for a cooling water valve to fail, the module feeds valve positioner data to the Honeywell Safety Manager, allowing the ETO to identify sticking actuators or failing diaphragms weeks before a critical alarm. Integrating this module with Schneider Acti9 breakers for clean power distribution ensures that the sensitive 16-bit A/D converters are protected from the transients of heavy machinery start-ups.
