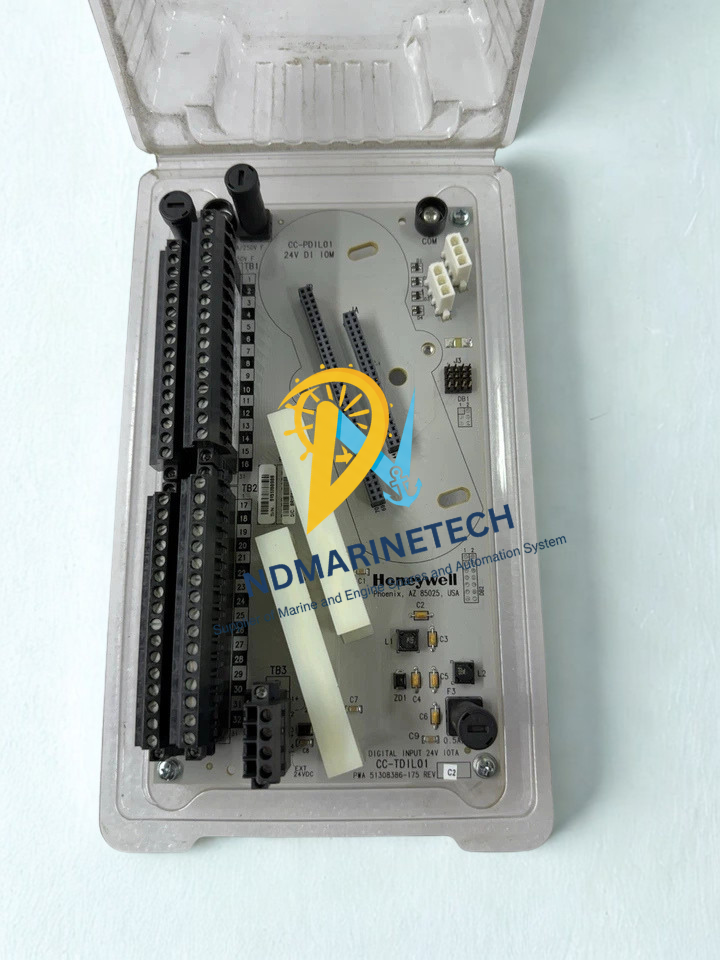

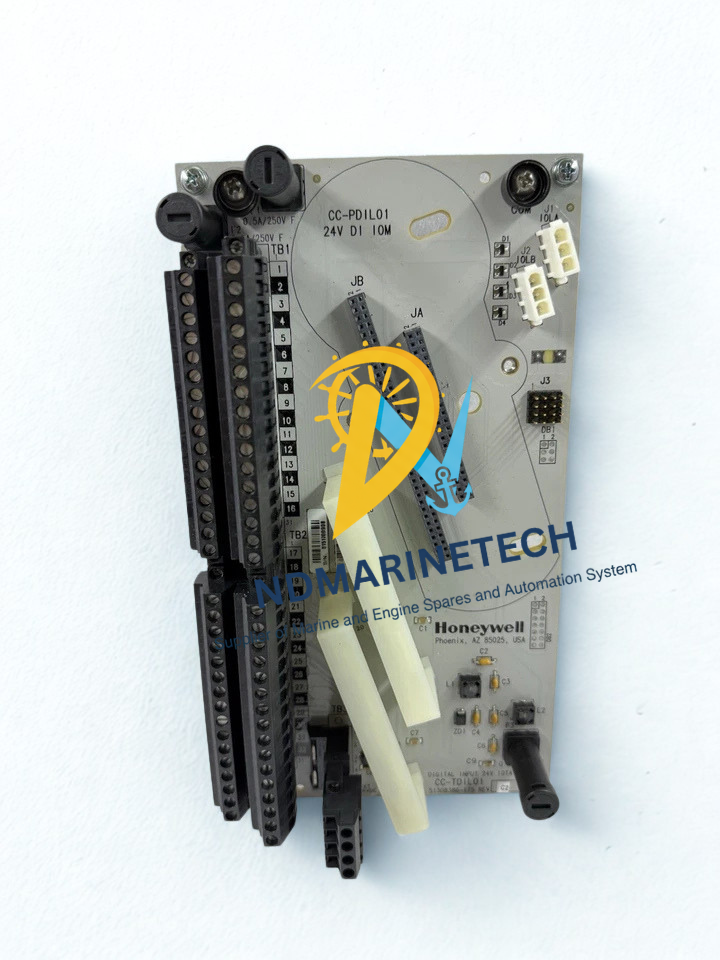

Honeywell CC-TDIL01 Digital Input Module IOTA 51307083-175

Honeywell CC-TDIL01 Digital Input Module IOTA (51307083-175)

The Honeywell CC-TDIL01 is a high density 32 channel Digital Input (DI) Input Output Termination Assembly (IOTA) in the well-known Experion PKS Series C family. It is the vital link between field level discrete sensors and the distributed control system (DCS) designed for complicated process automation. This module reads state changes of machinery, switches and safety interlocks with extraordinary speed and galvanic isolation and works with a nominal 24VDC.

Field wiring protection and an internal jumper-selectable sense power architecture are provided in the design. This means that electrical problems on a single channel are fully localised without endangering the whole system, hence it is a popular choice for high-reliability industrial applications.

Model Details:

Model Number: CC-TDIL01 (Also associated with assembly variation CC-TDIL51)

Manufacturer Part Number (MPN): 51307083-175

Associated Parts / PWA: 51308386-175 / 51199606

Series: Experion PKS C Series

Technical Datasheet Manual Guide

Download Pdf File

Key Features

1. 32-Channel High-Density Monitoring Simultaneous monitoring of up to 32 discrete field inputs, optimising panel size and minimising system overhead.
2. Advanced galvanic isolation from stray electrical noise, spikes and ground loops that might destabilise core processor circuitry with optical isolation to 1500 VAC/VDC.
3. Sequence of Events (SOE) Accuracy: Ultra-fast 1 ms time-stamping resolution for activities to trace root causes during emergency trips or cascade failures.
4. Short-Circuit & Zone 2 Safety Individual channel current limiting makes field shorts safe for adjacent channels; safe for Division 2 / Zone 2 situations.

Our Engineer’s Guide:

On commercial vessels and offshore platforms, electrical interference from heavy machinery (like variable frequency drives or massive alternators) is a constant challenge. The Honeywell CC-TDIL01 stands out because of its robust 1500V optical isolation. This prevents inductive spikes from cross-talking into your control bus, ensuring that a physical sensor failure in the engine room bilge won’t trigger a cascading network failure on your control bridge.

Maintenance Tips:

• Jumper Block (TB3) Allocation: Before powering up the panel, double-check your TB3 jumper layout. Failing to match your external power source configuration with the internal field-selectable sense options will cause unexpected logic inversion or false “open loop” alarms.
• Combating Engine Room Vibration: While this unit is rated for heavy vibration, marine applications demand checking the terminal screw torque ratings regularly during routine maintenance cycles. Ensure your wires use crimped ferrule terminals rather than bare stranded wires to eliminate resistive oxidation over time.
• Optimizing SOE Logs: If you are monitoring rapid-cycling components (like safety valves or fast solenoids), map those loops specifically to the 5 ms “Fast Scan” cycle within your Experion Control Builder software to take full advantage of the 1 ms Sequence of Events tracking.
