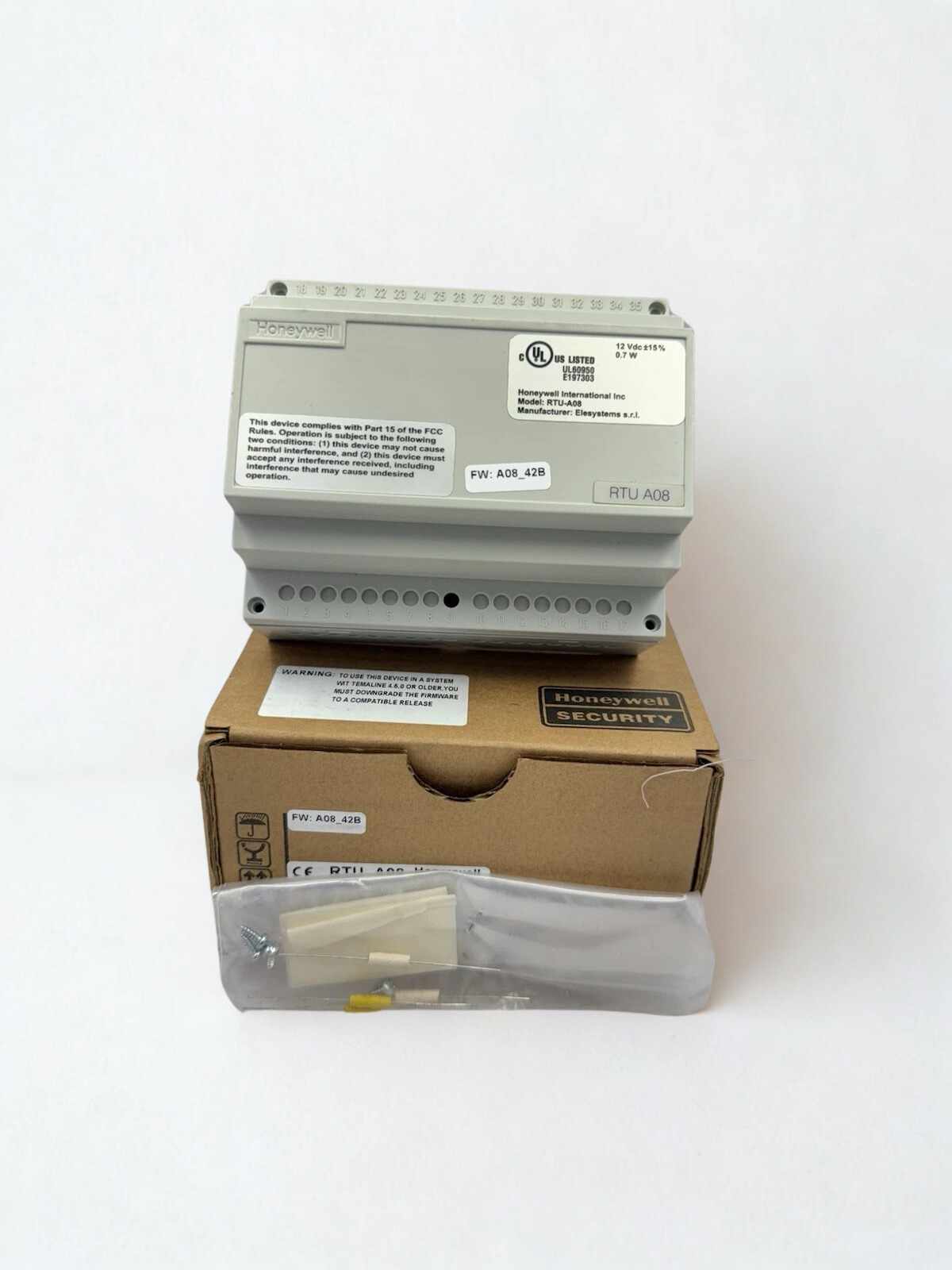

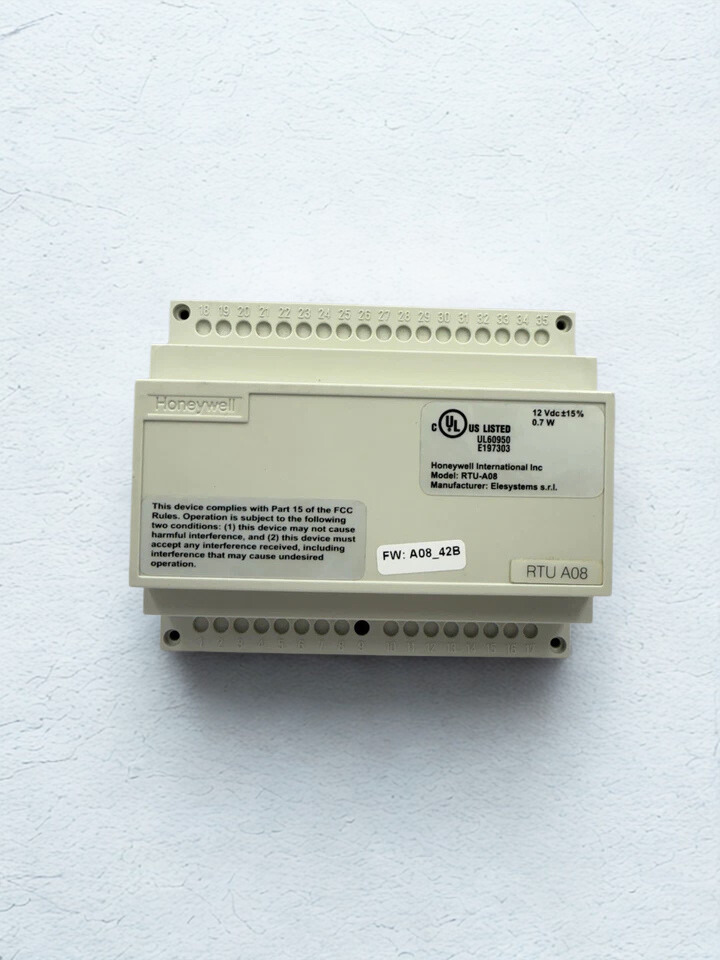

Honeywell RTU A08 TK S014 Temaline I/O Wiegand Module

The Honeywell RTU A08 Temaline Module TK S014 is a digital multi-I/O management module made for Temaline access control systems. It lets controllers, Wiegand readers, sensors, and door hardware connect in a safe and flexible way. This tiny DIN-rail mountable unit is designed for professional security and building management settings. It has dual Wiegand interfaces with built-in inputs and outputs, which let you use advanced access logic, alarm handling, and door control.

The RTU A08 (TK S014) is a remote terminal unit that connects a lot of field signals, like card readers, magnetic contacts, push buttons and relays, to Honeywell Temaline systems across the field bus network. It can run 24 hours a day, seven days a week in commercial, industrial, and critical infrastructure security installations since it has a strong 12 V power supply, uses less electricity, and is made in Italy.

Key Functional Roles:

The module makes it easier to add to existing Temaline access control networks by providing a dual Wiegand interface with built-in I/O. This means that no extra controllers are needed. This design makes wiring less complicated, makes it easier to add more devices, and makes sure that signals are sent and received reliably between edge devices and the central TemaServer.

Technical Specifications

Honeywell RTU A08 Features:

-> Two standard Wiegand readers, such as proximity, keypad, and biometric devices, can connect to the Dual Wiegand Interface. This follows industry protocol standards.

-> Integrated Multi I/O with inputs and relay outputs that may be changed for door locks, REX buttons, door contacts, and alarm sensors.

-> Temaline System Compatibility makes it easy to connect Honeywell TemaServer and other Temaline modules in modular terminal setups.

-> The DIN-Rail Mounting mechanism makes it easy to install within control panels or wall enclosures quickly and safely using a simple clip-on method.

-> Service Pin Identification makes it easy to find and set up nodes quickly by utilising a magnet to activate internal service pins.

-> Low power use of about 0.9 W / 70 mA at 12 V (module only), perfect for large installations with many of doors and field devices.

Operational Advantages:

• Scalable Access Control: You can easily add more readers and doors to existing Temaline systems without having to make big changes to the infrastructure.
• Better Security Monitoring: Local I/O makes it possible to precisely process and signal door status, tampering, and alarm events at the field level.
• Easier Maintenance: A clear wire layout, jumpers for NO/NC relay configuration, and service pin diagnostics all make servicing faster.

Access and Security Integration

• Multi-door access control integration in office buildings, industrial plants, campuses, and critical facilities using Temaline readers and controllers.

• Management of door strikes, magnetic locks, intrusion contacts, and local alarm signaling through the module’s relay outputs and inputs.
