Ingersoll Rand IC12D3A1AWS INSIGHT IC-D Display Controller

Ingersoll Rand INSIGHT IC12D3A1AWS IC-D DC Electric Tool Display Controller

The Ingersoll Rand INSIGHT IC12D3A1AWS (IC-D Series) is a microprocessor-controlled fastening automation platform engineered for mission-critical assembly, manufacturing plants, shipyard sub-assemblies, and industrial torque control. Designed to execute high-precision torque-angle tightening strategies, this single-spindle display controller automatically self-identifies and operates all Ingersoll Rand QE and QM series DC electric tools.

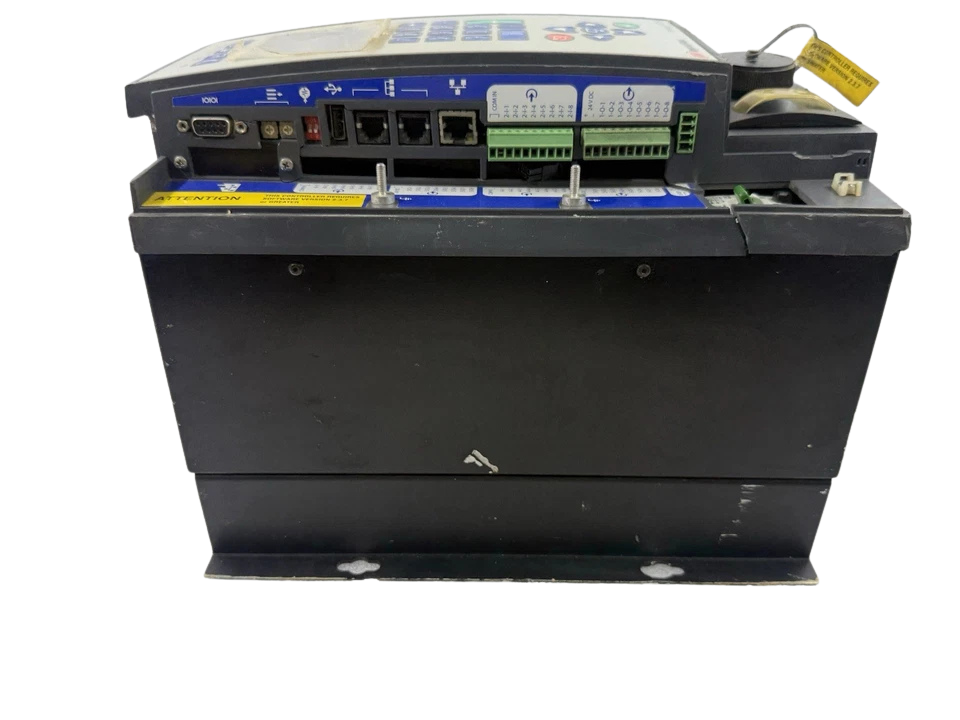

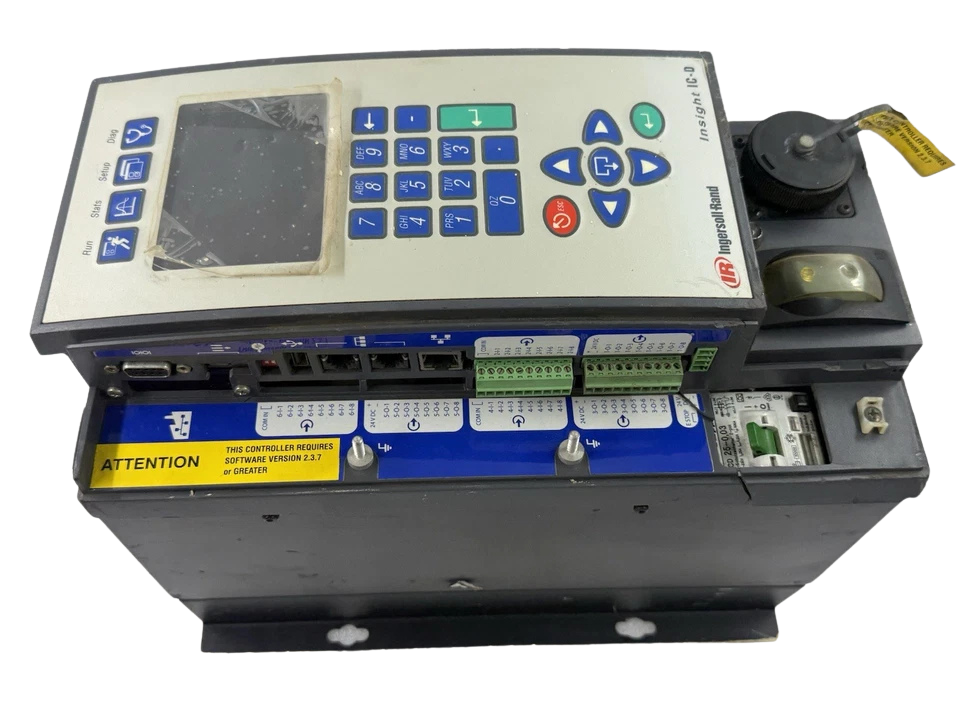

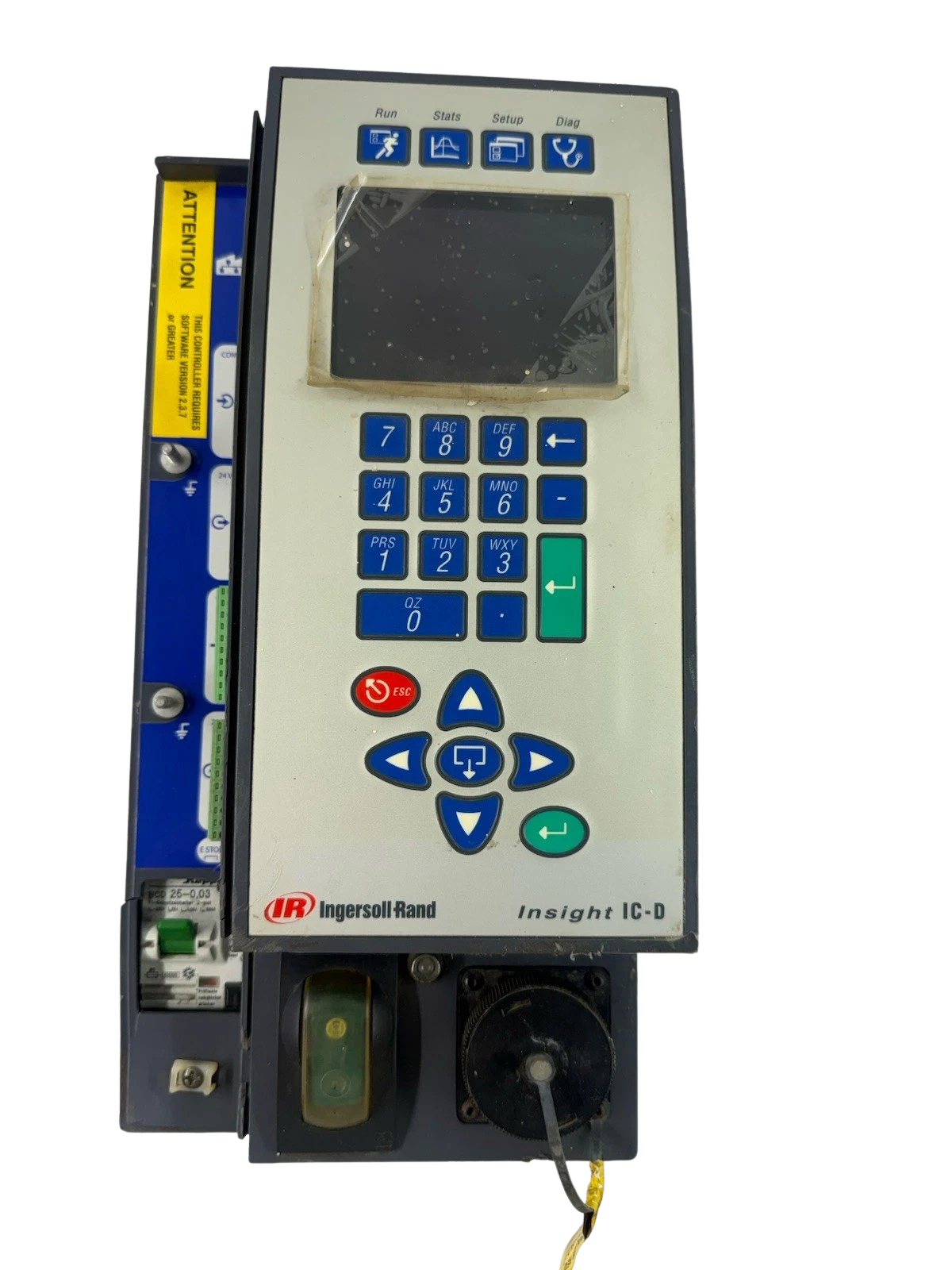

Featuring an integrated 1/4 VGA 216-color display and keypad interface, the IC12D3A1AWS enables direct floor-level parameter access, real-time tightening trace monitoring, calibration routines, and rapid troubleshooting without requiring an auxiliary workstation on the line. With an auto-ranging dual-mode power supply (90–120 VAC / 200–240 VAC), optocoupled digital input/output lines, high-speed emergency stop channels, and robust Ethernet/Serial/Fieldbus integration, the IC12D architecture provides absolute repeatability and tight process control under continuous production demands.

Model Details

• Brand: Ingersoll Rand
• Model: IC12D3A1AWS
• Product Line: INSIGHT™ IC-D Series (Display Version)
• Manufacturer Part Number (MPN): IC12D3A1AWS
• Internal Assembly/Drawing Codes: 04581740 / 04581732 series architecture
• Controller Series: IC12D Single-Spindle Transducerized Controller

Technical Specifications

Equipment Compatibility

• QE Series DC Electric Tools:
  • Inline screwdrivers & nutrunners: QE2, QE4, QE6, QE8 Series
  • Pistol grip drivers: QE2P, QE4P Series
  • Angle nutrunners: QE2A, QE4A, QE6A, QE8A Series
• QM Series Fixtured Spindles:
  • QM32, QM42, QM52, QM72 Multi-Spindle DC transducerized motors
• Software Platforms:
  • Ingersoll Rand ICS (Insight Communication Software) Suite
  • Open Protocol Ethernet drivers (Atlas Copco / ToolsNet / MES integrations)
• Accessory Support:
  • Ingersoll Rand 4-position and 8-position smart bit/socket selector trays
  • External industrial barcode scanners (RS-232 / USB adapted)
  • Stack light annunciator towers (Red/Yellow/Green/Horn)

Part Number Cross-References

• IC12D3A1AWS (Configured single-spindle display model with standard I/O & Ethernet)
• IC12D3A1 (Base unit without regional accessory cable bundle)
• IC12M3A1AWS (Blind module / headless controller version for cabinet installation)
• IC1D3A1AWS (Single-spindle low-tier variant)
• IC12D-BASE (Replacement control logic motherboard)

Applications

1. Automotive & Commercial Powertrain Assembly: Engine head bolting, connecting rods, transmission casing fasteners, and suspension bracket torque-to-yield tightening.
2. Marine Engine & Winch Manufacturing: Torquing marine auxiliary generator injectors, turbocharger flange joints, cylinder covers, and high-vibration piping manifolds.
3. Aerospace & Defense Structural Bolting: Airframe structural panels, actuator fasteners, landing gear brackets requiring strict traceability and angle monitoring.
4. Heavy Off-Highway & Rail Equipment: Bogie bolting, hydraulic distribution manifold fasteners, and braking system assembly requiring multi-step torque audit trails.
5. Consumer Electronics & White Goods Fastening: Controlled micro-torque assembly lines where fastener strip-out and cross-threading must be eliminated.

Frequently Asked Questions

What is the difference between the IC12D and IC12M controller variants?

The IC12D is equipped with an integrated 1/4 VGA 216-color display and keypad navigation module for standalone line-side setup and monitoring. The IC12M is a “blind” headless unit without a physical screen, designed to save cabinet footprint inside centralized electrical enclosures and programmed exclusively via network PC connections.

Can the IC12D3A1AWS run both 110V and 220V electrical supplies?

Yes. The controller is equipped with an auto-ranging power supply that detects input supply voltages from 90–120 VAC or 200–240 VAC single-phase at 50/60 Hz without requiring internal transformer jumper shifts.Which Ingersoll Rand tightening tools work with this unit?This controller is designed to support the complete family of Ingersoll Rand QE and QM Series transducerized DC electric tools. The controller auto-detects the connected tool model, motor constants, and load limits via on-tool EEPROM handshaking upon connection.

How are tightening results and run curves extracted from the controller?

Fastening data can be exported through several communication paths: via 10/100 Ethernet using Ingersoll Rand ICS software or Open Protocol to an MES/SCADA system, or routed via the RS-232 serial ports directly to local label printers and continuous audit loggers.

What does the internal diagnostic self-test evaluate upon startup?

During boot-up, the IC-D controller checks the main logic CPU, reads EEPROM flash memory tables, tests the motor driver power stage H-bridge, calculates resolver offset zeroing, and measures ambient heatsink temperatures before enabling the primary safety run-relay.
