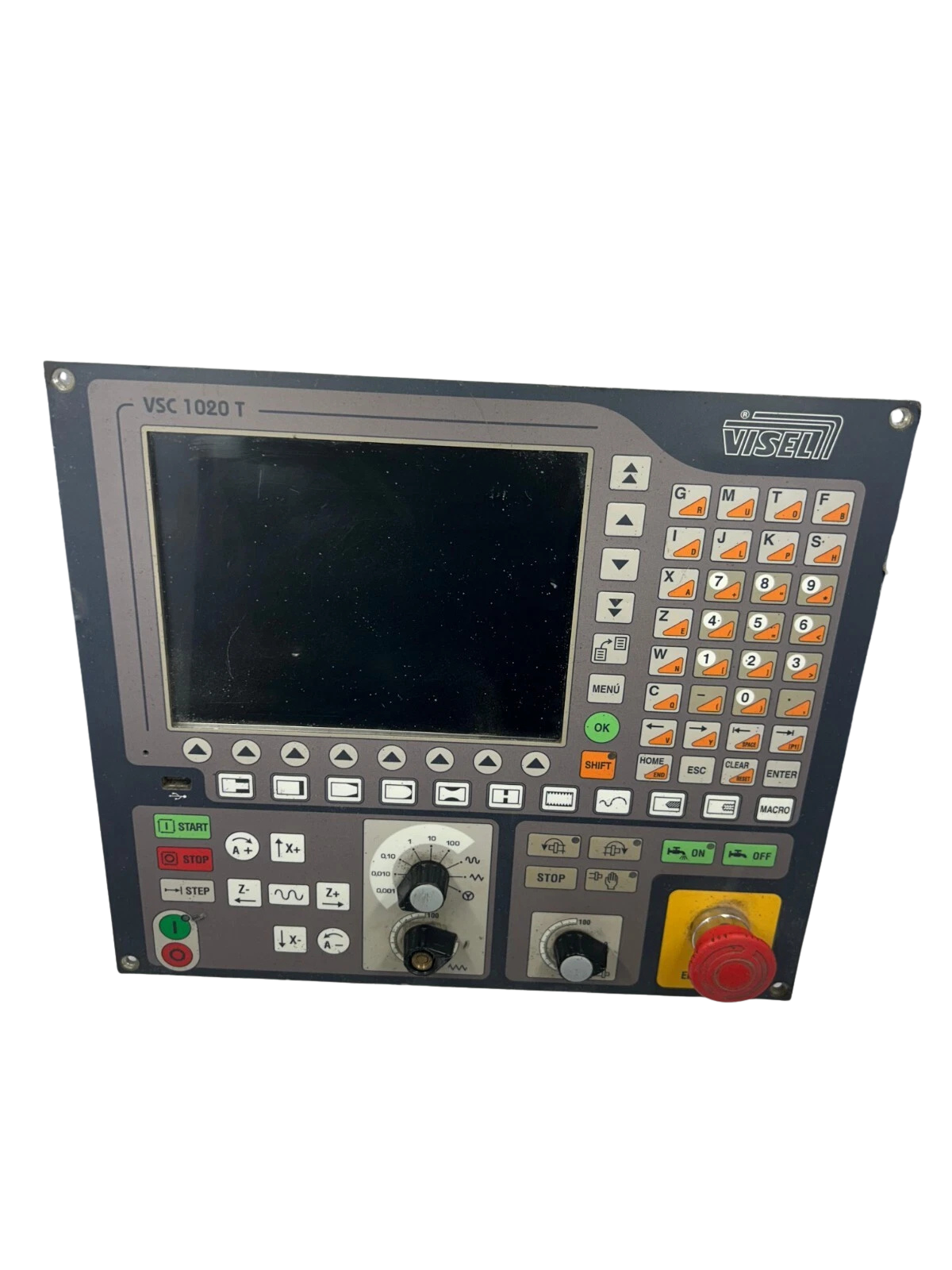

VISEL VSC 1020T Industrial CNC Controller Unit 60W

VISEL Elettronica Industriale VSC 1020T Industrial CNC Controller (Power: 60W)

The VISEL Elettronica Industriale VSC 1020T is an Italian-engineered, industrial CNC control unit purpose-built for multi-axis lathes, heavy-duty turning centers, and precision cylinder/roll-grinding machinery. Engineered and manufactured in the European Union, the VSC 1020T consolidates dedicated turning algorithms, closed-loop servo command channels, digital/analog spindle interfacing, and robust operator interaction into a compact, low-thermal-footprint 60W package.

Whether deployed onboard container vessels for emergency shipboard machining or in harsh land-based machine shops, the VSC 1020T delivers deterministic tool-path calculations and direct hardware execution. It supports both direct ISO G-code standard programming and automated conversational turning cycles (threading, profiling, tapering, and roughing) without requiring external CAD/CAM software overhead.

Model Details

• Manufacturer: VISEL Elettronica Industriale S.n.c. (Italy / European Union)
• Model: VSC 1020T (Turning / Lathe Configuration)
• Manufacturer Part Number (MPN): VSC 1020T

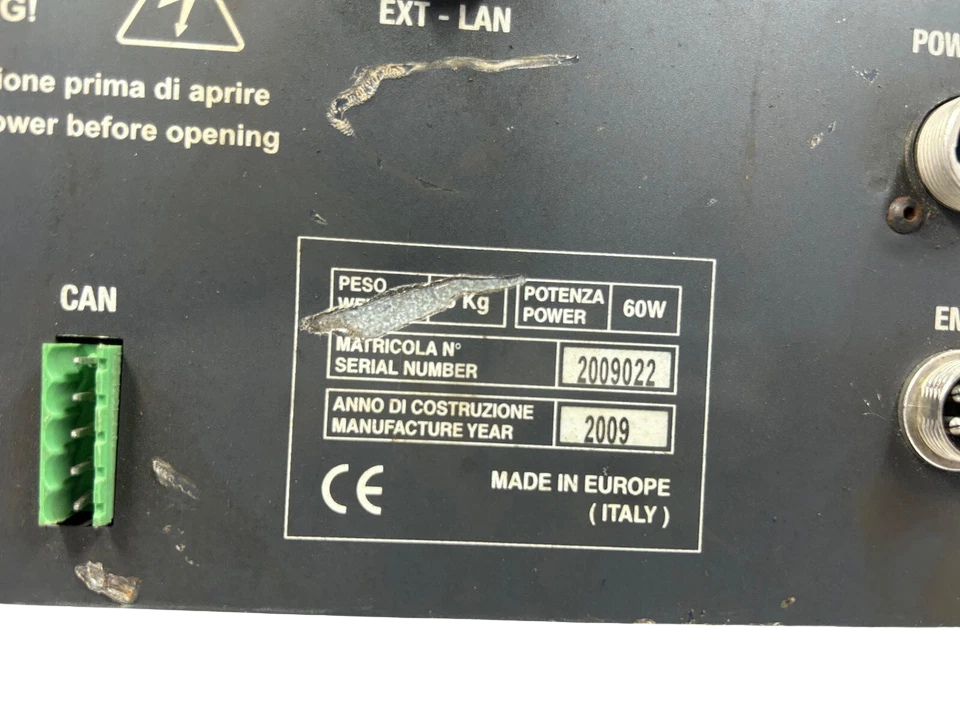

• Power Rating: 60 Watts

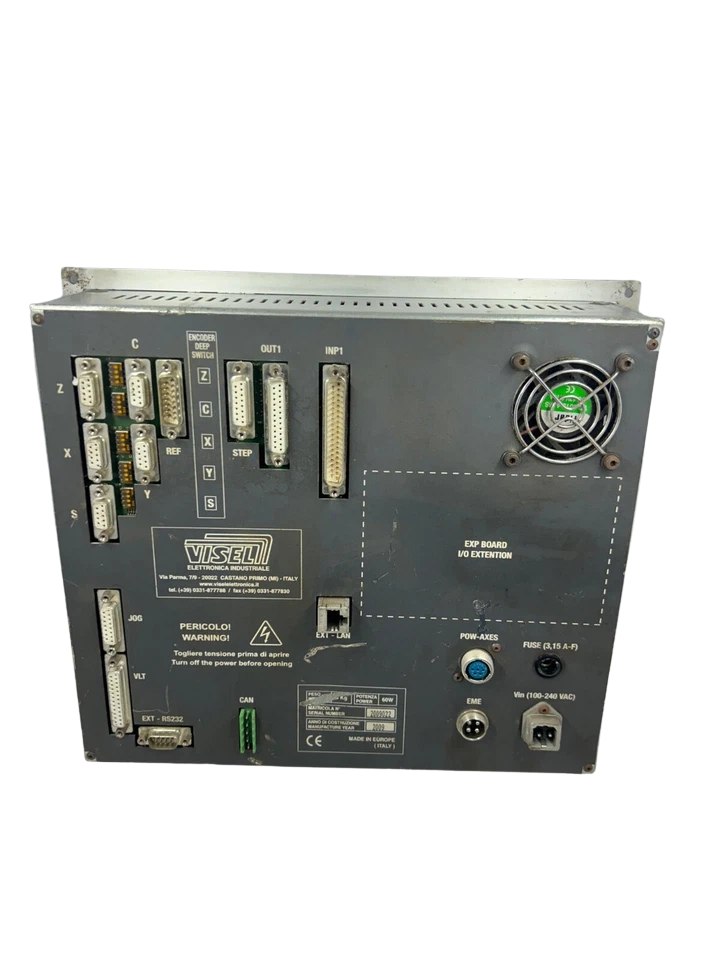

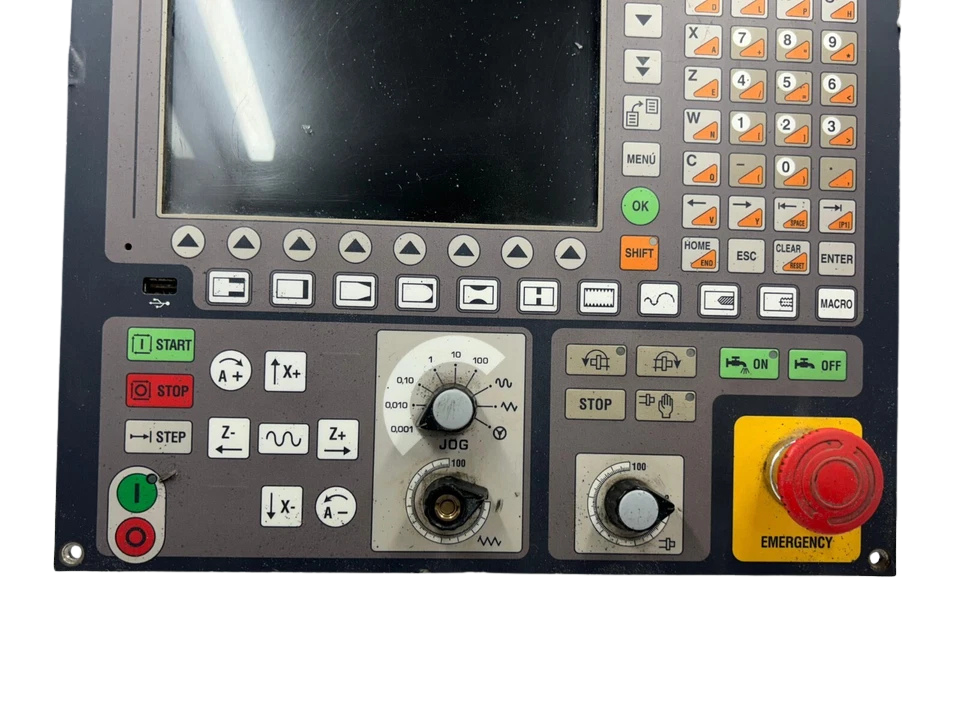

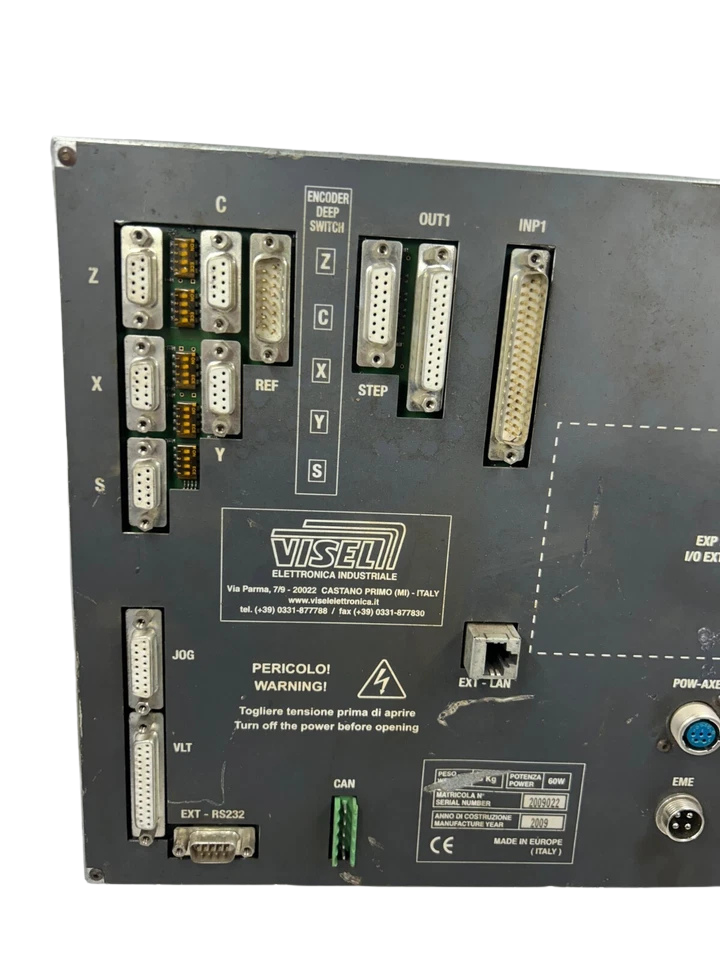

• Hardware Architecture: Embedded high-speed micro-controller with integrated HMI, industrial front membrane keypad, and backplane I/O expansion bus

Features

1. Tailored Turning & Lathe Firmware (“T” Specification): Out-of-the-box support for constant surface speed (CSS), multipass longitudinal/transversal roughing, thread chasing/cutting, chamfering, and rigid tapping.
2. Ultra-Low 60W Power Consumption: Operates on an energy-efficient 60W power envelope, drastically minimizing internal enclosure heat build-up and extending electrolytic component life in enclosed marine bridge and engine workshops.
3. Multi-Axis & Spindle Control Interfacing: Manages coordinated dual/multi-axis motion (X, Z axes, with C-axis indexing capability) via high-speed encoder feedback and dual +/-10V analog or pulse/direction servo command outputs.
4. Industrial Noise Immunity: European CE-compliant EMC/EMI shielded architecture, engineered to suppress power supply transients, inverter electrical noise, and harmonic distortion common to shipboard auxiliary grids.
5. Conversational Macro & Standard ISO Programming: Dual operating architecture allows rapid manual workshop intervention via built-in macro cycles as well as complex ISO (G/M-code) profile parsing.

Technical Details

Compatible Equipments

• Pentamac Lathe Series: Direct fitment for Pentamac HV 1000, HV 2000, and HV 3000 series heavy-duty turning machinery.
• Engine & Toolroom Lathes: Compatible with European, Taiwanese, and American flat-bed and slant-bed lathe retrofits (e.g., Graziano, Colchester, Harrison, CMT, Tacchella).
• Roll & Cylindrical Grinders: Roll-grinding machines requiring precision Z/X pitch profiling and constant-contact speed management.
• Servo Drive Compatibility: Interoperable with digital and analog servo drives from Siemens (Simodrive/Sinamics), Yaskawa, Omron, Delta, Parker, and SANYO DENKI.

Applications

• Shipboard Emergency Workshops: Fabrication and resurfacing of marine pump shafts, valve seats, propeller shaft sleeves, and coupling bolts.
• Roll & Cylinder Machining: Industrial roll resurfacing, grinding, and re-crowning in paper mills, steel plants, and rubber fabrication.
• Heavy Production Turning: High-torque, multi-gear-step turning operations with automatic spindle range synchronization.
• Legacy Machine Retrofitting: Modernizing obsolete CNC cabinets without altering existing mechanical leadscrews or hydraulic chuck interfaces.

Part Number Cross-References

• VISEL VSC 1020T (Direct Turning Controller Model)
• VISEL VSC 1020M (Milling Variant Alternative — Requires Software/Configuration Parameter Change)
• VISEL VSC 1030T (Extended Screen / Expanded I/O Successor Series)
• Internal Assembly Ref: VSC-1020-T-60W

Frequently Asked Questions

Can the VISEL VSC 1020T be used as a direct replacement for the VSC 1020M?

The VSC 1020T is factory-configured with firmware dedicated specifically to lathes and turning centers (“T” variant), whereas the “M” designation denotes milling and machining center routines. While physical panel cutouts and rack mountings are identical, turning operations require the dedicated threading, CSS, and taper-cycle logic inherent to the 1020T.

What is the primary cause of axis encoder communication errors on this unit?

Encoder errors are almost universally traced to loose RS-422 differential line-driver pairs (specifically /A or /B phase disconnects) or missing ground references between the machine scale/encoder body and the CNC chassis. Check continuity on the feedback D-Sub connector pins before assuming controller hardware failure.
