Taiyo FC-FR-U Flow Indicator

Taiyo Valve FC-FR-U Sight Flow Indicator & Switch

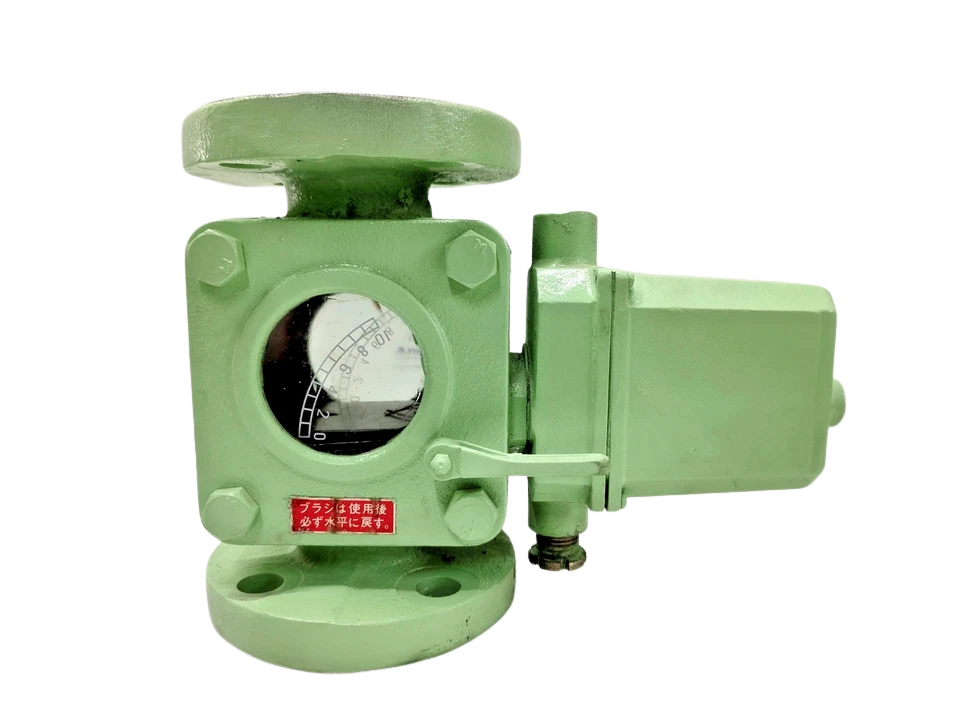

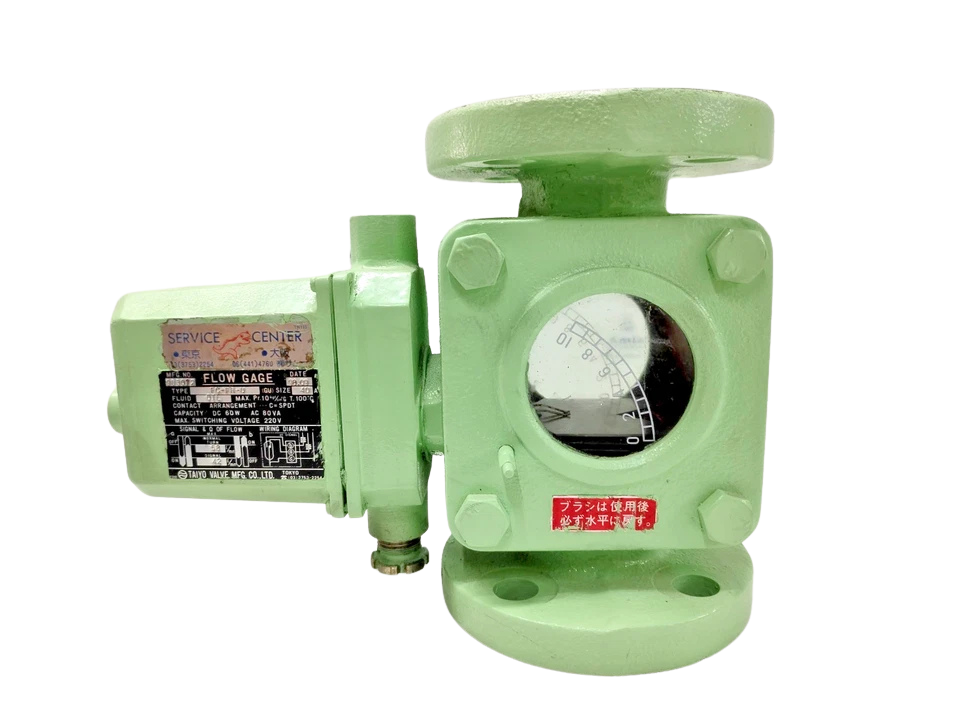

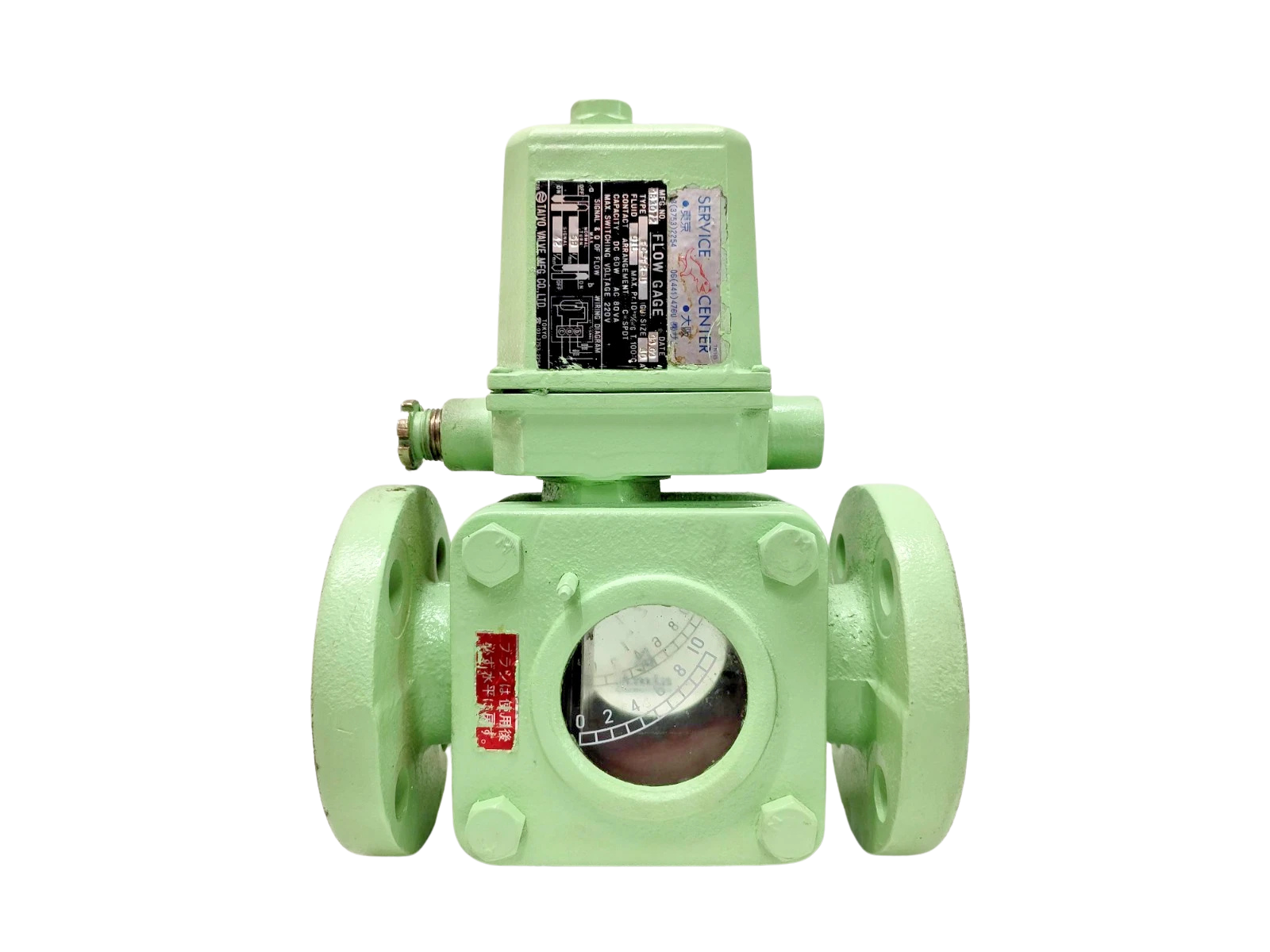

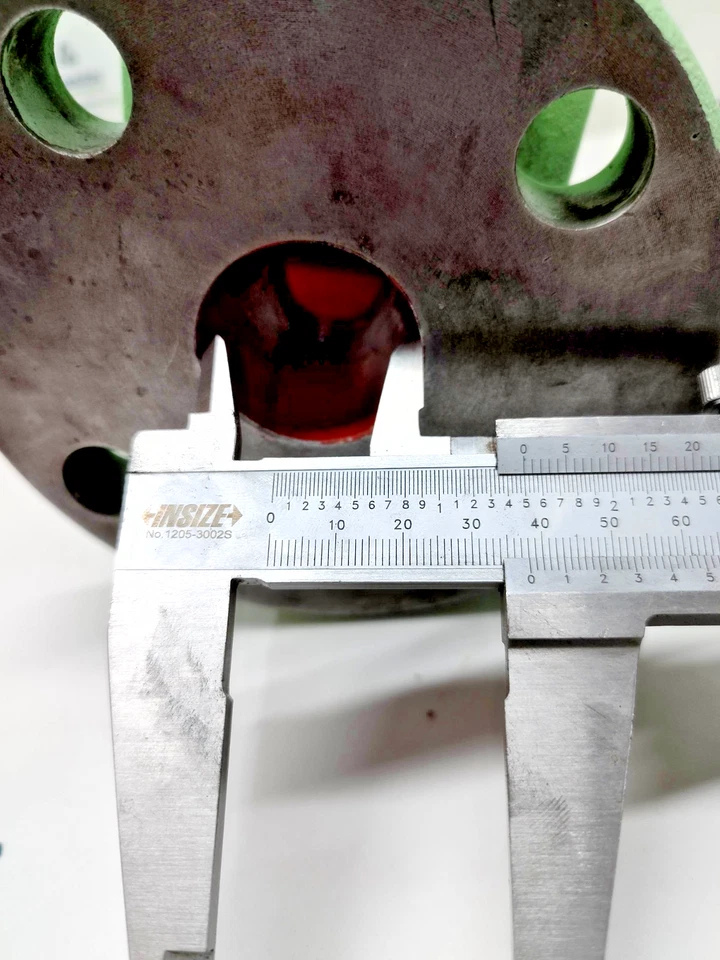

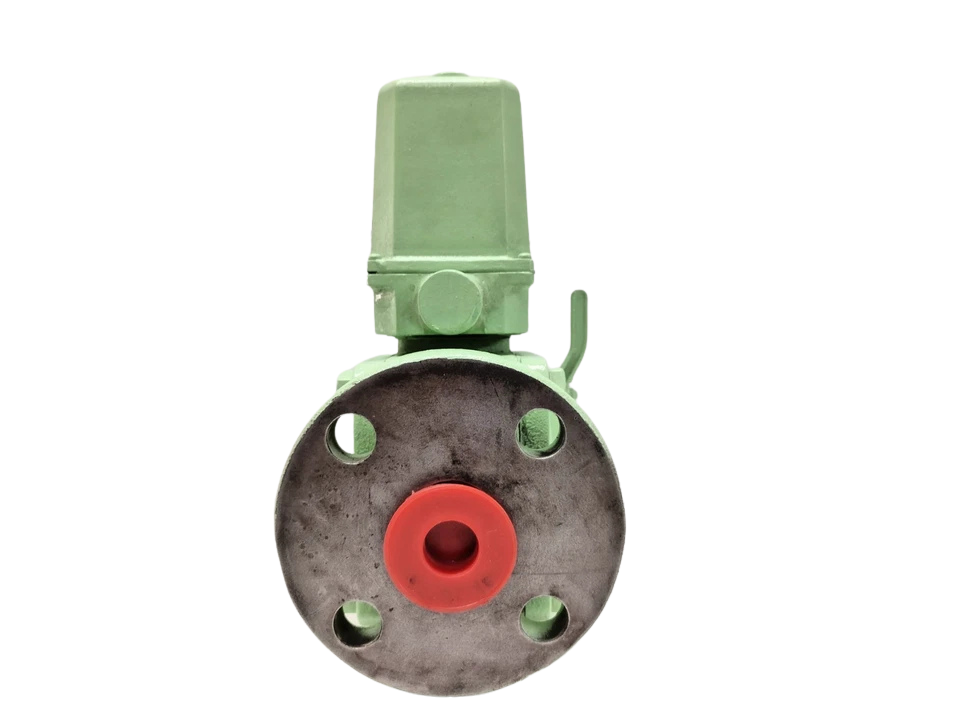

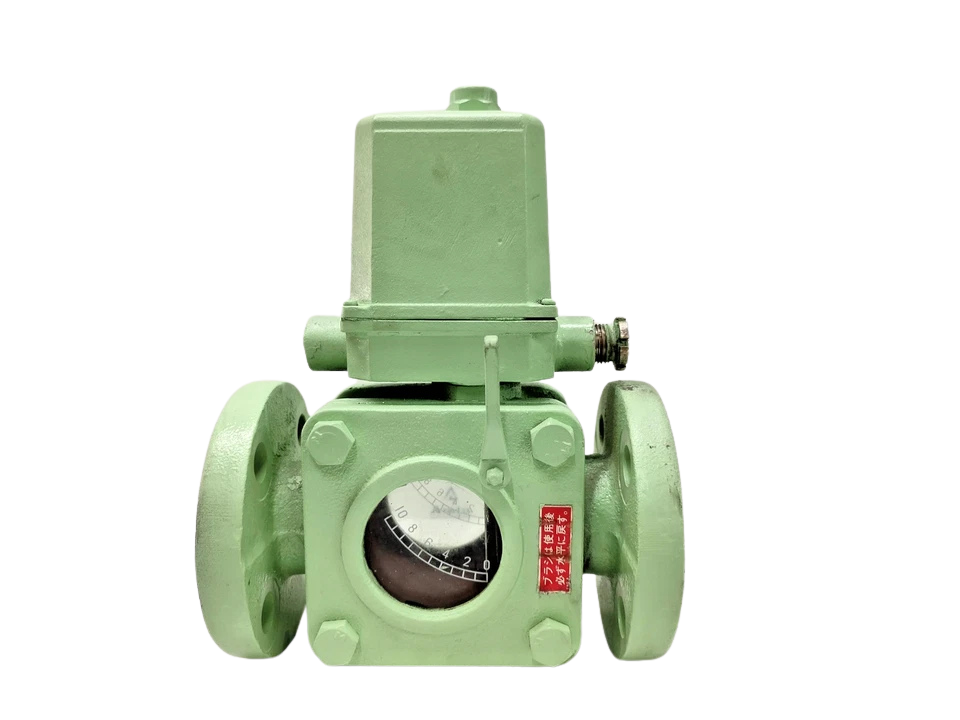

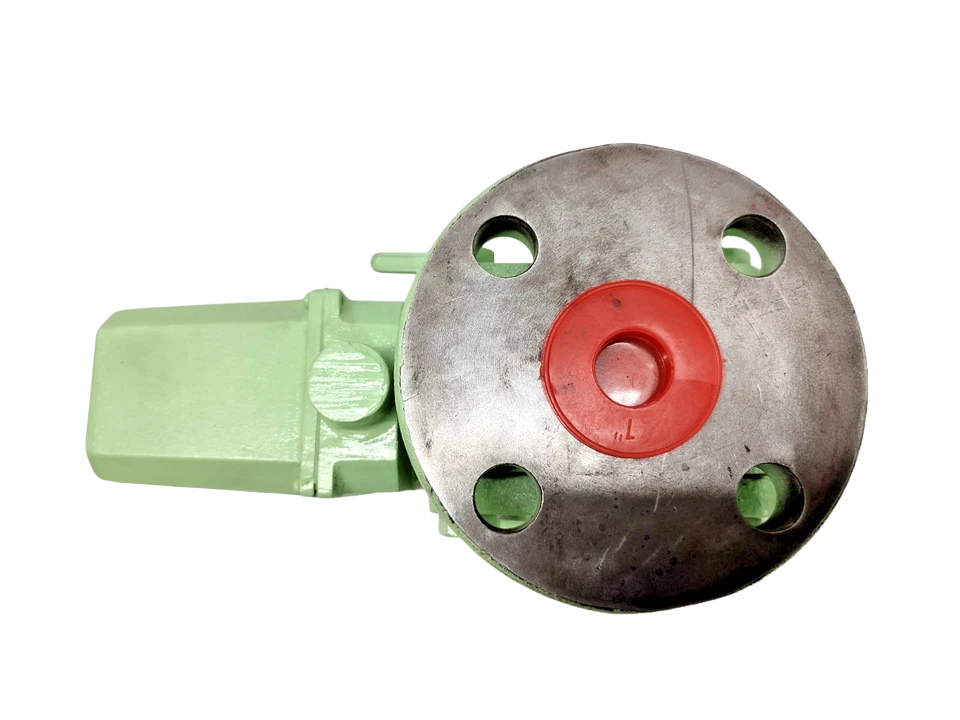

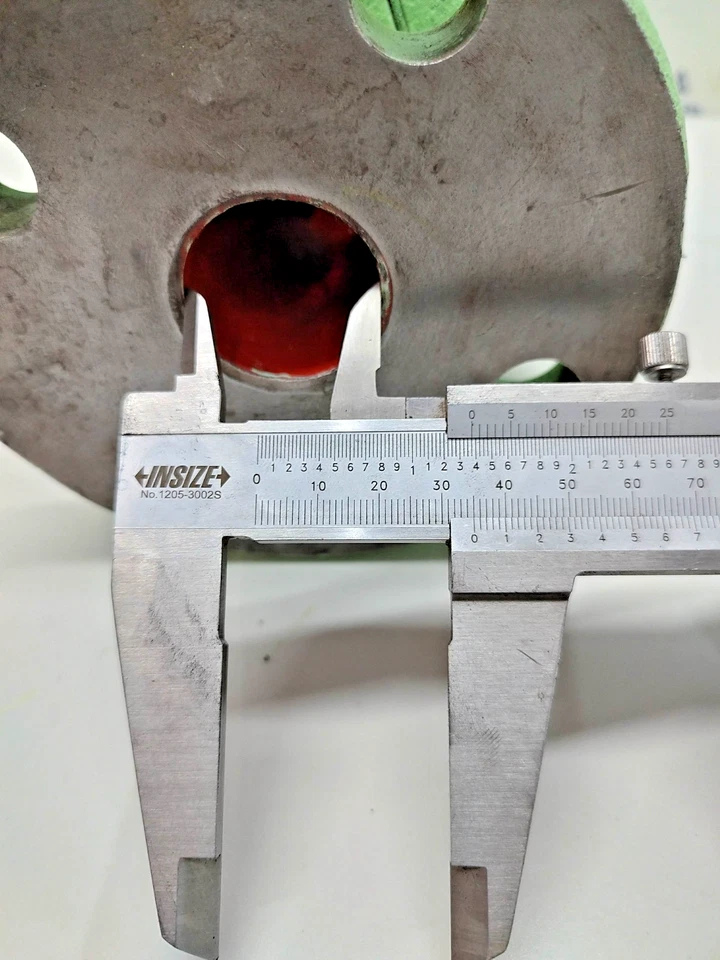

The Taiyo Valve FC-FR-U is a flapper-actuated sight flow indicator designed to provide real-time visual confirmation and automated electrical alarm monitoring for closed-loop fluid lines. Engineered by Taiyo Valve Mfg. Co., Ltd. (Japan), the FC-FR-U model combines a double-sided high-pressure tempered borosilicate sight glass with a weighted mechanical flapper and an integrated internal glass wiper assembly.

The unit monitors critical lubrication oil loops, diesel generator cooling lines, boiler feedwater loops, and pump seal flushing systems. The integrated contact module (reed or microswitch configuration) actuates at calibrated lower-limit flow thresholds to prevent equipment starvation, pump cavitation, and thermal runaway. Its rotatable terminal connection housing and mechanical wiper arm allow marine engineers to maintain optic visibility and service field wiring without disturbing the pressure boundary.

Model Details

• Manufacturer: Taiyo Valve Mfg. Co., Ltd.
• Model Code: FC-FR-U
• Manufacturer Part Number (MPN): FC-FR-U-10K
• Series Family: Taiyo FC/FR Flapper-Wiper Marine Flow Series
• Design Standard: JIS B2220 / Marine Flanged Standards

Features

1. Dual-Action Visual & Electrical Supervision: Combines a high-contrast graduated deflection scale visible through heavy-wall sight windows with a snap-acting electrical alarm switch for low-flow interlocking.
2. Integral Double-Faced Wiper Mechanism: Equipped with an external manual wiper lever that drives internal fluororubber/PTFE wiping blades across the glass face, dislodging marine sludge, lube oil deposits, and algae without pipeline depressurization.

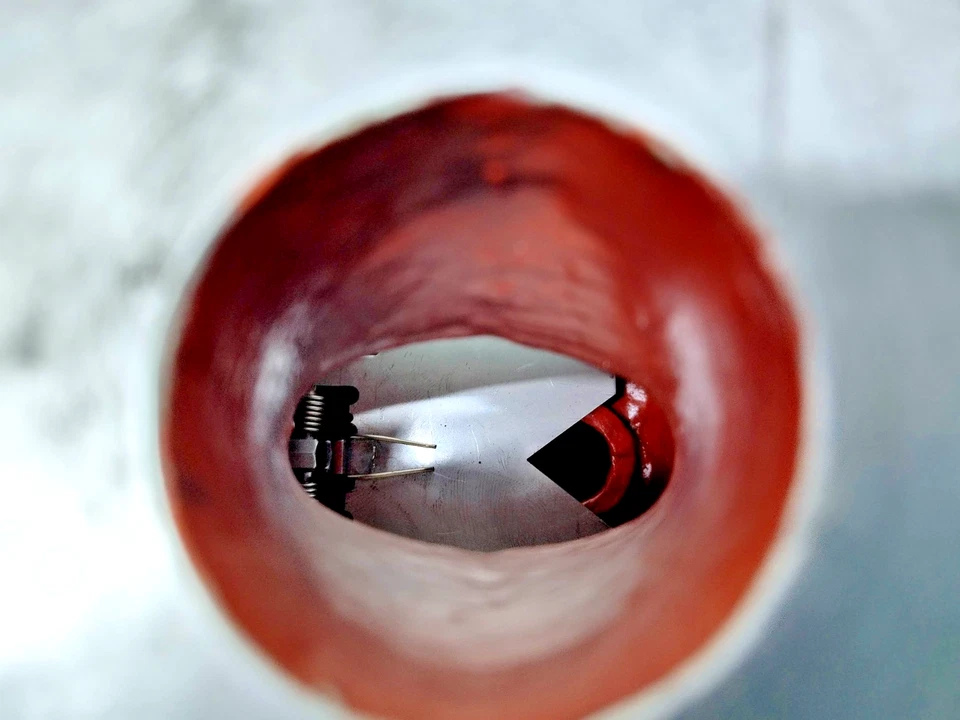

3. Low Pressure Drop Hydraulic Profile: The hydrodynamically balanced flapper mechanism minimizes head loss across both high-viscosity and low-viscosity continuous flow regimes.

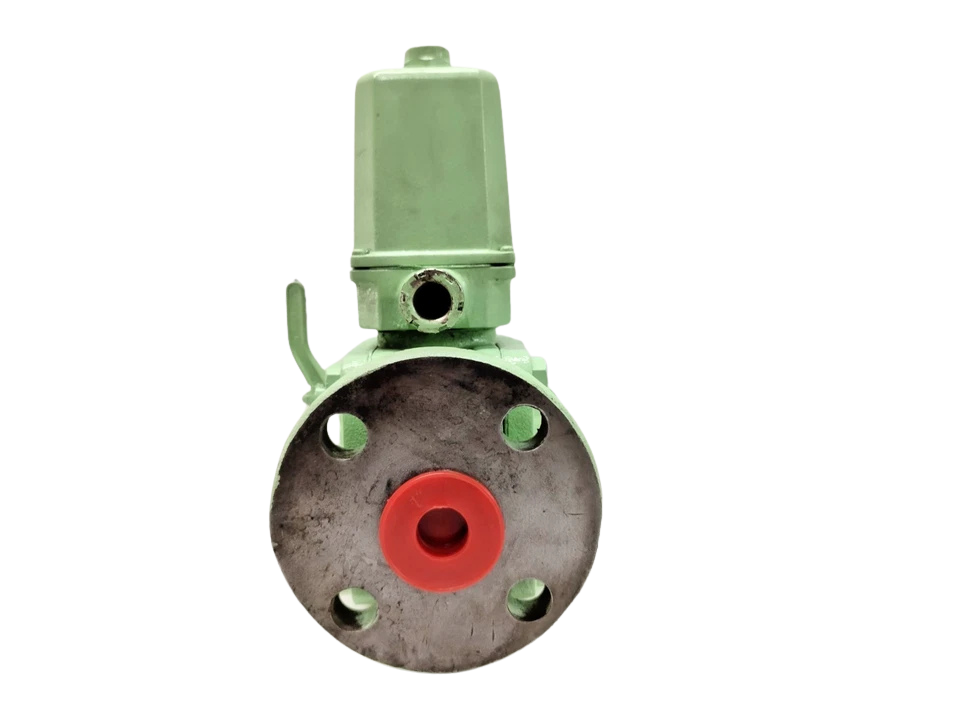

4. Rotatable Die-Cast Electrical Terminal Enclosure: Features a 360-degree indexed terminal enclosure (IP65 equivalent) for simplified marine cabling runs, vibration isolation, and moisture barrier integrity.
5. High Shock & Vibration Resistance: Engineered specifically for severe shipboard machinery spaces, enduring continuous diesel harmonic vibration without false microswitch triggering or pointer flutter.

Technical Details

Compatibility

• Two-Stroke & Four-Stroke Marine Diesel Engines: Compatible with cylinder liner fresh cooling water and camshaft lubricating oil returns on MAN Energy Solutions (B&W 50–90ME/MC series), WinGD / Sulzer (RTA, RT-flex, X-series), Daihatsu (DK/DE/DC series), and Yanmar (EY, N, M series).
• Centrifugal & Screw Pumps: Mechanical seal flushing lines and seal barrier fluid circuits (Taiko Kikai, Shinko, Naniwa, Allweiler, and IMO pump systems).
• Marine Air Compressors & Auxiliary Systems: Cylinder head water jackets for Sperre, Sauer, Tanabe, and Hatlapa air compressors.
• Industrial Plant Infrastructure: Turbo-generator bearing lube lines, plate heat exchanger (PHE) cooling circuits, and oily bilge water separation lines.

Applications

• Main & Auxiliary Engine Cooling Systems: Verification of central fresh water (LT/HT jacket water) flow rates to prevent overheating and thermal shock.
• Turbomachinery Bearing Lubrication: Visual surveillance and no-flow trip interlocks for turbine and reduction gear bearings.
• Shaft Bearings & Stern Tube Systems: Gravity lube oil supply loop tracking and bearing return visibility.
• Boiler Feedwater & Condenser Circuits: Visual detection of backflow, steam carryover, or circulation line blockages.
• Fuel Oil Conditioning Modules: Low-viscosity MGO/MDO flow indication on booster and supply pump skids.

Frequently Asked Questions

What is the primary operational difference between the Taiyo FC-FR-U and basic sight glasses?

Standard sight glasses only provide a window for passive visual inspection. The Taiyo FC-FR-U features an internal hydro-deflection flapper with an indexed scale for rough volumetric monitoring, an external manual wiper arm to maintain optical visibility in dark oil lines, and an integrated electrical microswitch that triggers plant automation systems during low or no-flow events.

Can the Taiyo FC-FR-U be installed on lubricating oil lines with dark, heavy viscosity?

Yes. The model is specifically engineered for diesel engine crankcase oils, gear reduction loops, and heavy-viscosity marine lubricants. The built-in mechanical wiper allows watchkeepers to scrape soot and carbon film off the inner borosilicate surface instantly by rotating the wiper lever.

What are the standard terminal wiring allocations for the alarm circuit?

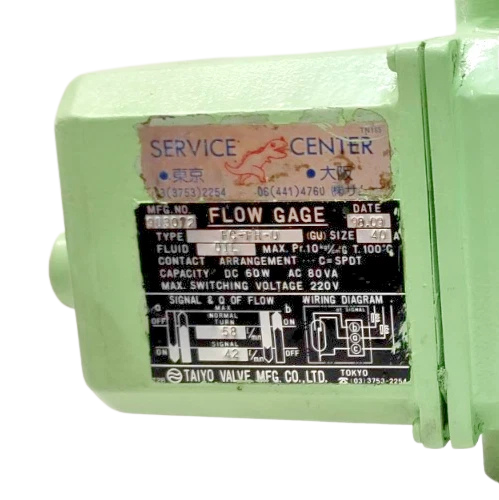

The terminal junction block typically consists of three active connections: Terminal 1 serves as Common (COM), Terminal 2 is Normally Open (NO), and Terminal 3 is Normally Closed (NC), alongside a dedicated protective earth (PE) ground stud. Under normal operating flow, the switch remains held in its normal state; if flow drops beneath the trip threshold, the flapper triggers the contact switch to signal an alarm state.

How do I configure the flow switch trip threshold?

The switch setpoint is adjustable via the internal microswitch cam mechanism located inside the rotatable electrical enclosure. By slackening the internal set screw, the cam index can be shifted along the graduated scale to calibrate tripping at lower or higher flapper angles depending on operating flow velocities.

Can this unit handle continuous seawater service?

The standard FC-FR-U ductile iron (FCD450/FC200) body is primarily built for jacket fresh water, lubricating oils, fuel lines, and closed utility loops. For raw seawater cooling lines, a marine bronze (BC) or cast stainless steel (SCS13/SUS316) body option should be specified to resist galvanic marine corrosion.
