ABB ACS580-01-017A-4 VFD | 7.5 kW 10 hp Enclosed Drive
$1,399.00
Condition: New – Open Box
1 in stock

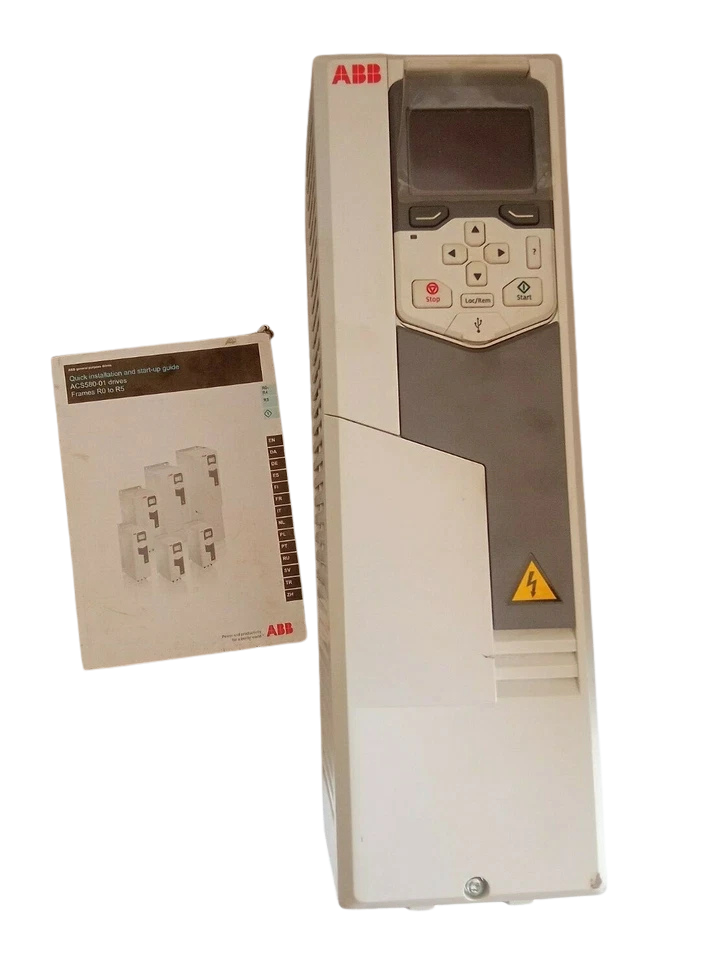

ABB ACS580-01-017A-4 7.5 kW/10 hp Enclosed Variable Frequency Drive
The ABB ACS580-01 is an AC variable frequency drive, wall-mounted, all-compatible, designed to simplify motor control over a wide range of variable and constant torque applications. This R2 frame-size device for 3-phase supply of 380V to 480V has a nominal output current of 17.0 A and provides precise, energy optimized control of 7.5 kW (10 h).

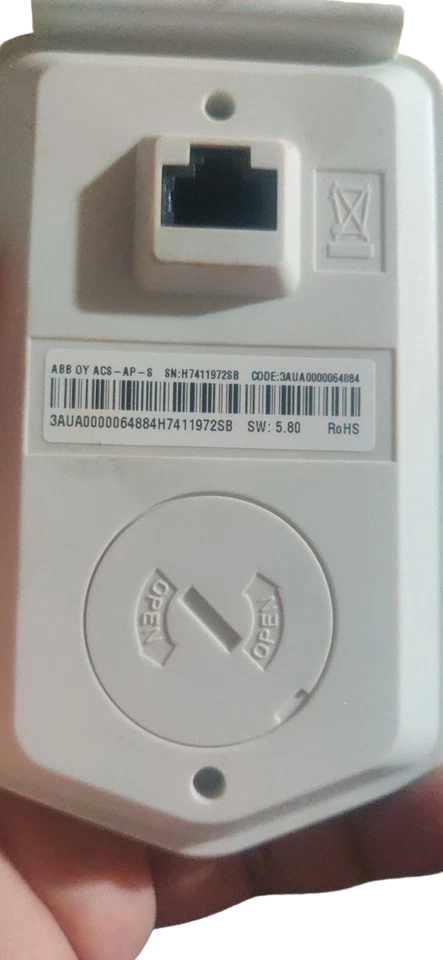

The ACS580-01 features an integrated second-generation swinging choke for improved harmonic suppression, a built-in C2 category EMC filter and dual-channel Safe Torque Off (STO) safety functions, eliminating the need for an additional filtering enclosure. Standard is the drive with coated circuit boards to avoid deterioration by moisture, conductive dust and salt mist. An assistant control panel in multi-language with USB connectivity enables easy commissioning and diagnostic access.
Model Id:
- Brand: ABB
- Model Series: ACS580-01 (Wall-Mounted General Purpose Drive)
- Full Type Designation: ACS580-01-017A-4
- Material / Product ID: 3AUA0000080493
- Alternative Part ID (New Generation / Global Replacement): 3AUA0000080494
- EAN Code: 6438177305491
- Frame Size: R2

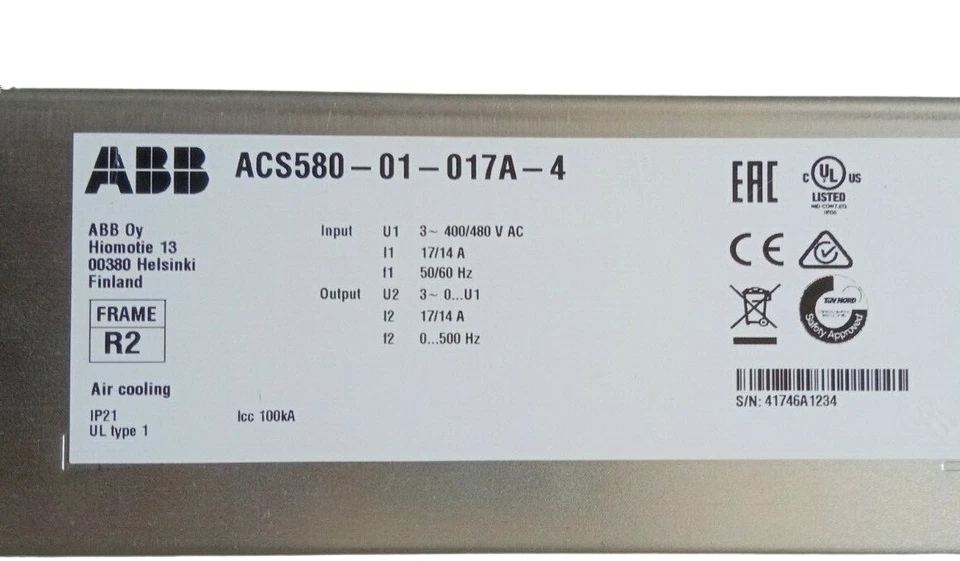

Technical Specifictions: ABB ACS580-01-017A-4
| Input Ratings & Supply Specifications | |
|---|---|
| Mains Phase | 3-Phase (3~ ) |
| Input Voltage Range | 380 V AC to 480 V AC (+10% / -15%) |
| Input Frequency Range | 47 Hz to 63 Hz |
| Nominal Input Current (I1N) | 17.0 A (Continuous) |
| Output Ratings & Motor Performance | |
| Nominal Output Current (I2N) | 17.0 A (Normal Duty / Light Overload) |
| Heavy-Duty Output Current (Ihd) | 12.6 A (High-torque continuous rating) |
| Maximum Output Current (Imax) | 23.0 A (Start-up / Transient peak allowance) |
| Motor Power (Light Duty / Normal) | 7.5 kW / 10.0 hp |
| Motor Power (Heavy Duty) | 5.5 kW / 7.5 hp |
| Output Frequency Range | 0 Hz to 500 Hz |
| Control Interface & Terminal Allocations | |
| Analog Inputs | 2x Programmable (Voltage 0-10V, Current 0/4-20mA), single-ended |
| Analog Outputs | 2x Programmable Current Outputs (0/4-20mA) |
| Digital Inputs | 6x Programmable PNP/NPN Digital Inputs (24V DC internal/external supply) |
| Relay Outputs | 3x Programmable Form-C Relay Outputs (250V AC / 30V DC, max 2A) |
| Safe Torque Off (STO) | Dual-channel SIL3 / PL e terminal block configuration |
| Embedded Communication | EIA-485 Modbus RTU interface via control board terminals |
| Physical & Environmental Profiles | |
| Enclosure Protection Class | IP21 / UL Type 1 (Wall-mounted indoor configuration) |
| Frame Dimensions (H x W x D) | 526 mm x 228 mm x 344 mm |
| Net Weight | 7.54 kg (16.6 lbs) |
| Operating Ambient Temp | -15°C to +40°C (no derating); up to +50°C with 1% per °C derating |
| Circuit Board Protection | Coated boards compliant with IEC 60721-3-3 Class 3C2 |
Key Features
- All-Compatible Control Architecture: Fully compatible with asynchronous induction motors, permanent magnet synchronous motors (PMSM) and synchronous reluctance motors (SynRM) in both scalar and vector tracking profiles.
- Advanced Harmonics Mitigation: Second generation swinging choke built directly inside the frame reduces Total Harmonic Distortion (THD) without the need for heavy external AC line reactors.
- Integrated Functional Safety The drive is SIL3 (EN/IEC 61508) and PL e (EN ISO 13849-1) qualified for emergency safety systems with embedded dual-channel Safe Torque Off (STO).
- Aggressive Environmental Defense: Uses Class 3C2 chemical gas and 3S2 solid particle conformal coated PCBs as normal engineering practice for long life in high humidity and corrosive conditions.
- Simple Configuration Interfaces: An assistance graphic control panel with incorporated USB diagnostic interface for PC-based parameter adjustment, monitoring and trending using Drive Composer.
Compatible Equipment Models & System Integration
The ACS580-01-017A-4 integrates with a wide variety of fieldbus protocols and expansion infrastructure:
- Fieldbus Adapters: FPBA-01 (Profibus DP), FENA-21 (EtherNet/IP, Modbus TCP, PROFINET IO), FCAN-01 (CANopen), FECA-01 (EtherCAT), and FSCA-01 (Modbus RTU over RS-485).
- Input/Output Extensions: CMOD-01 (External 24V AC/DC and Digital I/O extension) and CMOD-02 (External 24V AC/DC and isolated PTC thermistor interface).
- Motor Compatibility: Matches directly with ABB M3BP, M3AA, and standard IEC/NEMA high-efficiency premium induction or synchronous motors matching output voltage metrics.
Engineering Applications
- Centrifugal & Positive Displacement Pumps: Tailored torque-curve algorithms control ballast water pumps, bilge transfer lines, freshwater pressure systems, and booster pumps.
- Industrial & Marine Ventilation Fans: Optimizes energy demands on engine room supply fans, HVAC air handling units, exhaust arrays, and scrubbers.
- Material Handling Conveyors: High breakaway torque limits allow smooth control over industrial belt feeds, baggage carousels, and packaging machinery.
- Screw & Reciprocating Compressors: Torque-ripple compensation software dampens mechanical stress during pressure cycles in refrigeration systems and factory air loops.
